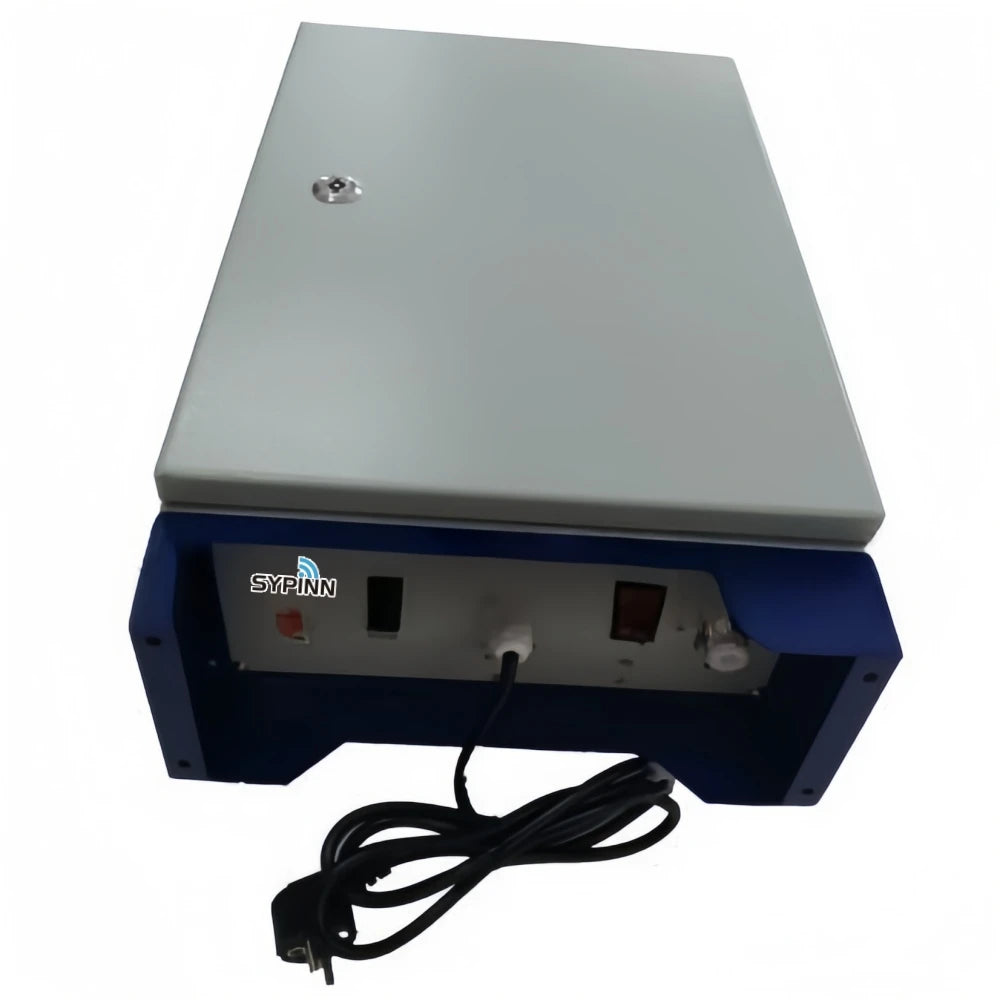

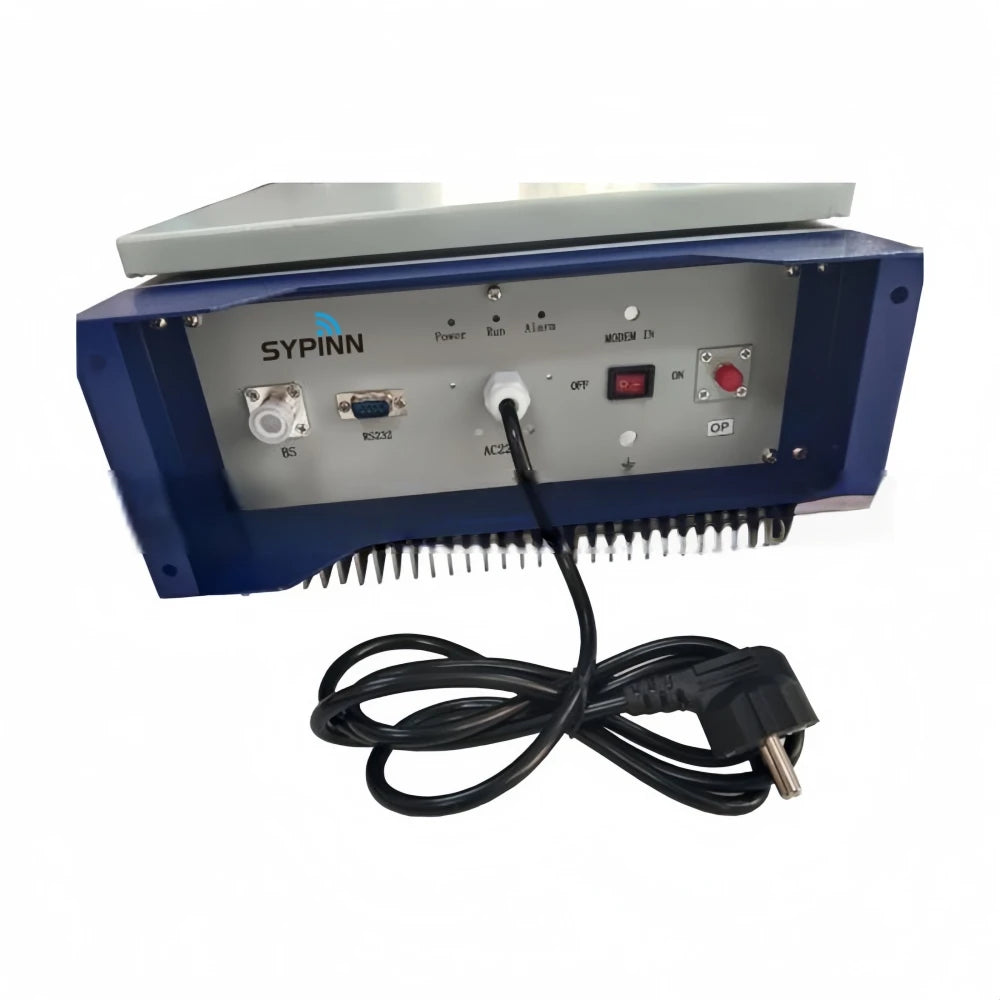

380-385MHz 390-395MHz 50W Wireless Optical Repeater Amplifier With N-Female Connector
Host
$1,290.90
Skip to product information
380-385MHz 390-395MHz 50W Wireless Optical Repeater Amplifier With N-Female Connector
$1,290.90
SPECIFICATIONS
Brand Name: SYPINN
Model Number: SDR-390/380M
Place of Origin: Guangdong, China
Type: Digital Repeater
Product Description
380-385MHz 390-395MHz 50W Wireless Optical Repeater Amplifier With N-Female Connector
Product Name |
Optical Repeater |
||
Model No. |
SDR-390/380M |
||
Specification |
Downlink |
Uplink |
|
Frequency Range |
390-395MHz |
380-385MHz |
|
Max Bandwidth |
5MHz |
||
Output Power |
- |
10±2dBm |
|
Max RF Input level |
+5dBm |
- |
|
Min RF Input level |
-70dBm |
- |
|
Max RF input without damage |
10dBm |
- |
|
VSWR |
≤1.5 |
||
IMD |
≤45dBc |
||
Pass-band Ripple (in Band) |
≤3dB |
||
Time Delay |
≤35.0μs |
||
Connector |
N-Female |
||
Optical Output Power |
+3dBm±2dB |
- |
|
Optical Max Input power |
- |
+4dBm |
|
Optical Min Input power |
- |
+0dBm |
|
Optical Input damage level |
- |
+10dBm |
|
Optical length |
DL:1310nm, UL:1550nm |
||
Max Optical Path Loss |
≤10dB /Includes the loss of the optical splitter |
||
Optical Connector |
LC/PC |
||
Nos OfOptical Ports |
4 |
||
Power Supply |
AC 100V ~ 240V / 50 Hz or DC 42V ~ 60V |
||
Dimension |
530mm*310mm*195mm |
||
Weight |
23kg |
||
Max. Power Consumption |
50W |
||
Operating Temperature |
-5~+45℃ |
||
Operating Humidity |
≤85% |
||
Environmental Class |
IP65 |
||
RF Connector |
N-Female, 50ohm |
||
MTBF |
≥30000 hours |
||
Monitor Interface |
Using RS232 cable |
||
