Features:

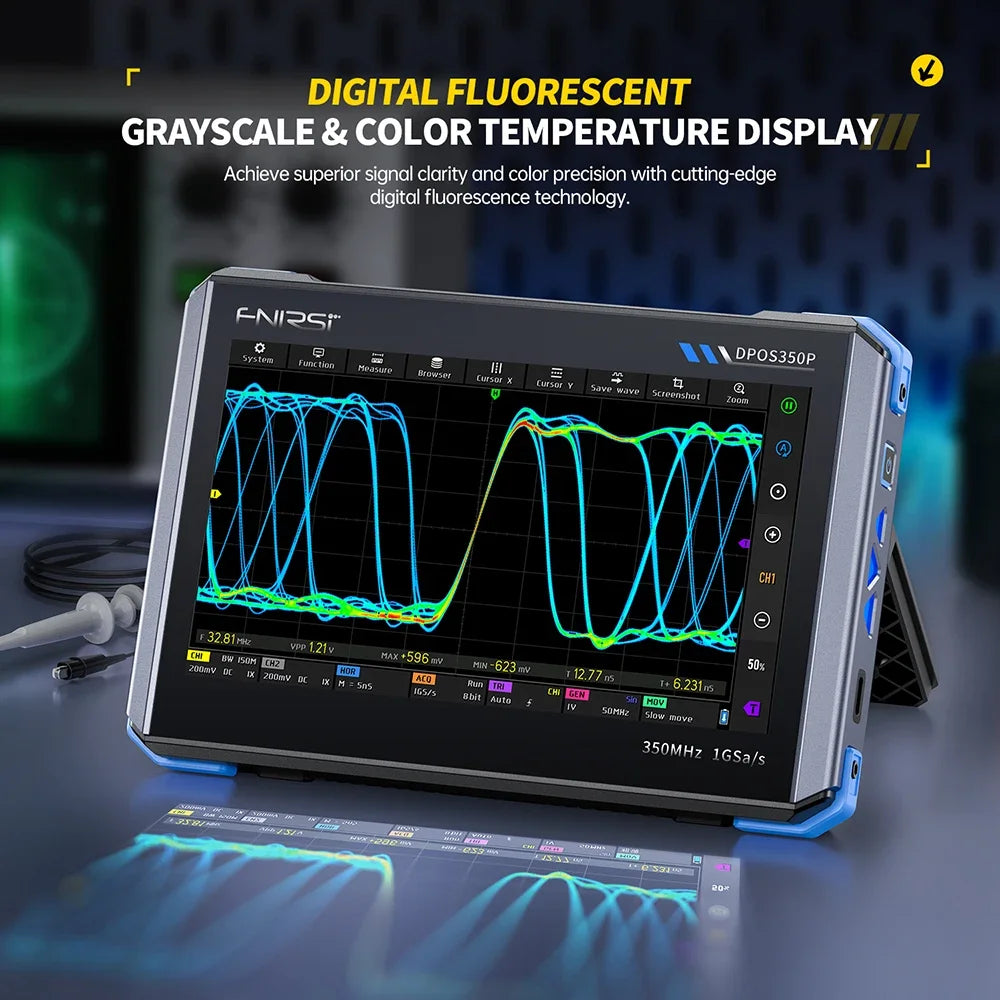

1.Small body, high energy: Four in one digital fluorescence oscilloscope, full-featured signal generator, spectrum analyzer, and frequency response analyzer.

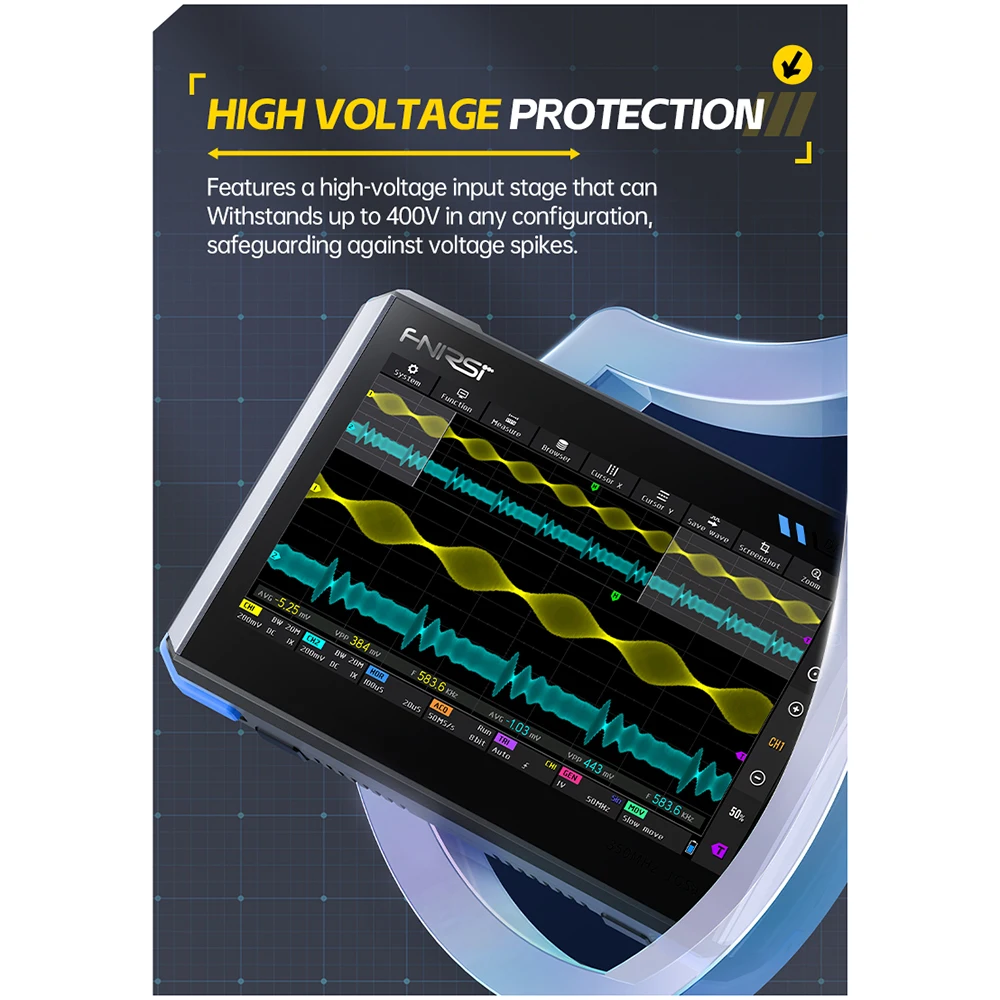

2.High voltage anti burn protection: The front-end input design adopts a high-voltage resistant design, which can achieve a withstand voltage of over 400v in any gear without being burned out.

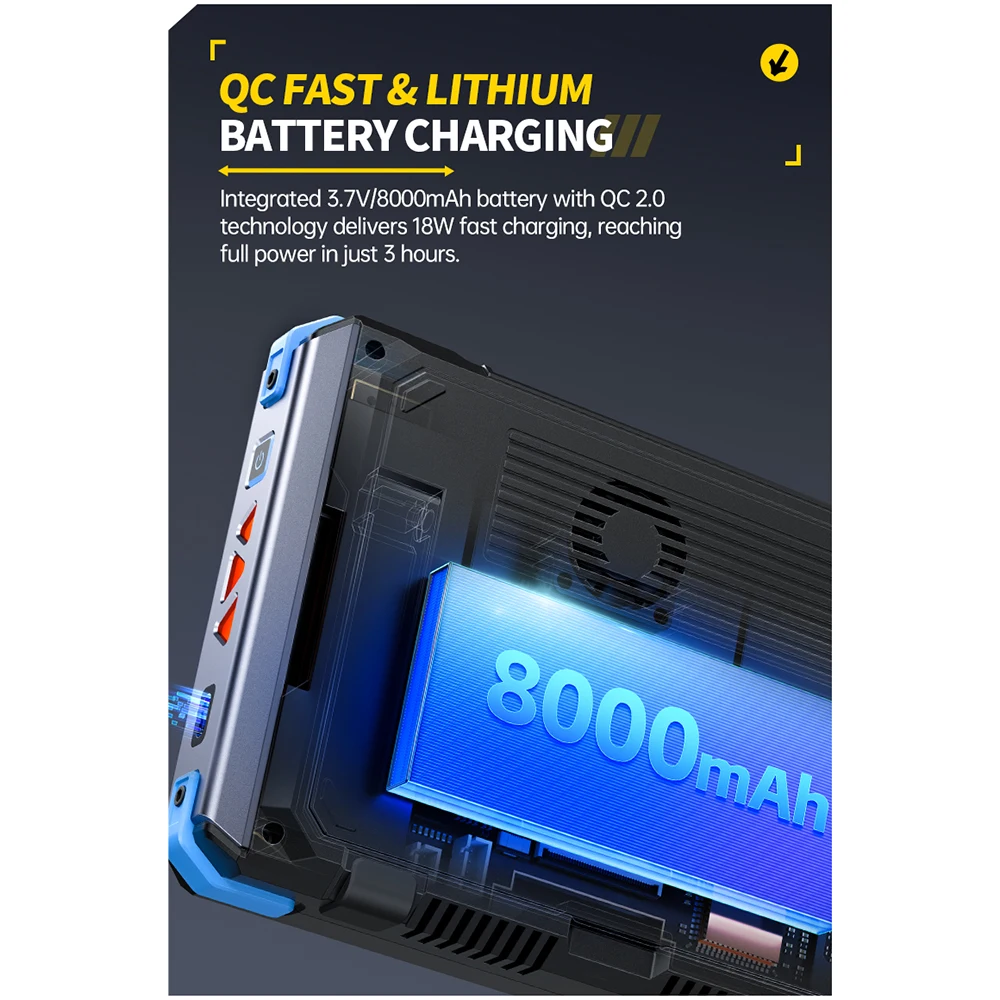

3.Qc fast charging function: Built in 3.7v/8000mah polymer lithium battery, integrated with qc2.0 protocol, up to 18w, can work continuously for 3 hours on full charge.

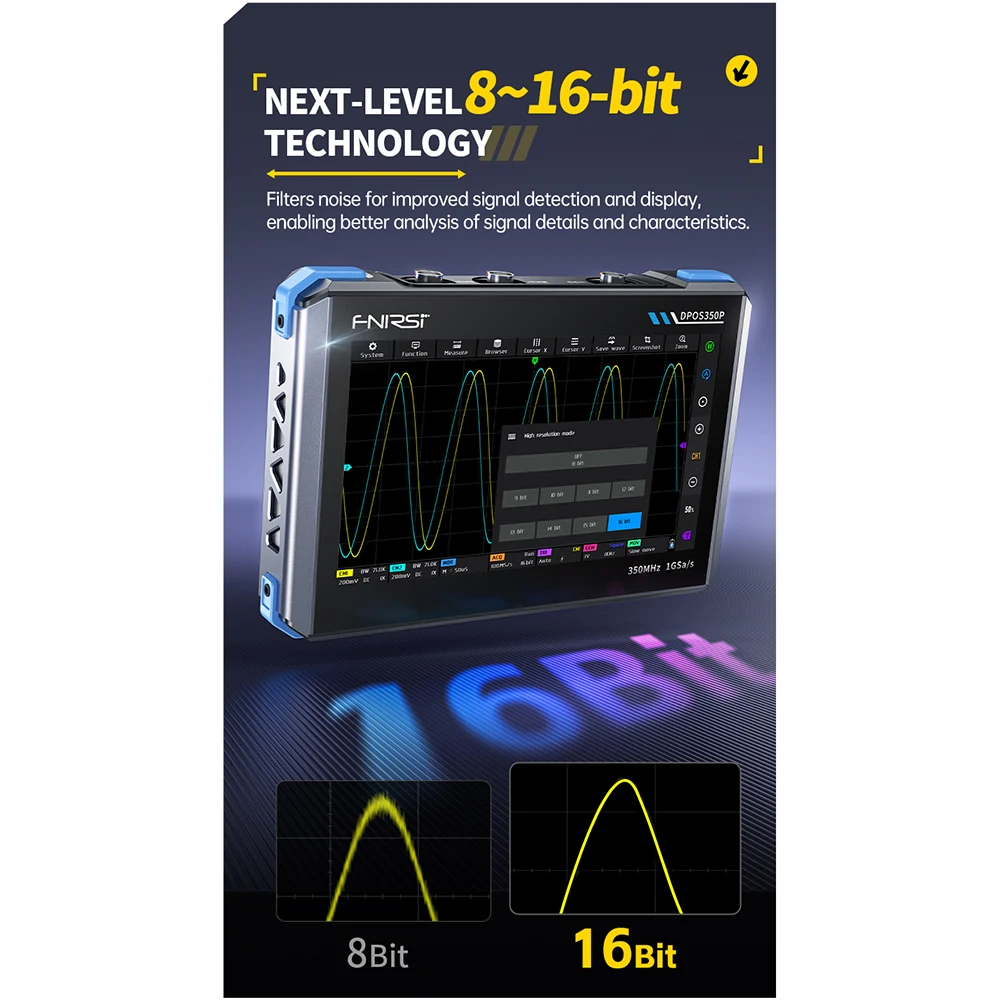

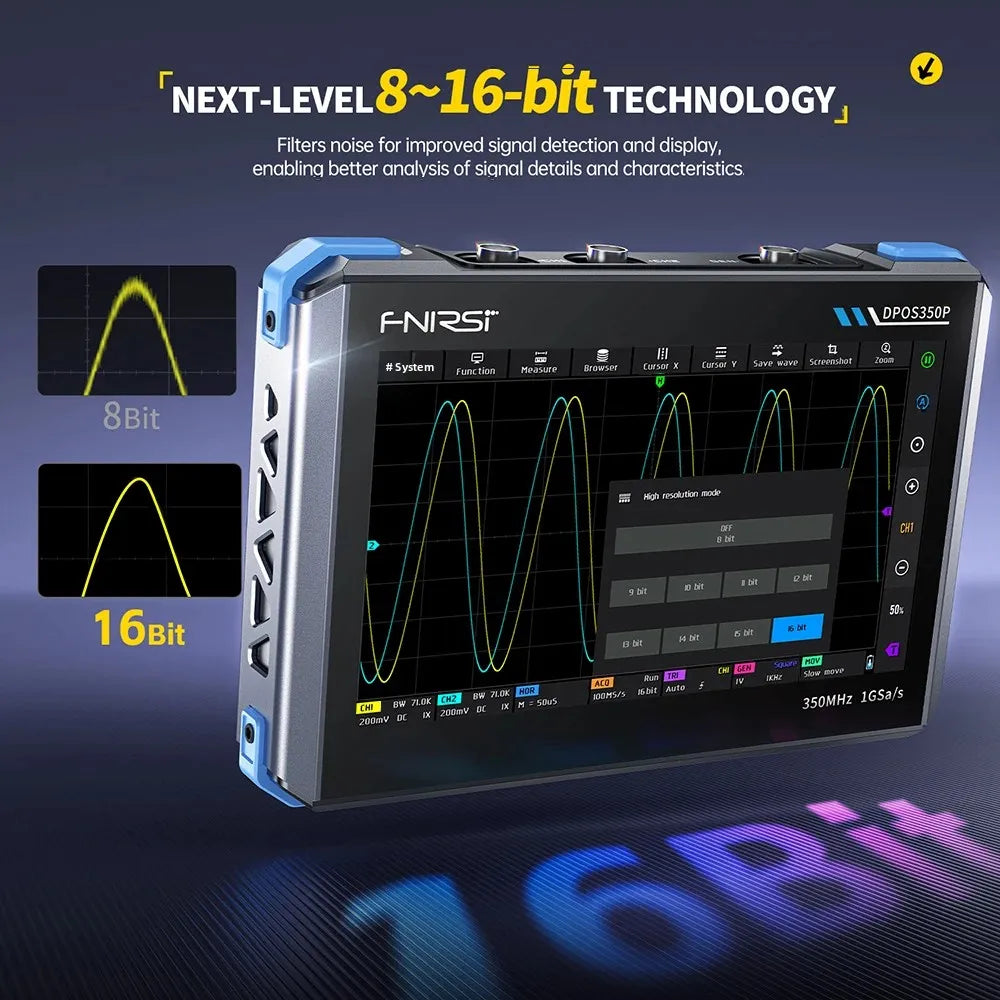

4.High resolution mode: Supports up to 16 bits. High resolution mode can effectively remove noise components and has the best signal detection and display capabilities, which helps analyze the details and features of signals.

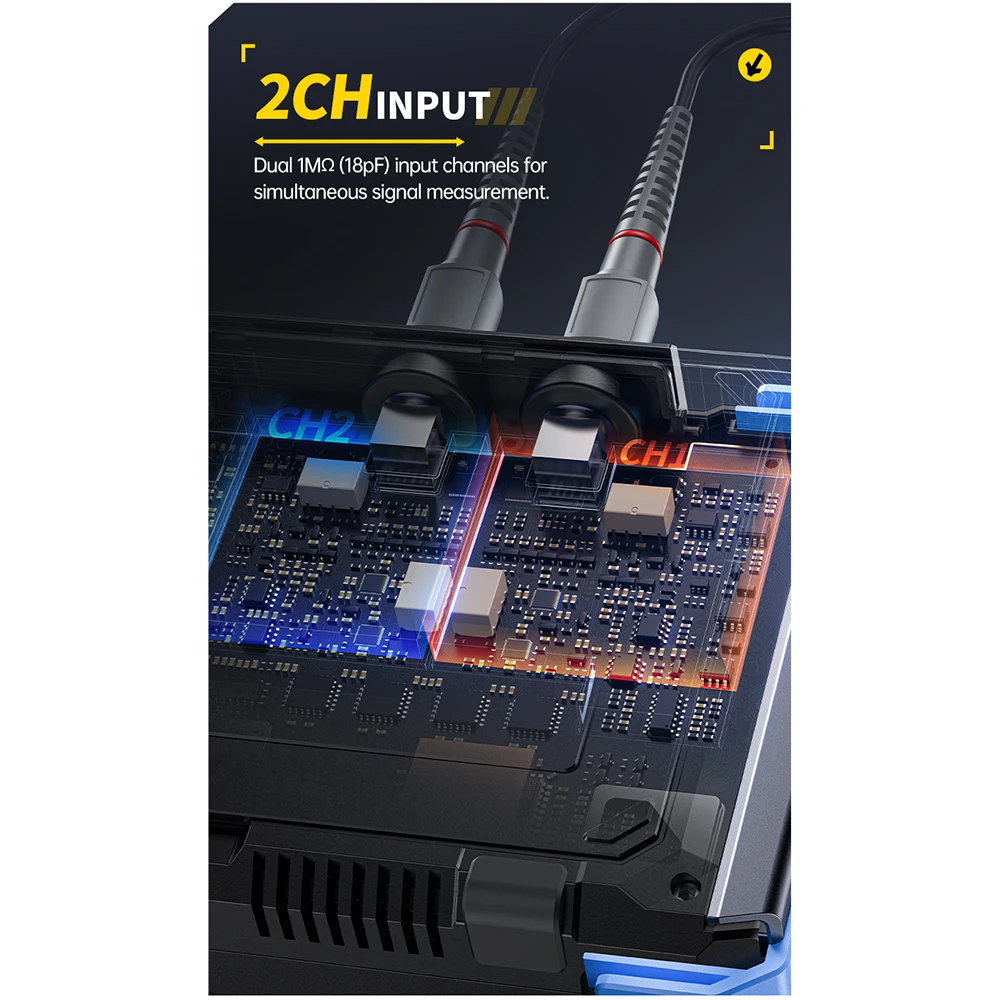

5.Dual channel input design: With 2 input channels and an input impedance of 1m ohms (18pf), it can simultaneously measure 2 different signals.

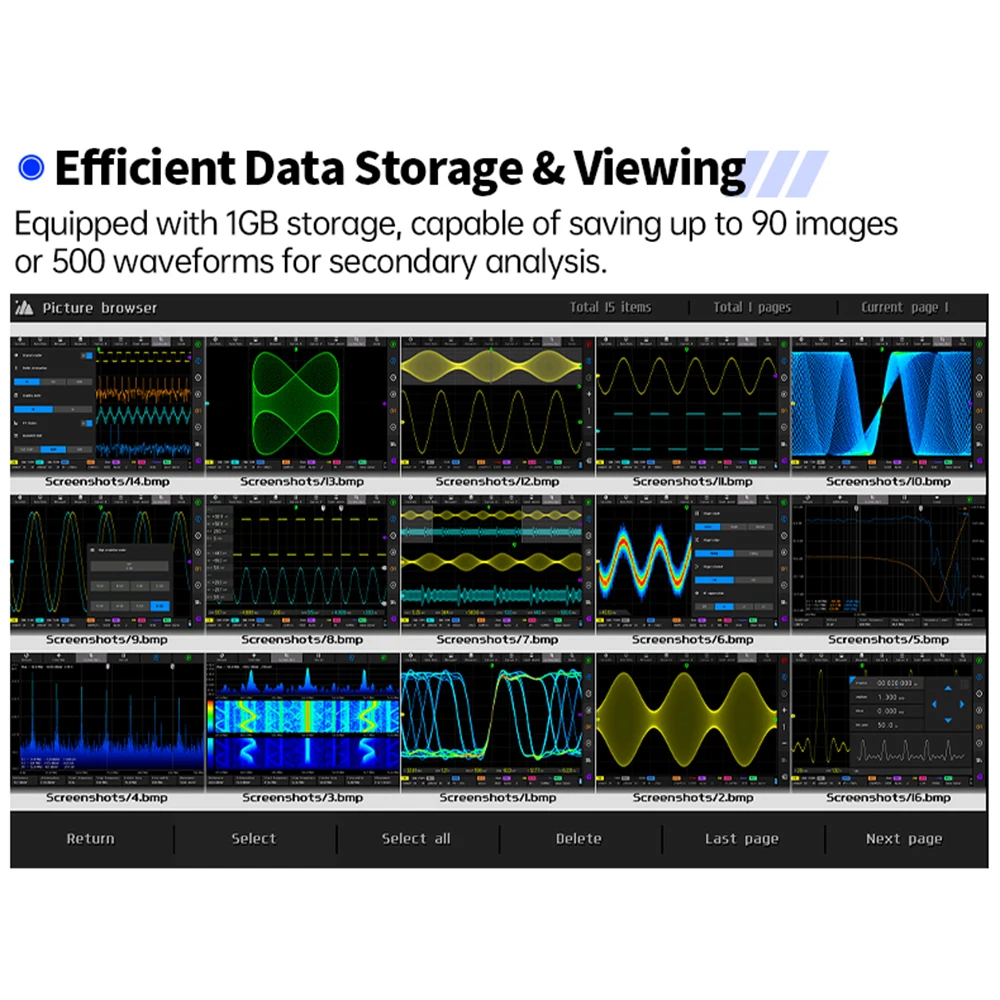

6.One click waveform screenshot saving: Built in 1gbit storage space, can store up to 90 images or 500 sets of waveforms, and can perform secondary analysis on the saved signals.

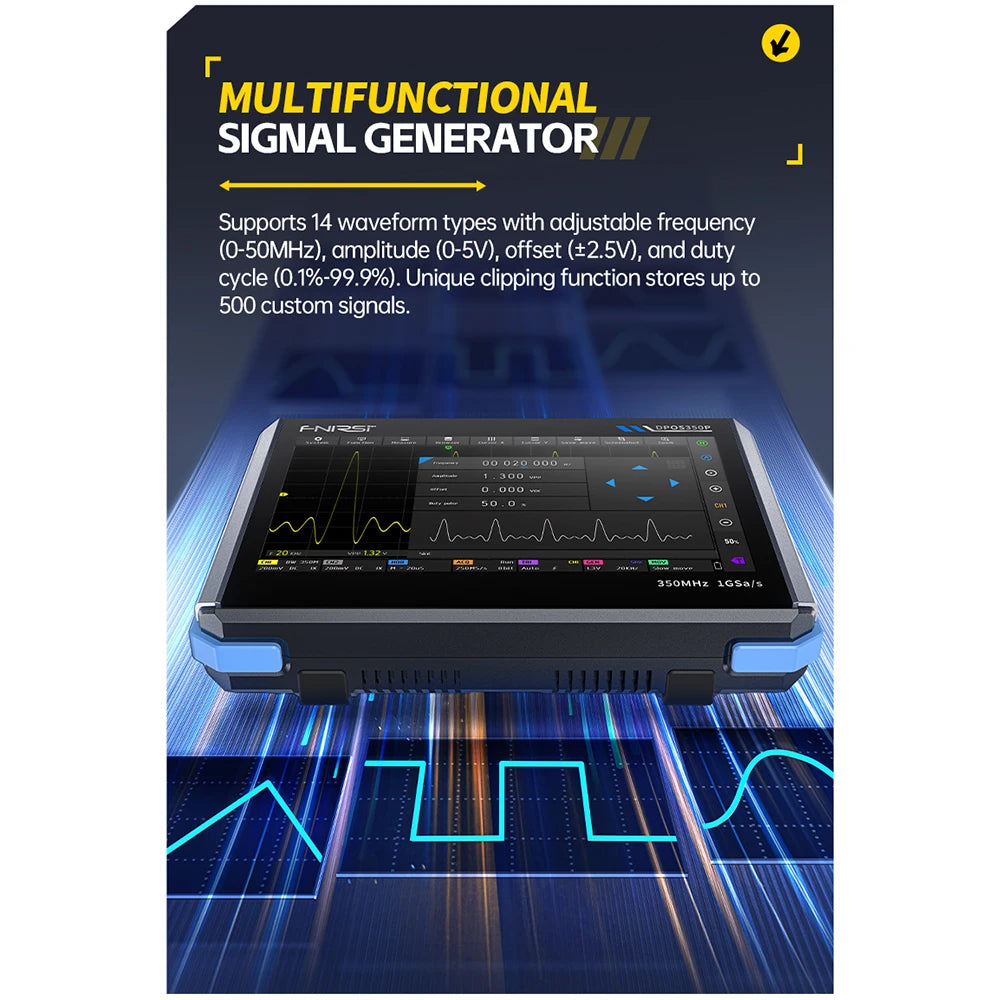

7.Full function signal generator: It can output 14 types of waveform signals, with output frequency of~50mhz, amplitude of 0-5v, offset of+2.5v, and adjustable duty cycle of 0.1% -99.9%. It has a unique cutoff output function and can store up to 500 customized signals.

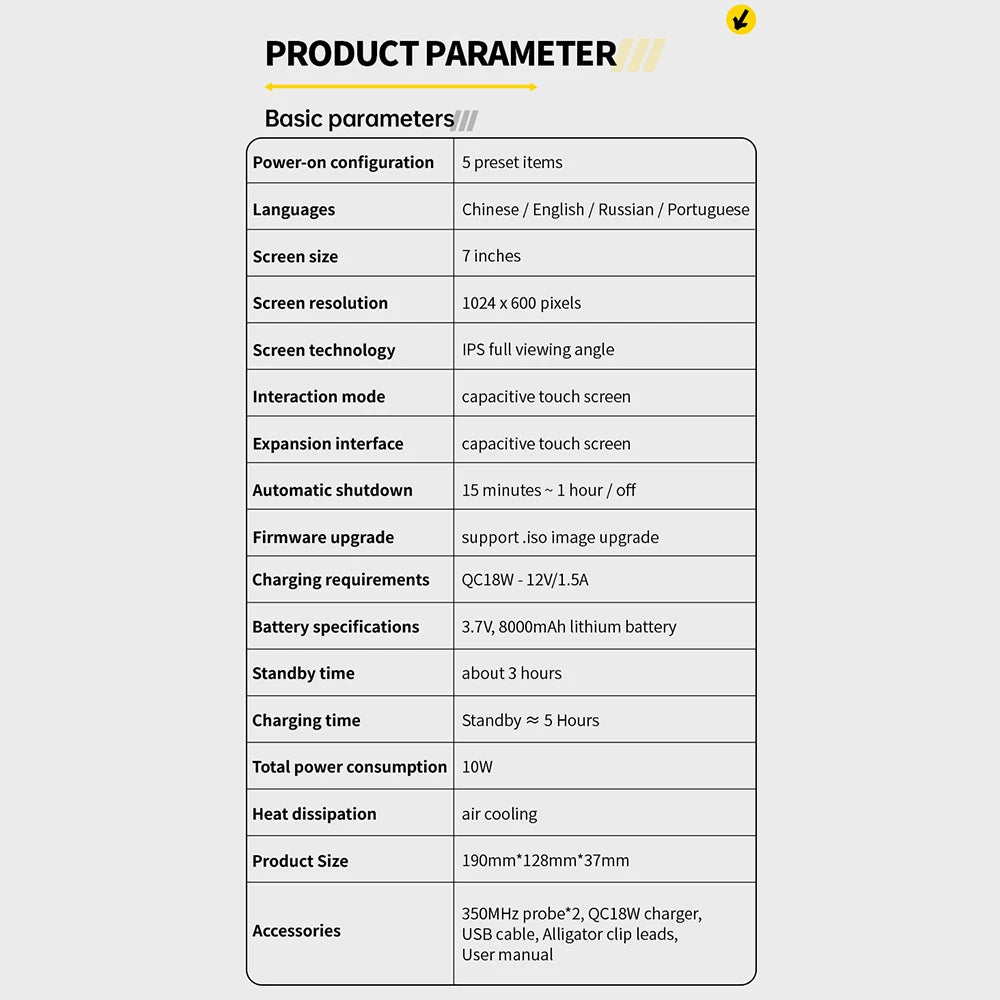

 Parameters:

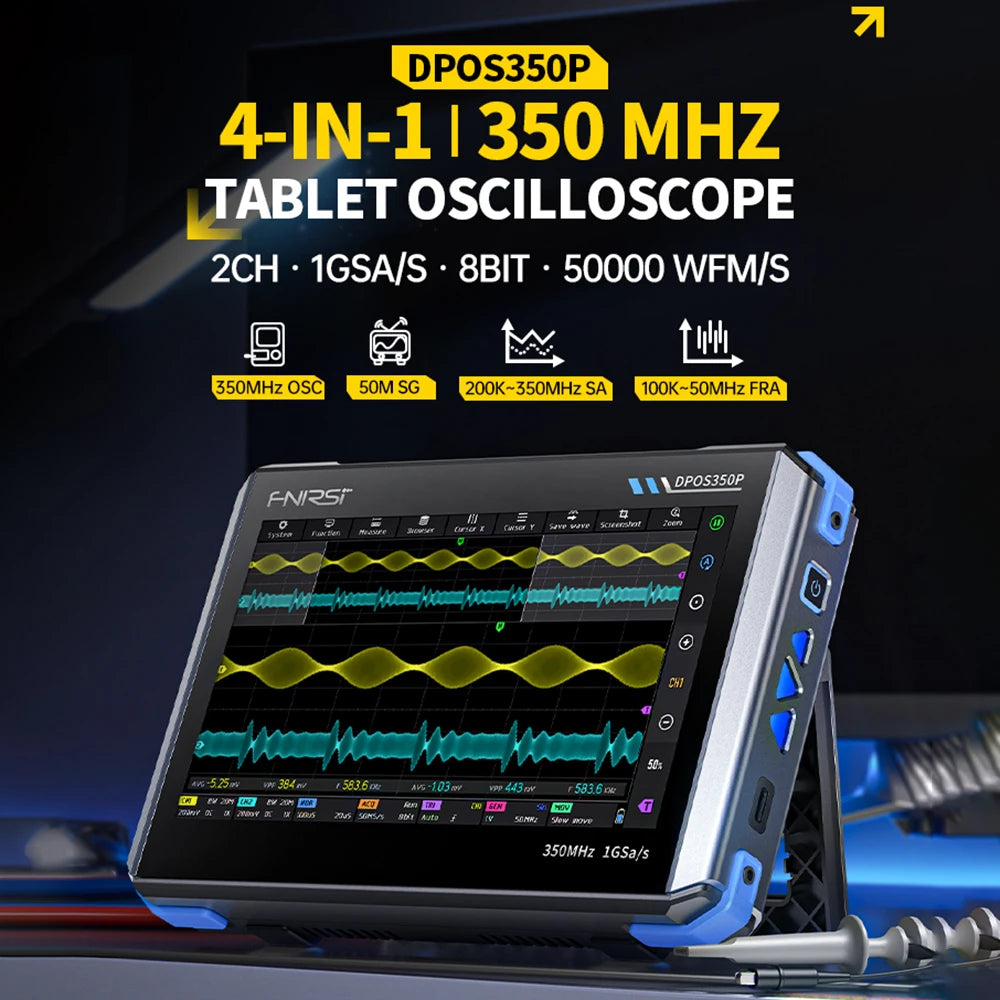

Product name: four in one multifunctional flat panel oscilloscope
Product model: dpos350p
Expansion interface: usb transmission interface
Whole machine power consumption: 10w

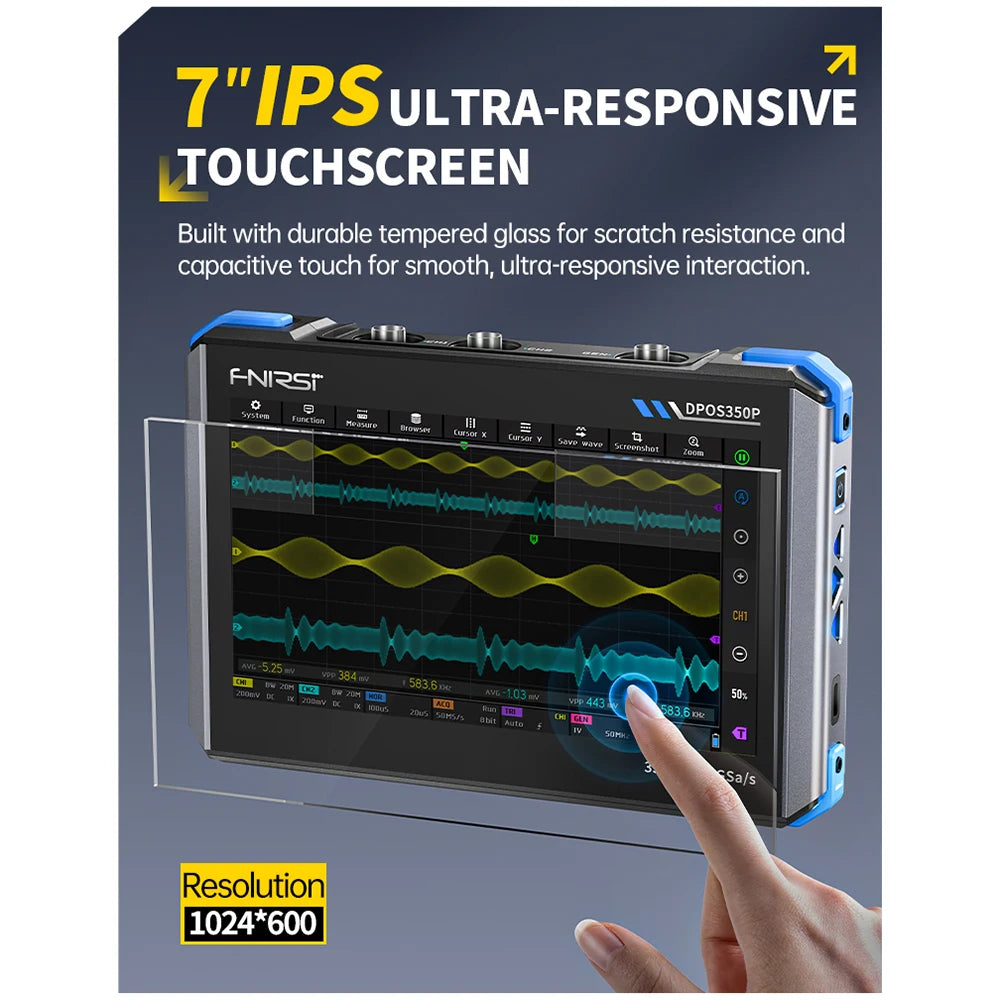

Screen resolution: 1024*600 high resolution

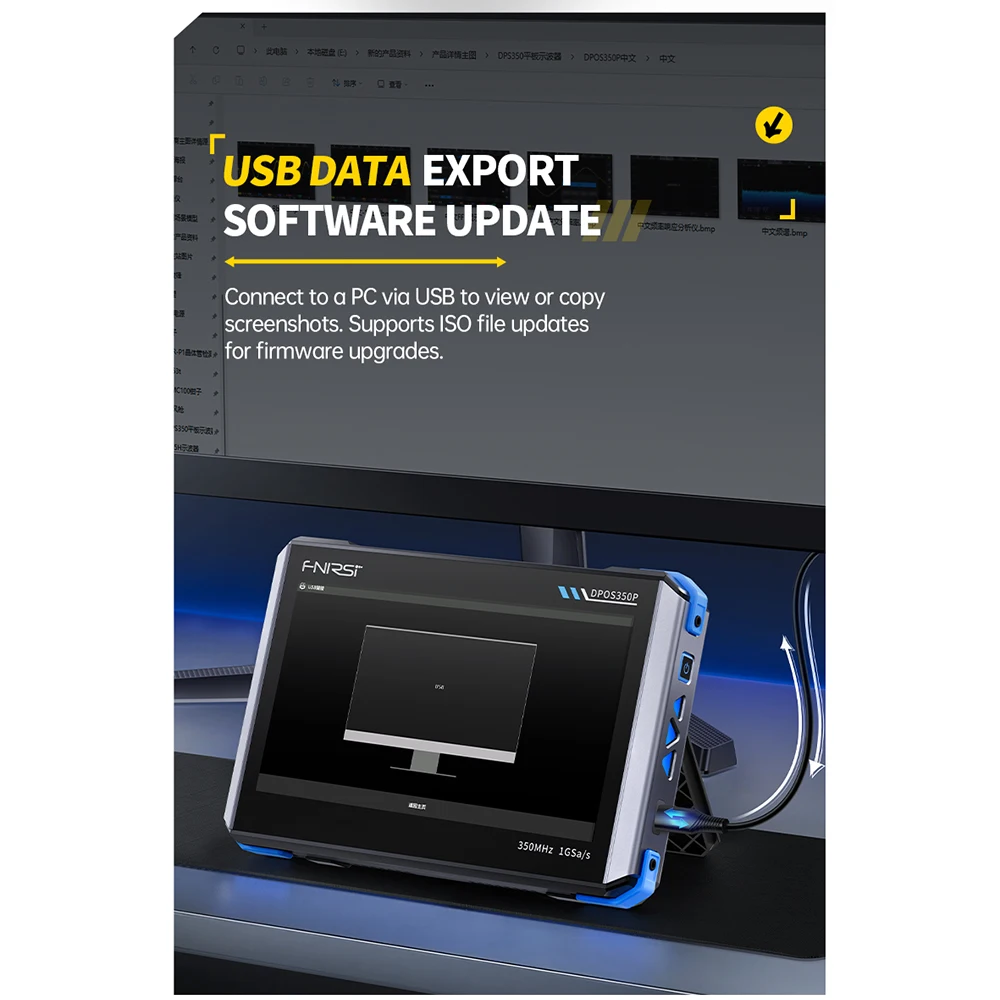

Firmware upgrade: supports iso image upgrade
Charging requirements: qc18w-12v/1.5a
Battery specification: 3.7v/8000mah
Interaction method: capacitive touch screen
Body size: 190mm*128mm*37mm

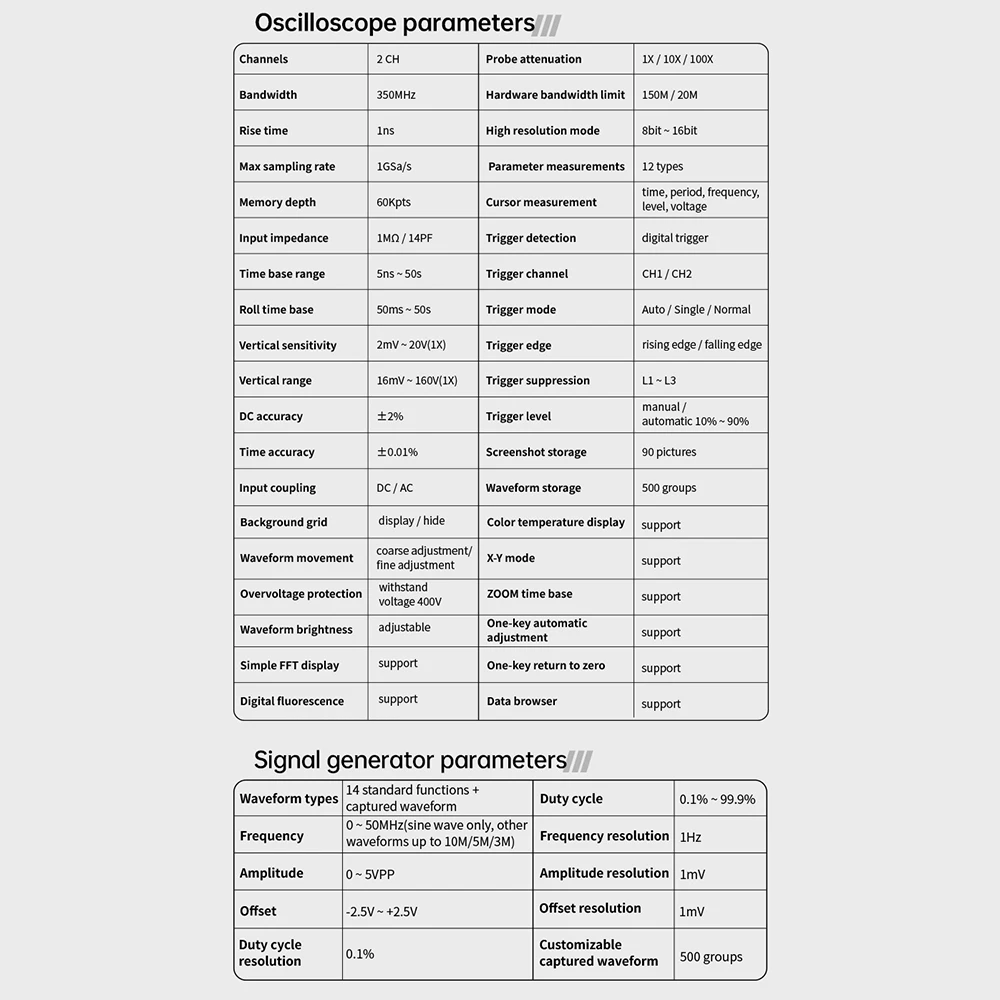

Oscilloscope parameters
Number of channels: 2
Input impedance: 1mΩ/14p
Dc accuracy: ±2%
High resolution mode: 8-bit~16bit

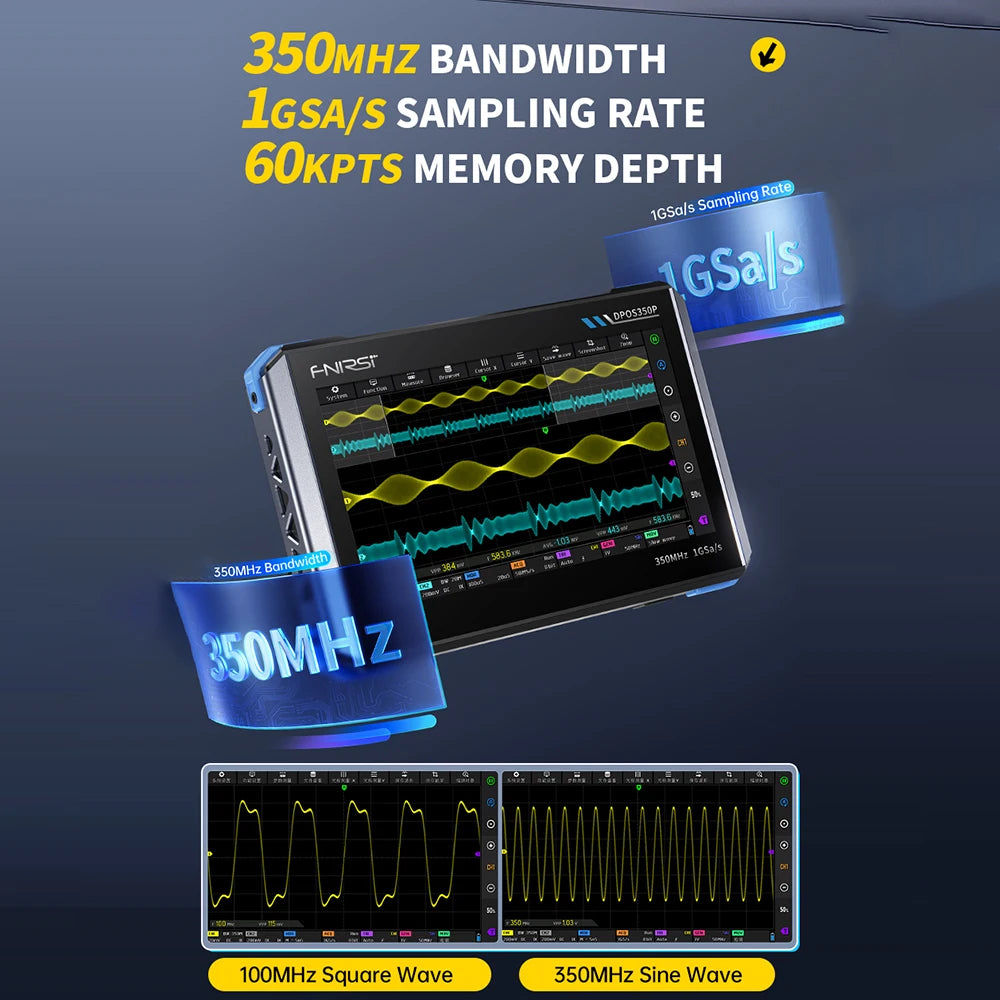

Simulated bandwidth: 350mhz
Time base range: 5ns-50s
Time accuracy: ±0.01%
Parameter measurement: 12 types
Rise time: 1ns

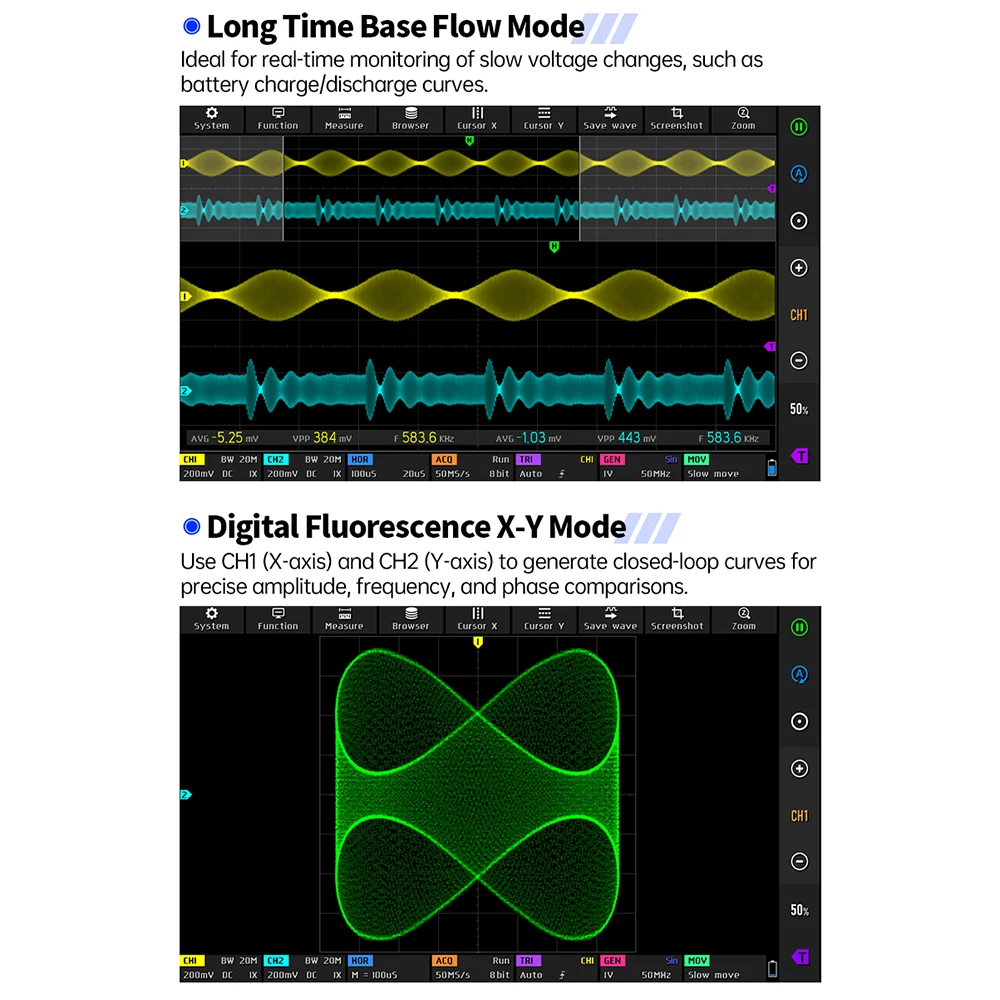

Rolling time base: 50ms-50s
Input coupling: Dc/ac

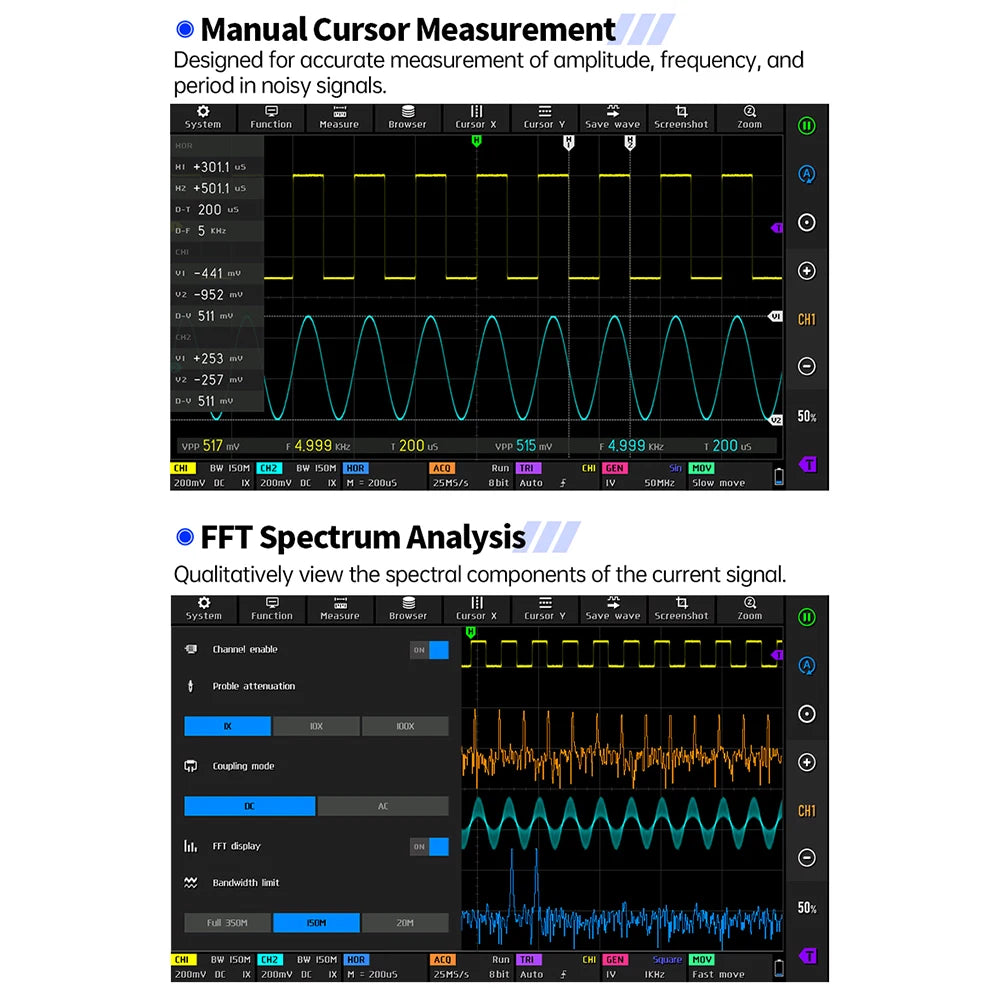

Cursor measurement: time, cycle, frequency, level, voltage
Maximum sampling rate: 1gsps

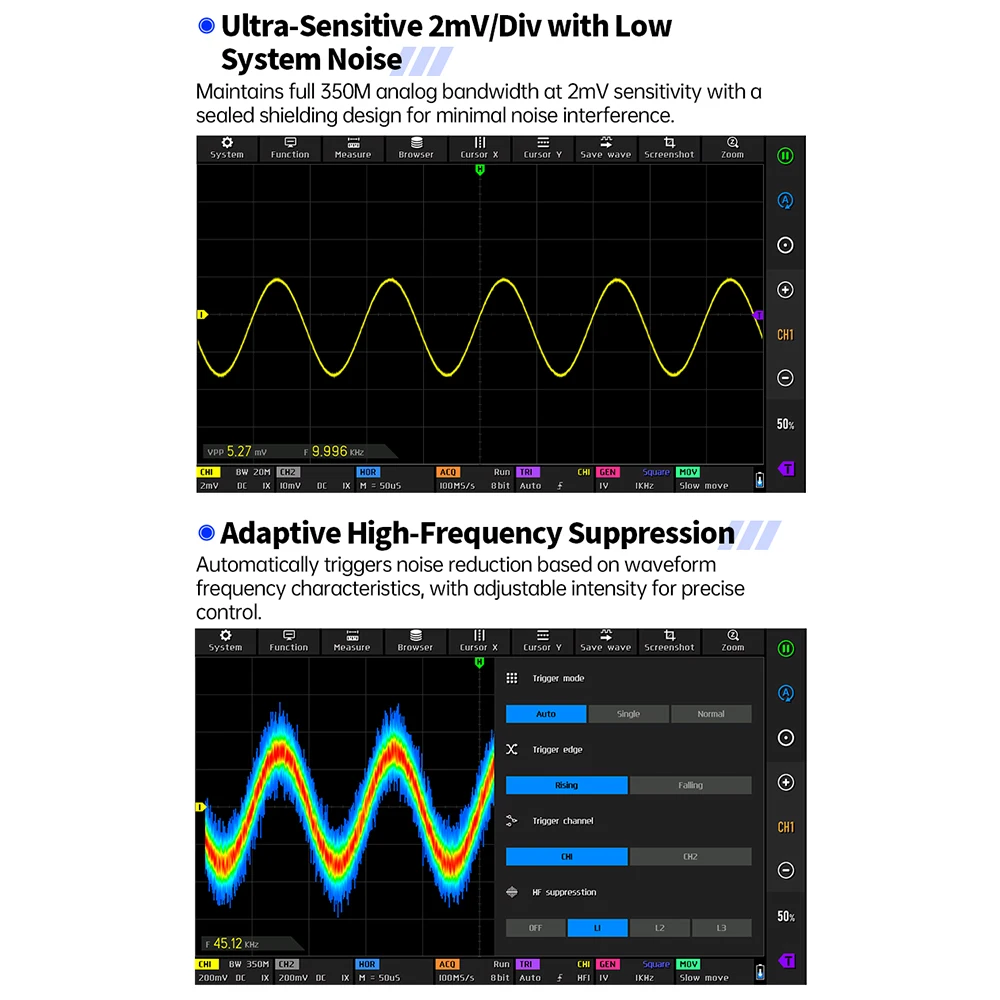

Vertical sensitivity: 2mv~20v
Probe magnification: 1x/10x/100x

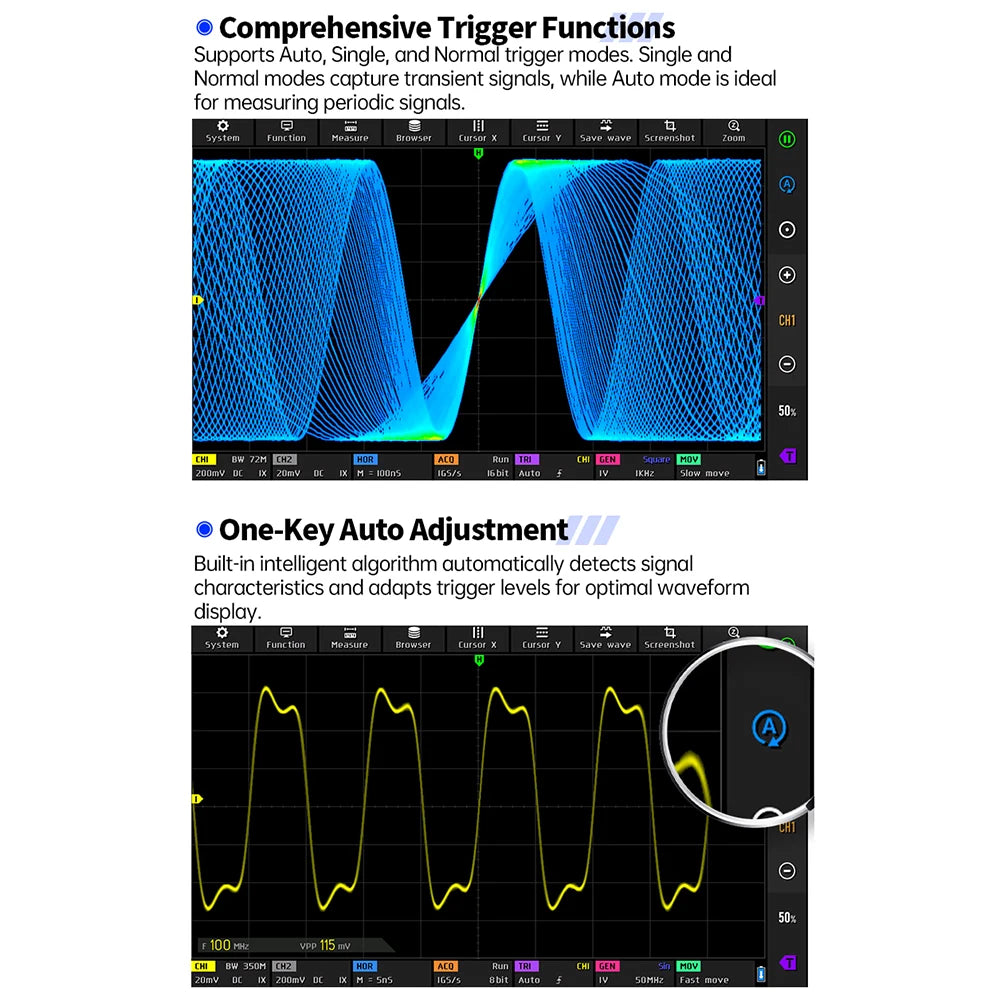

Trigger detection: digital trigger
Storage depth: 60kpcs
Vertical range: 16mv~160v

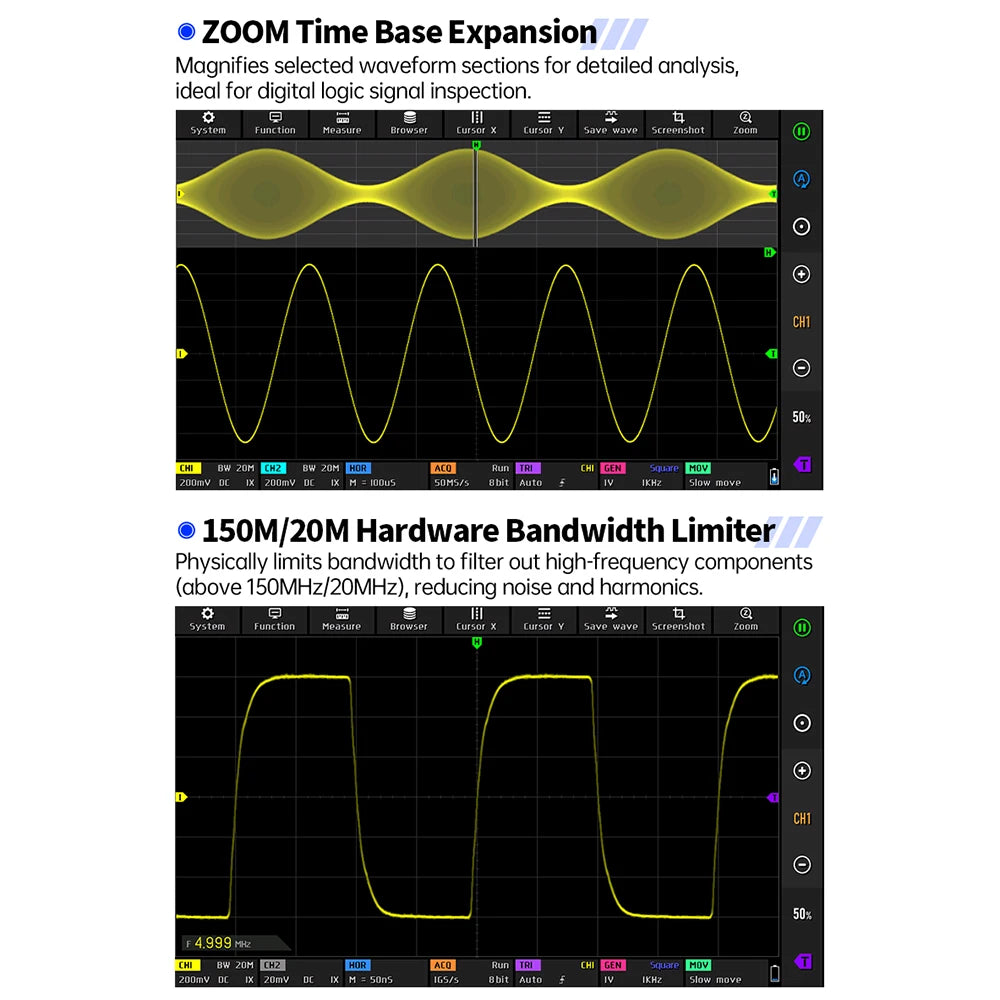

Hardware bandwidth limit: 150m/20m
Trigger channel: ch1/ch2
Signal generator parameters
Waveform types: 14 standard functions+truncated waveform
Frequency: 0~50mhz (only positive waves, other waves up to 10m/5m/3m)
Amplitude: 0~5vpp
Offset: -2.5v~+2.5v
Duty cycle: 0.1%~99.9%
Frequency resolution: 1hz
Amplitude resolution: 1mv
Offset resolution: 1mv
Duty cycle resolution: 0.1%
Custom cutoff: 500 sets

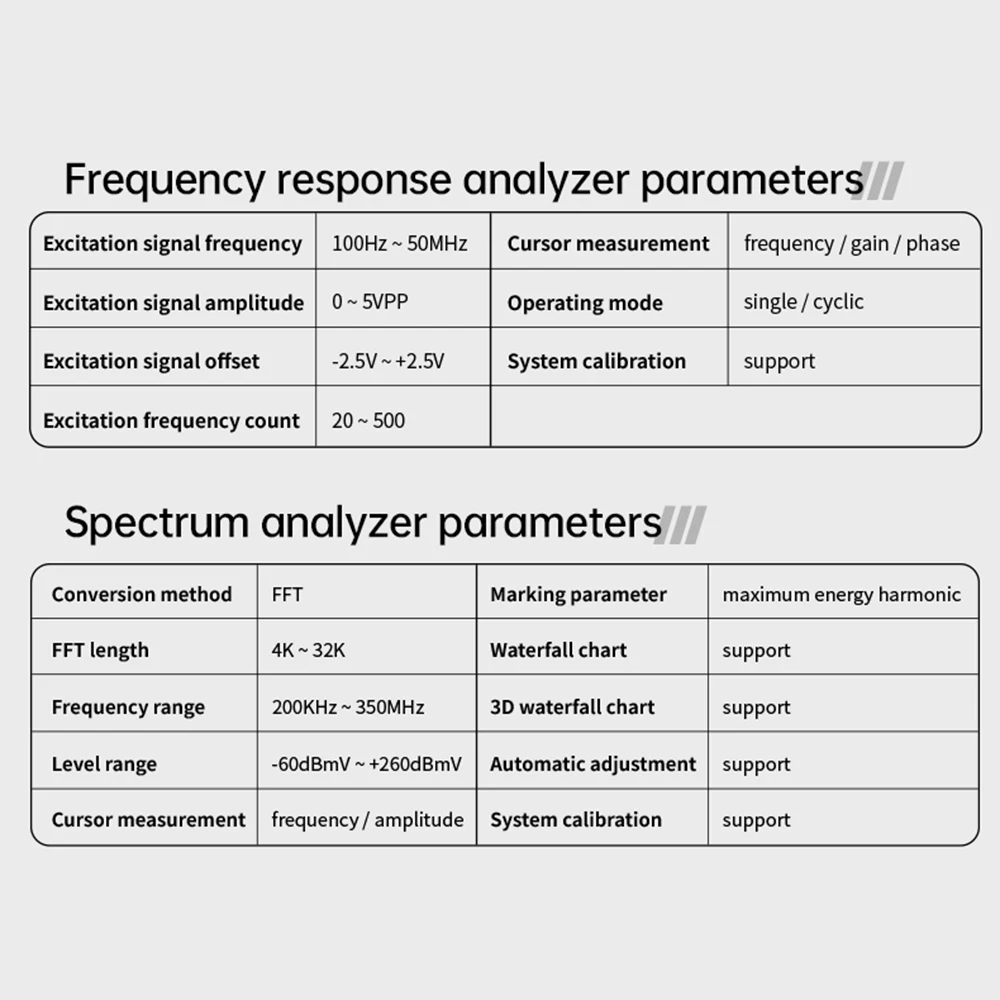

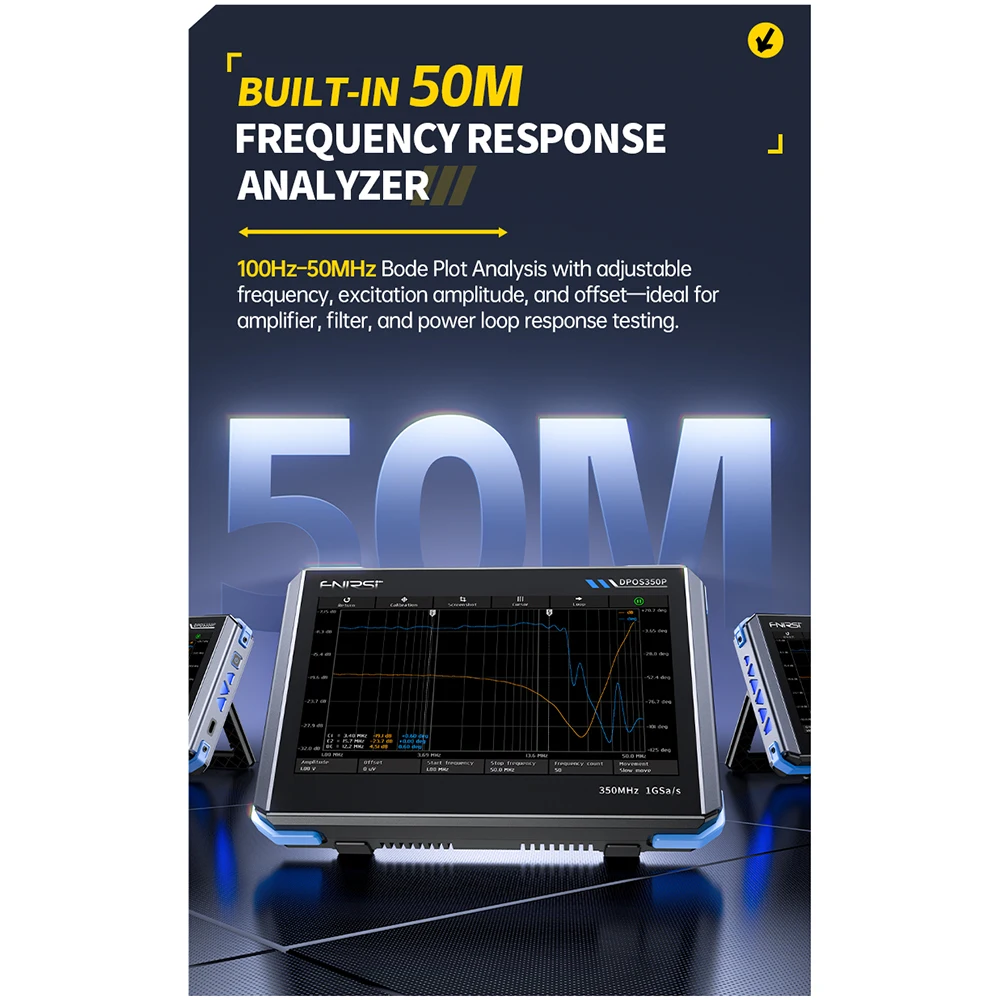

Frequency response analyzer
Excitation signal frequency: 100hz~50mhz
Excitation signal amplitude: 0~5vpp
Incentive signal offset: -2.5v~+2.5v
Excitation frequency count: 20~500
Cursor measurement: frequency/gain/phase
Working mode: single/cycle
System calibration: supports

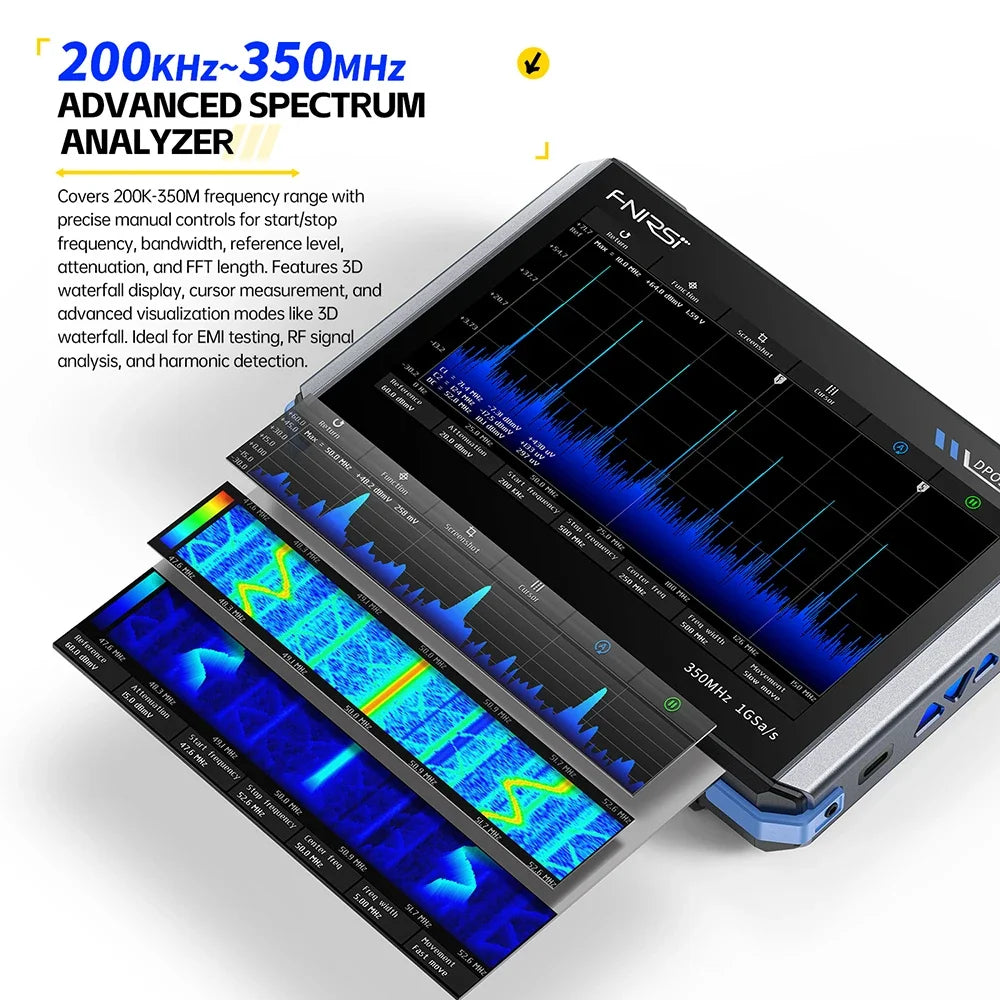

Spectrum analyzer
Conversion method: fft
Fft length: 4k~32k
Frequency range: 200khz~350khz
Level range: -60dbmv~+260dbmv
Cursor measurement: frequency/amplitude
Tag parameter: highest energy harmonic
Waterfall chart: supports
3d waterfall diagram: supports
Automatic adjustment: supports
System calibration: supports

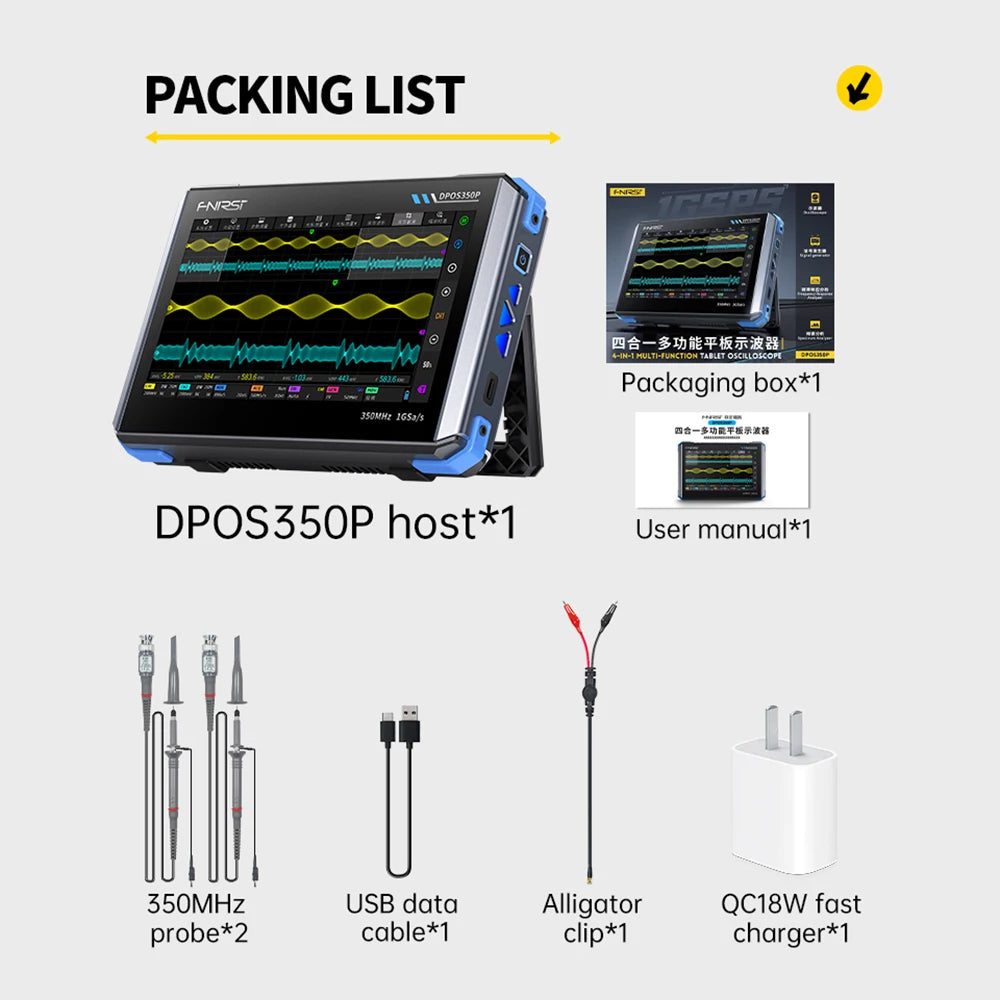

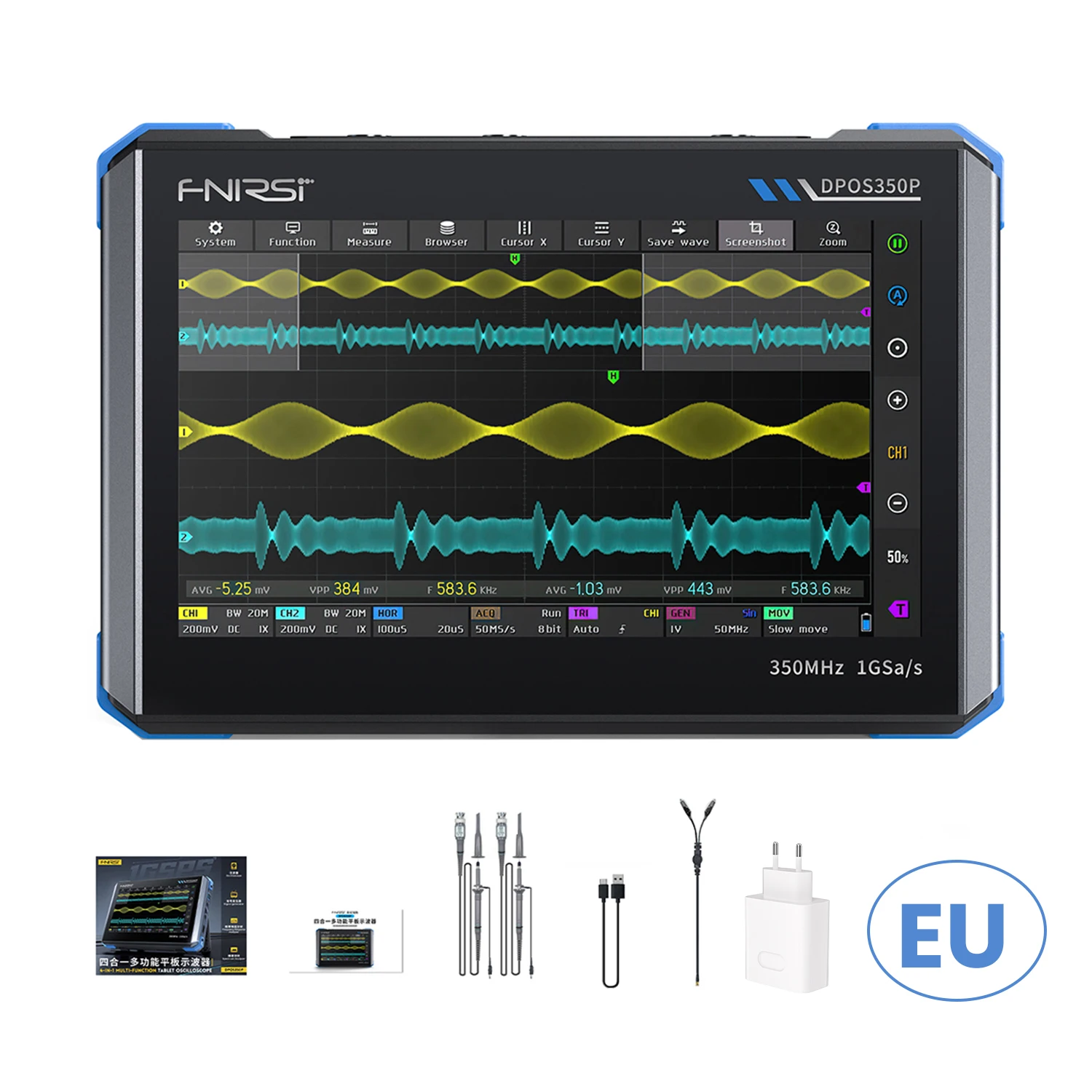

Package include:
Host*1
Color box*1
Instruction manual*1
350m probe*2
Qc18w charging head*1
Usb data cable*1
Crocodile clip*1
Crocodile clip*1
