A17Z USDR USDX+Plus V2 8-Band SDR Transceiver SSB QRP LCD With Display Speaker Microphone Transceiver With US Plug
black
$109.53
Skip to product information
A17Z USDR USDX+Plus V2 8-Band SDR Transceiver SSB QRP LCD With Display Speaker Microphone Transceiver With US Plug
$109.53
SPECIFICATIONS
Brand Name: BAJEAL
Built-in Battery: Yes
Communication: WireLess
High-concerned chemical: None
Origin: Mainland China
Set Type: Multi-Microphone Kits
Style: Headset Microphone
Transducer: Condenser Microphone
Use: Computer Microphone
Welcome to our store.
Our products have affordable prices and good quality. We support dropshipping and wholesale. If you want to work with us for a long time, please contact us and we will give you a very favorable price.Best Regards!
8 Tracks Covering 80m/60m/40m/30m/20m/17m/15m/10m. Excellent Pcb Layout Design In Line With High-Frequency Circuit Design Principles To Ensure Excellent Performance. Whether Using The Built-In Battery Or An External 13.8v Power Supply, It Can Reach 8 Levels Of 3-5w Power, And The Necessary To-220 Pack Pad Is Reserved For Upgrades.
High Emission Efficiency, The 80m/60m/40m/30m/20m Efficiency Is Greater Than 80%, The 17m Efficiency Is Greater Than 70%, And The 15m/10m Efficiency Is Greater Than 60%. Frequency Accuracy Is Better Than 1ppm, And Frequency Stability Is Better Than 0.5ppm. ; Super Small Size: 88x39x124mm (Excluding Protruding Parts).

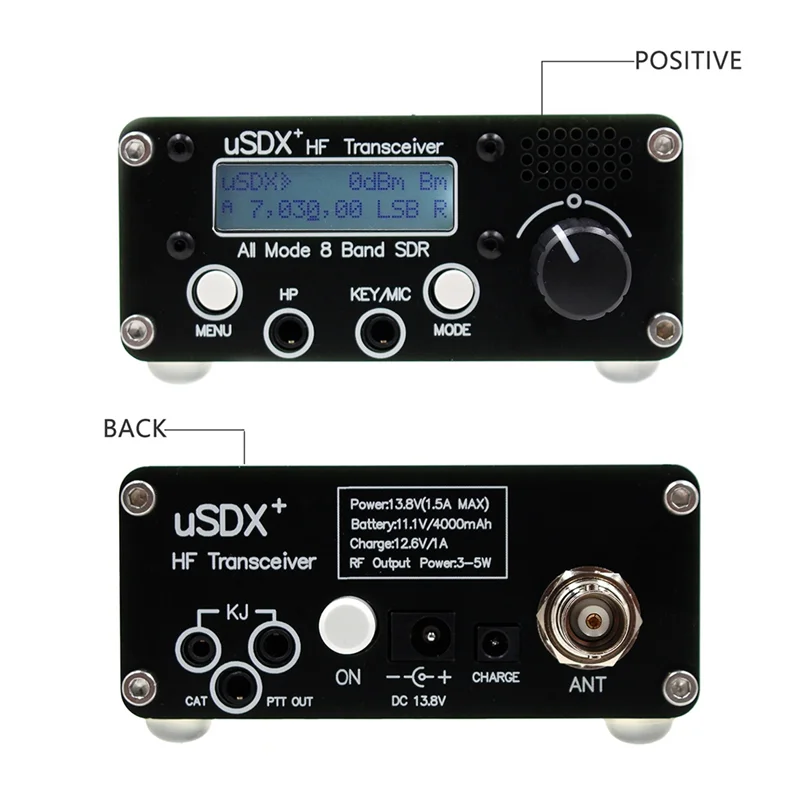

Rich Interfaces (Cat, Ptt Out, Mic/Key, K-Head Mic). All Lpf Parts Use 100v C0g/Np0 Capacitors. Use for Magnetic Locking Relays. Use A Lower Specific Noise Op Amp Chip. Built-In Speaker With Cavity. Bnc Antenna Interface.
Plug Type:US Plug,it applies to Canada, India,Mexico, Thailand, the United States, the Philippines,Taiwan and so on.
Voltage: AC100-240V
Description:
1. Supports All Modes: Usb, Lsb, Cw, Am, Fm (Ssb Mode Has Good Reception Effect, But Poor Transmission Effect. Am And Fm Modes Are Free And Have Poor Effect)
2. Filter Dsp Filter: 4000, 2500, 1700, 500, 200, 100, 50hz Passband
3. Function Dsp Functions: Automatic Gain Control (Agc), Noise Reduction (Nr), Xmit Voice Trigger (Vox), Rx Attenuator (Att), Tx Noise Gate, Tx Unit Control, Volume Control, Dbm/S Meter.
4. Sidebar/Carrier Suppression Ssssb Transmit: Better Than -45dbc, Imd3 (Dual Tone) -33dbc, Receive: Better Than -50dbc
5. Support Multi-Band Support, Continuously Adjustable 10m Within The 80m Frequency Range (From 20khz..99mhz, Loss Performance)
6. Open Source Firmware, Built Using for Arduino Ide; Allows Experimentation, New Features Can Be Added, Contributions Can Be Shared Through
7. Software Vovox Code Can Be Used For Fast Full Control (Qsk And Half Qsk Operation) Or Rx/Auxiliary Switch Tx In Digital Mode (No Cat Or Ptt Interface Required), Using
8.Fully Digital And Software Based Ssb Level Transmitter With External Control Of Ptt/Pa Output: Control Phase Of Sill Si5351 (Via Small Frequency Changes I2c At 800kbits/S) And Amplitude Of Pa (Via Pwm Pa Key Shaping Circuit)
size: about 88 x 39 x 124mm
Color: Black
Material: Aluminum Alloy
US Plug Set - No Battery
Package Contents:
1 Set of Frequency Band Transceiver
1 x Handheld Microphone
1 x US Plug
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
High Emission Efficiency, The 80m/60m/40m/30m/20m Efficiency Is Greater Than 80%, The 17m Efficiency Is Greater Than 70%, And The 15m/10m Efficiency Is Greater Than 60%. Frequency Accuracy Is Better Than 1ppm, And Frequency Stability Is Better Than 0.5ppm. ; Super Small Size: 88x39x124mm (Excluding Protruding Parts).
Rich Interfaces (Cat, Ptt Out, Mic/Key, K-Head Mic). All Lpf Parts Use 100v C0g/Np0 Capacitors. Use for Magnetic Locking Relays. Use A Lower Specific Noise Op Amp Chip. Built-In Speaker With Cavity. Bnc Antenna Interface.
Plug Type:US Plug,it applies to Canada, India,Mexico, Thailand, the United States, the Philippines,Taiwan and so on.
Voltage: AC100-240V
Description:
1. Supports All Modes: Usb, Lsb, Cw, Am, Fm (Ssb Mode Has Good Reception Effect, But Poor Transmission Effect. Am And Fm Modes Are Free And Have Poor Effect)
2. Filter Dsp Filter: 4000, 2500, 1700, 500, 200, 100, 50hz Passband
3. Function Dsp Functions: Automatic Gain Control (Agc), Noise Reduction (Nr), Xmit Voice Trigger (Vox), Rx Attenuator (Att), Tx Noise Gate, Tx Unit Control, Volume Control, Dbm/S Meter.
4. Sidebar/Carrier Suppression Ssssb Transmit: Better Than -45dbc, Imd3 (Dual Tone) -33dbc, Receive: Better Than -50dbc
5. Support Multi-Band Support, Continuously Adjustable 10m Within The 80m Frequency Range (From 20khz..99mhz, Loss Performance)
6. Open Source Firmware, Built Using for Arduino Ide; Allows Experimentation, New Features Can Be Added, Contributions Can Be Shared Through
7. Software Vovox Code Can Be Used For Fast Full Control (Qsk And Half Qsk Operation) Or Rx/Auxiliary Switch Tx In Digital Mode (No Cat Or Ptt Interface Required), Using
8.Fully Digital And Software Based Ssb Level Transmitter With External Control Of Ptt/Pa Output: Control Phase Of Sill Si5351 (Via Small Frequency Changes I2c At 800kbits/S) And Amplitude Of Pa (Via Pwm Pa Key Shaping Circuit)
size: about 88 x 39 x 124mm
Color: Black
Material: Aluminum Alloy
US Plug Set - No Battery
Package Contents:
1 Set of Frequency Band Transceiver
1 x Handheld Microphone
1 x US Plug
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
|
