SPECIFICATIONS

-3db Bandwidth: 0

Board Type: Evaluation Platform

Brand Name: smochm

Channels per IC: 1

Current - Output: 0.5a

Current - Output / Channel: 1

Current - Supply (Main IC): no

D/C: 5V

Data Interface: Micro-USB

Description: hackrf one mother board

Embedded: Yes, DSP

Features: signal analysis

Frequency - Switching: no

Function: radio signal

Interface: 0

Main Purpose: software define radio

Max Output Power x Channels @ Load: 10db

Maximum Number Of IC's: 1

Maximum Time: 1

Model Number: hackrf one

Module/Board Type: PCBA

Mounting Type: plug and play

Number of A/D Converters: 1

Number of Bits: 8

Operating System: Not Applicable

Package: PCBA

Place of Origin: Guangdong, China

Platform: WINDOWS, linux, android, Mac

Power - Output: 10db

Regulator Type: USB power supply

Sampling Rate (Per Second): 4

Sensing Range: 1

Sensitivity: -5dbm

Sensor Type: antenna

Series: hackrf one

Type: Development Board

Utilized IC / Part: 1

Voltage - Input: 0.5A

Voltage - Output: 5v

Voltage - Supply: 5v

Voltage - Supply, Single/Dual (±): 5V

Products Description

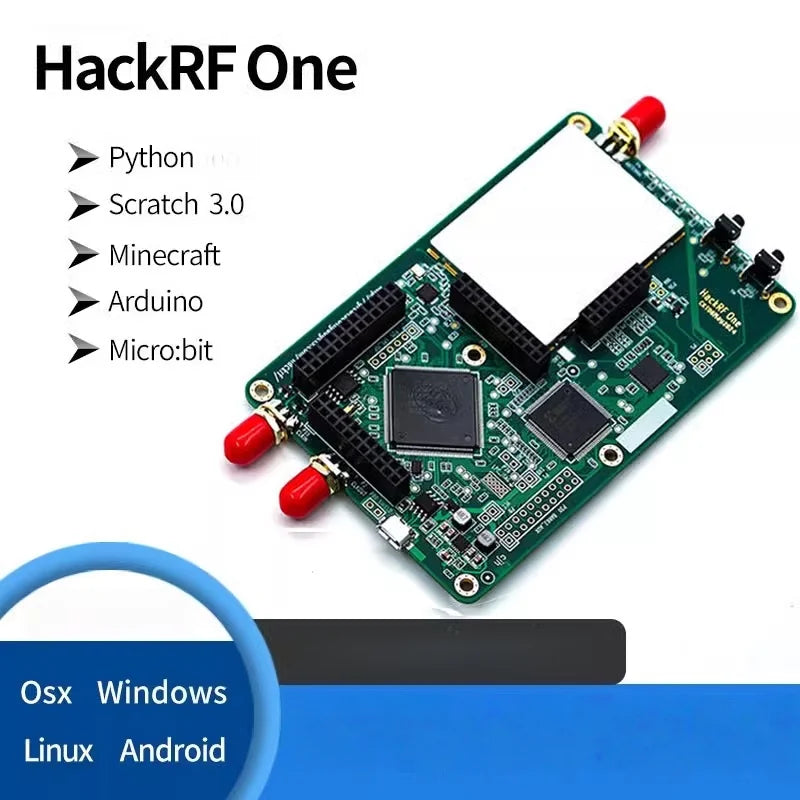

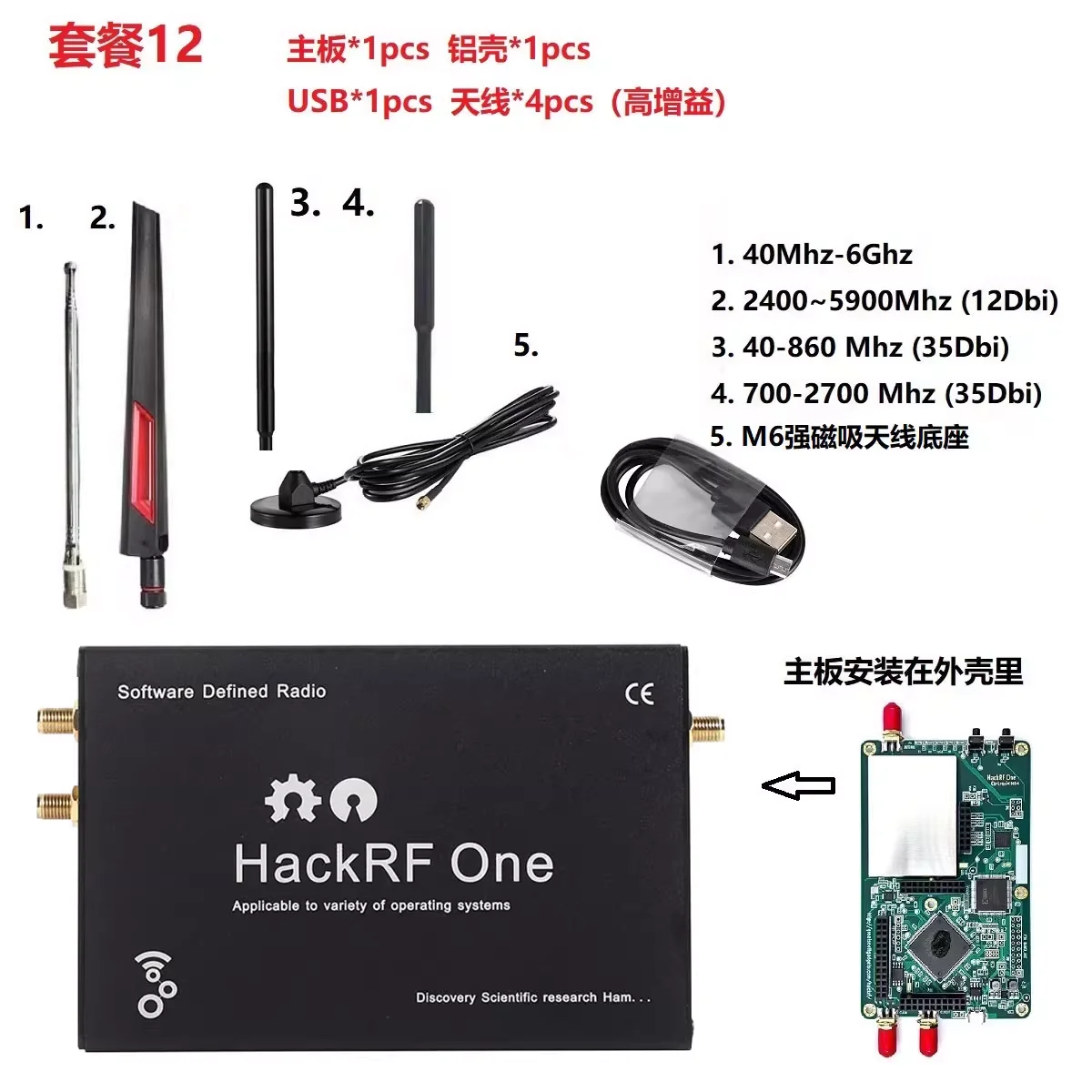

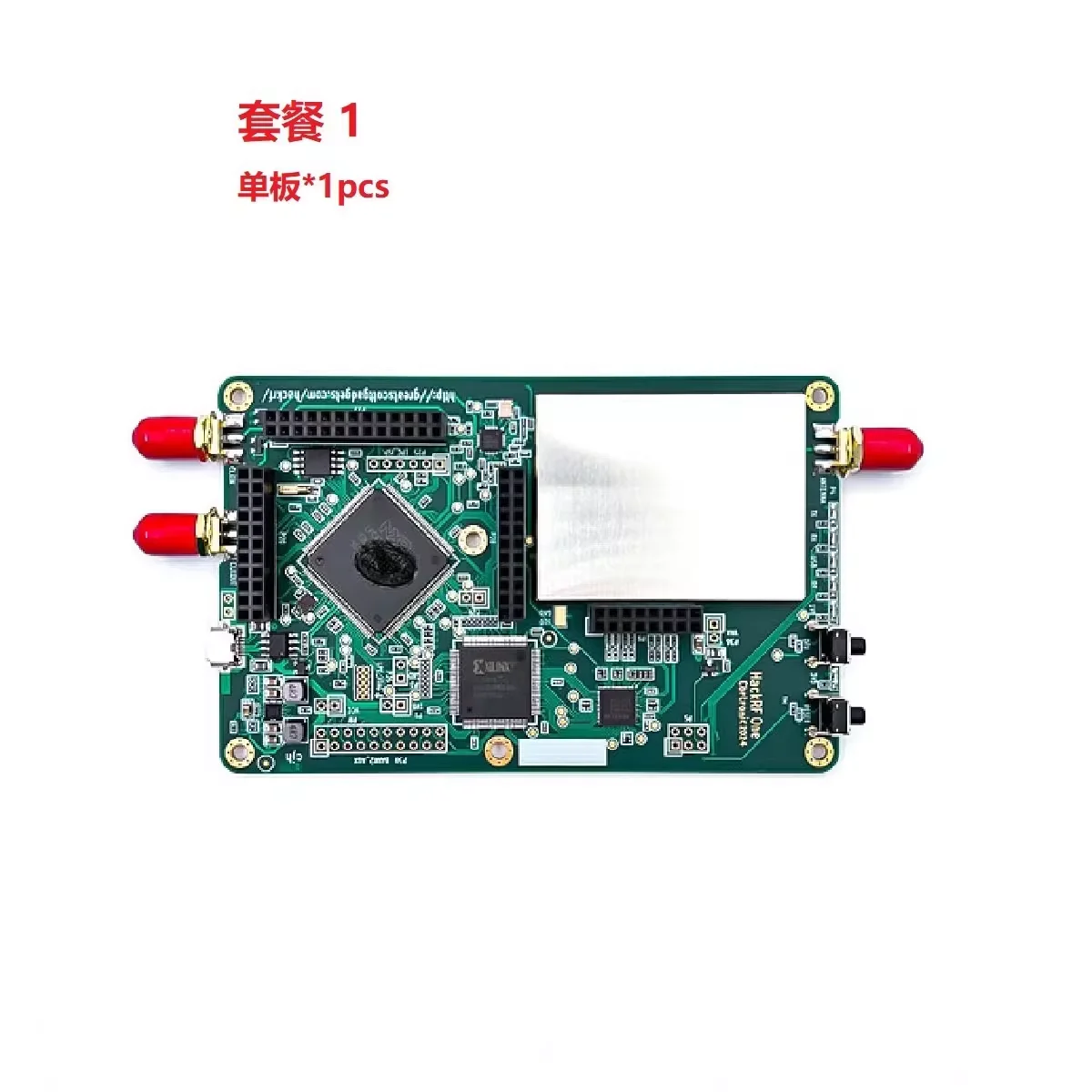

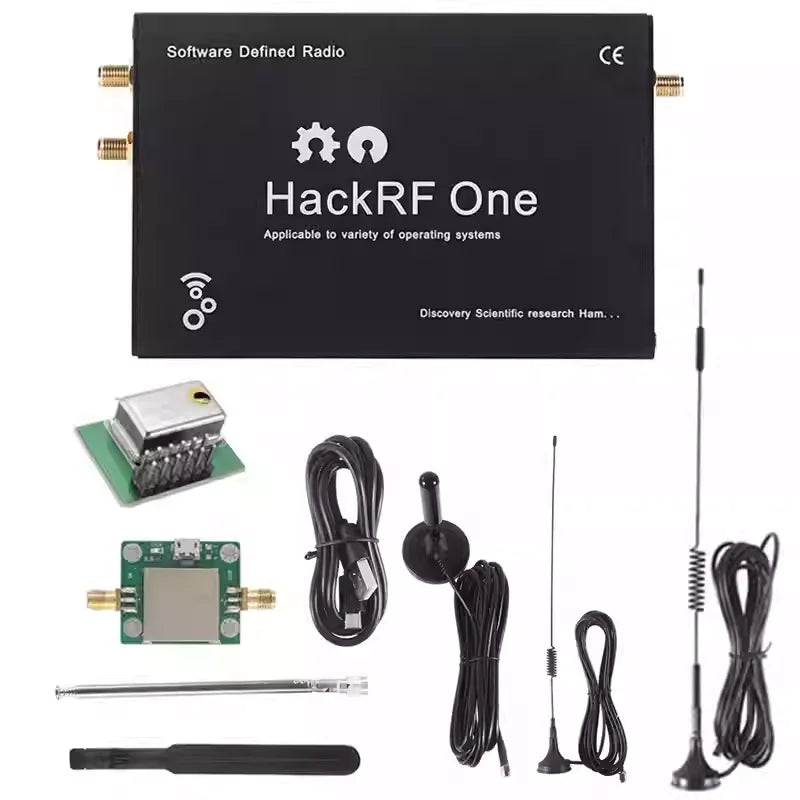

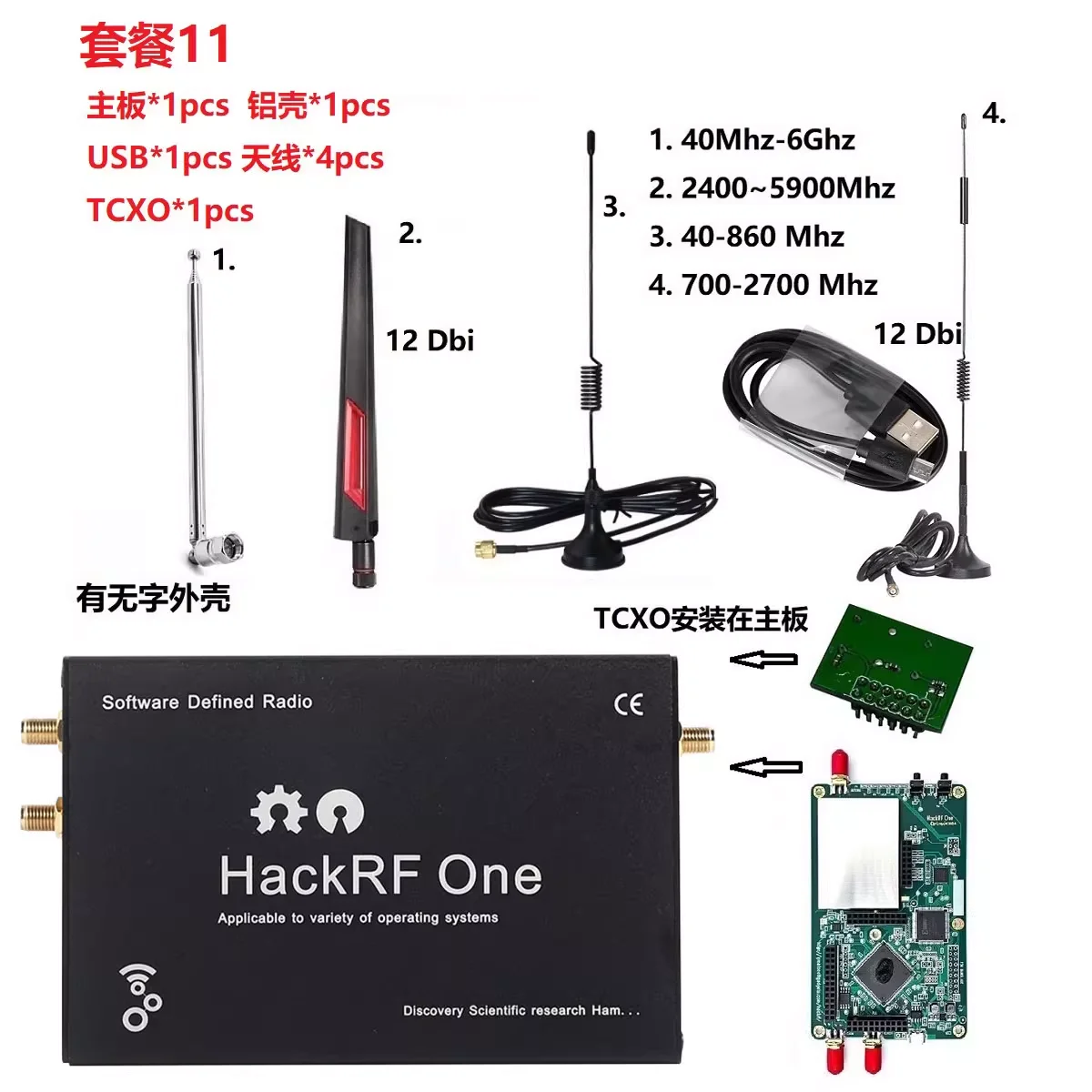

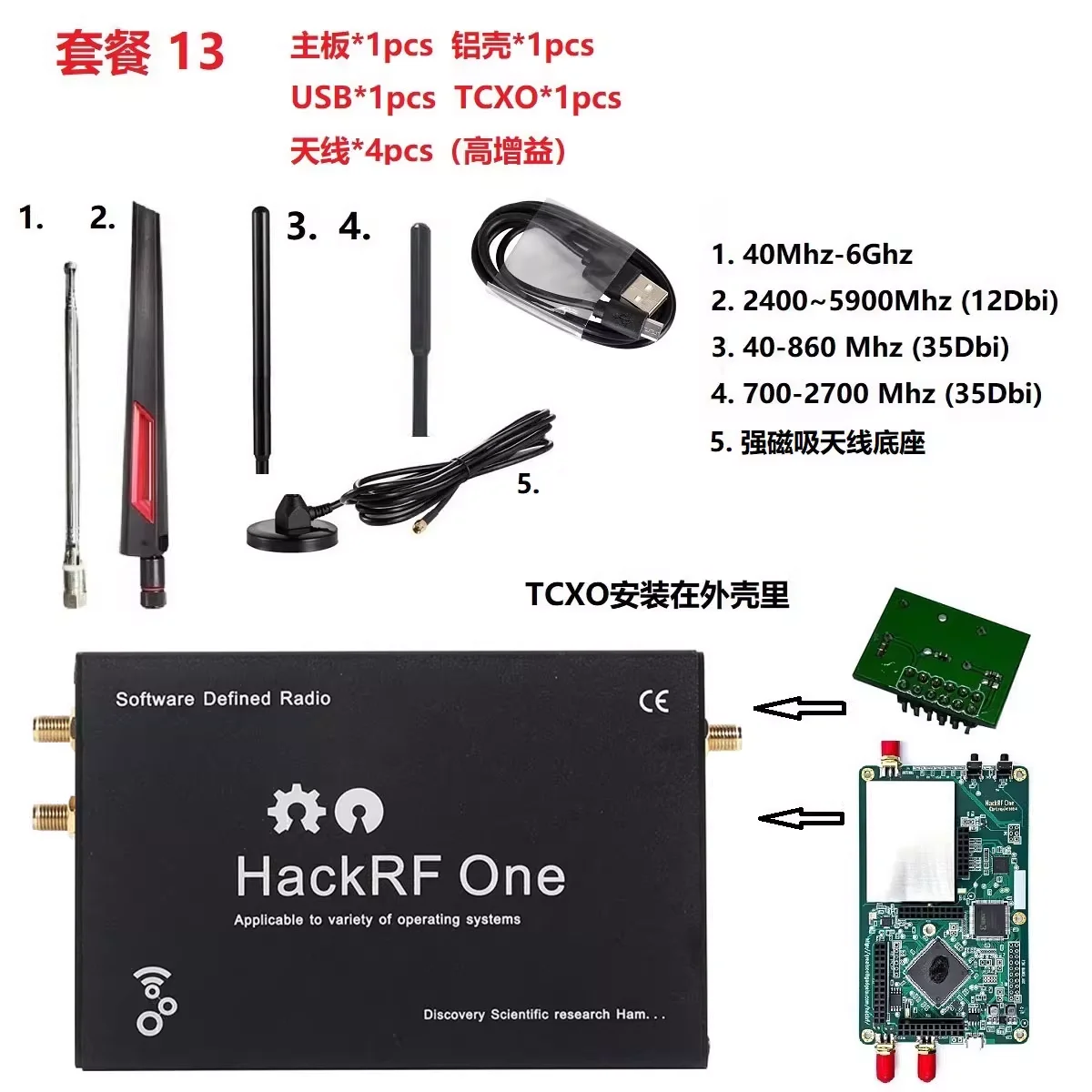

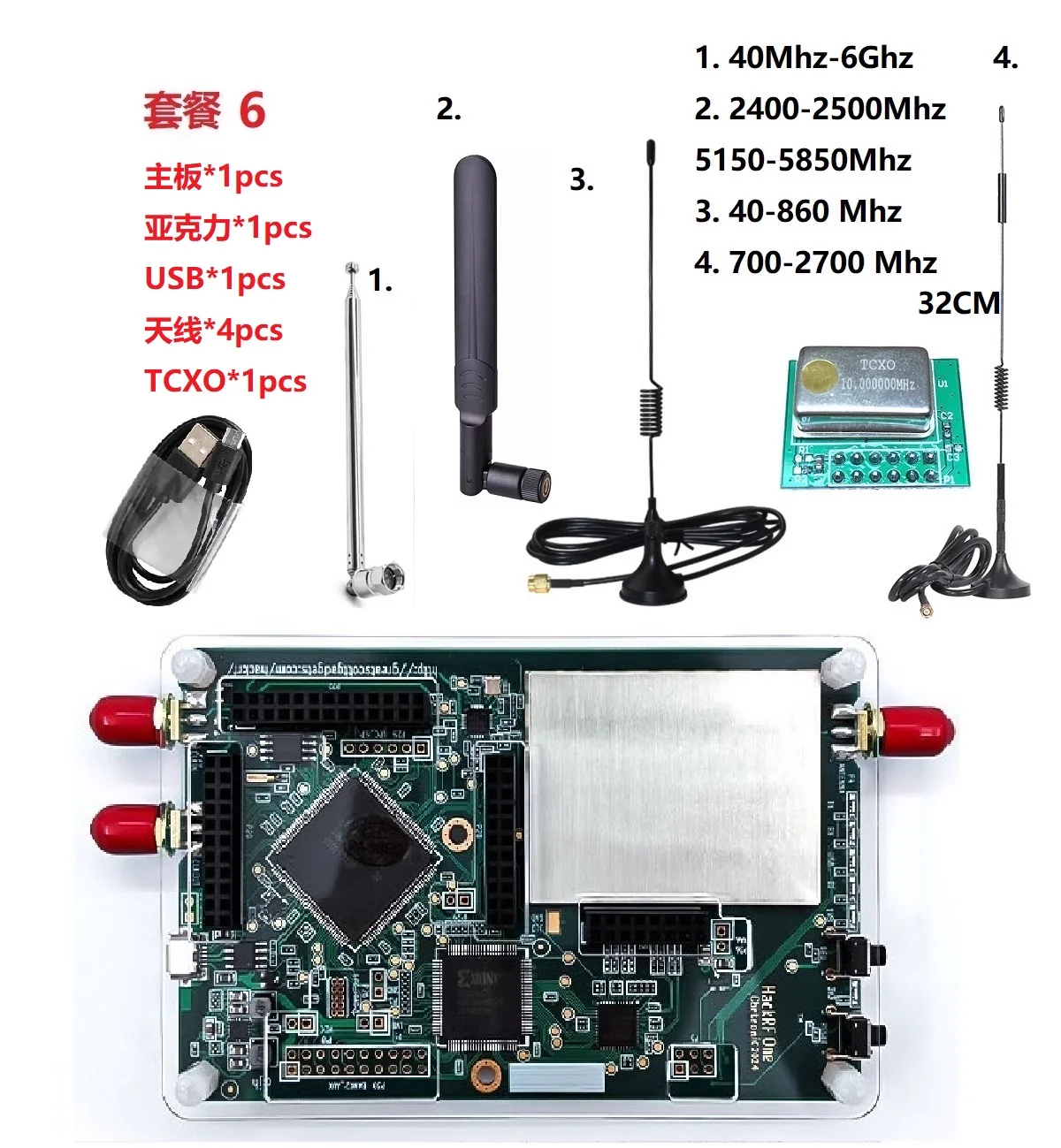

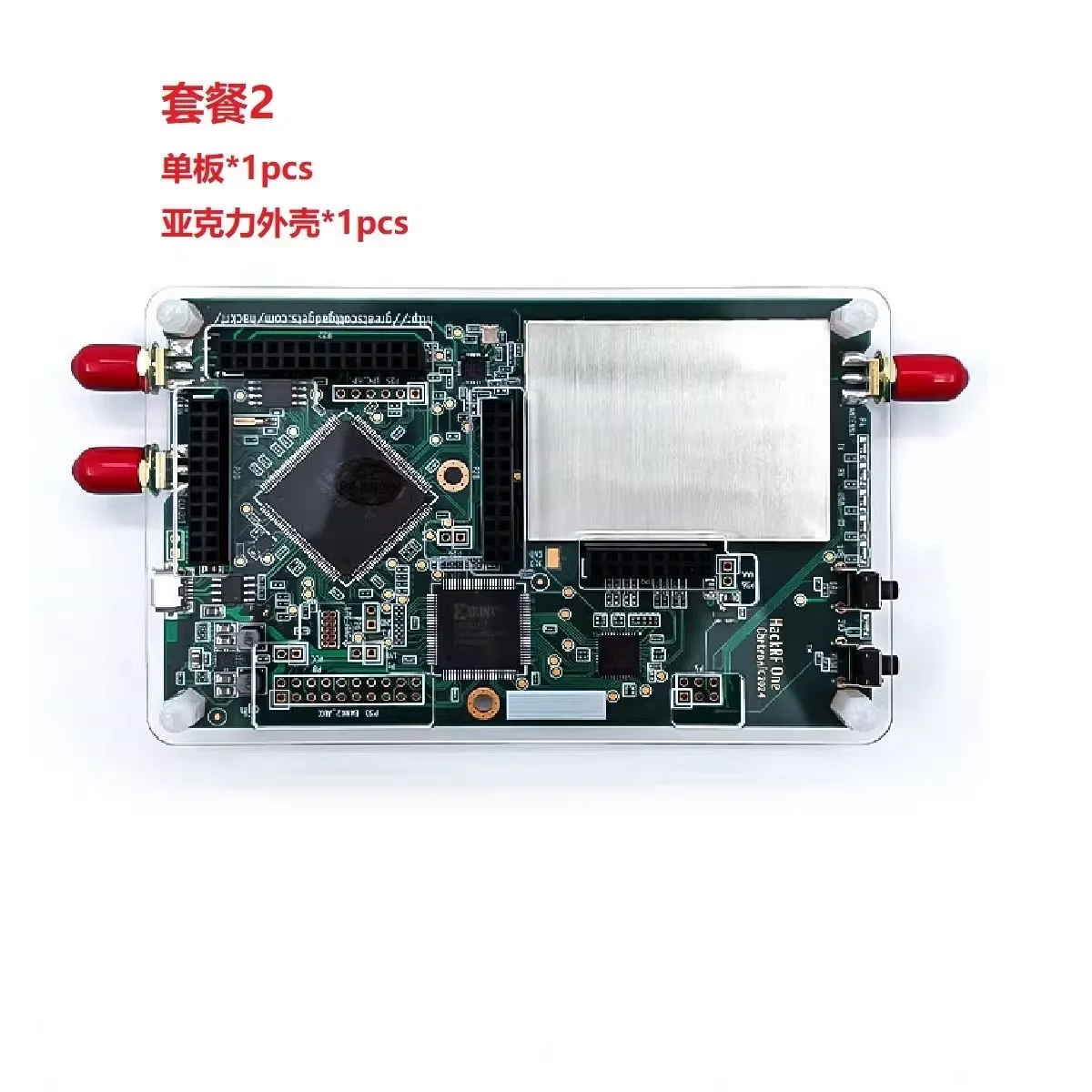

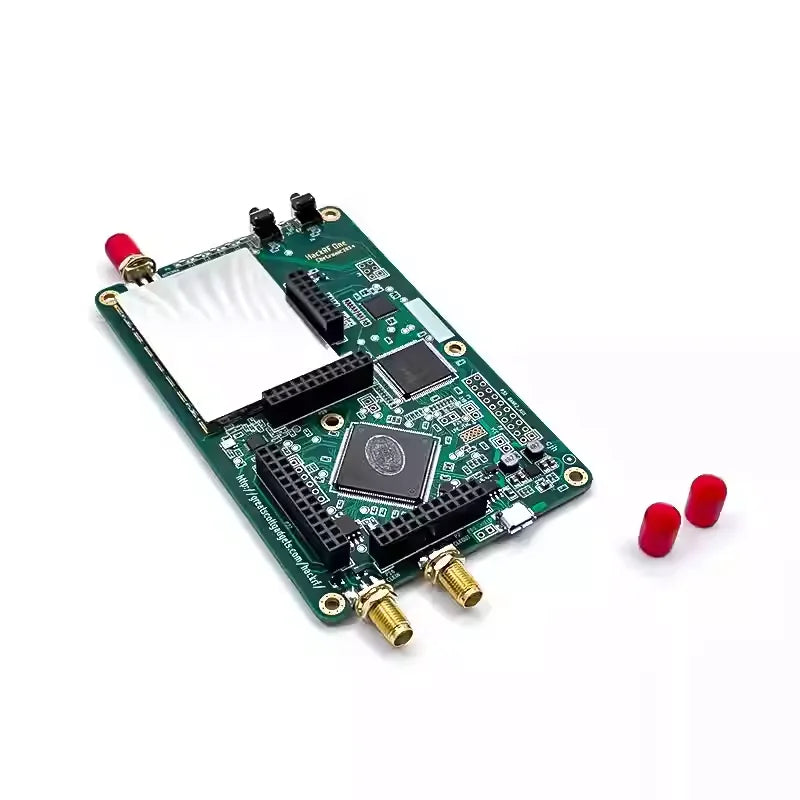

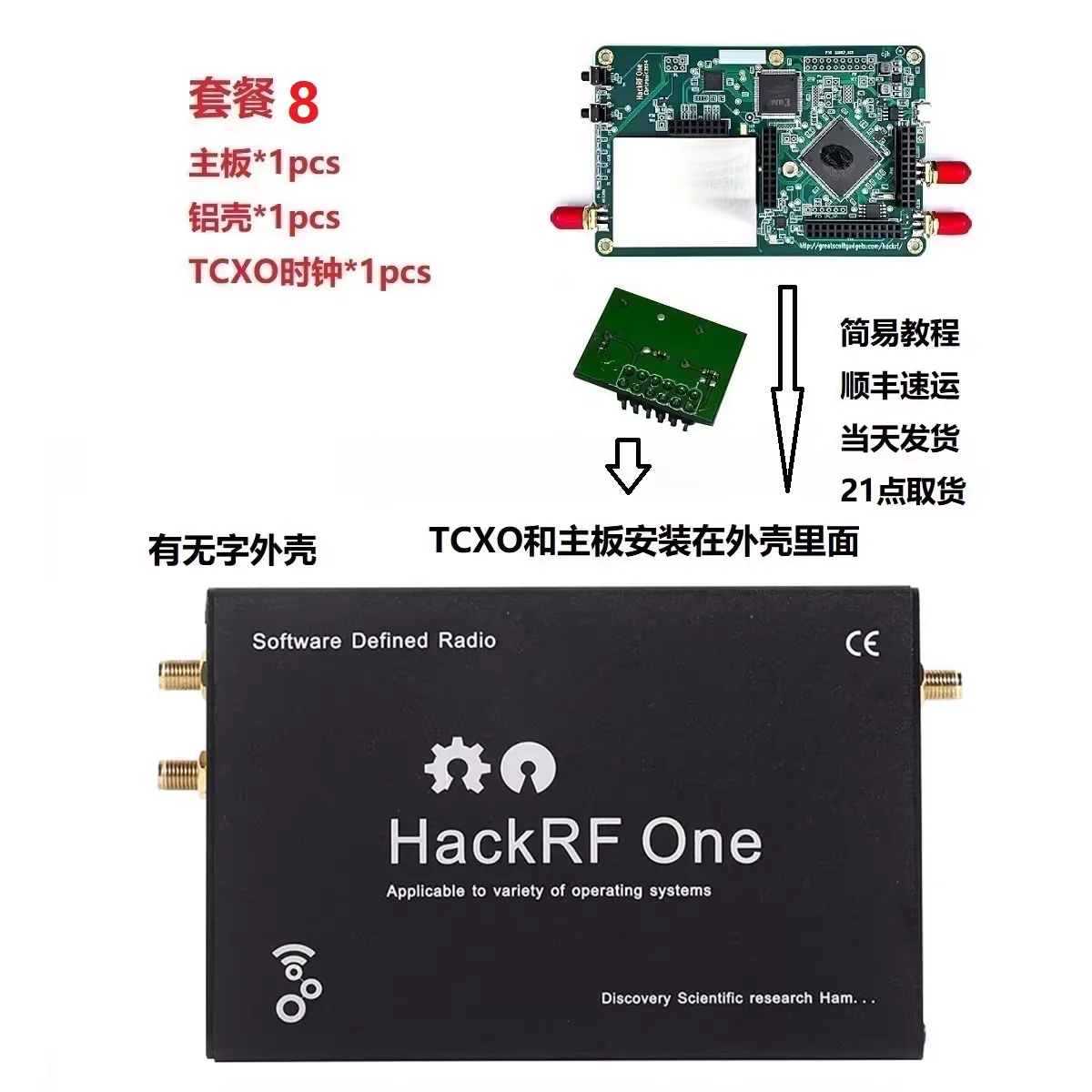

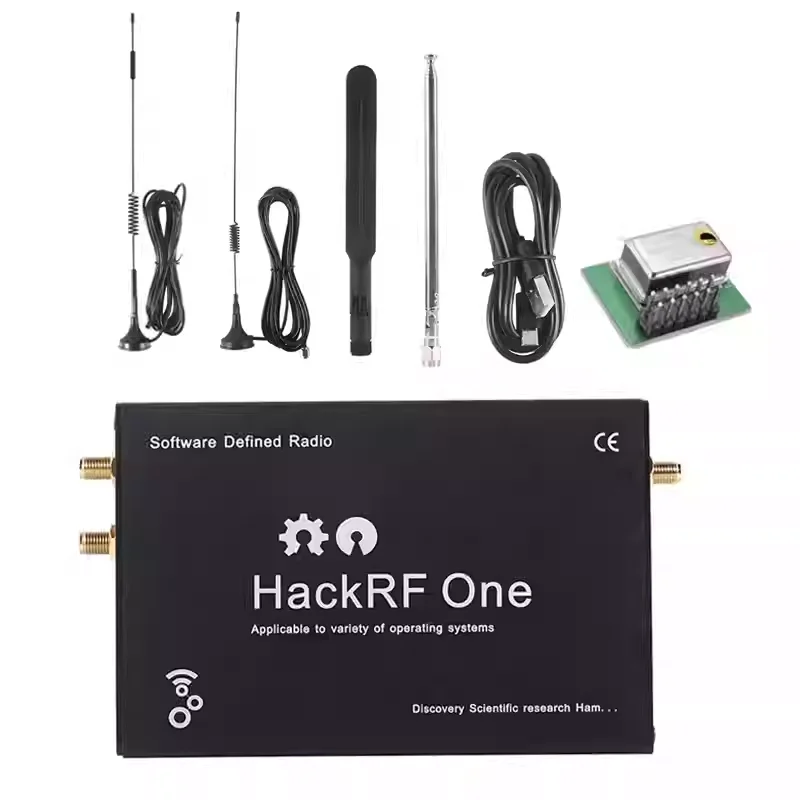

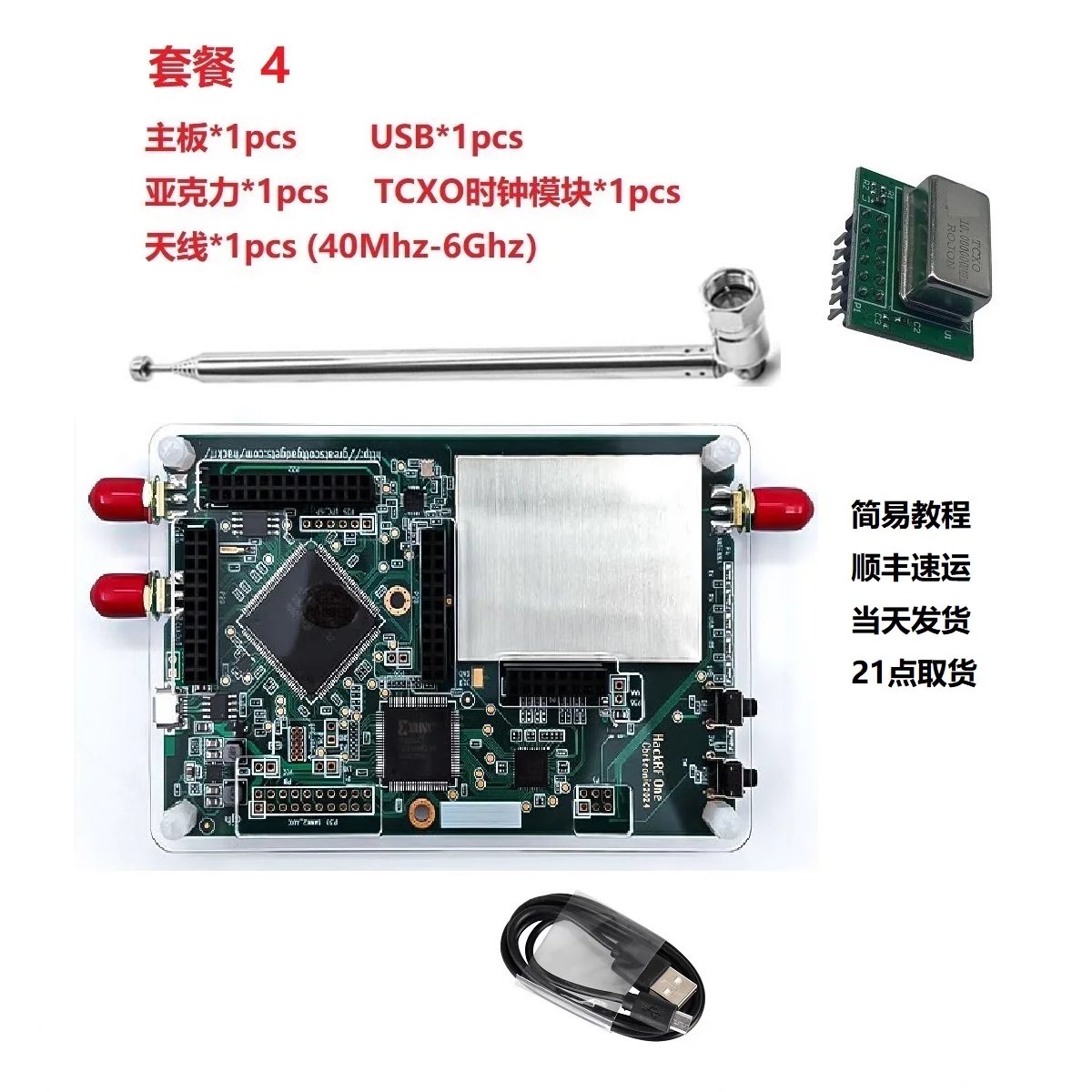

HackRF One 1-6GHz Open Source Software Defined Radio Platform SDR Development Board

HackRF One is the current hardware platform for the HackRF project. It is a Software Defined Radio peripheral capable of
transmission or reception of radio signals from 1 MHz to 6 GHz. Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.

Features

- Half-duplex transceiver
- Operating freq: 1 MHz to 6 GHz
- Supported sample rates: 2 Msps to 20 Msps (quadrature)
- Resolution: 8 bits
- Interface: High Speed USB (with USB Micro-B connector)
- Power supply: USB bus power
- Software-controlled antenna port power (max 50 mA at 3.3 V)
- SMA female antenna connector (50 ohms)
- SMA female clock input and output for synchronization
- Convenient buttons for programming
- Pin headers for expansion
- Portable
- Open source

Using HackRF One's Buttons:

The RESET button resets the microcontroller. This is a reboot that should result in a USB re-enumeration.
The DFU button invokes a USB DFU bootloader located in the microcontroller's ROM. This bootloader makes it possible to unbrick a HackRF One with damaged firmware because the ROM cannot be overwritten.
To invoke DFU mode: Press and hold the DFU button. While holding the DFU button, reset the HackRF One either by pressing and releasing the RESET button or by powering on the HackRF One. Release the DFU button.
The DFU button only invokes the bootloader during reset. This means that it can be used for other functions by custom firmware.

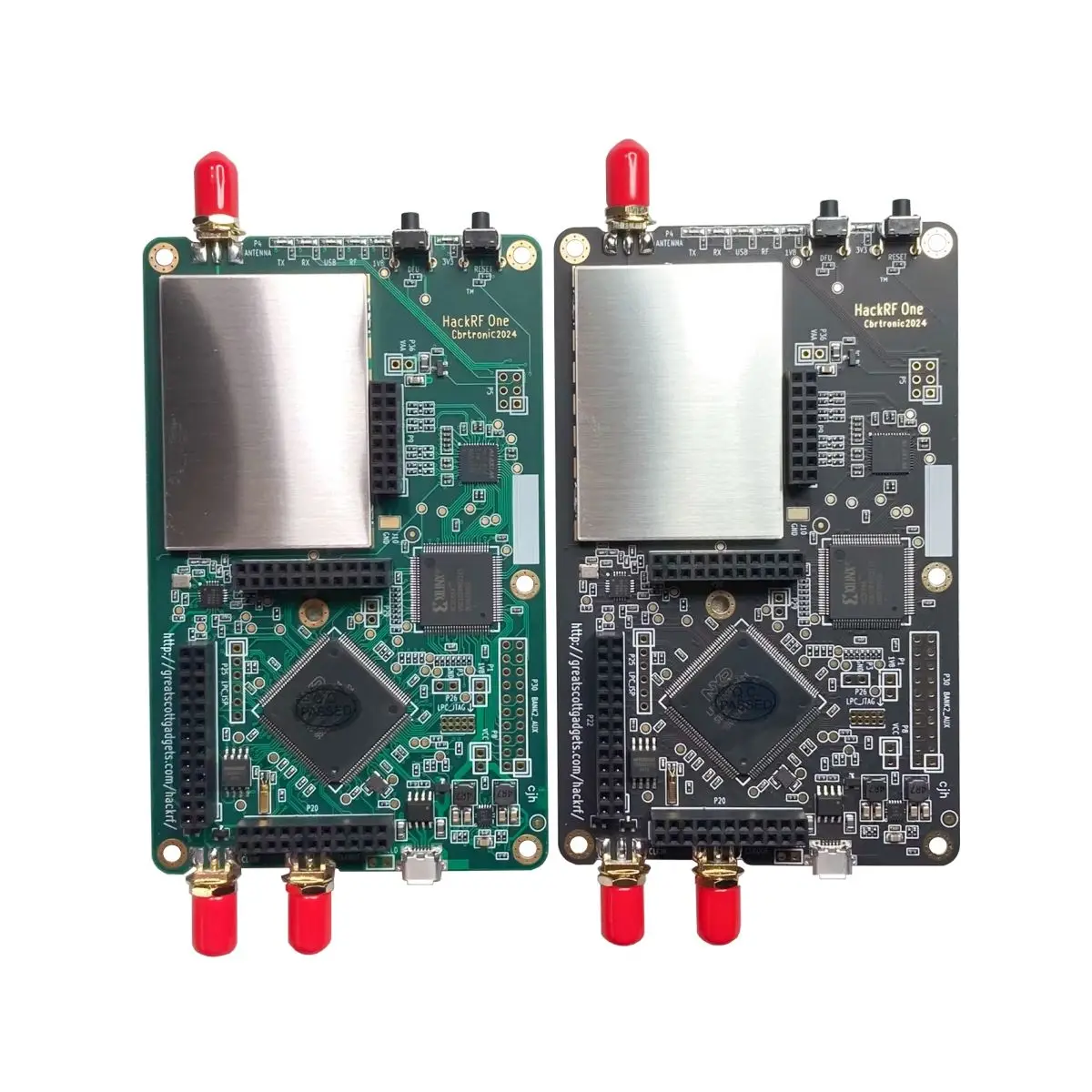

Product Name	Hackrf One R9 Board
D/C	NEWEST
Package	Module
Type	Development Board
Unit Price	Contact us for latest price
Package	Tube, Tray, Tape and Reel, Tape and Box, Bulk packing, Bag, and more
