SPECIFICATIONS

Battery Included: Yes

Brand Name: HTOOL

Choice: yes

DIY Supplies: Electrical

Display Size: 3.0 - 4.9 Inches

High-concerned chemical: None

Model Number: SDR V5

Origin: Mainland China

semi_Choice: yes

Radio shortwave FM radio receiver

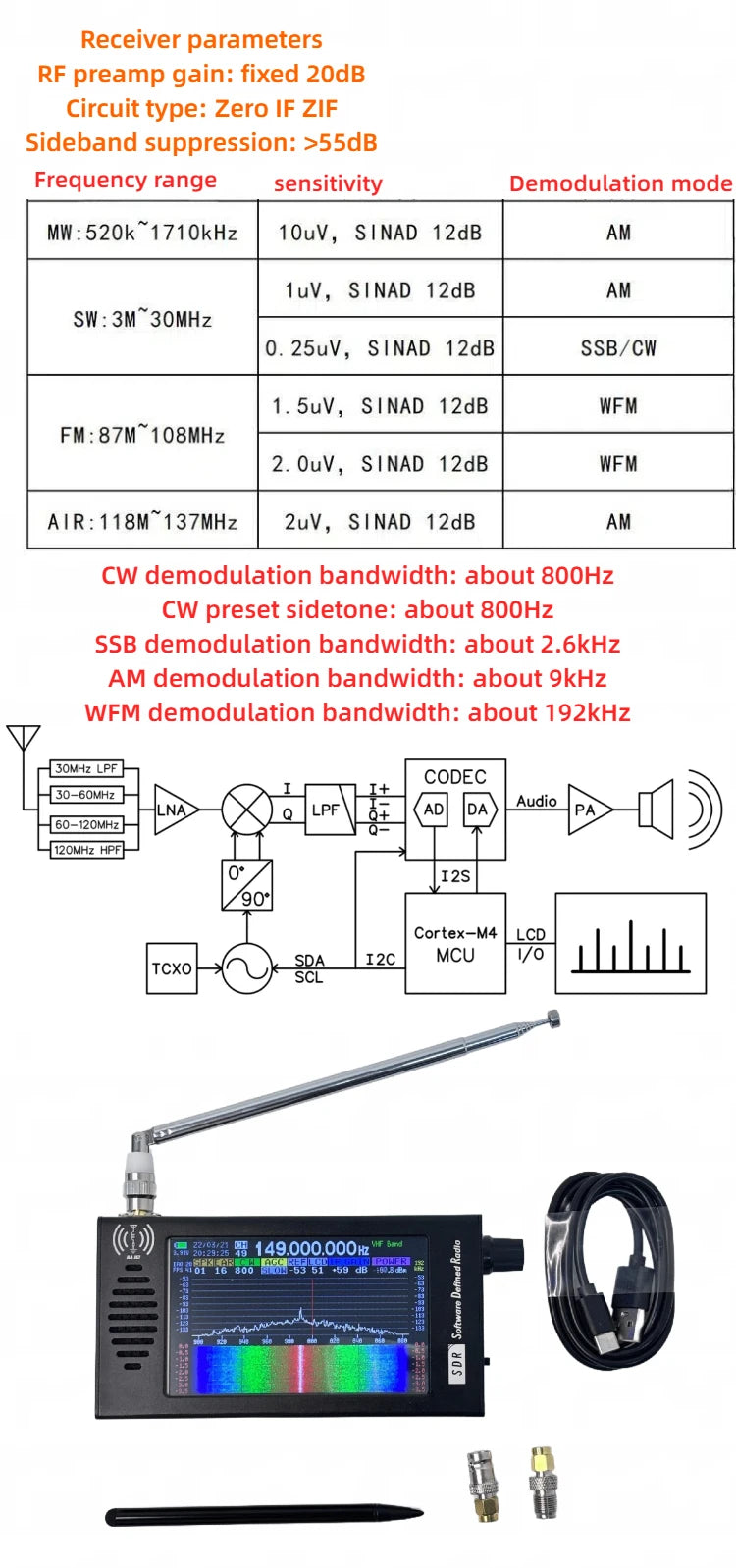

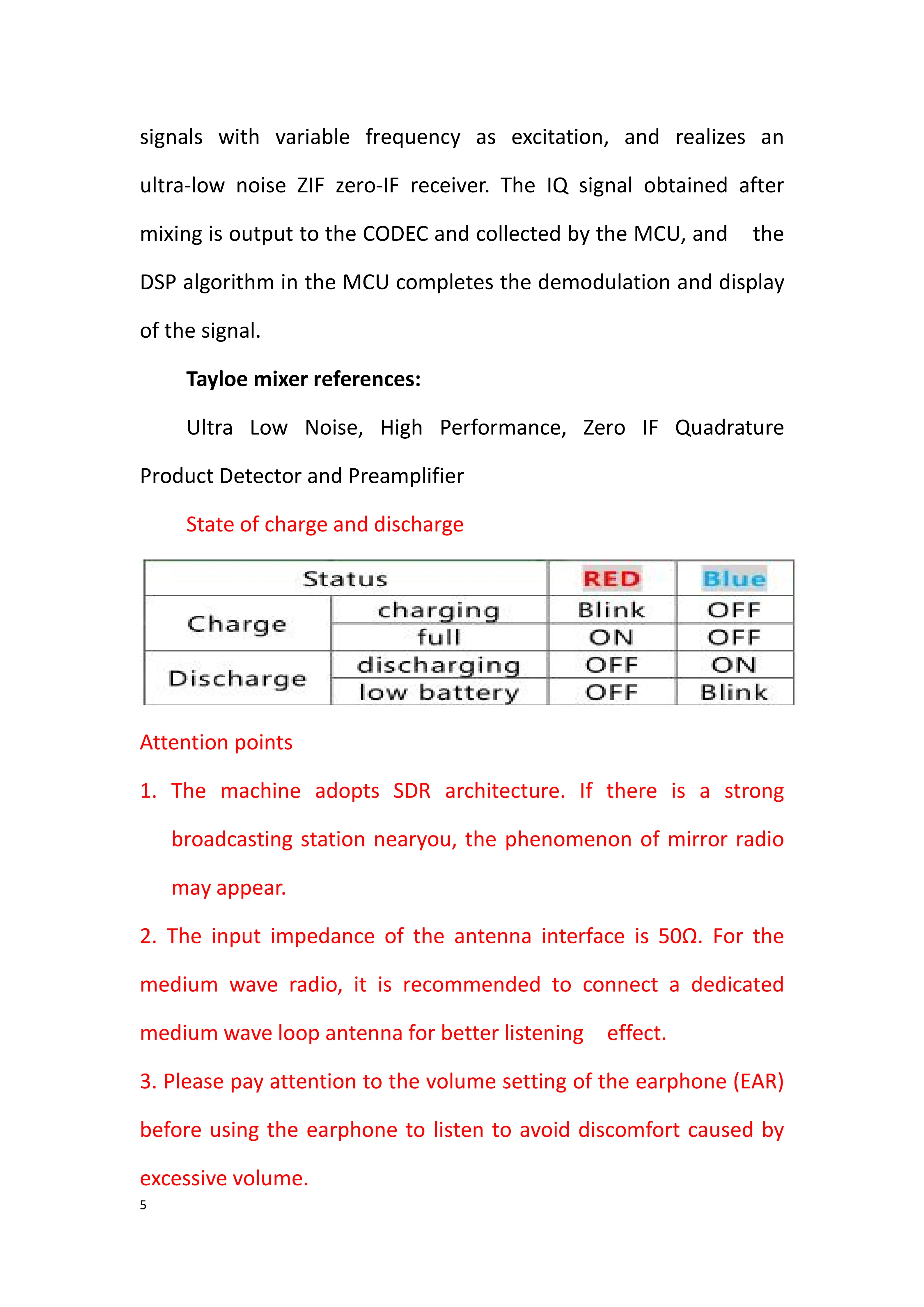

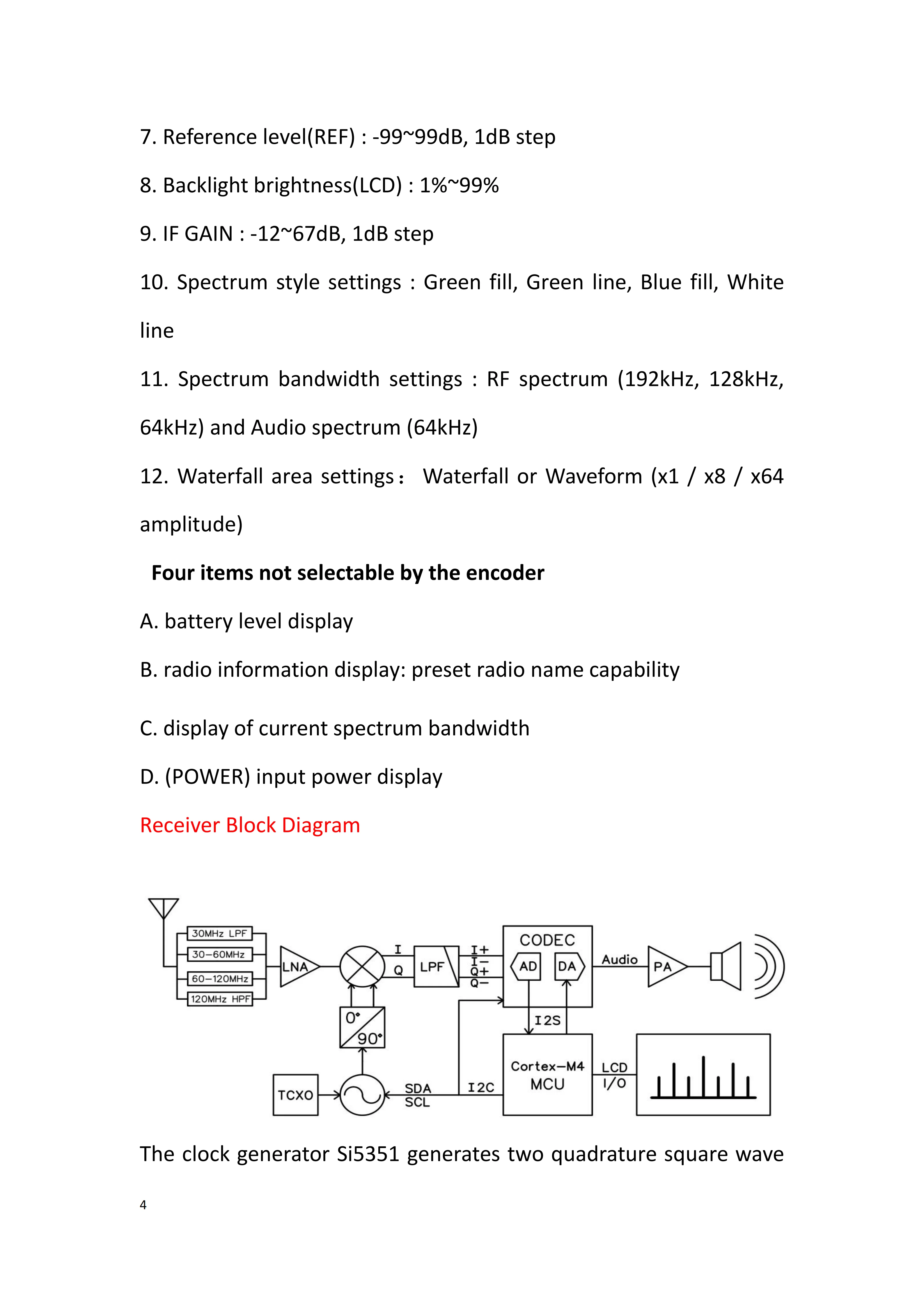

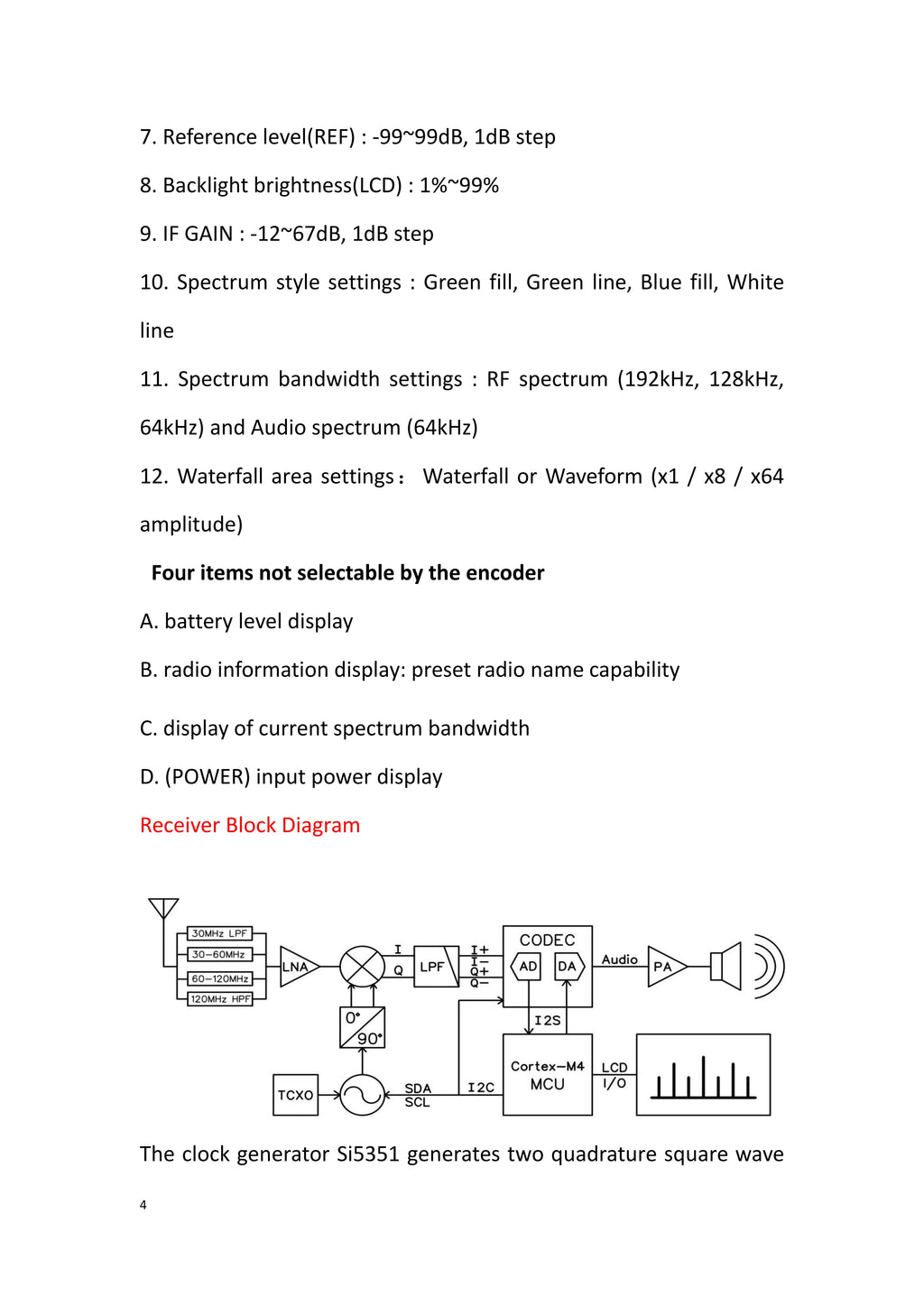

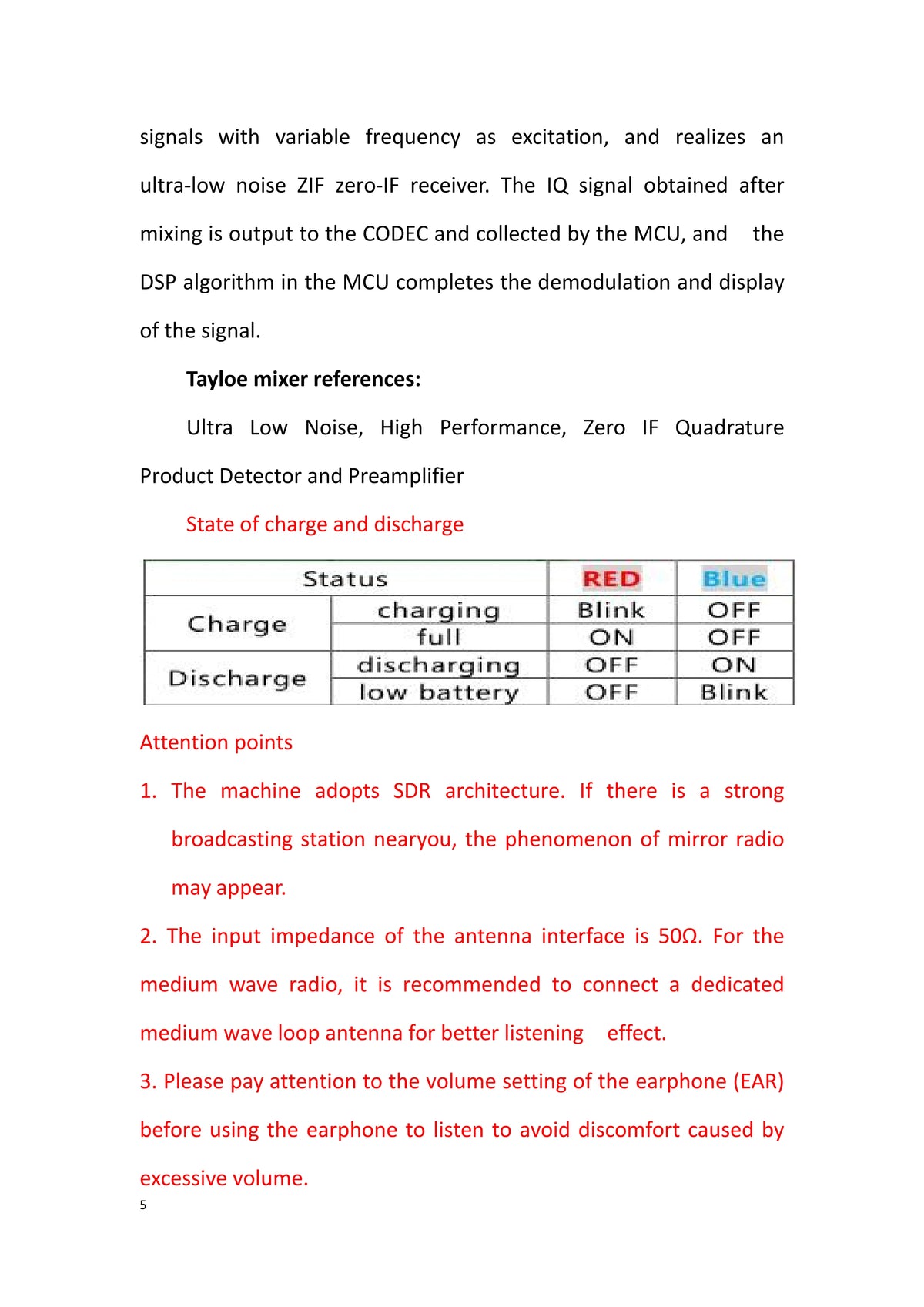

This product is based on the Tayloe Ouadrature Product Detector method to achieve frequency mixing, and the clock generator Si5351 generates two orthogonal square wave signals with variable frequency as excitation to achieve an ultra-low noise ZIF zero-IF receiver. The 1Q signal obtained after mixing is output to the CODEC codec and collected by the MCU, and the DSP algorithm in the MCU completes the demodulation and display of the signal

Tayloe mixer References: http://www.norcalqrp.org/files/Tayloe_mixer_x3a.pdf

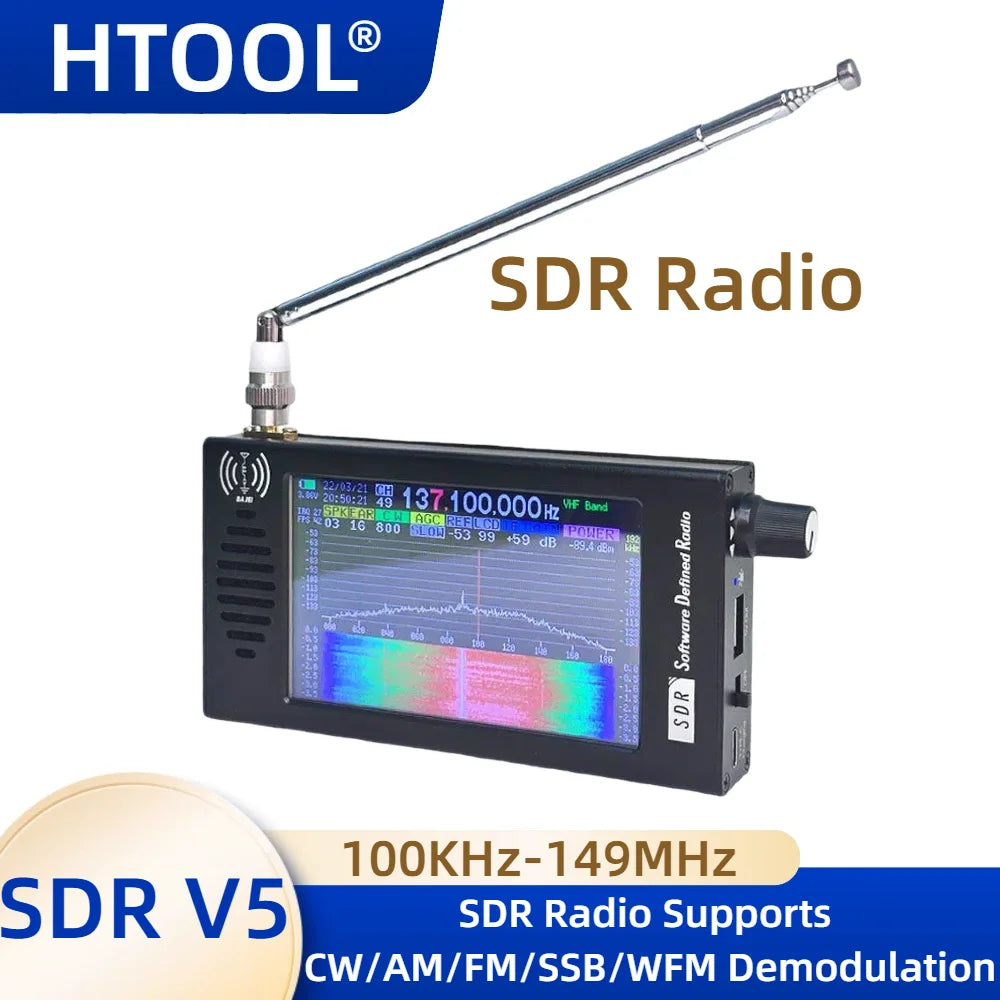

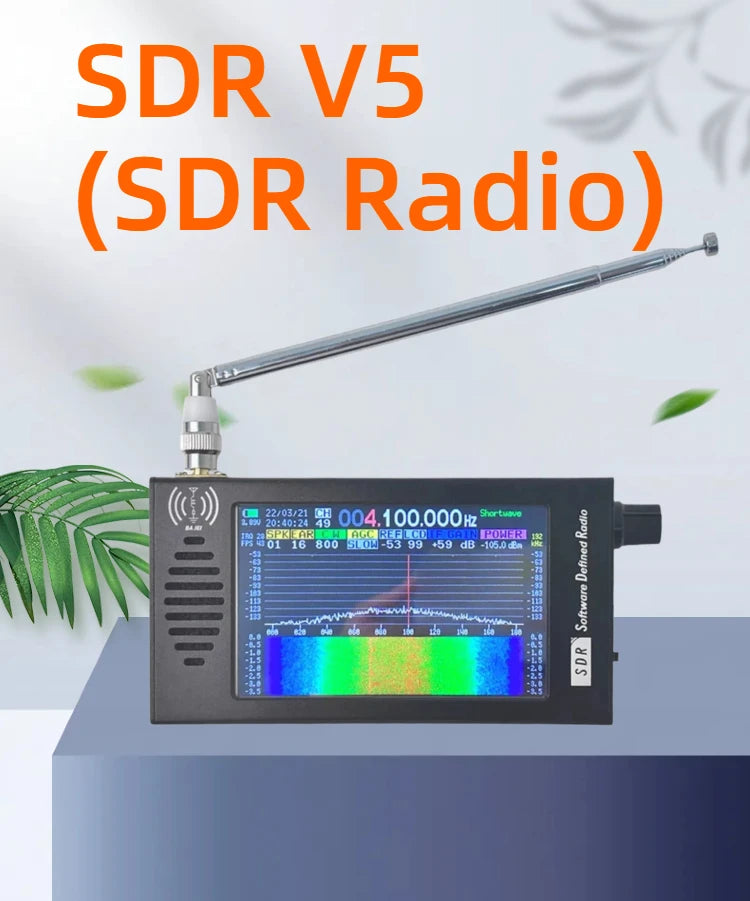

SDR Radio DSP Digital Demodulation Shortwave FM MW SSB CW HAM Radio Receiver

Product Description:

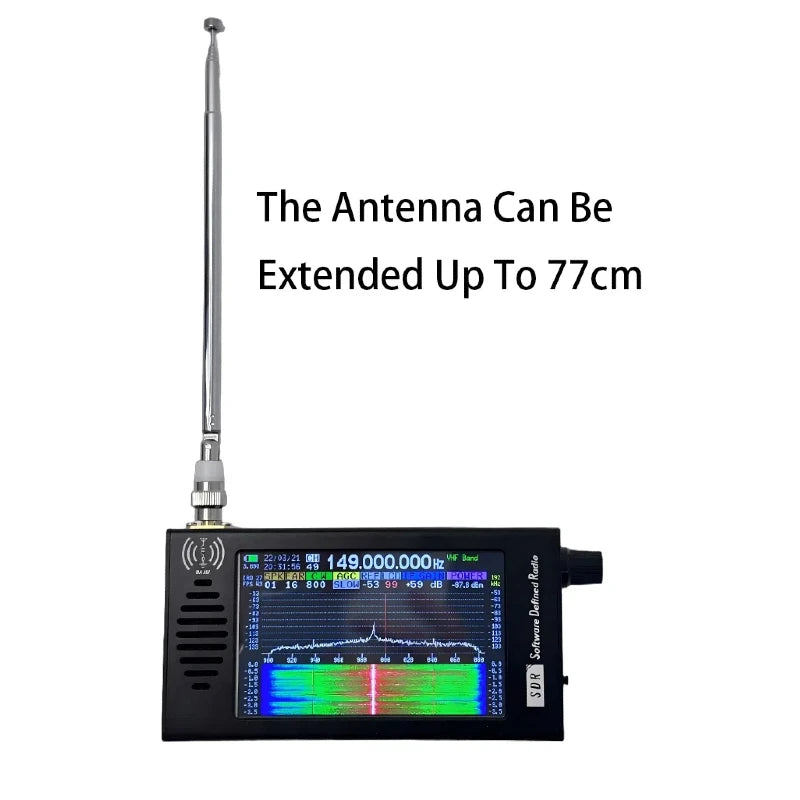

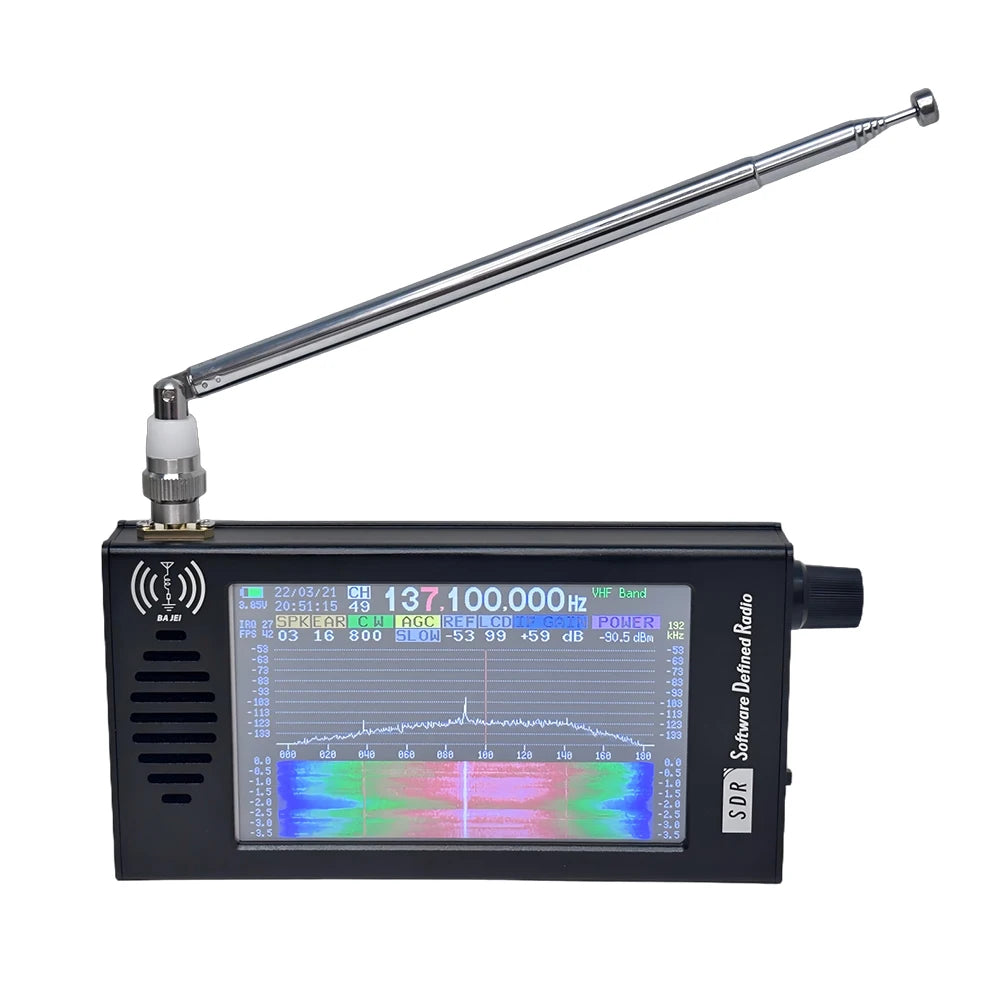

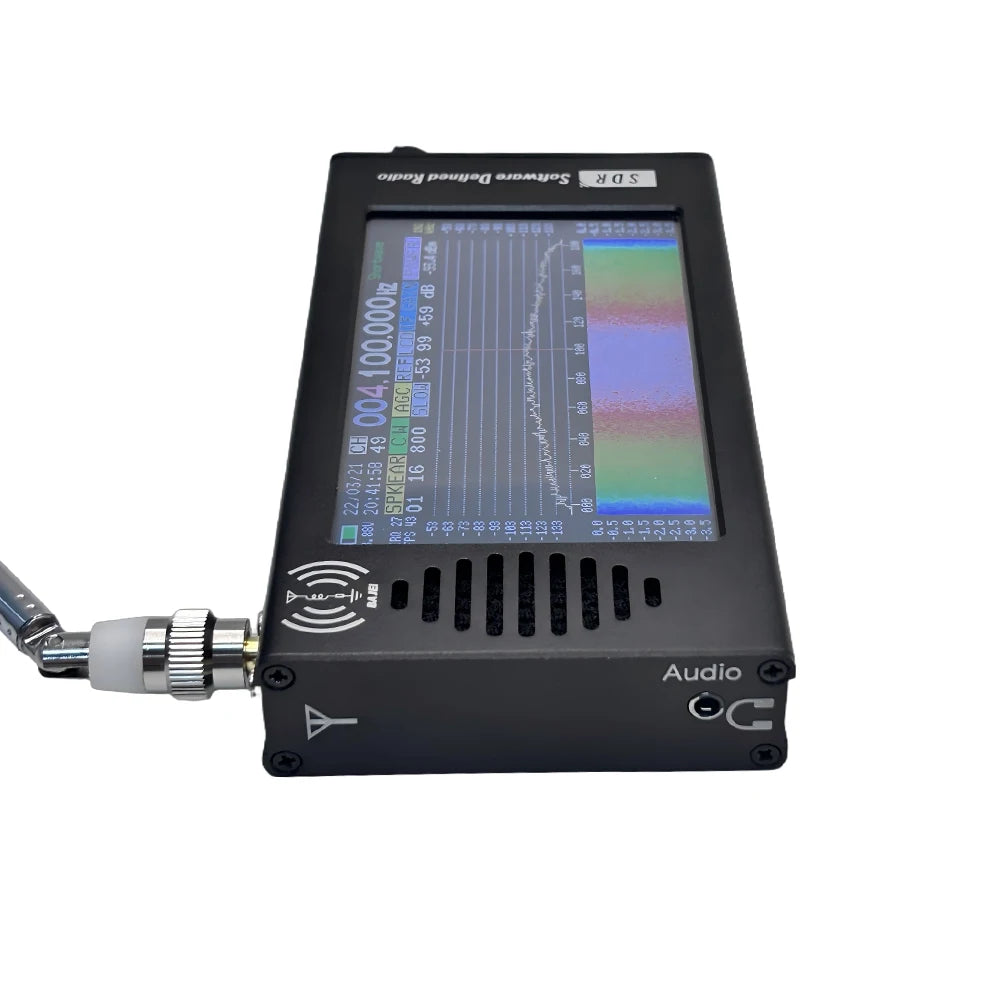

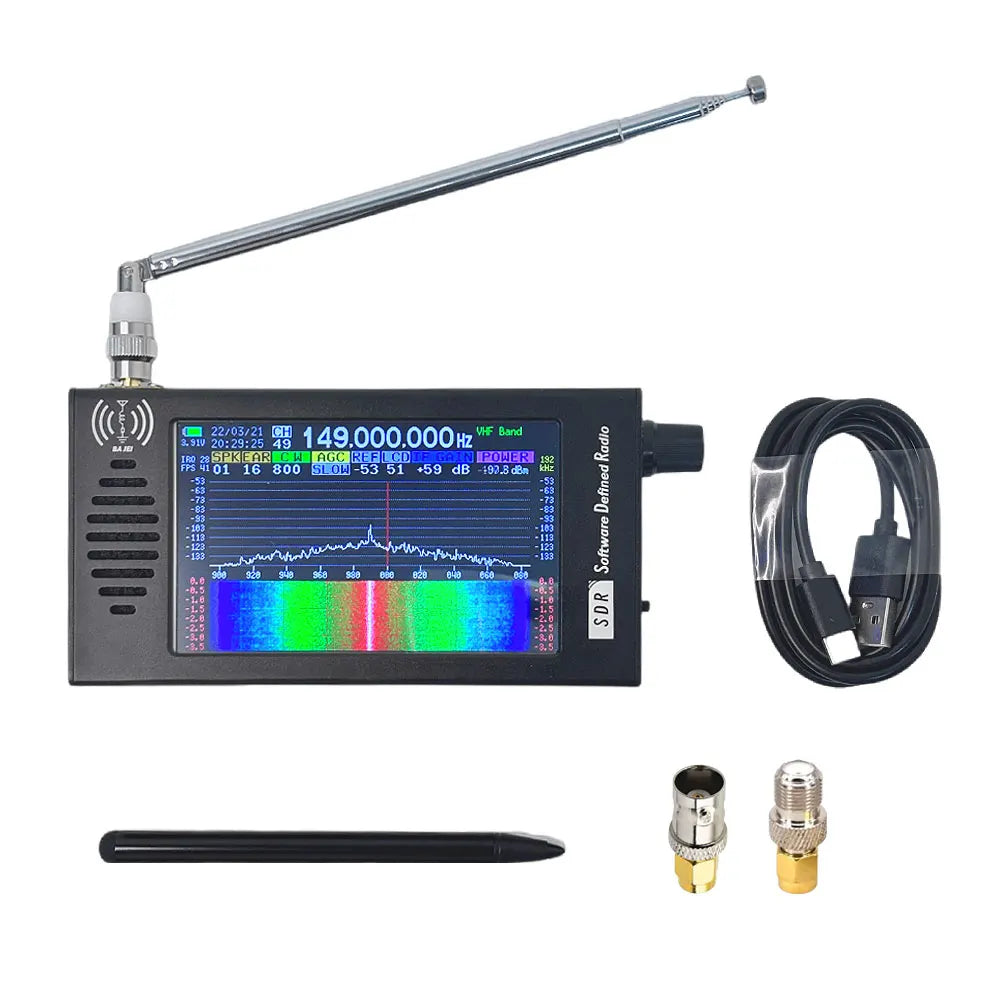

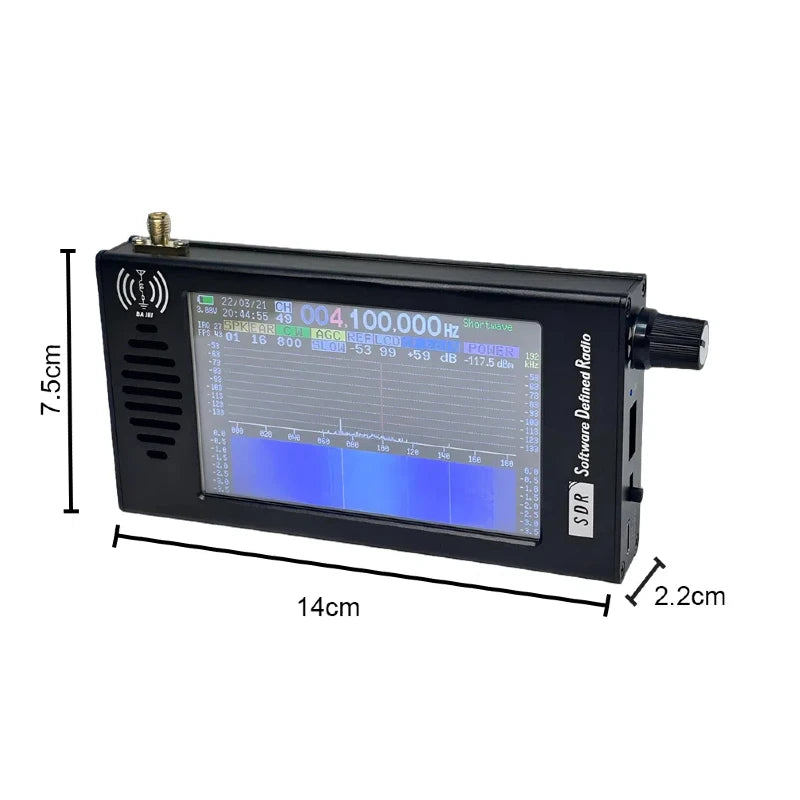

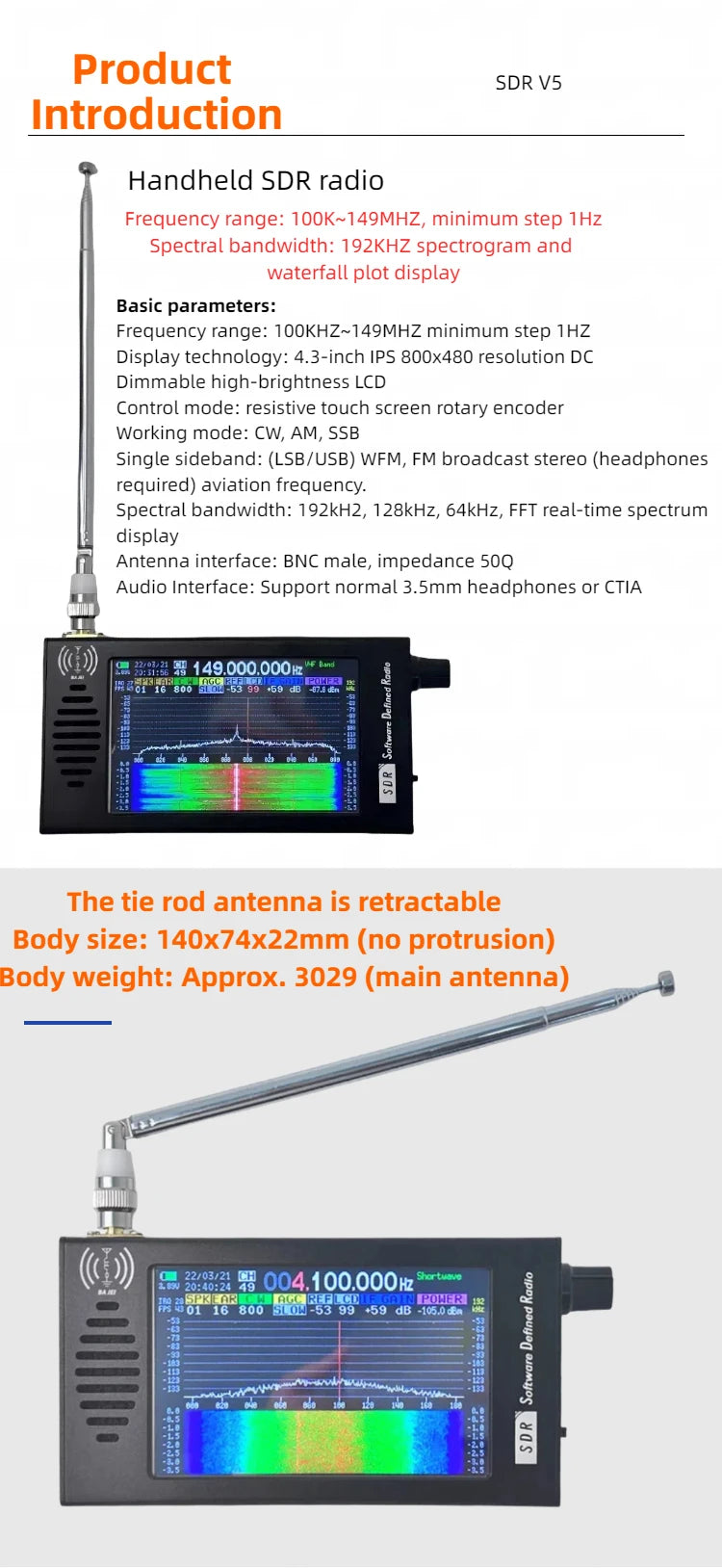

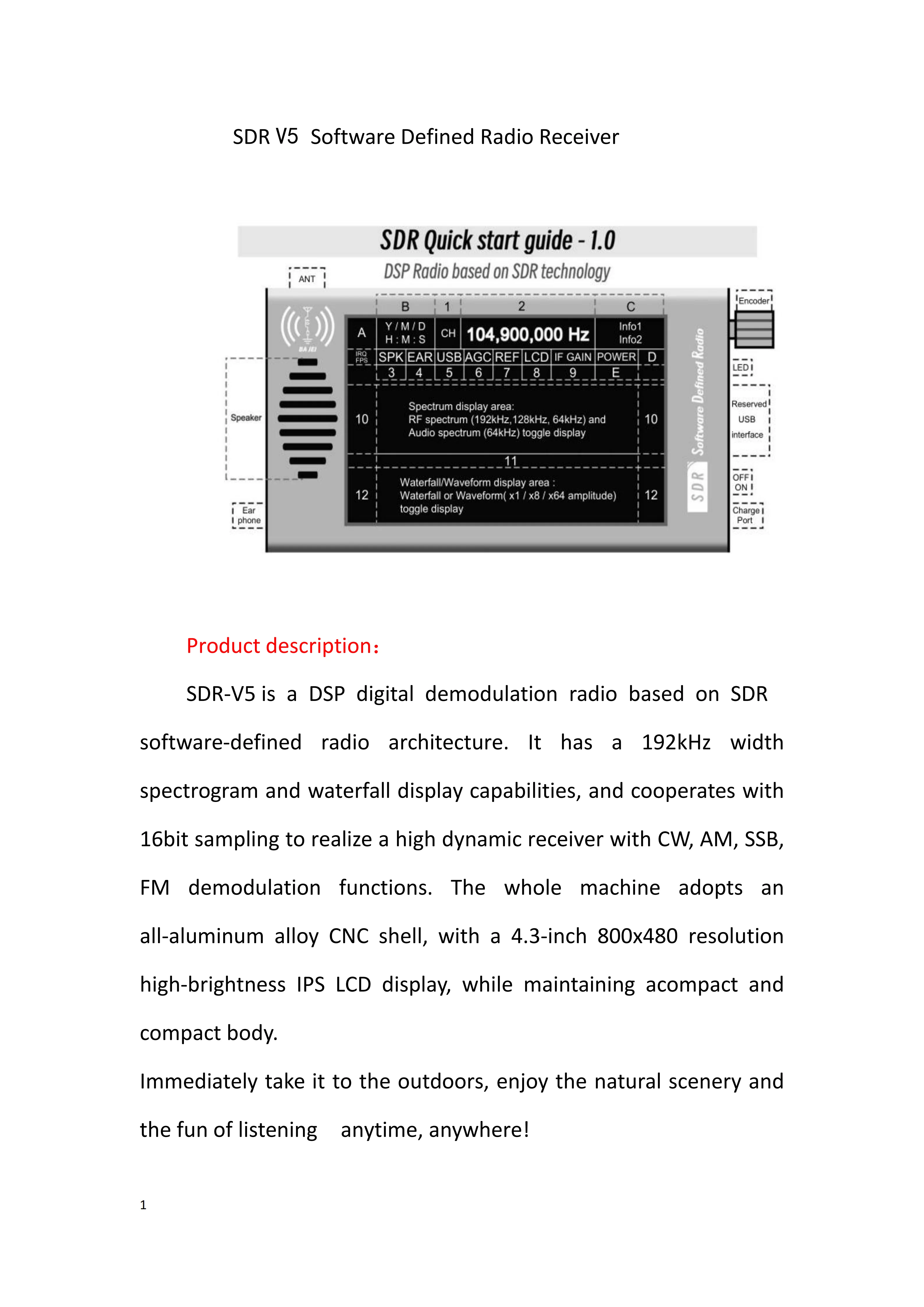

The DeepSDR 101 is a DSP digital demodulation radio based on the SDR software-defined radio architecture. It has a 192kHz wide spectrogram and waterfall display capability, and a highly dynamic receiver with CW, AM, SSB, and FM demodulation functions with 16-bit sampling. The whole machine adopts an all-aluminum alloy CNC shell, with a 4.3-inch 800x480 resolution high-brightness IPS LCD display while maintaining a small and compact body.

Take it outdoors right away and enjoy nature and listening anytime, anywhere!
