20DB

$13.96

$13.96

SPECIFICATIONS

Application: For Beidou/GPS receiver

Brand Name: oserjep

Description: Receiver system (FM radio receiver, radar receiver, etc.)

Gain: 20DB

High Flatness RF POWER Amplifier: LAN RF POWER Amplifier

Manufacturer: yes

Model Number: AM1102

Module frequency range: 10Mhz-6GHz

Name: High Flatness RF POWER Amplifier

Noise figure: NF=5dB (refer to the measured curve for different frequencies)

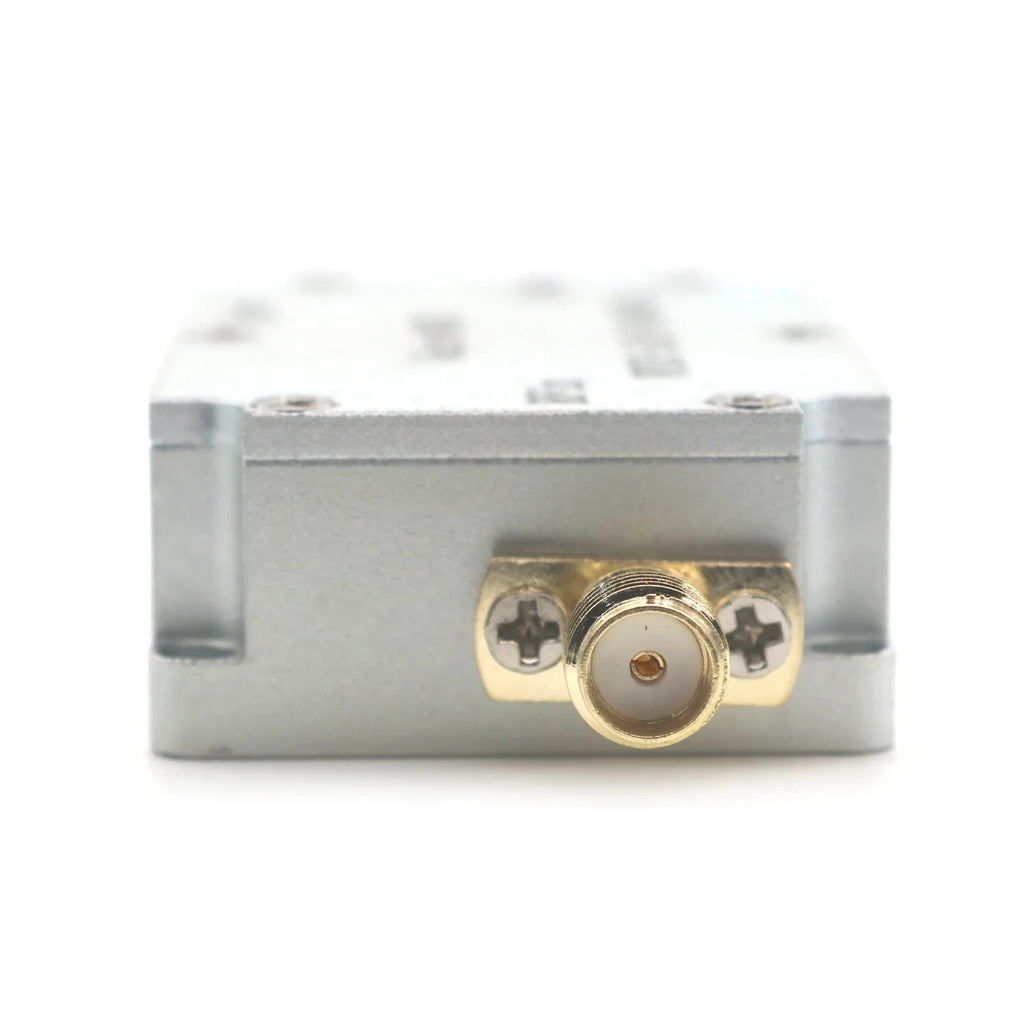

Output interface: SMA female

Place of Origin: Guangdong, China

Series: Receiver system

Size / Dimension: 4.5*3*1.4cm

Type: RF Amplifiers,Low Noise Amplifier

input and output impedance: 50 ohms

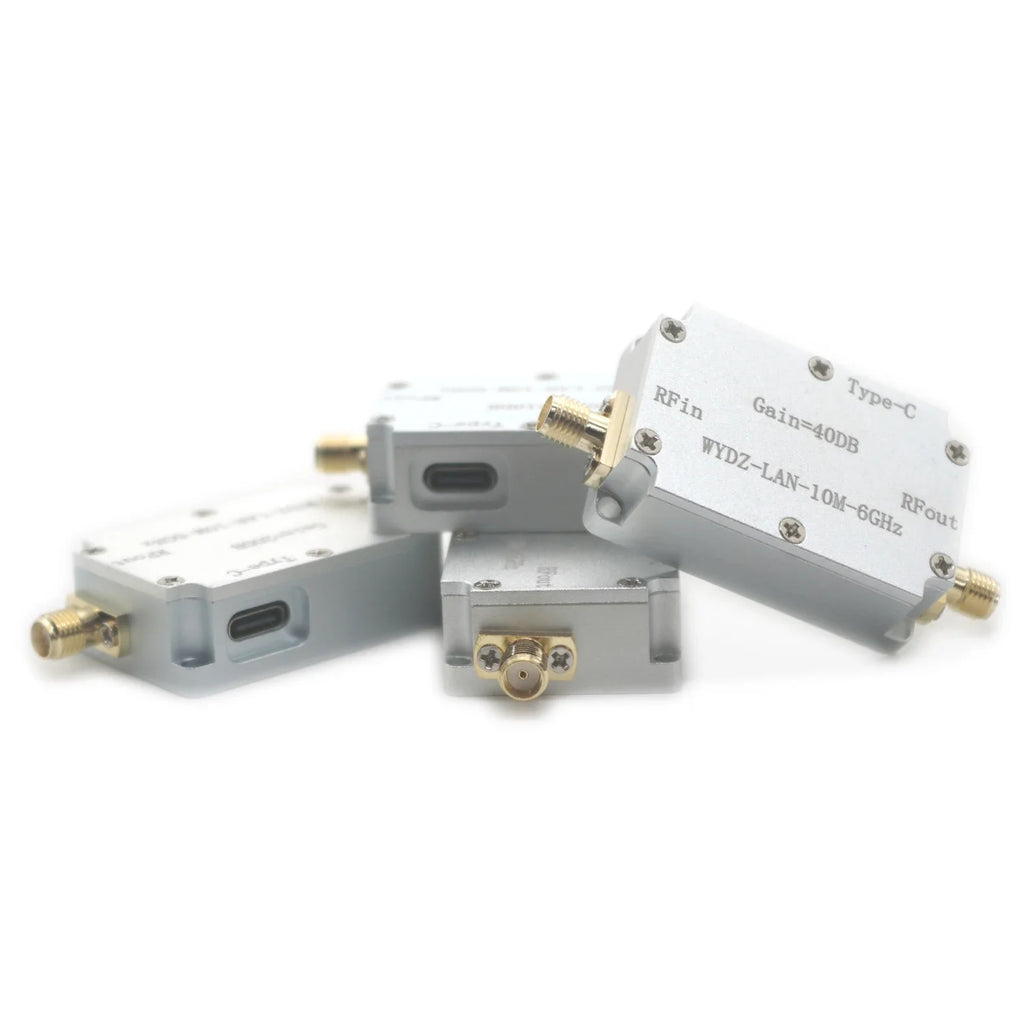

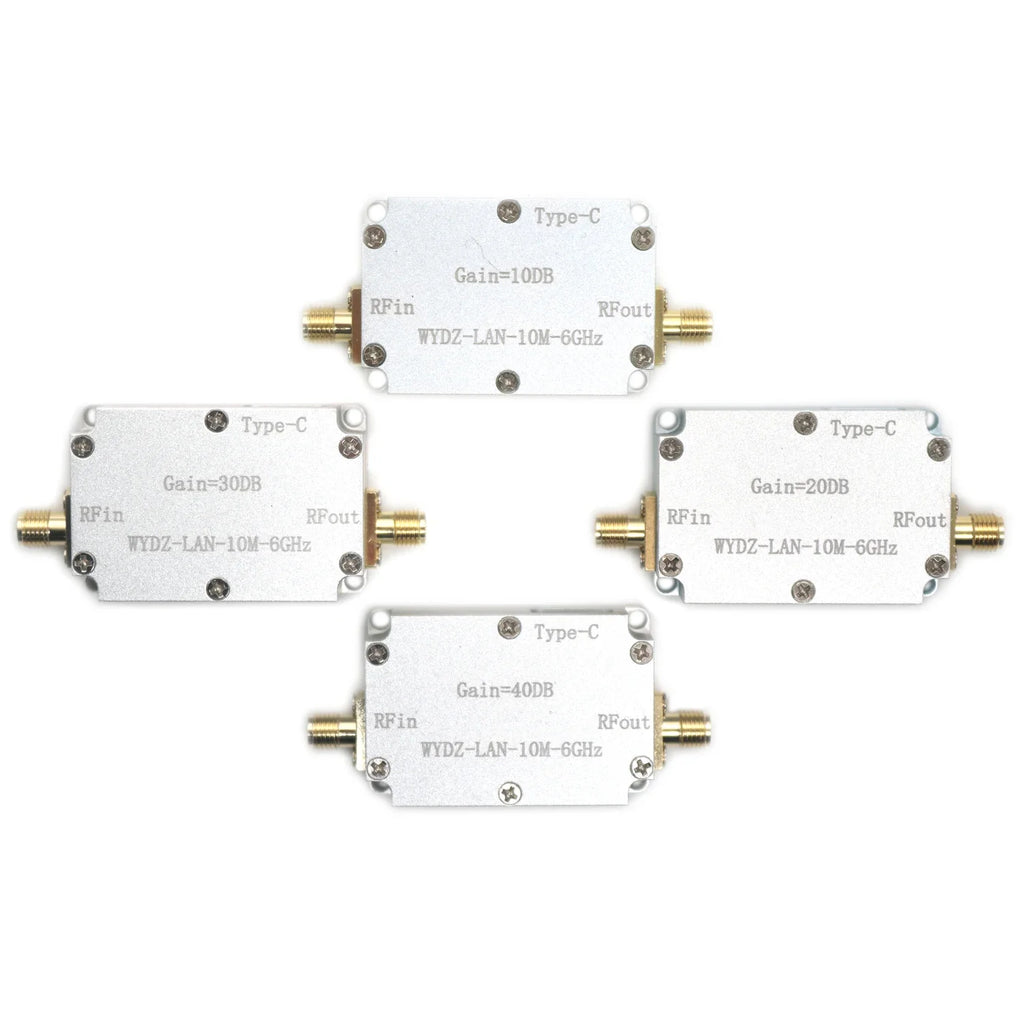

TYPE-C LAN 10Mhz-6GHz High Flatness Amplifier gain 20DB RF front-end receiver RF signal drive for FOR HAM hackrf one SDR Software radio FM

Application scenario:

1. Beidou/GPS receiver

2. Receiver system (FM radio reception, radar reception, etc.)

3. Electromagnetic compatibility receiving system

4. Software Radio Receiver

5. Intermediate frequency signal amplification

2, Indicator parameters

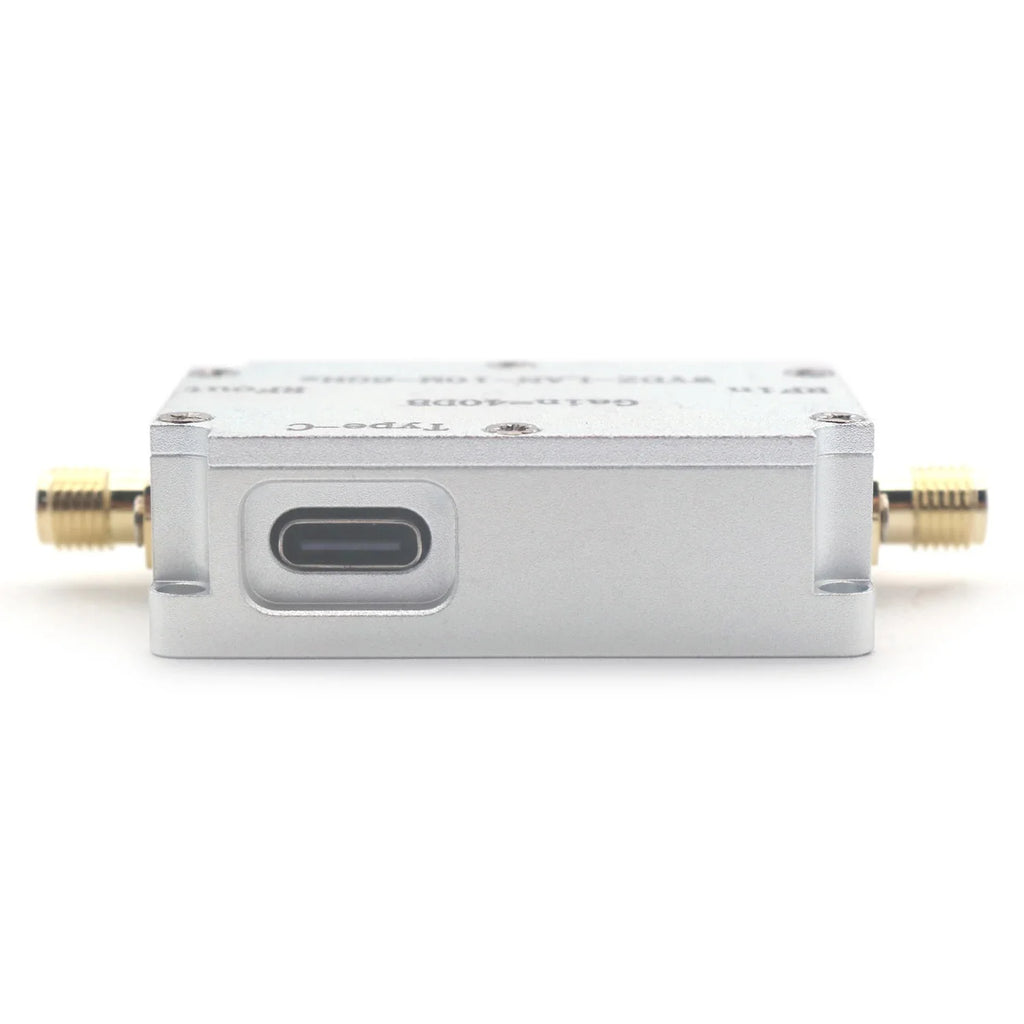

Power supply	TYPE-C line
Module frequency range	10M-6GHz
Noise coefficient	NF=4-5dB (refer to the measured curve for specific frequencies)
Gain	20DB(refer to the measured curve for different frequencies)

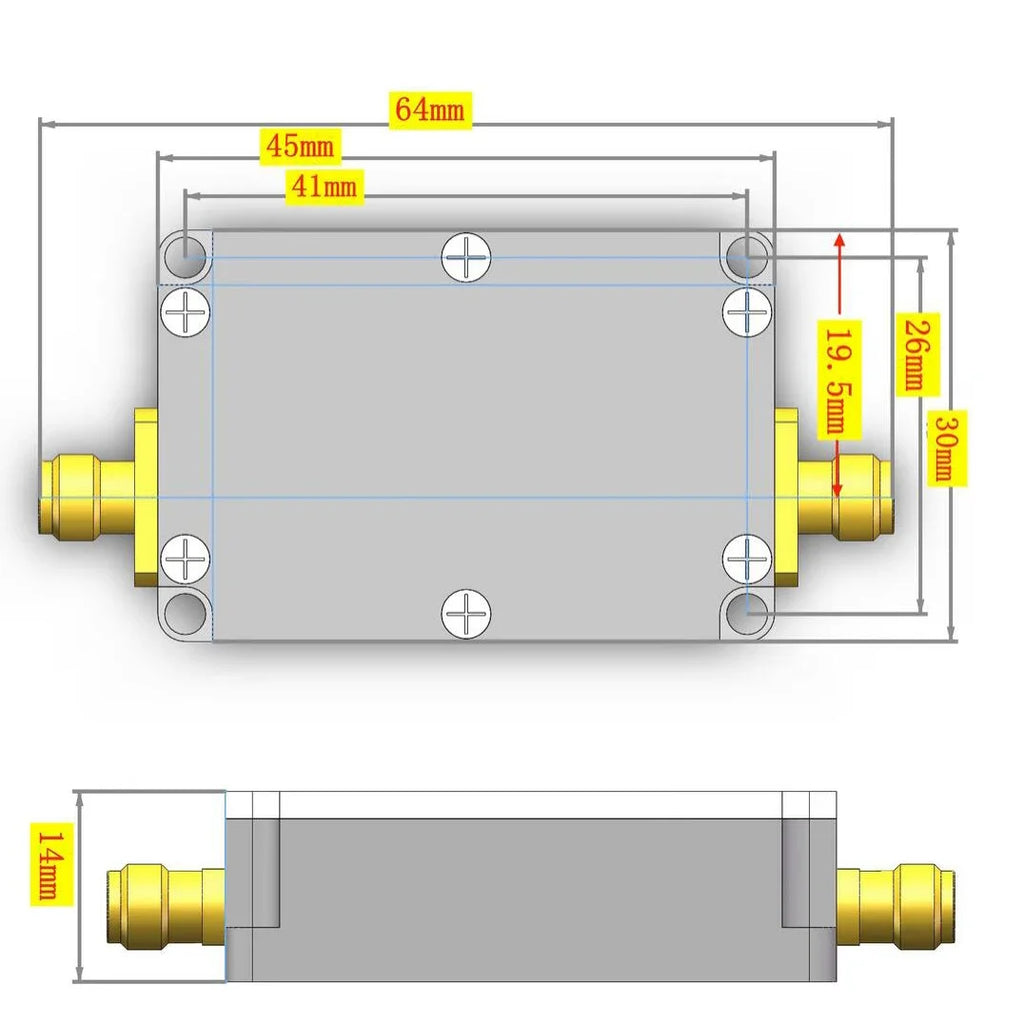

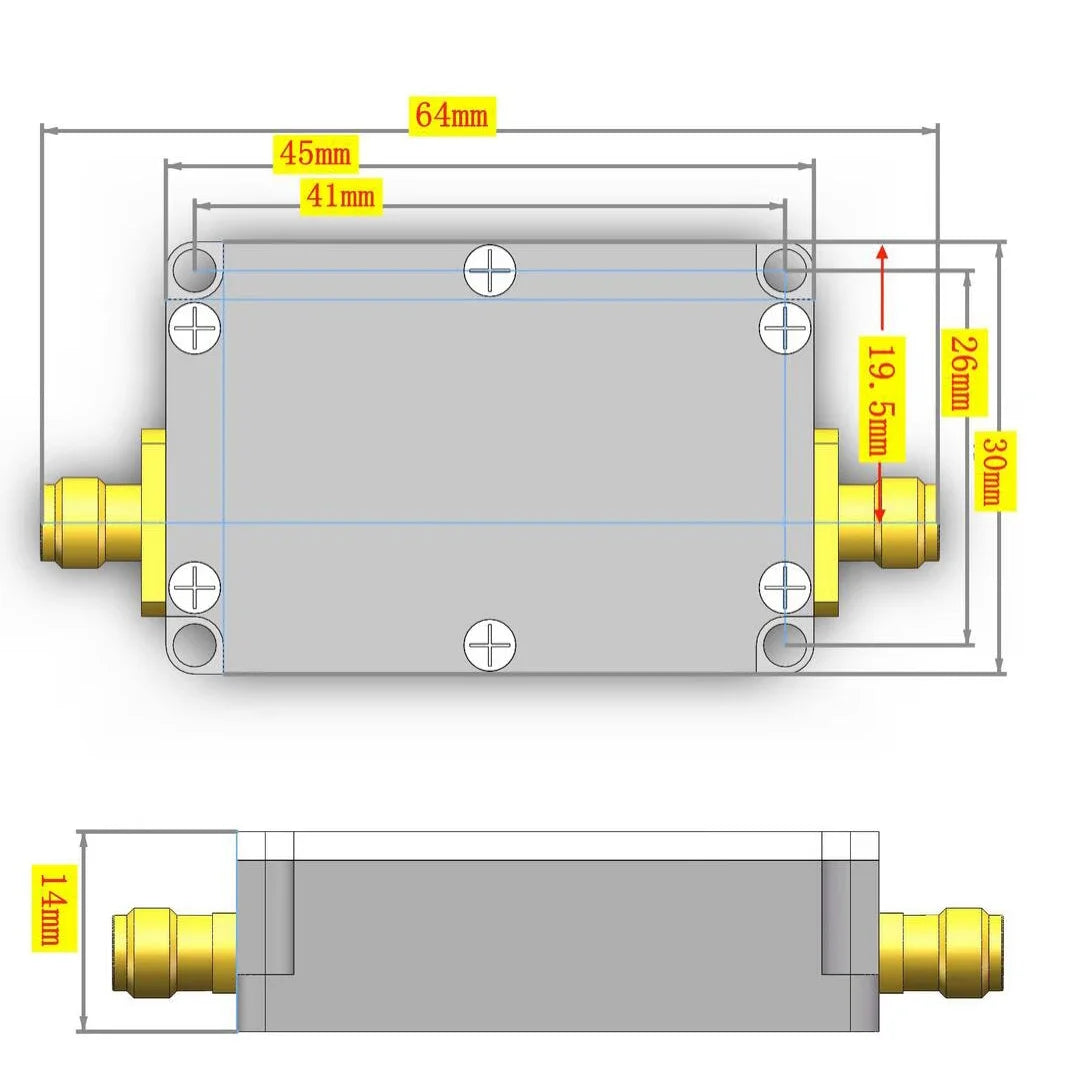

Volume	4.5 * 3 * 1.4cm (excluding protruding SMA)
Weight	66g (including host+TYPE-C cable);
Current	<100mA
Output interface	SMA female
input-output impedance	50 ohms

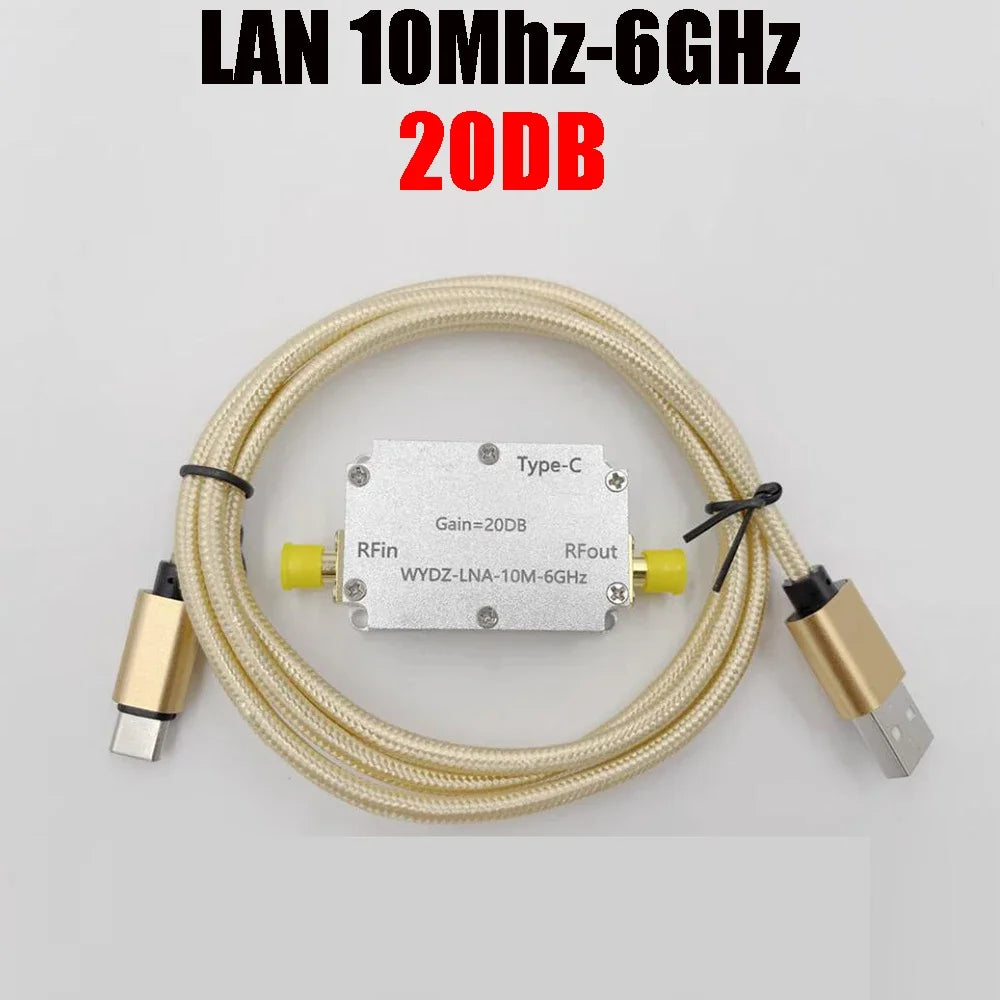

Shipping list:

Host with aluminum alloy shell * 1+TYPE-C cable * 1

Measured S-parameter curve
