SPECIFICATIONS

Brand Name: Original

Core Processor: LimeSDR Mini

Description: LimeSDR Mini Development Board

Embedded: Yes

Function: Development Board

Main Purpose: Development Board

Model Number: LimeSDR Mini Development Board

Module/Board Type: Development Board

Mounting Type: PCB

Place of Origin: Guangdong, China

Type: Development Board

Recommend Products

Lime SDR Development Board Product Information

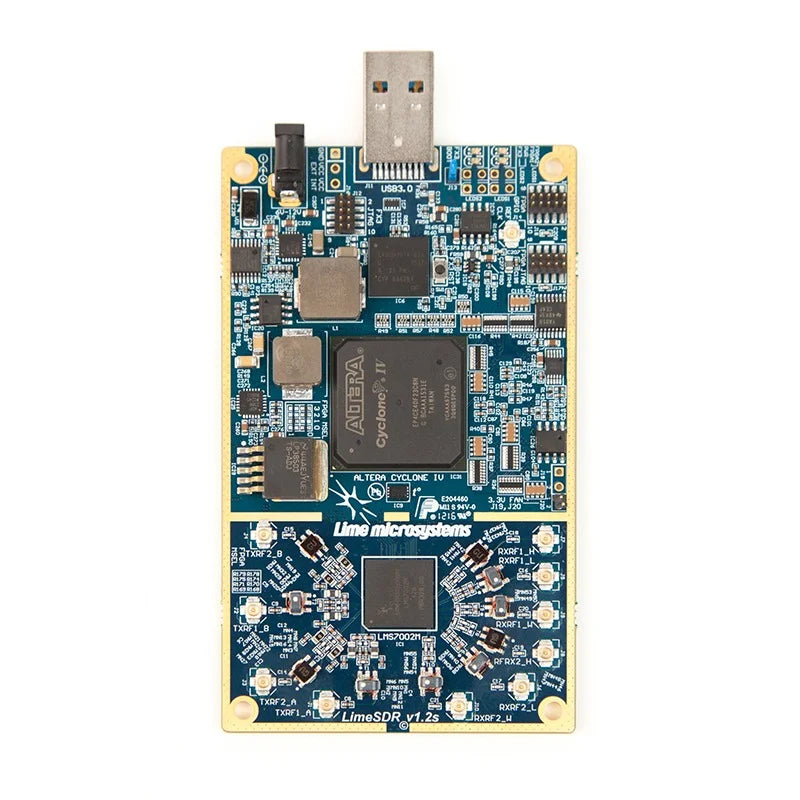

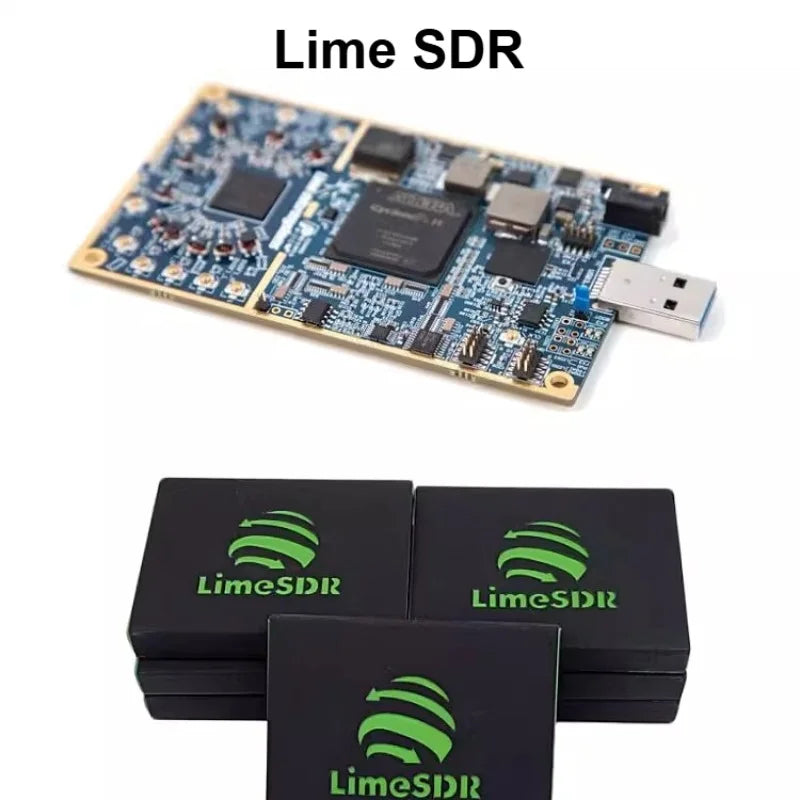

Lime SDR
Category	Key Parameters
Architecture	Adopts a combined architecture of FPGA and Lime Microsystems' dedicated RF transceiver, supporting narrowband/wideband wireless interfaces
Compatibility	Compatible with host computers of different speeds, power consumption, and costs, supporting diverse development environments
Application Adaptation	Covers professional fields such as satellite communications, broadcast television, and wireless testing, supporting full-duplex communication mode

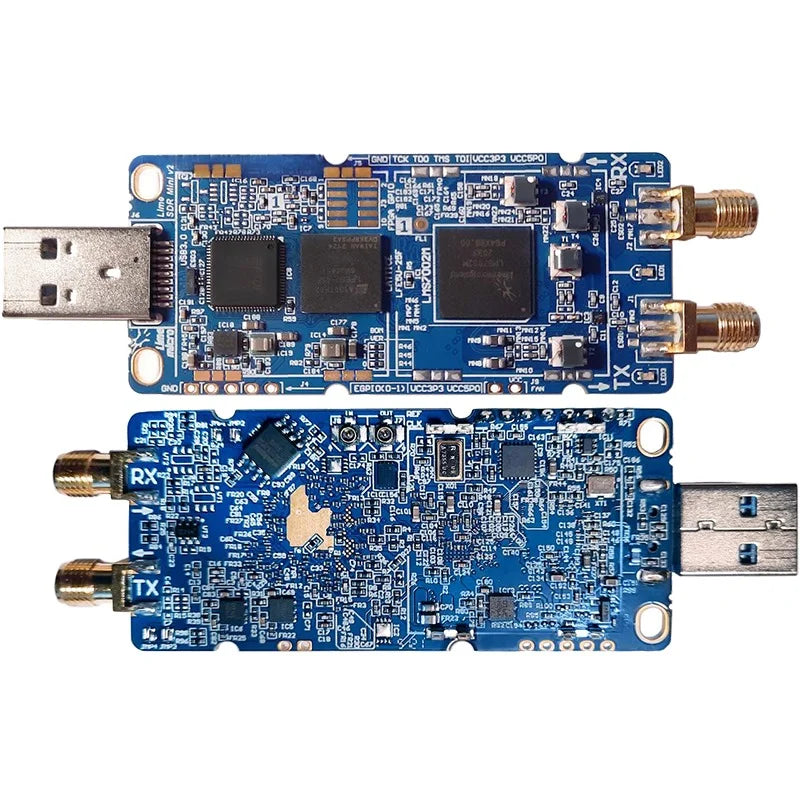

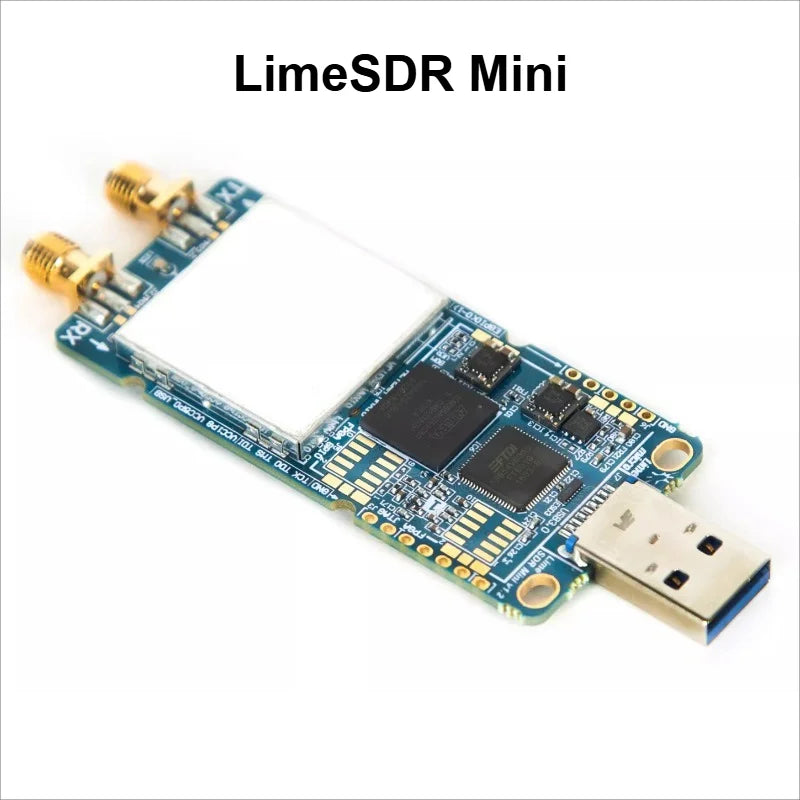

Lime SDR Mini 2.0
Category	Key Parameters
RF Transceiver	Model LMS7002M; Frequency range 10 MHz - 3.5 GHz; RF bandwidth up to 40 MHz; 1 transmit (TX) channel, 1 receive (RX) channel; Full-duplex
FPGA	Model Lattice ECP5 LFE5U-45F; Includes resources such as 44K LUTs, 108 sysMEM Blocks, etc.; Supports JTAG configuration
Storage & Clock	128Mb Flash (for FPGA configuration); On-board 40.00 MHz VCTCXO, supports reference clock input/output
Interfaces & Peripherals	USB 3.0 Type A interface; SMA female RF connector; FPGA GPIO pin header (optional); FTDI FT601 controller
Physical & Power	Dimensions 69mm × 31.4mm; Powered via USB 5V

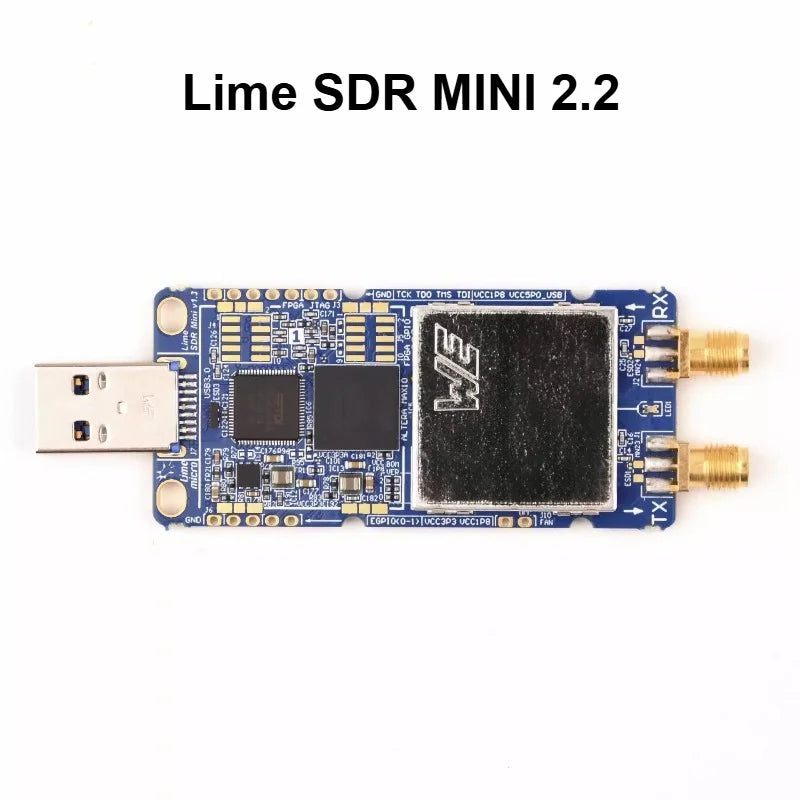

Lime SDR Mini 2.2
Category	Key Parameters
RF Transceiver	Model LMS7002M; Frequency range 10 MHz - 3.5 GHz; RF bandwidth up to 40 MHz; 1 transmit (TX) channel, 1 receive (RX) channel
FPGA	Presumed to be an upgraded Lattice or equivalent FPGA, with logic resources no less than 44K LUTs, supporting JTAG configuration
Interface & Power	USB 3.0 (Type A) interface; SMA female RF interface; Powered via USB 5V
