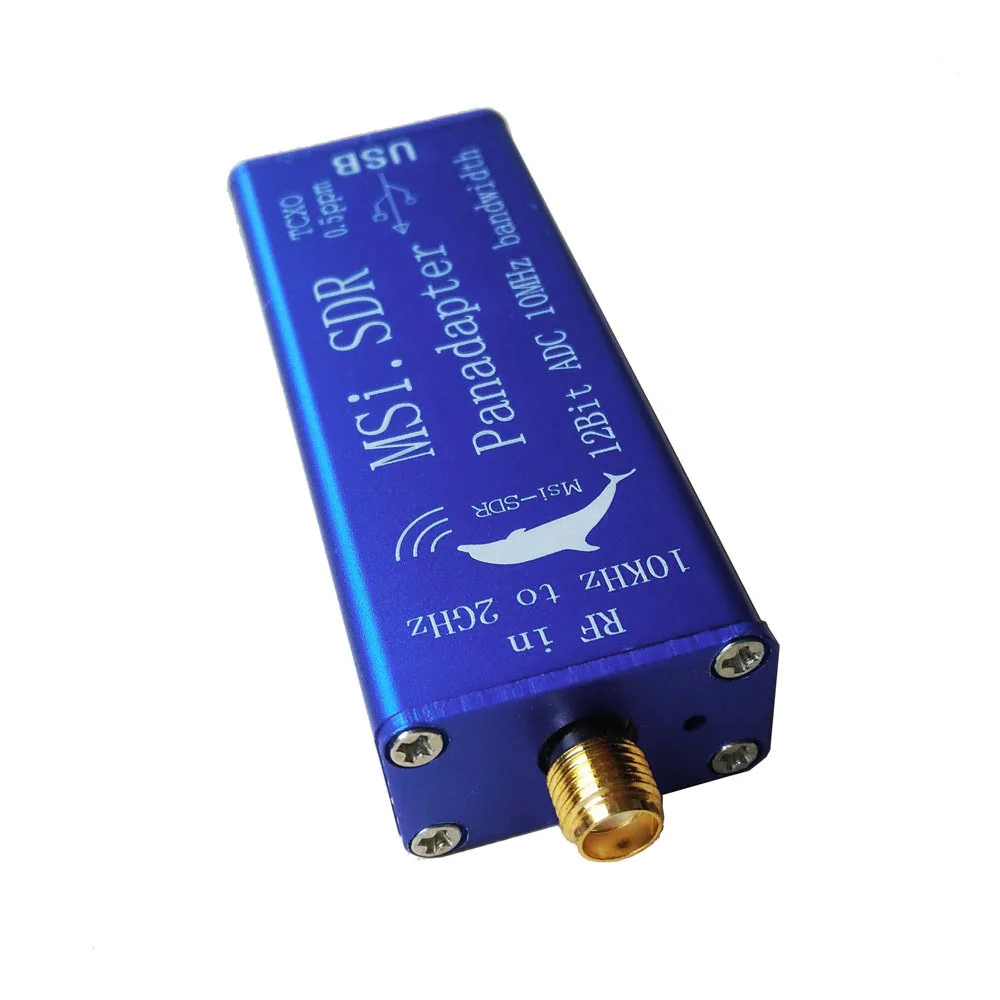

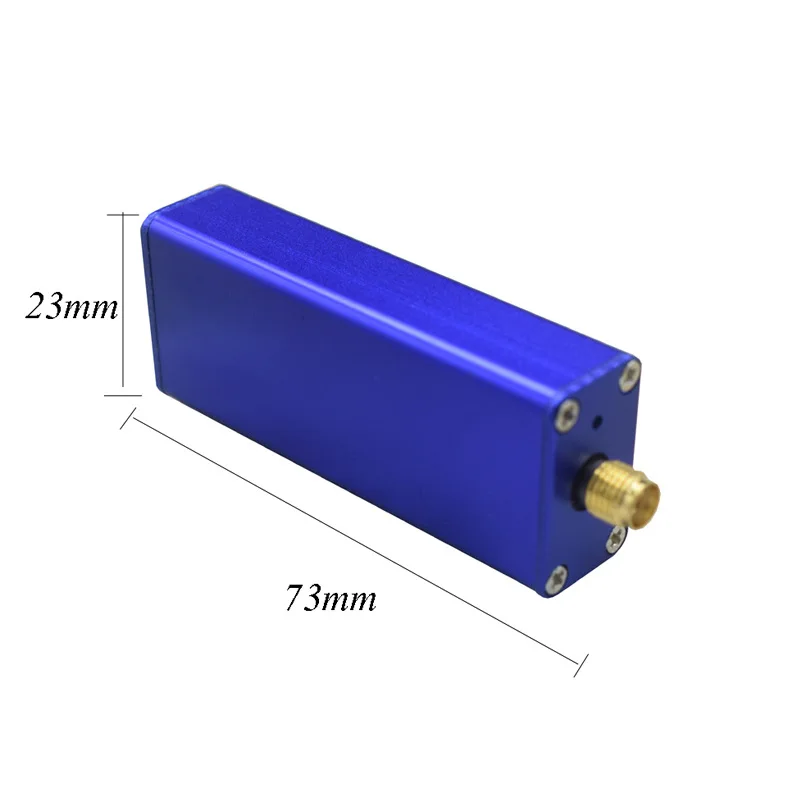

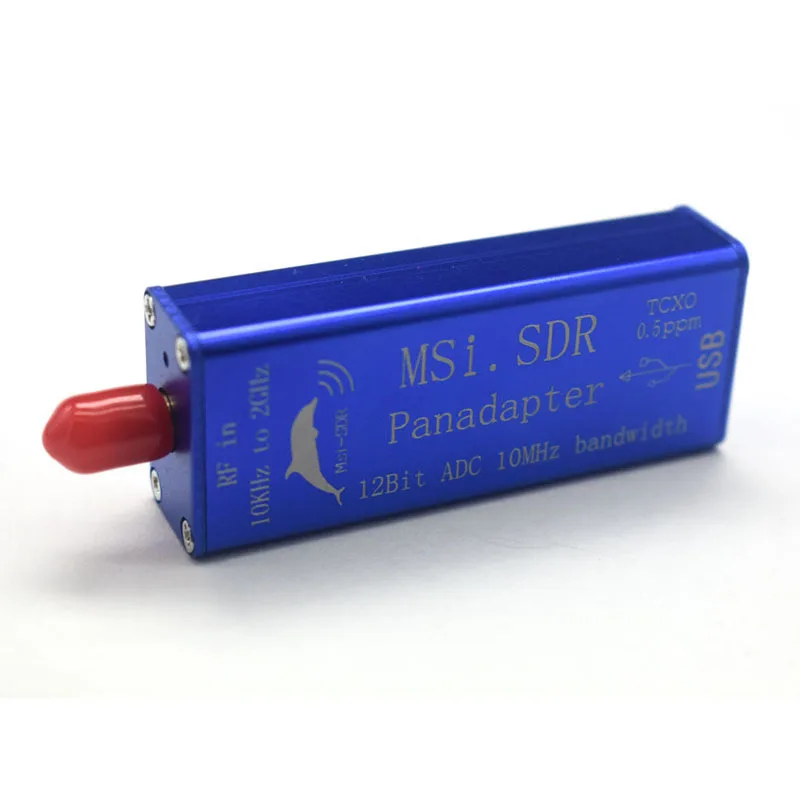

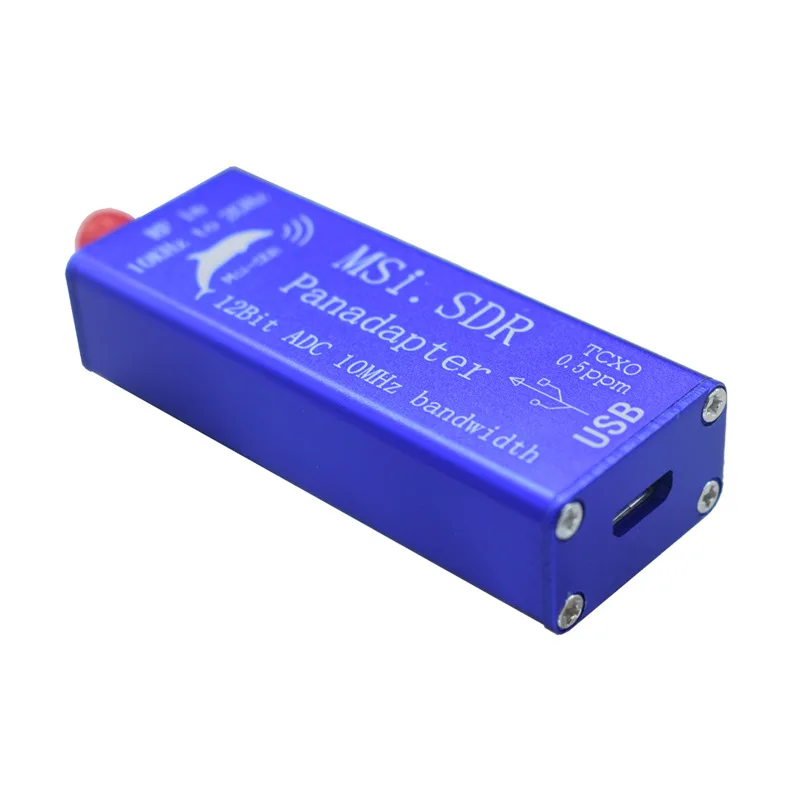

SPECIFICATIONS

Brand Name: HQXRTEK

Condition: 100new

Demo Board Type: MSI.SDR

Frequency: 10kHz to 2GHz

Model Number: MSI.SDR,XR-054

Payment: Paypal\TT\Western Union\Trade Assurance

Place of Origin: Mainland China

Shipping by: DHL\UPS\Fedex\EMS\TNT\Aramex

 Function introduction
     The signal received by the antenna is converted into data through the receiver, and sent to computers, Android phones and other devices through the USB interface, and then the software on the computers, Android phones and other devices processes and demodulates the signal, and displays the spectrum, arbitrarily sets the reception bandwidth, signal recording, saving, playback and other functions.Through SDR software, it receives electromagnetic waves in the range of 100kHz-1.7GHz and supports AM, FM (NFM, WFM), CW, DSB, LSB, and USB demodulation.It can be used to listen to short-wave single-sideband communication, FM broadcasting, walkie-talkie calls, aviation band, meteor monitoring ADS-B decoding radar, AIS signal reception, etc.
[Through the software, analog and digital sub-tones can be cracked.]
[You can set up automatic search and scan.]
[You can use software to crack the ID of commonly used digital walkie-talkies and demodulate the voice signal]
Technical features
   This receiver has a built-in 1 ppm temperature compensation crystal [TCXO].Makes the frequency more stable and accurate.Almost zero temperature drift [initial deviation of 2 ppm, temperature drift of 1 ppm] increases the heat dissipation of the internal chip, making the work more stable.Using the latest RTL2832U+R820T2 scheme [The R820T2 tuner has slightly better sensitivity than the R820T, lower noise floor, and higher signal-to-noise ratio.It can operate more stably at frequencies around 1.5GHz.] The Q channel on the RTL2832U is used to increase the direct sampling and reception of frequencies from 100kHz to 24MHz.The full range of 100kHz-1.7GHz reception is realized.Support XP, Win7, Win8, Win10, MAC, Android and other systems.
Equipment matching
The receiver of this software is sold in the form of an integrated package, which includes , a host, an SMA to BNC female converter, an SMA to UHF female converter, and a plastic storage box.Provide commonly used software, drivers, installation instructions, and instructions for use.

Product list:
