SPECIFICATIONS

Body Material: ABS

Brand Name: AISANRAY

Feature: Current probe

Function: None

Material: ABS

Model Number: Little Bee B1

Origin: Mainland China

Style: Portable

Type: AM / FM

brand name: AISANRAY

model number: Little Bee B1

place of origin: Guangdong, China

private mold: No

product type: Withstand Voltage Tester

Product Overview:

Open source high-performance current probe Little Bee B1 upgraded version -- 30MHz bandwidth · Dual heads · plug and play

packing size: 160*160*60mm

packing weight: 360g

Designed for accurate current measurement, open source design + industrial performance, engineers must have a sharp weapon!

Core Features

1.Ultra-high bandwidth · Double gear coverage

  -30MHz small signal bandwidth (5A gear/0.25V/A), accurately capture the details of high-frequency current

  -10MHz bandwidth (1A gear/1V/A), suitable for high-current scenarios, to meet diversified test requirements

2.Built-in battery · Minimal operation

  - built-in a 14500 Lithium Battery, single coaxial line can work (SMA → BNC direct connection oscilloscope), say goodbye to complex power supply cable

  -Support Type-C charging, supporting 5V adapter + charging line, long life and ready to use

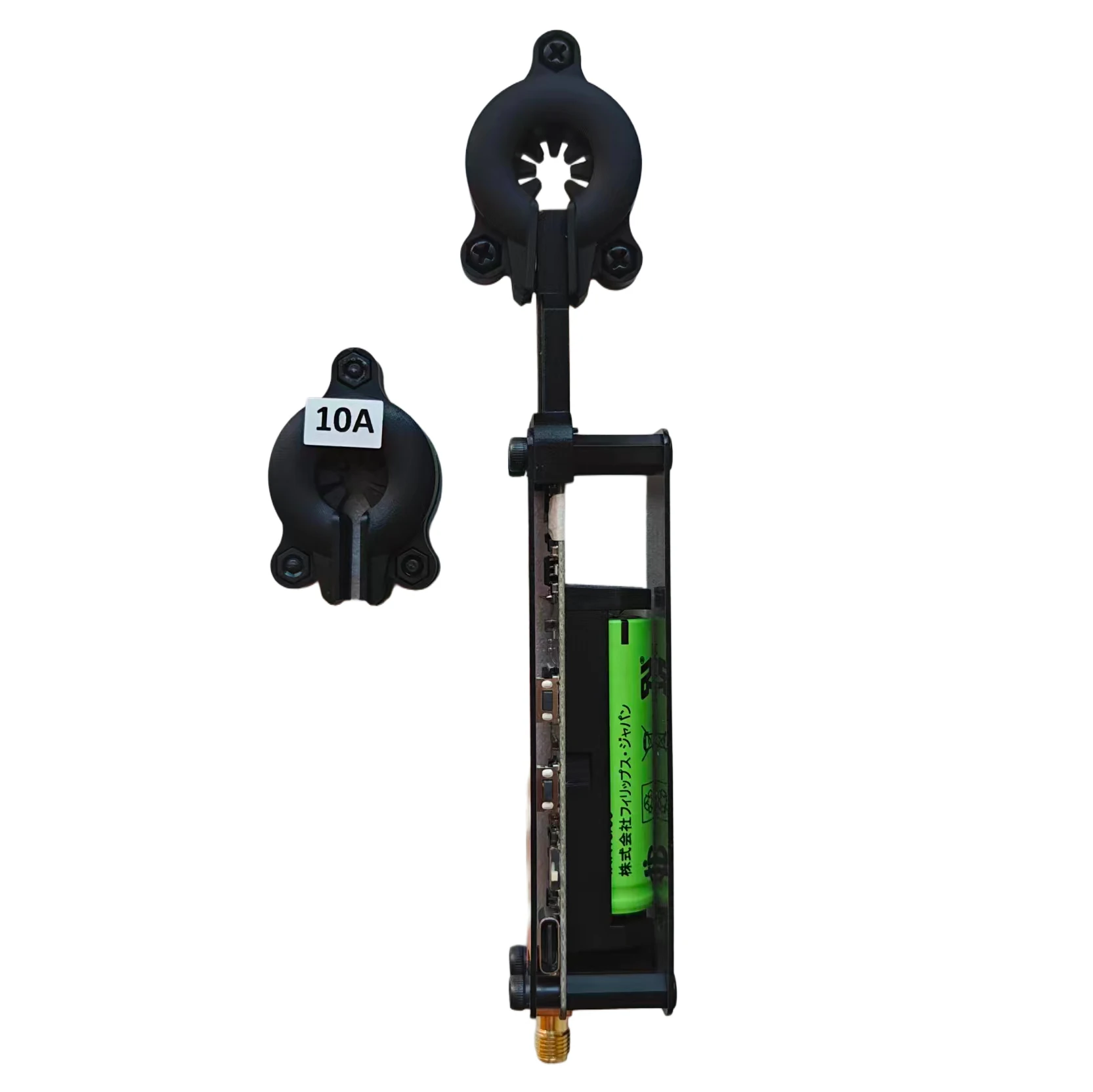

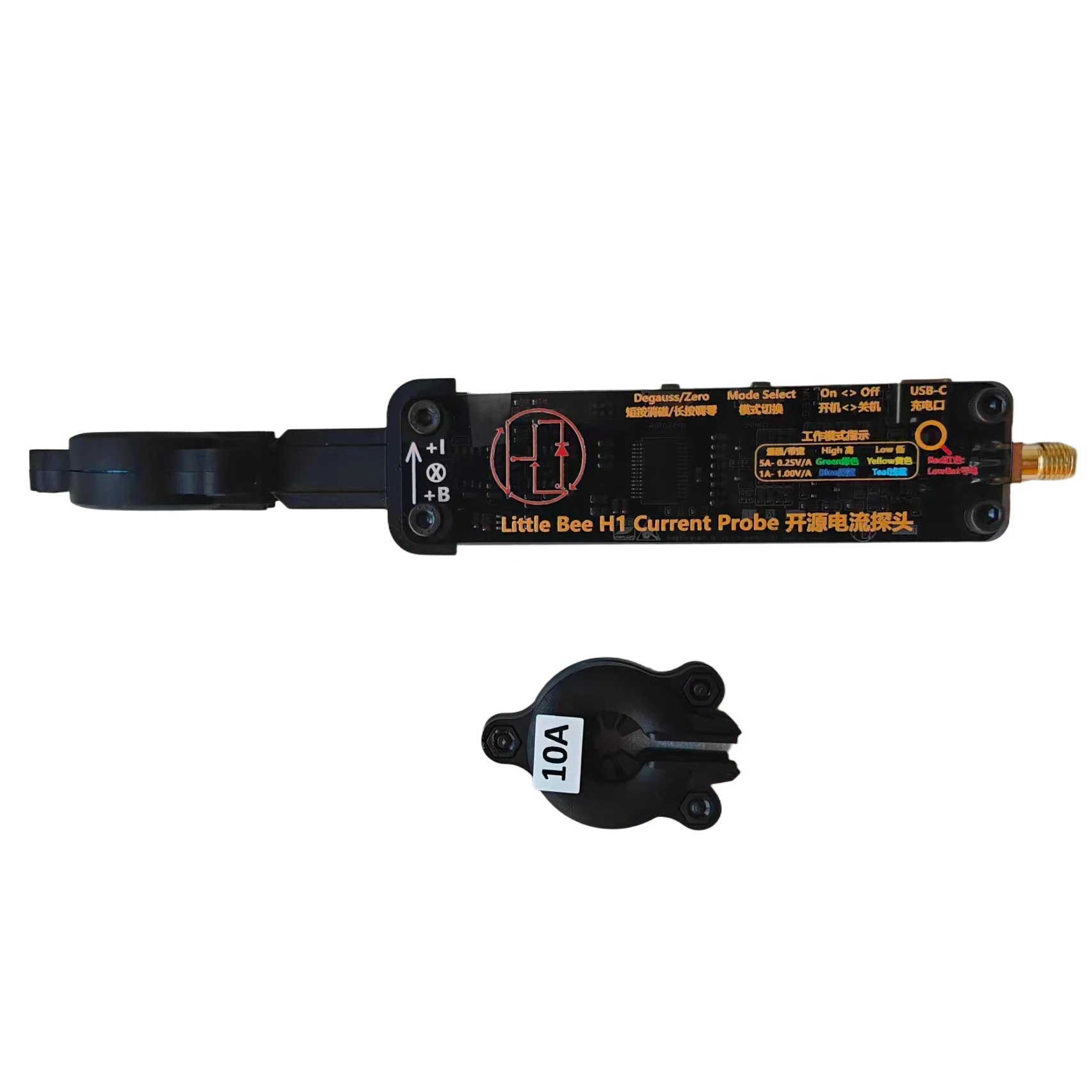

3.Dual-head free switching

  -Factory pre-calibrated 5A magnetic head (0.25V/A), with 0 error and accuracy ≤ 10%

  -Complimentary 10A extended head (calibration 0.125V/A), support 10A high current measurement

  -Magnetic head second variable magnetic field meter! Remove the independent measurement magnetic field and put it back into use

4.Precision Zero Adjustment and Anti-interference Upgrade

  -Long press to zero to eliminate DC bias (≤ 0.2A) to ensure measurement stability

  -Patented structure optimization, Cable Center detection design, reduce position error

5.Open source hard core · professional accessories

  -Based on open source Little-Bee-B1 depth optimization, Layout and device upgrade

  -With * * precision shell screwdriver + high quality coaxial line, DIY adjustment worry-free

The User Value

-Time saving: calibration-free startup and measurement (5A gear), 3 seconds disassembly and assembly of magnetic head to switch scenes

-Save money: double magnetic head cover 1A ~ 10A range, no need to repeat the purchase of probe

-Worry-free: Floating ground design anti-short circuit, built-in battery anti-interference, say goodbye to power supply troubles

Revision Upgrade Highlights

> bandwidth leap: 5A gear bandwidth increased to 30MHz (original ≤ 15MHz)

> Accuracy optimization: DC error ≤ 10%, small signal response more sensitive

> Experience innovation: Built-in battery + Single-wire connection, say goodbye to external power constraints

Applicable Scenarios

switching power supply debugging | Motor drive test | Inverter analysis | PCB current loss detection | Education and scientific research experiment

---

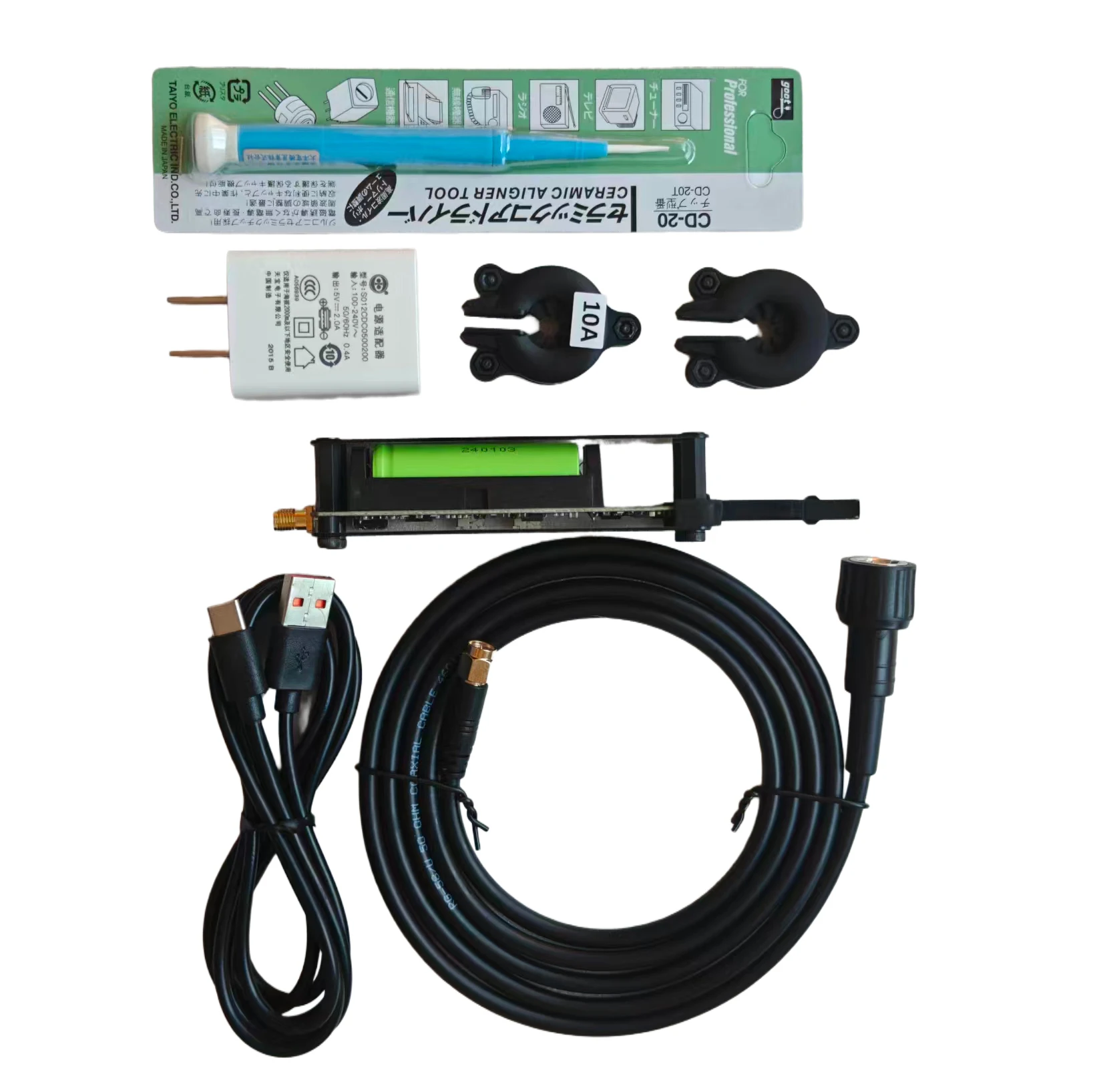

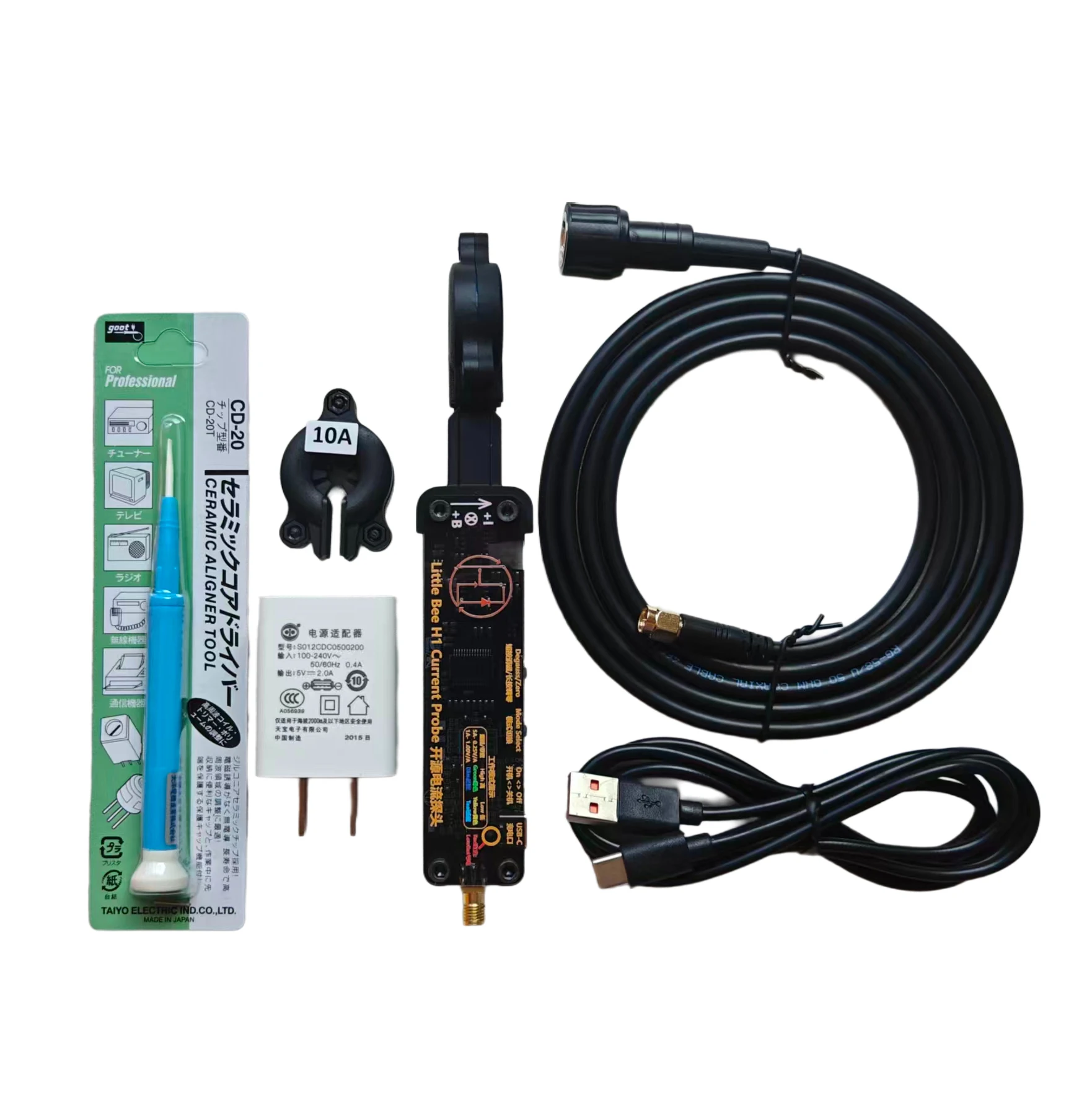

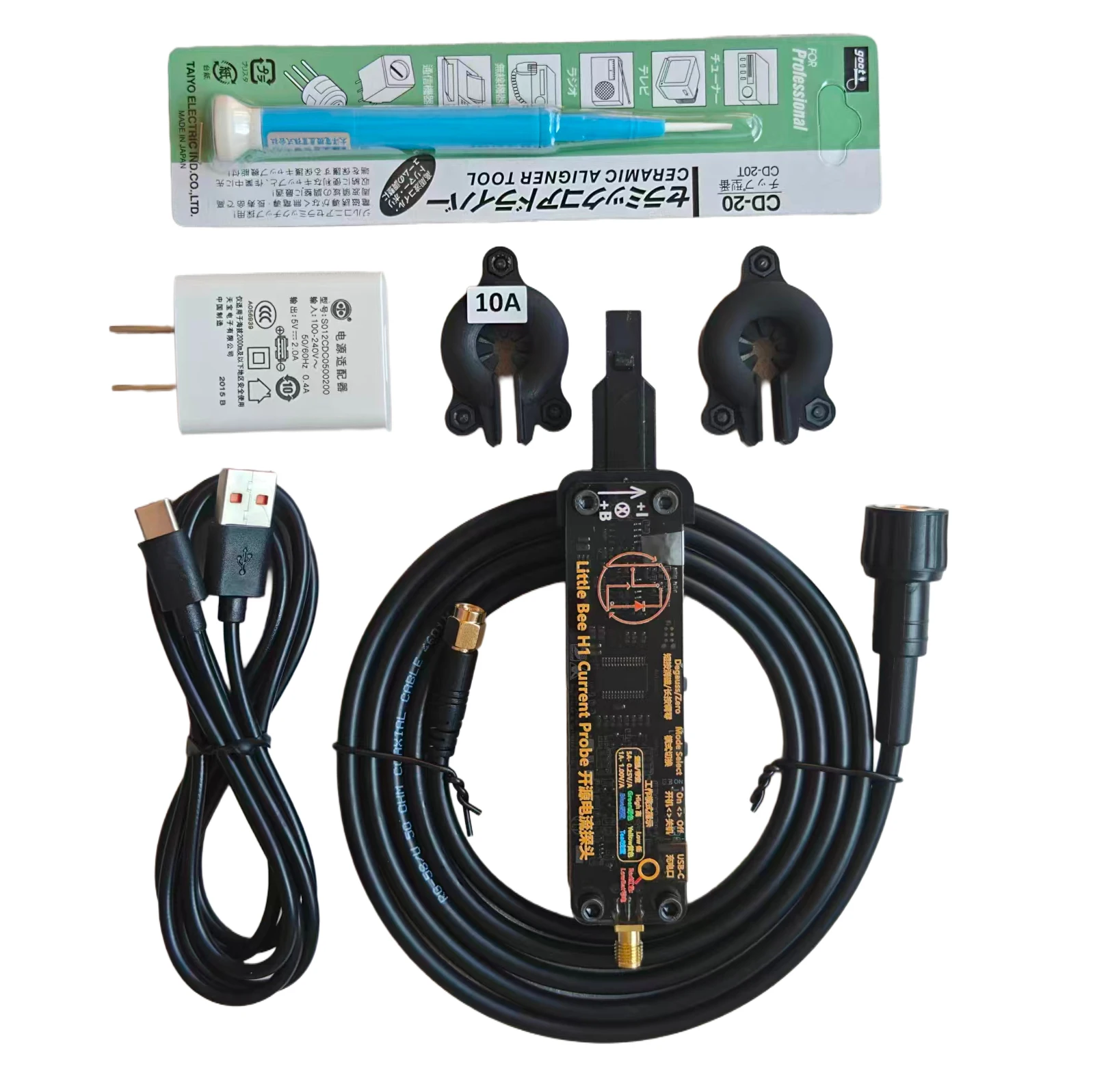

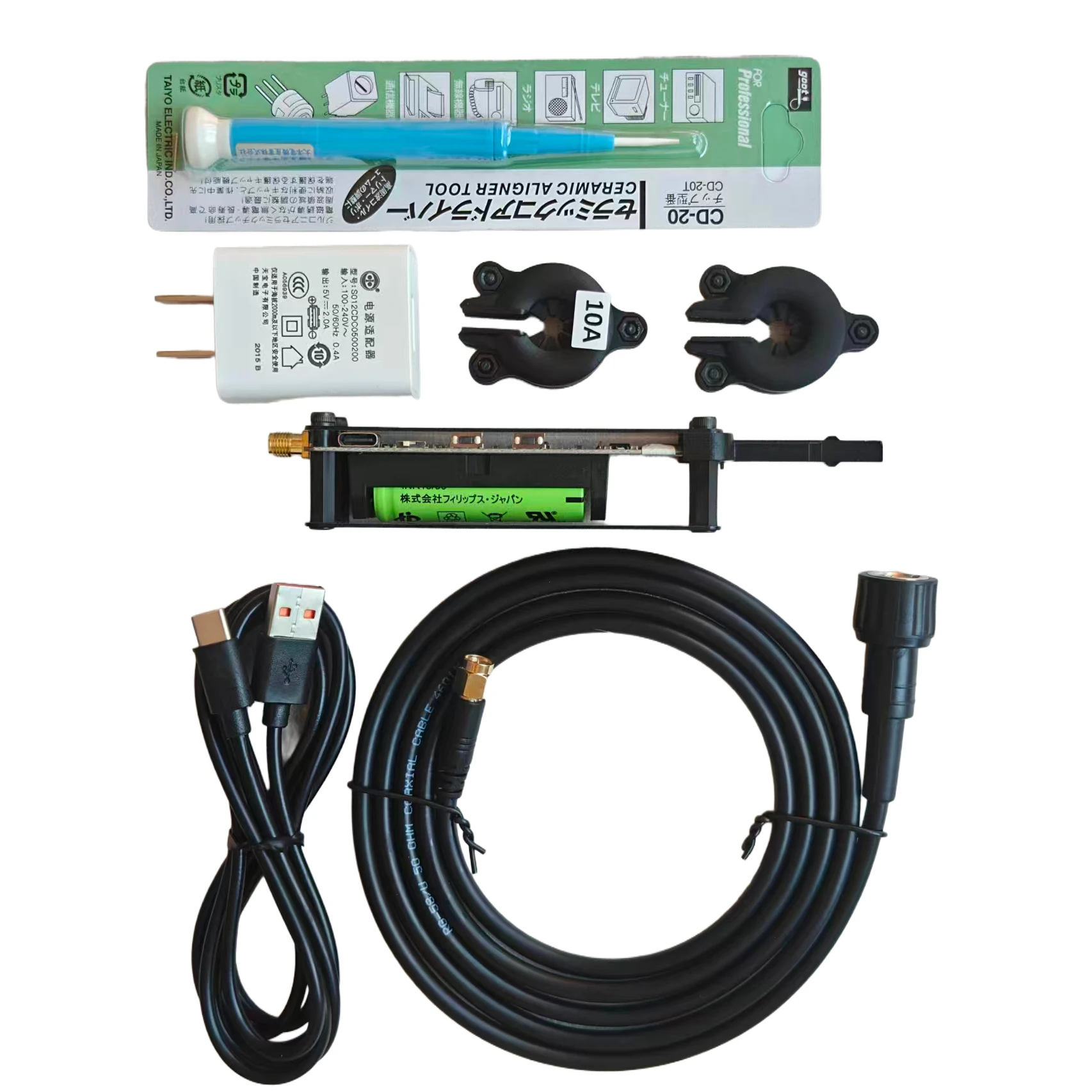

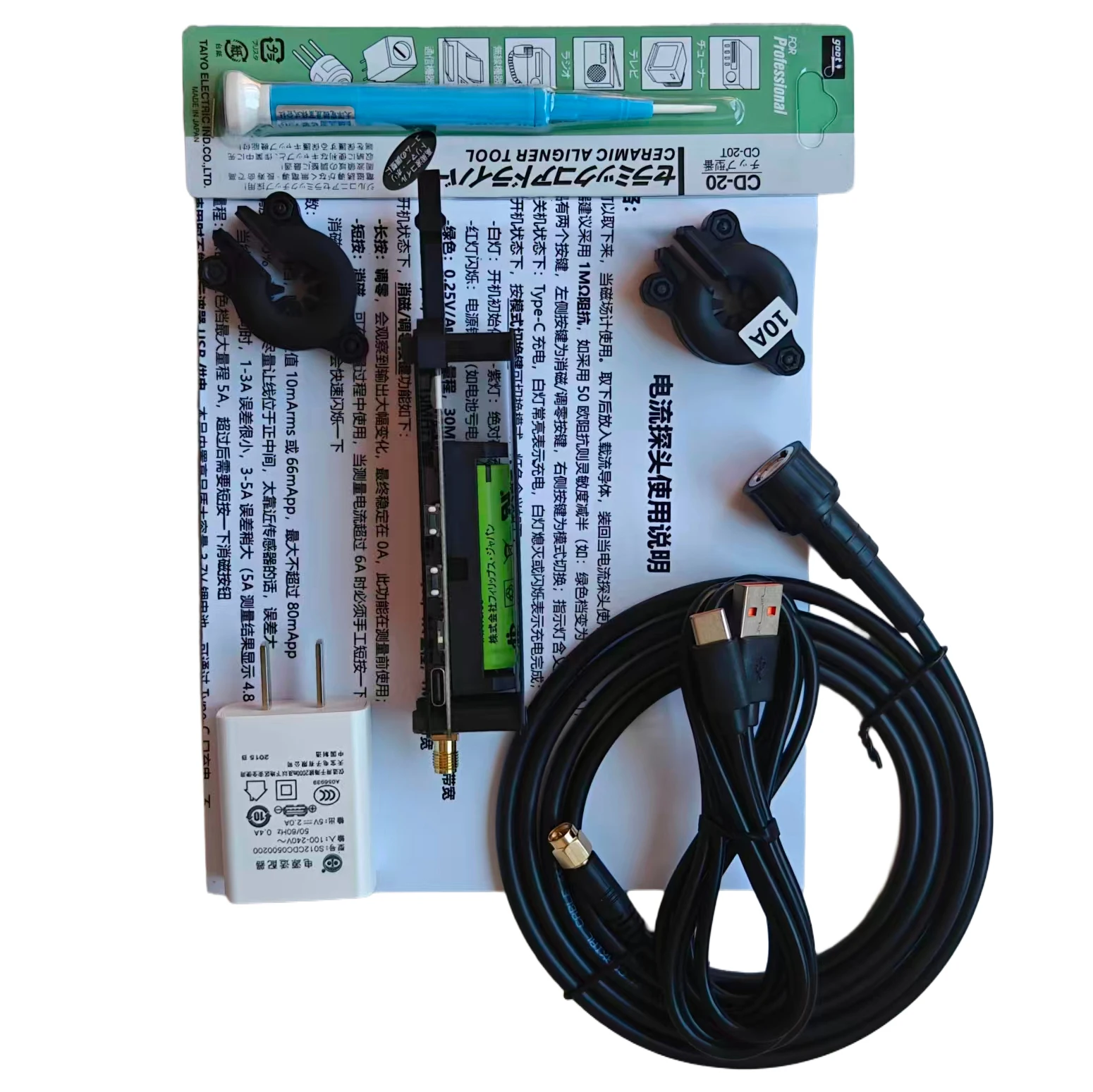

Set List

current probe host (including lithium battery) × 1

5A Head (pre-calibrated) x 1

10A head × 1

5V USB adapter × 1

SMA-BNC coaxial line × 1

Type-C charging line × 1

precision screwdriver × 1

---

Operation tips: Be sure to thread and zero before use, and do not move the probe during measurement; USB power supply of oscilloscope is strictly prohibited (matching adapter is required)
