SPECIFICATIONS

Accessory Type: USB To DC Cable

Battery Included: No

Brand Name: Knotolus

Compatible With: pluto

High-concerned chemical: None

Origin: Mainland China

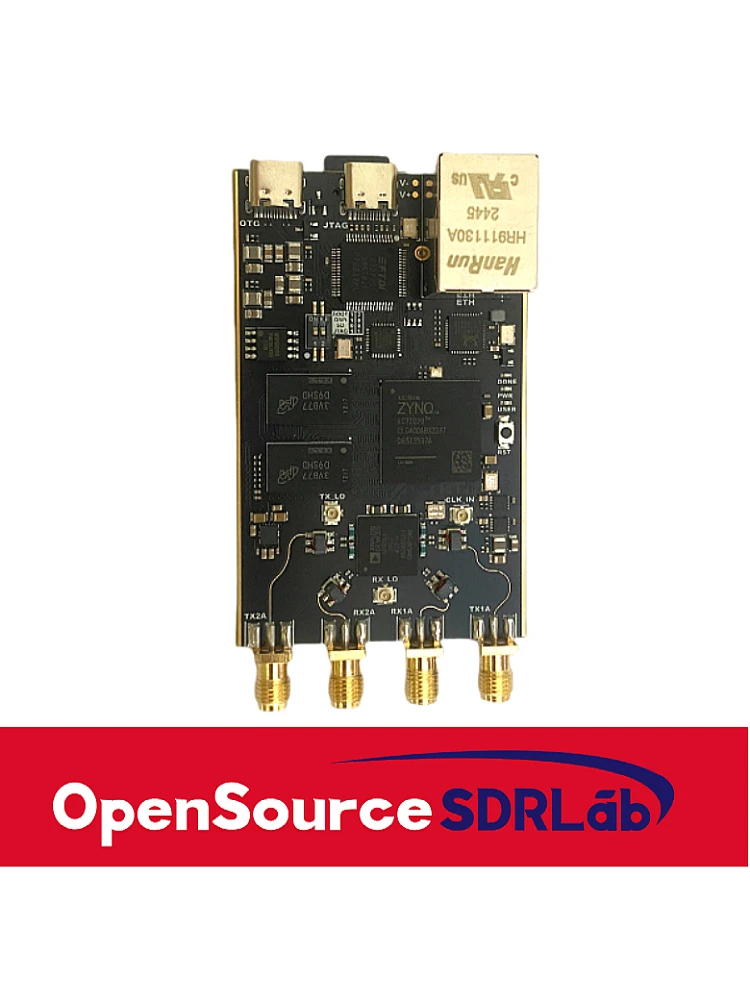

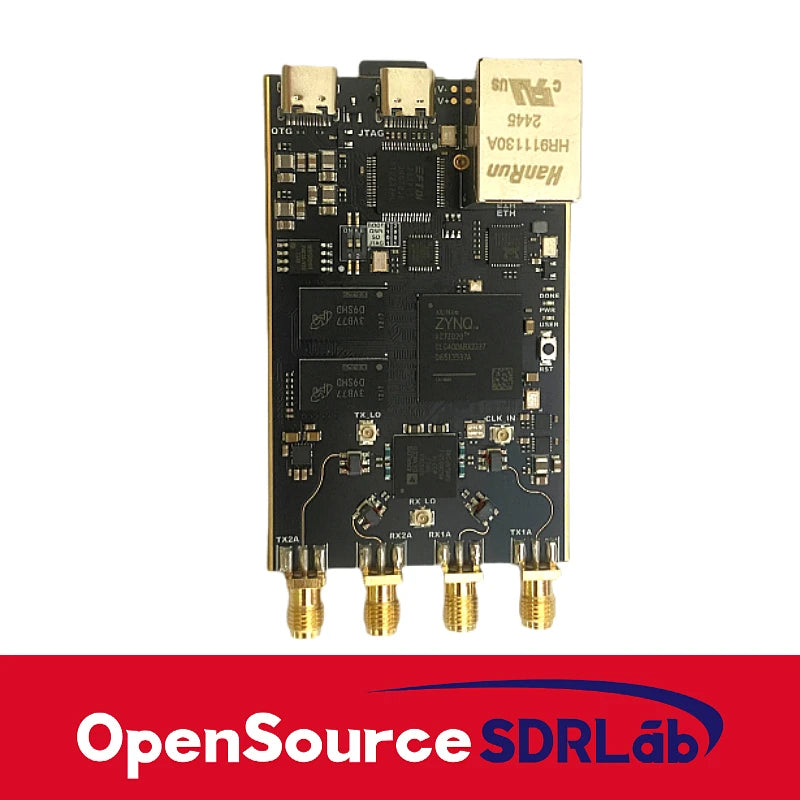

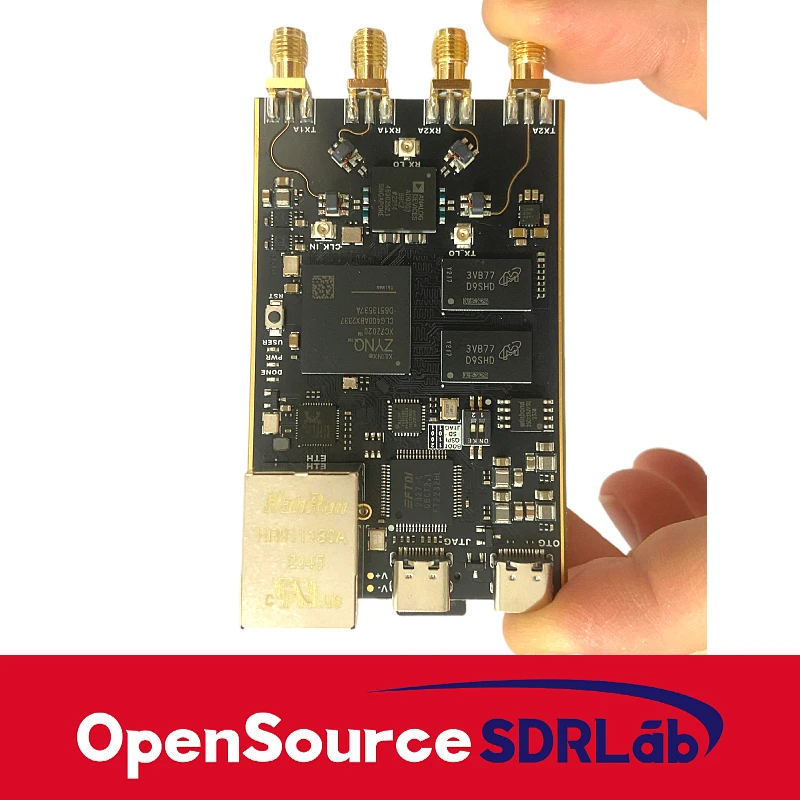

70MHz-6GHz Zynq7020+AD9363 SDR Software Defined Radio Development Board for Pluto SDR MATLAB

Improvements:

- Update firmware V0.38, hacked to AD9361, supports 70MHz-6GHz, dual transmitting and receiving, and supports both USB and Ethernet ports.

- Improved power supply stability.

- Adding 9363 external input clock interface.

Features:

- AD9363 chip, replacing AD9361, with frequency range of 70MHz~6GHz. Current laboratory tests show that there is not significant differences between these two chips.

- Board size: about 5 x 8cm

- Peripheral: double DDR, 1GB

- For N25Q128 FLASH, can be used to start.

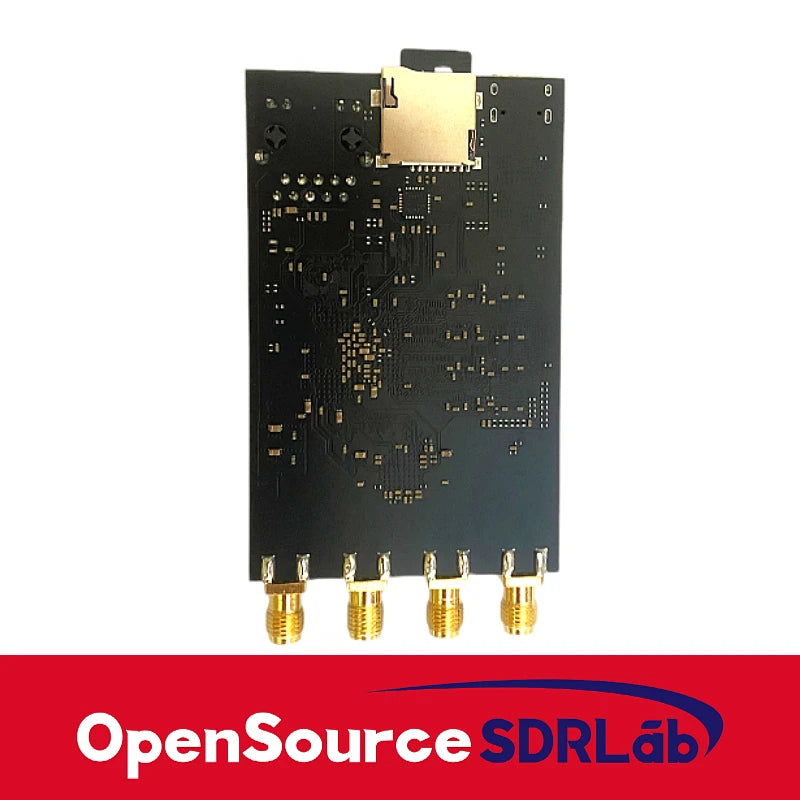

- One channel SD card, can be used to start.

- Integrated FT2232 debugger, with serial port.

- PS end USB2.0.

- PS end gigabit Ethernet port.

- PL end with crystal oscillator, can drive AD9363 with pure PL.

- Support external input of local oscillator.
