SPECIFICATIONS

Brand Name: NONE

Certification: CE

Hardware Version: XELTEK Superpro 7500N Device Programmer

High-concerned chemical: None

Item Type: Code Readers & Scan Tools

Language: English

Origin: Mainland China

Software Update: No

Software Version: XELTEK Superpro 7500N Device Programmer

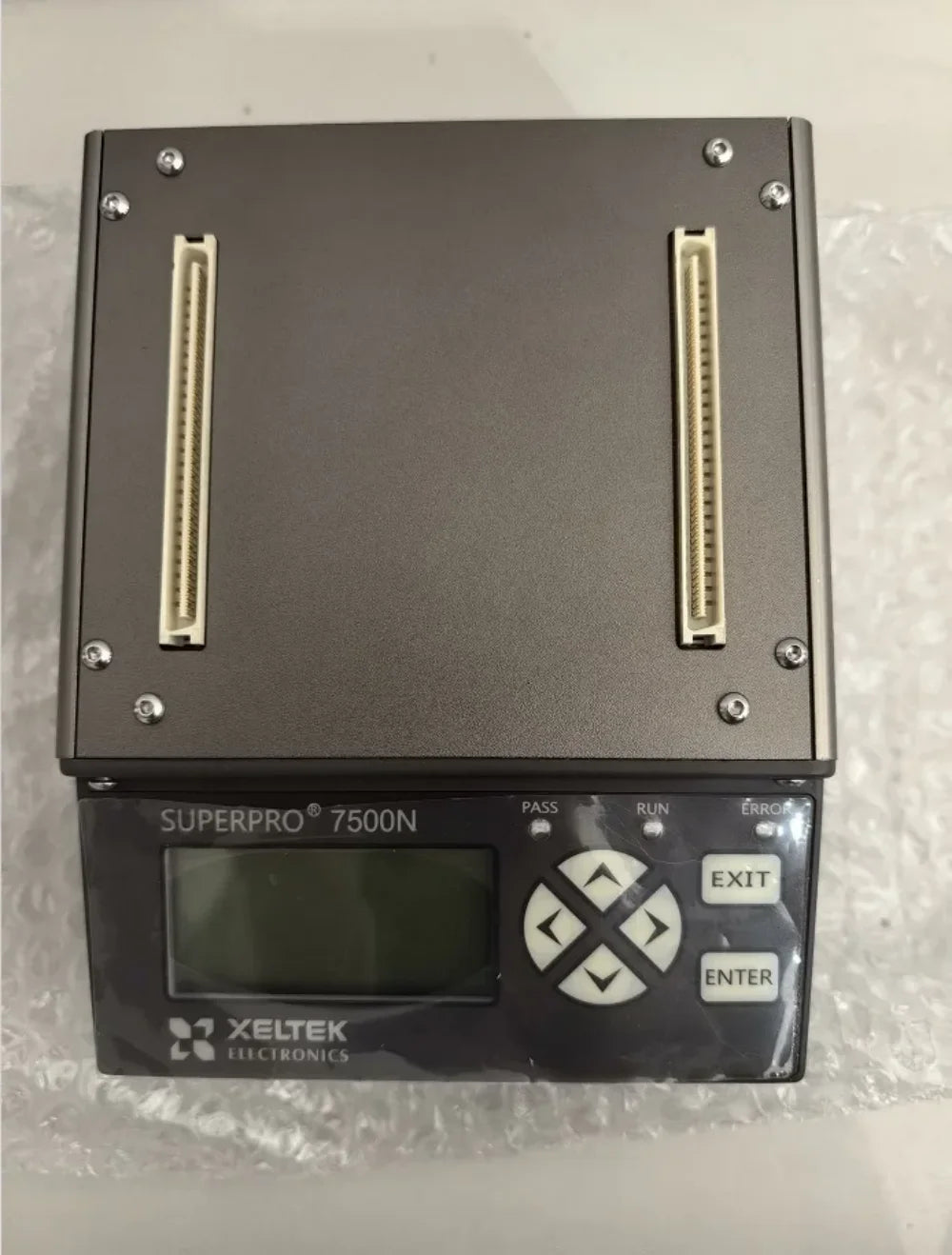

USB2.0 Interfaced Ultra-high Speed Stand-alone Universal Device ProgrammerUsb Extreme Highspeed Standalone 4chips Superpro 7500N

* Support devices with Vcc from 1.2V to 5V. * The programming speed up further increase 30% compared to SUPERPRO 5000.
* The programmer support files up to 256 GBytes

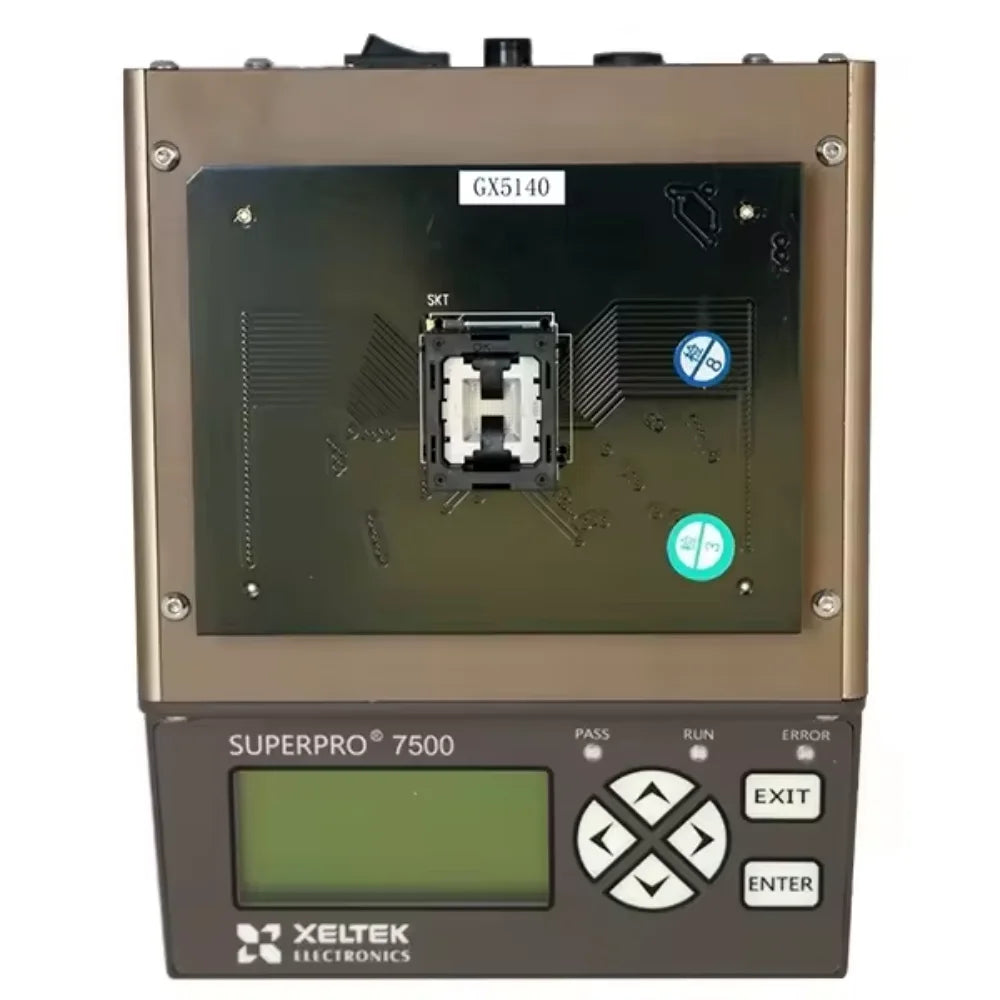

* Built with 144 universal pin-drivers.Universal adaptors are available for varies packages up to 144 pins. New device support
will be easier.

* PC hosted mode and stand-alone mode. Under PC hosted mode the programmer is controlled by a PC via USB2.0 (high speed) to
program a chip. Under stand-alone mode the programmer is controlled via the 6-KEY keypad and the 20 character by 4 line LCD
display. A SD card is used to store the project files.User can operate multiple units to construct a concurrent multiprogramming
system thank for the stand-alone mode.

* Only IC manufacturer approved programming algorithms are used for high reliability. (+5%~-5%) and (10%~-10%) Vcc verification
enhances programming reliability.

Advanced and powerful functions.

Production mode start chip operation at the moment the chip is inserted in the socket properly.

Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and
batch file setting into one touch step.
Password can be set for project files and production volume control

Batch command combines device operations like program, verify, security into a single command at any sequence.

Serial numbers generators are available as standard or customer-specific functions.

Log file is useful for quality tracking.

* Over-current and over-voltage protection for safety of the chip and programmer hardware.

WINDOWS XP/Vista/Win7/Win8/Win10 32/64bit compatibility

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

High Speed 4 Gang Stand-Alone Universal Device Programmer

Meet the NEW STANDARD in the universal programming industry. The ultra powerful system engine allows to program either single or 4
chips simultaneously with equal ease. Convert the universal programmer into a 4 gang programmer just by inserting a 4-socket
adapter. No need to buy an expensive gang programmer anymore and save thousands.

Advantages of SuperPro 7500N

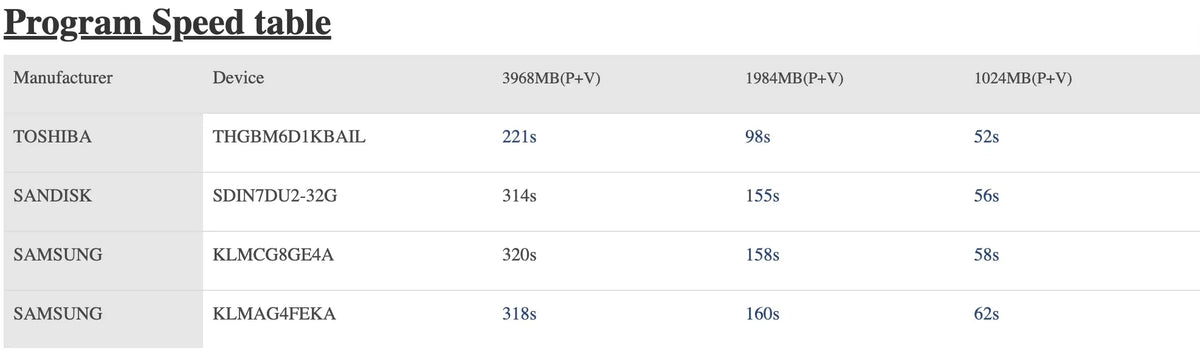

Ultra Fast Programming Speed

SuperPro 7500N programmers employ a very high speed MCU chip producing not only reliable programming algorithms, but also
increasing programming speed. Utilization of ARM11 32bit MCU combined with an internal Linux operating system makes them the most
advanced and versatile programmers in the industry. Superpro 7500N offers 30% higher programming speed and 8-10 times faster
programming speed for eMMC devices as compared to Superpro 6100.

Customized 4 Gang Adapters

SuperPro 7500N can be used to program up to 4 chips at a time. Many EEPROM / Flash / MCU / eMMC chips are also supported in 2-Gang
or 4-Gang mode to increase throughput by nearly four times!

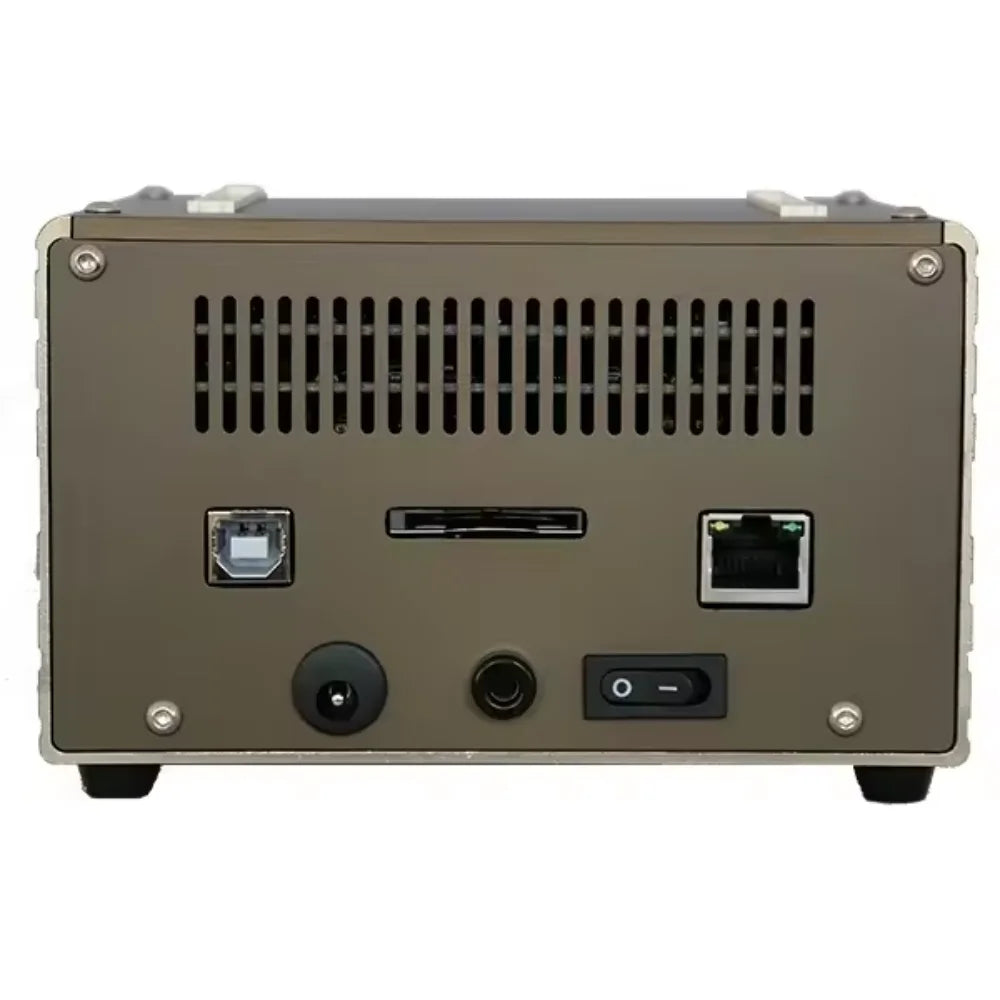

LAN Mode

Most production programming applications need the programmer to be operated remotely. On SuperPro 7500N, remote controlling can be
achieved using the LAN port. Using the LAN port, programmers can be connected to a local network and can be remotely controlled
via any computer on the network. In this case, the PC which controls the SuperPro 7500N acts as a server and SuperPro 7500N acts
as a client.

Project Files

The project file stores preparations before programming. Users could also restore and save work environment. The project file
includes device type, buffer data, operation option settings, configuration bit settings and batch commands. Project files may be
password protected to increase security and reliability when operated by untrained operators.

Auto Function

The Auto function organizes different functions into a sequential group (erase, blank check, program, verify and protect).
Functions are executed in sequential order similar to a batch command.

Production Mode

Once a chip is inserted correctly, the programmer automatically starts batch command of erase, blank check, program and verify.
Auto chip detection saves time and increases efficiency.

Production Statistics

A log file could be used to save operation information before exiting the program. Log files can also be used to facilitate
quality tracking.

Factory Mode

This mode is designed for factory volume production. To prevent operation errors from destroying chips and wrong data written to
the chip, SuperPro will operate in the Auto function mode.The administrator can set a password to prevent unauthorized access to
the system.

Auto Recognition of File Types

We support almost all kinds of known file formats including file formats with automatic recognition functions: Binary, Intel
(linear & segmented) Hex, Motorola S, Tektronix (linear & segmented), JEDEC, POF, etc.

Auto Increment of Serial Numbers

Auto-generation of electronic serial numbers is available on Superpro 7500N. This feature is implemented by setting Auto Increment
in Operation Option. Auto Increment allows users to add unique serial number into the device. After each successful programming,
the software automatically changes the value by the specified increment mode.

Intellectual Property Protection

Password settings available in both PC and stand-alone mode.

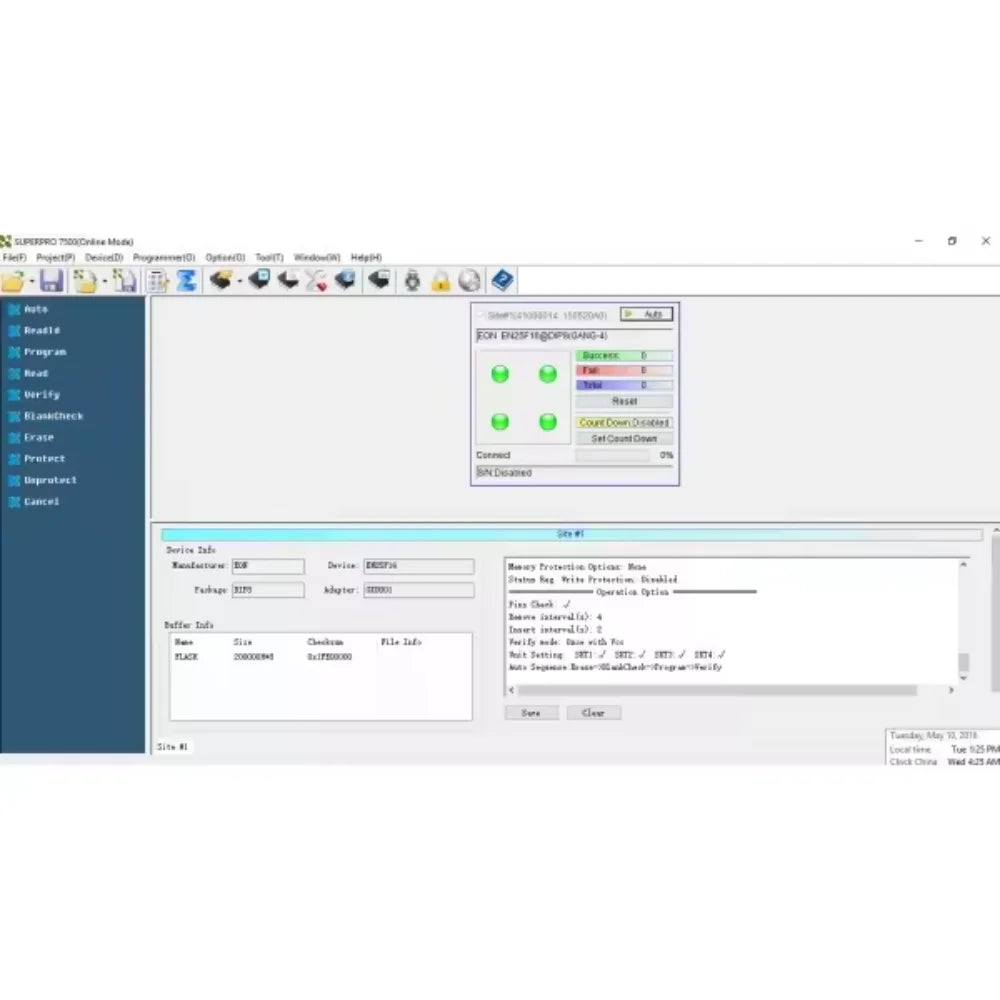

Software Display:
