OWON XDS2102A Digital Oscilloscope 100MHz 1GS/s 2 Channels+1External 20M Record Length 12-bit High Resolution ADC and 8 inch LCD
Standard Edition / AU / China Mainland
$513.28
Skip to product information
OWON XDS2102A Digital Oscilloscope 100MHz 1GS/s 2 Channels+1External 20M Record Length 12-bit High Resolution ADC and 8 inch LCD
$513.28
SPECIFICATIONS
Band Width: 100MHz
Battery Included: No
Brand Name: owon
Certification: CE
DIY Supplies: Electrical
Digital Channels: 2+1
Display Resolution: 800*600 Pixels
Display Size: 8 inch
High-concerned chemical: None
IS Battery Demountable: No
Max Waveform Capture Rate: 50,000wfm/s
Model Number: XDS2102A
Origin: Mainland China
Real Time Sampling Rate: 1GSa/S
Record Length: 20M
Vertical Resolution: 12-bit

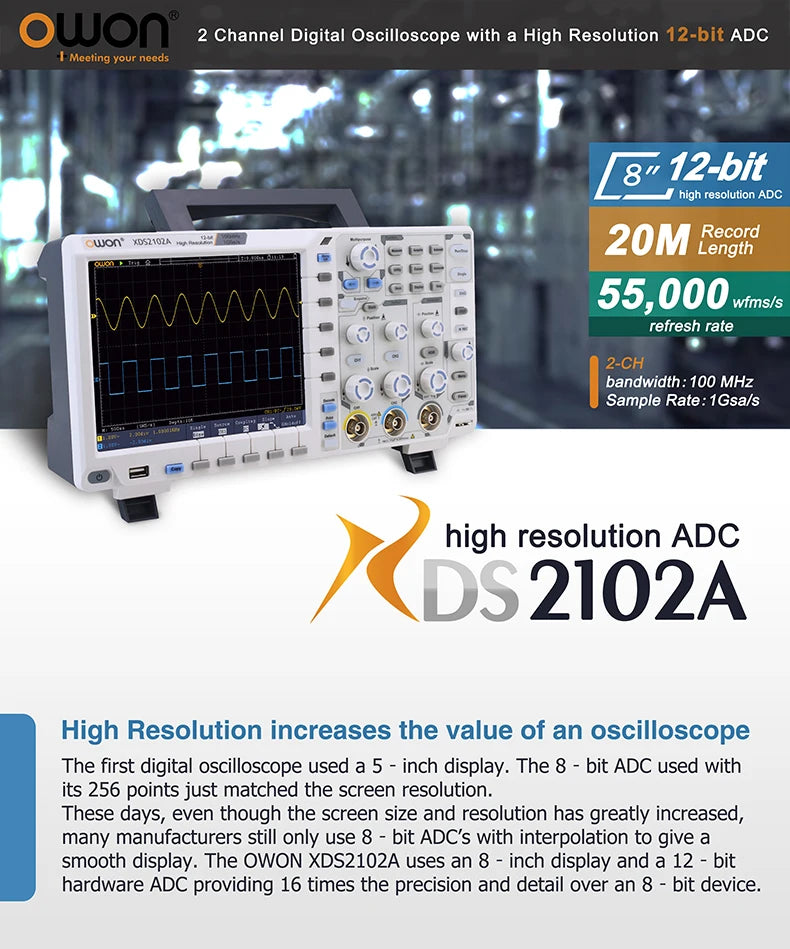

XDS2102A digital oscilloscope
12 bits
high resolution ADC
Super Performance
+ 12-bit high resolution ADC, restoring the waveform detail fully
+ 20M record length, and 55,000 wfms/s waveform refresh rate
+ low background noise, vertical sensitivity in 1 mV/div - 10 V/div
+ multi- trigger, and bus decoding function

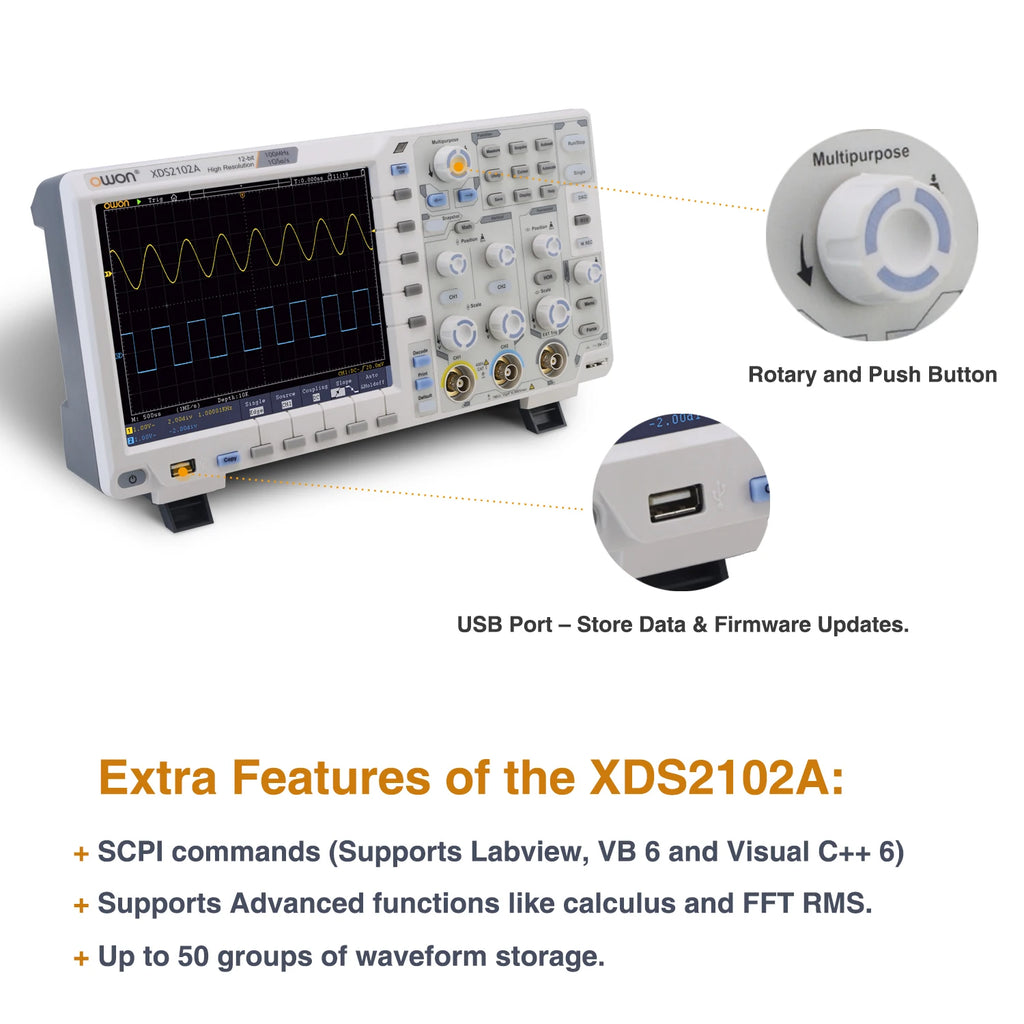

+ SCPI, and LabVIEW supported

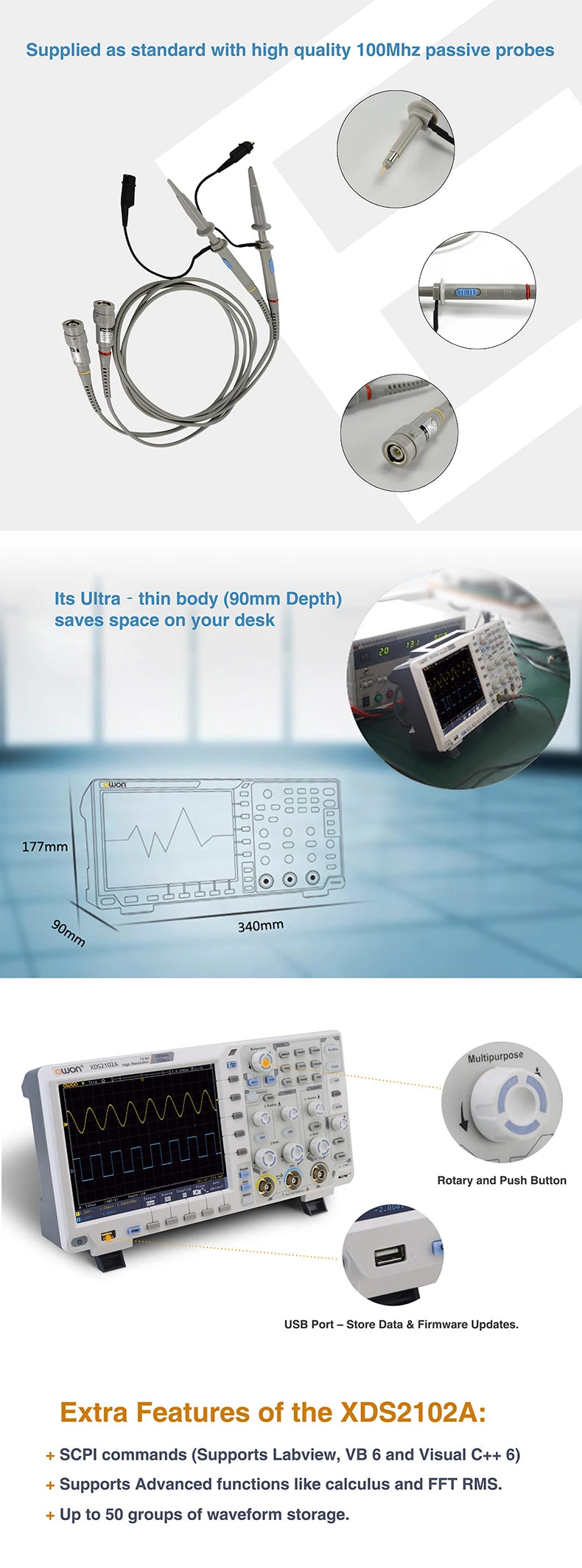

+ ultra-thin body-design, less space accommodation
+ multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and more
+ VGA port - better solution for video expansion, and teaching demonstration
+ 8 inch 800 x 600 high resolution LCD
＋Performance Specifications
Model |
XDS2102A |
|
Bandwidth |
100MHz |
|
Sample Rate |
1GS/s (8 bits) 500MS/s (12 bits) |
|
Vertical Resolution (A/D) |
12 bits |
|
Record length |
20M |
|
Waveform Refresh Rate |
55,000 wfms/s |
|
Horizontal Scale (s/div) |
2ns/div - 1000s/div, step by 1~2~5 |
|
Rise Time (at input, typical) |
≤3.5ns |
|
Channel |
2 + 1 (external) |
|
Display |
8" color LCD, 800 x 600 pixels |
|
Input Impedance |
1MΩ ± 2%, in parallel with 15pF ± 5pF |
|
Channel Isolation |
50Hz : 100 : 1, 10MHz : 40 : 1 |
|
Max Input Voltage |
1MΩ ≤ 300Vrms |
|
DC Accuracy |
average≥16：±(3% reading + 0.05 div) for △V |
|
Probe Attenuation Factor |
0.001X - 1000X, step by 1 - 2 - 5 |
|
LF Respond (AC, -3dB) |
≥10Hz (at input, AC coupling, -3dB) |
|
Sample Rate / Relay Time Accuracy |
±1 ppm（TYP, Ta=+25℃） |
|
Interpolation |
sin(x) / x |
|
|
Interval (△T) Accuracy (full bandwidth) |
Single: ±(1 interval time + 1ppm x reading + 0.6ns); |
|
Input Coupling |
DC, AC, and GND |
|
Vertical Sensitivity |
1mV/div - 10V/div (at input) |
|
Trigger Type |

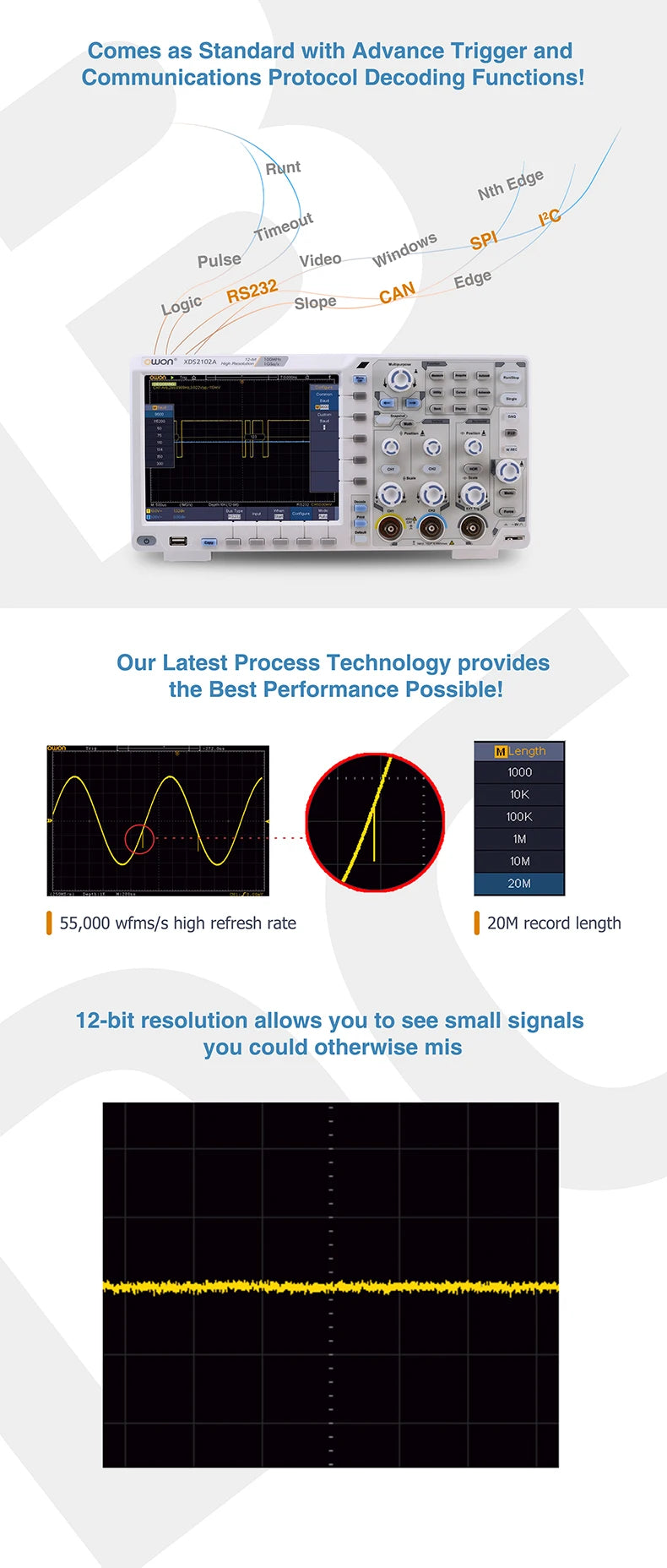

Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN |
|
Bus Decoding |
I2C, SPI, RS232, and CAN |
|
Trigger Mode |
Auto, Normal, and Single |
|
Vertical Range |
±2V ( 1mv/div - 50mv/div), ±20V ( 100mv/div - 1V/div), ±200V (2V/div - 10V/div) |
|
Line / Field Frequency (video) |
NTSC, PAL and SECAM standard |
|
Cursor Measurement |
△V, and △T between cursors, △V and △T between cursors, and auto- cursors |
|
Automatic Measurement |
Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count |
|
Waveform Math |
＋, －, ×, ÷, FFT,FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject) |
|
Waveform Storage |
50 waveforms |
|
Lissajou's |
Bandwidth |
full bandwidth |
Phase Difference |
±3 degrees |
|
Communication Interface |
USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional) |
|
Frequency Counter |
available |
|
Power Supply |
100V - 240V AC, 50/60Hz, CAT II |
|
Power Consumption |
＜15W |
|
Fuse |
2A, T class, 250V |
|

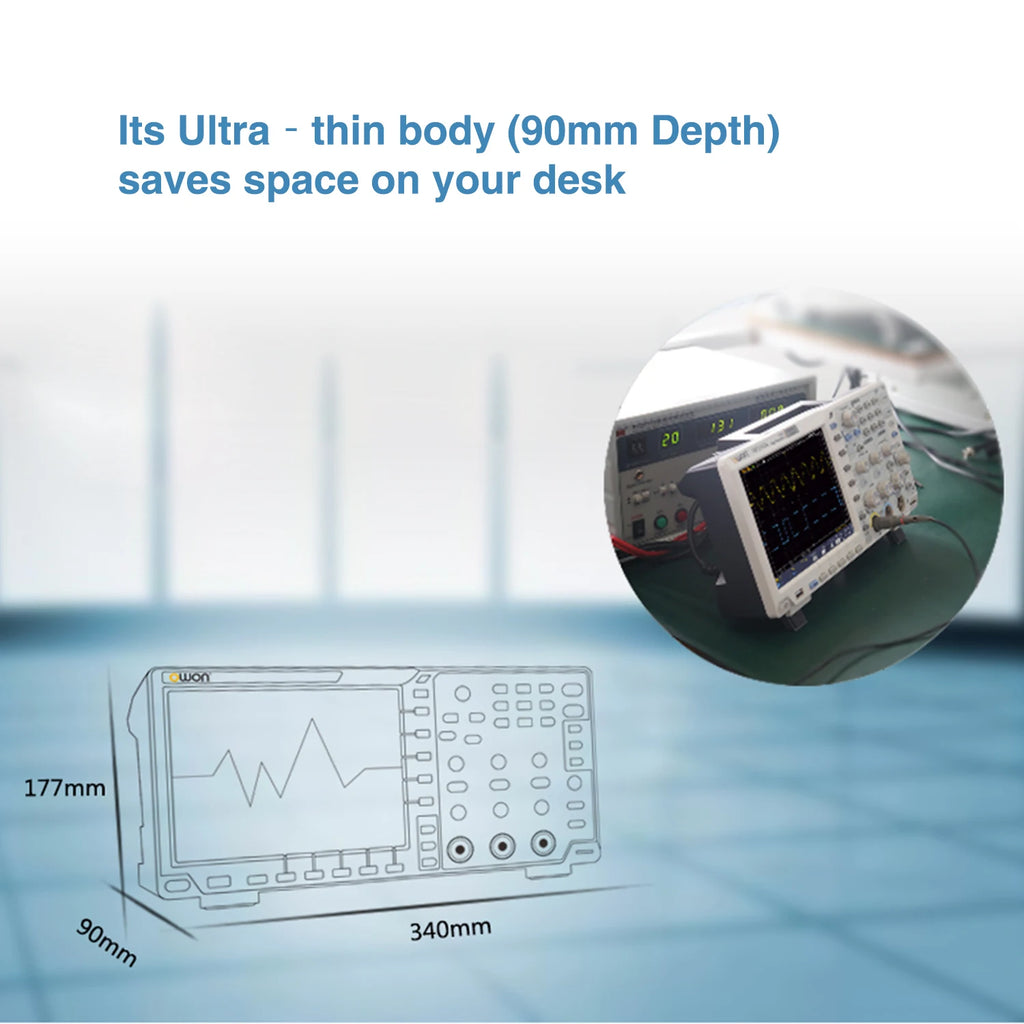

Dimension (W x H x D) |
340 x 177 x 90 mm |
|
Weight |
2.40 kg |
|
Specifications subject to change without prior notice.
＋Application
electronic circuit debugging circuit testing design and manufacture
education and training automobile maintenance and testing
