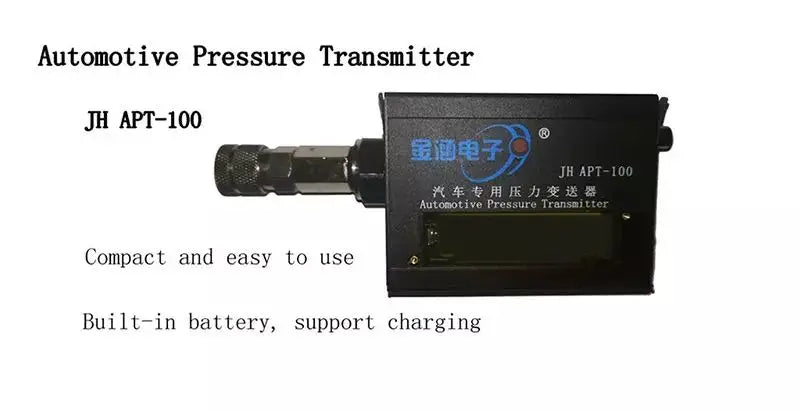

Pressure Transmitter, Automotive Cylinder Sensor Professional JH APT-100 Used for Various Oscilloscopes Vacuum Pressure Testing
$337.52
SPECIFICATIONS
Battery Included: Yes
Brand Name: jinhanic
Certification: CE
DIY Supplies: Electrical
Display Size: None
High-concerned chemical: None
IS Battery Demountable: No
Model Number: JH APT-100
Origin: Mainland China
Gears Automotive Cylinder Pressure Transmitter Sensor Professional JH APT-100 For Various Oscilloscope & Vacuum Pressure Test

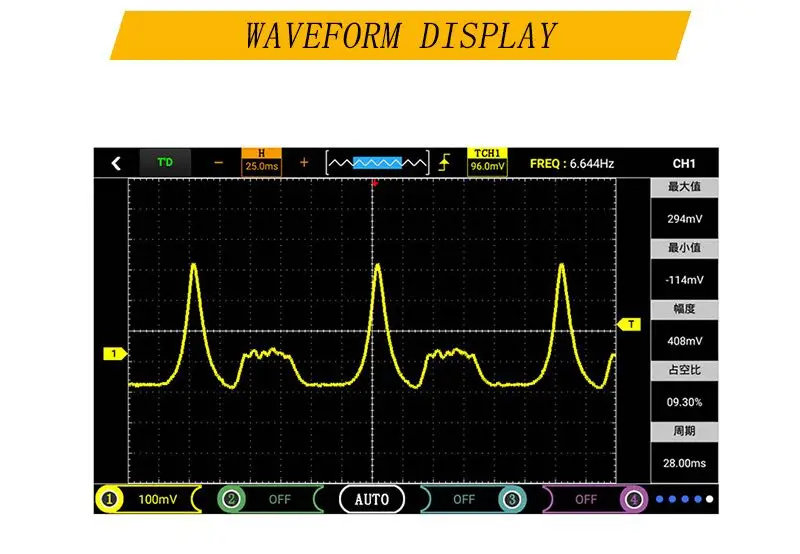

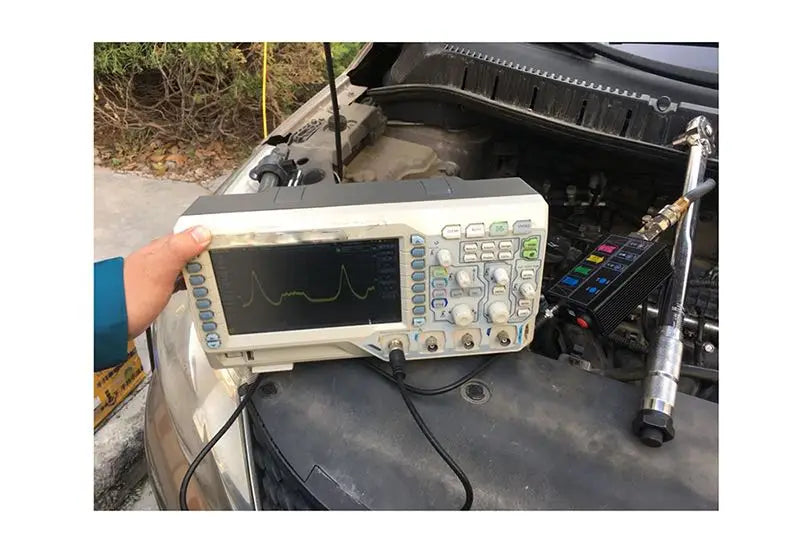

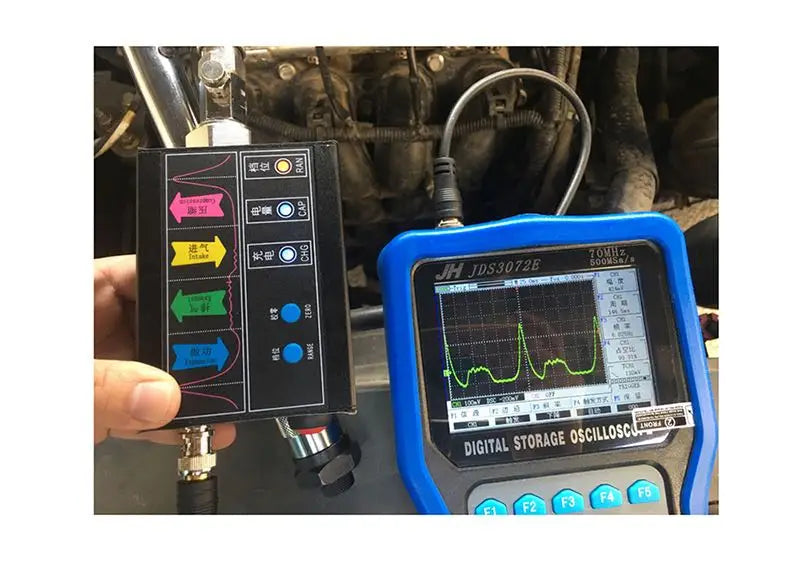

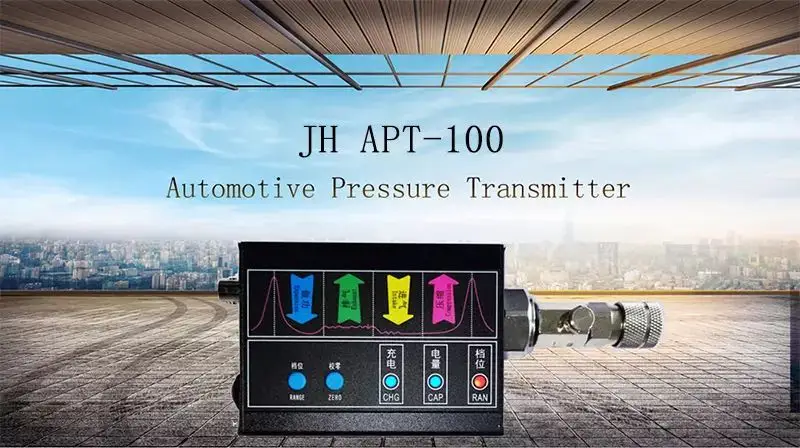

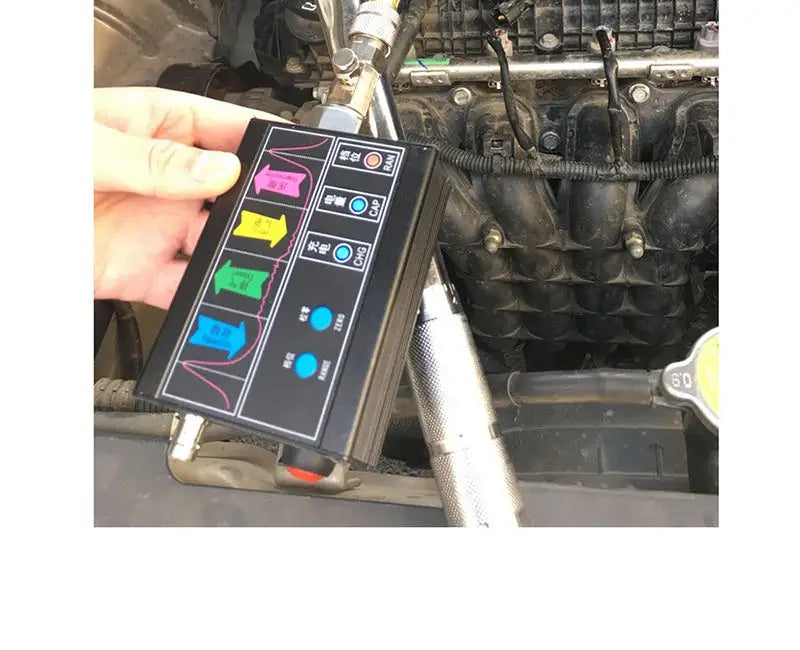

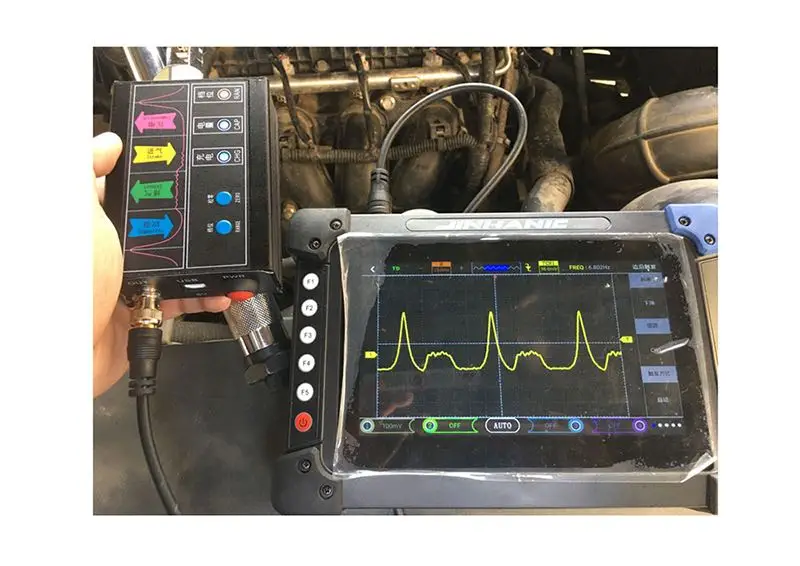

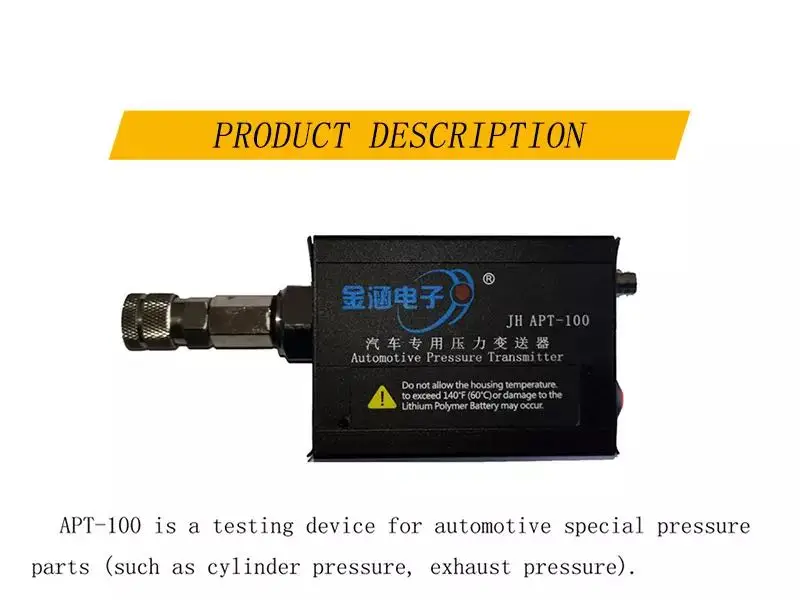

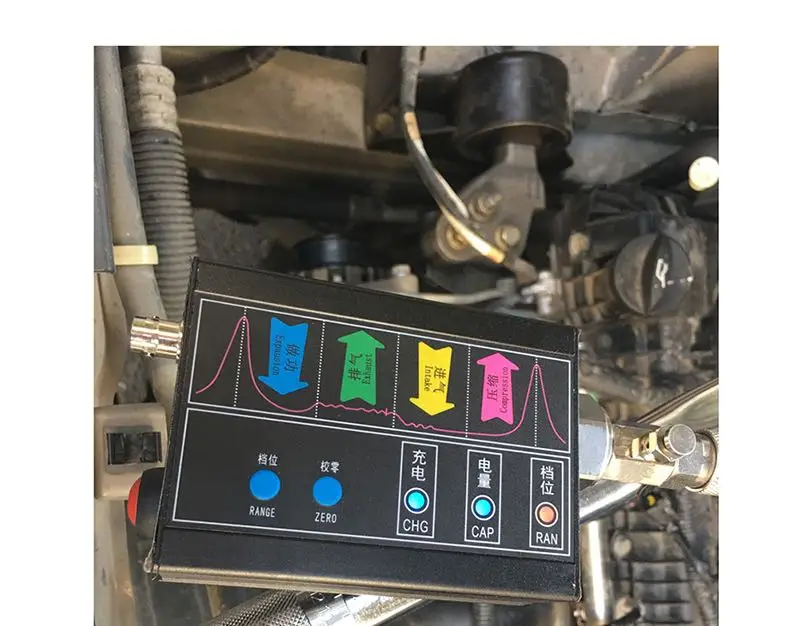

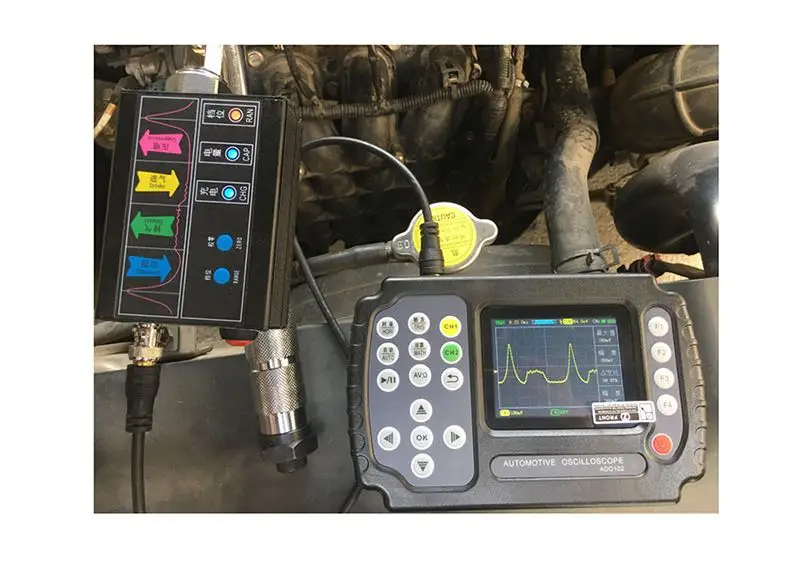

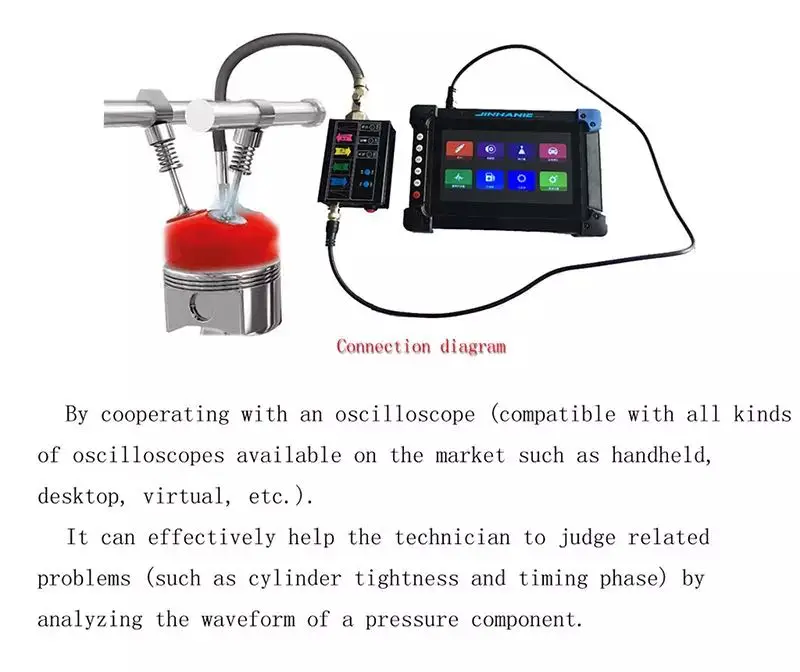

JINHAN APT-100 is a special pressure component testing equipment for automobiles. For example, cylinder pressure can be used with an oscilloscope, compatible with handheld oscilloscopes, desktop oscilloscopes, virtual oscilloscopes, etc. It can effectively help technicians judge related problems by analyzing the waveform of a certain pressure component , Tightness and timing phase etc.
Parameter Description :

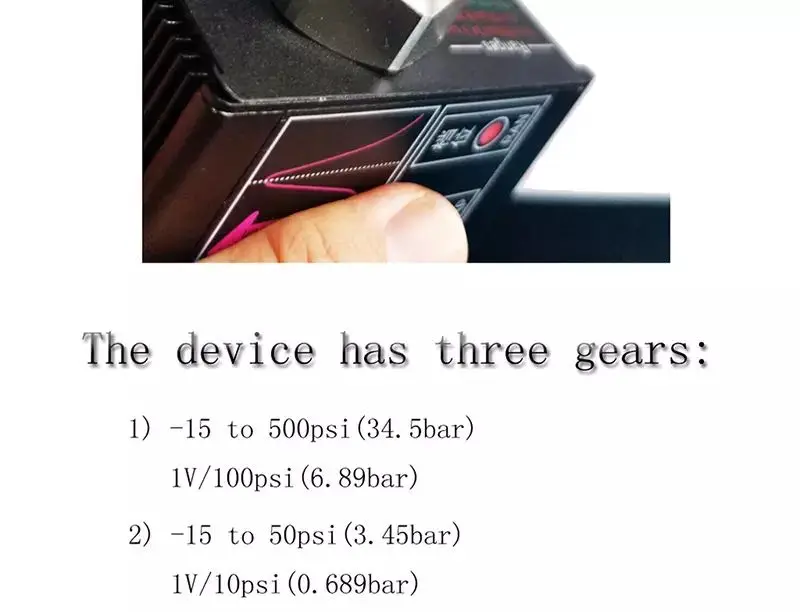

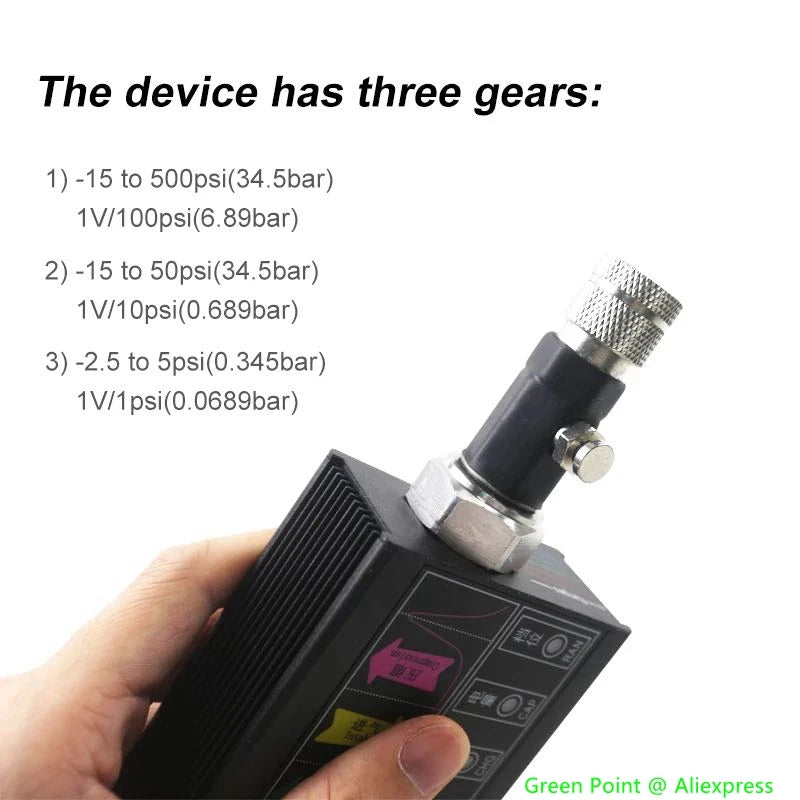

◆ The device has three gears: Effectively analyzes many automotive pressures including cylinder compression, intake manifold vacuum, and exhaust pulses.

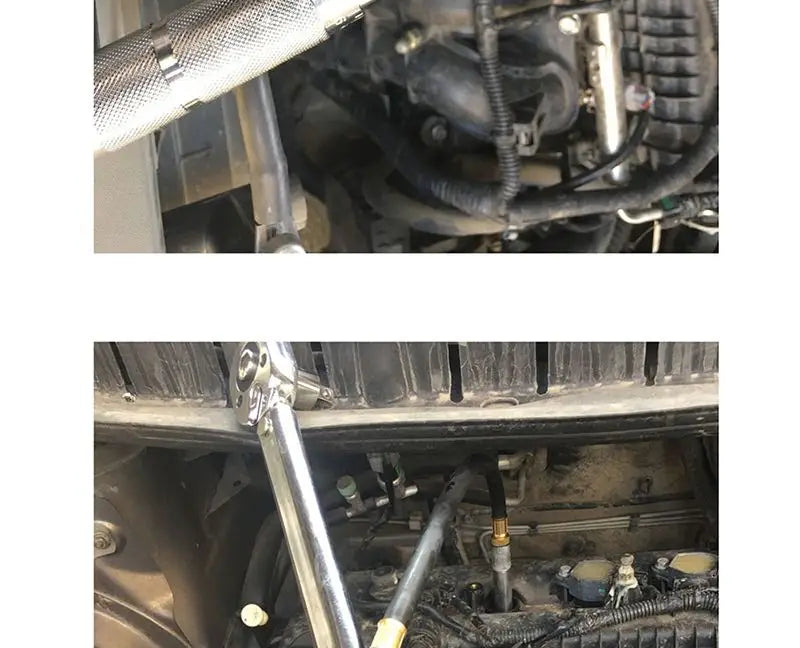

1.Corresponding RAN red light : 15 to 500psi(34.5bar) 1V/100psi(6.89bar) Suitable for running cylinder compression tests.
2.Corresponding RAN green light : 15 to 50psi(3.45bar) 1V/10psi(0.689bar) Suitable for vacuum test.

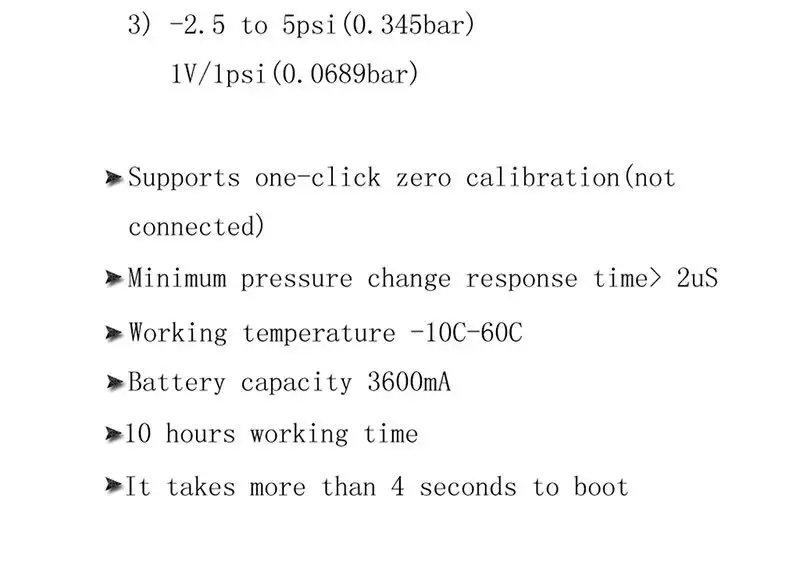

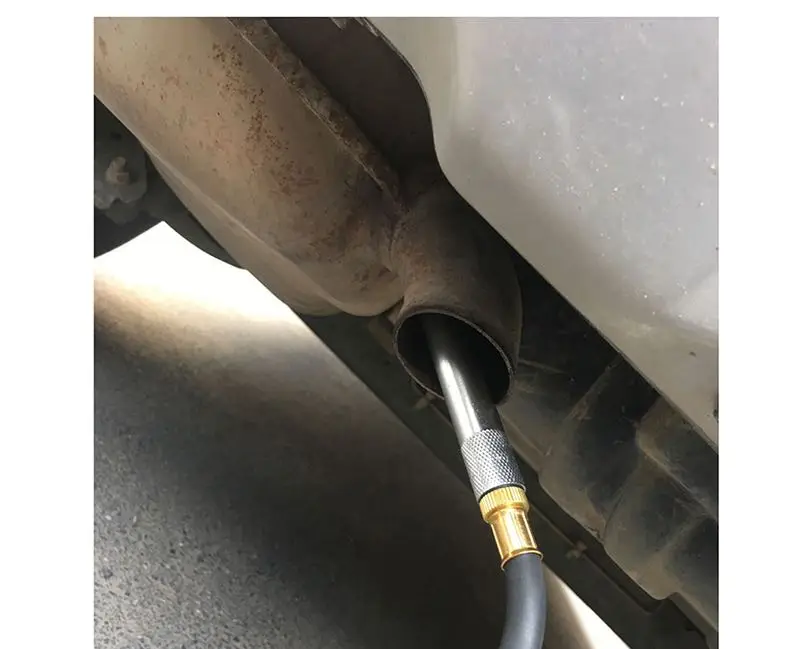

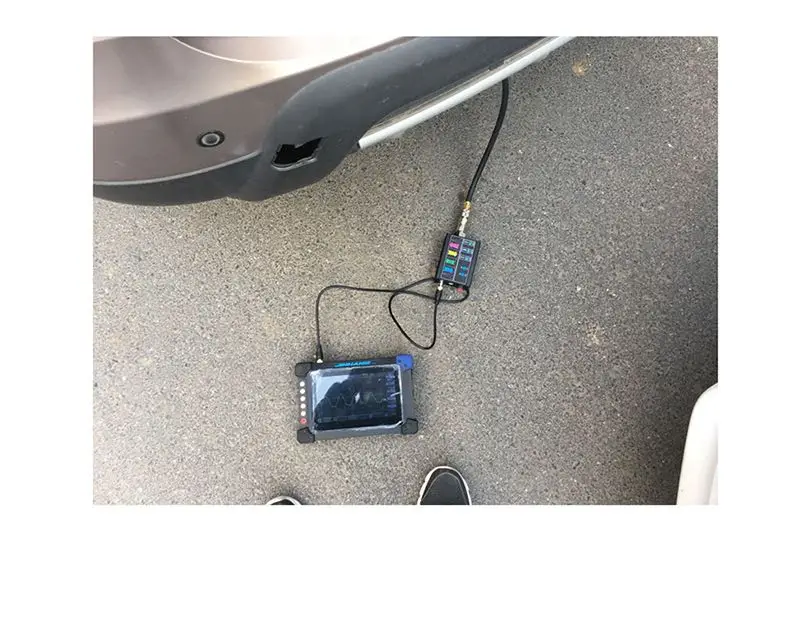

3.Corresponding RAN blue light : 2.5 to 5psi(0.345bar) 1V/1psi(0.0689bar) Suitable for analyzing small pressures or pulses such as exhaust back pressure.
Minimum pressure change response time> 2uS
◆ Operating temperature -10C - 60C
◆ Battery capacity 3600mA. (Fully used for more than 10 hours at a time).

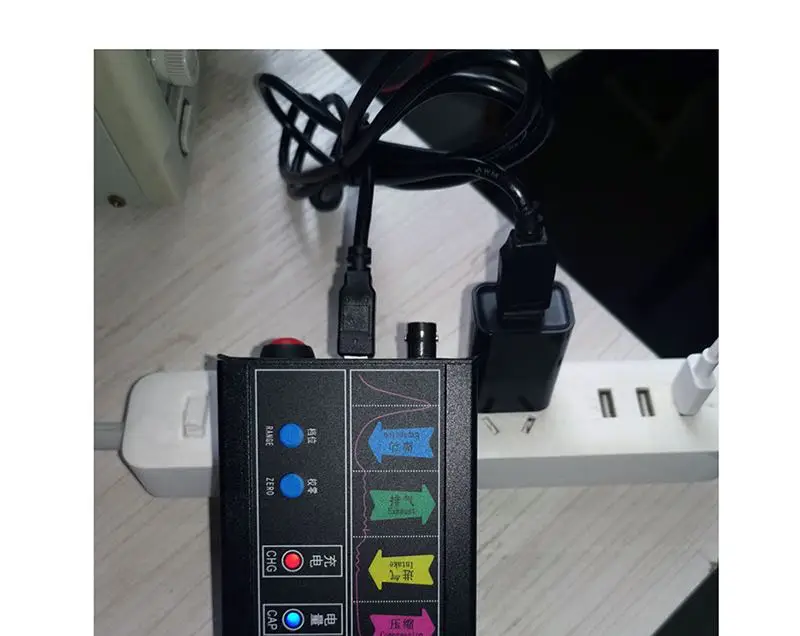

◆ Charging instructions: Charging voltage: 3.7V, can be fully charged in 4 to 5 hours. When the device is charging, the charging LED will flash. Battery level display in 3 levels:
1. Sufficient battery: green .
2. Normal power: blue .
3. Low battery: red.

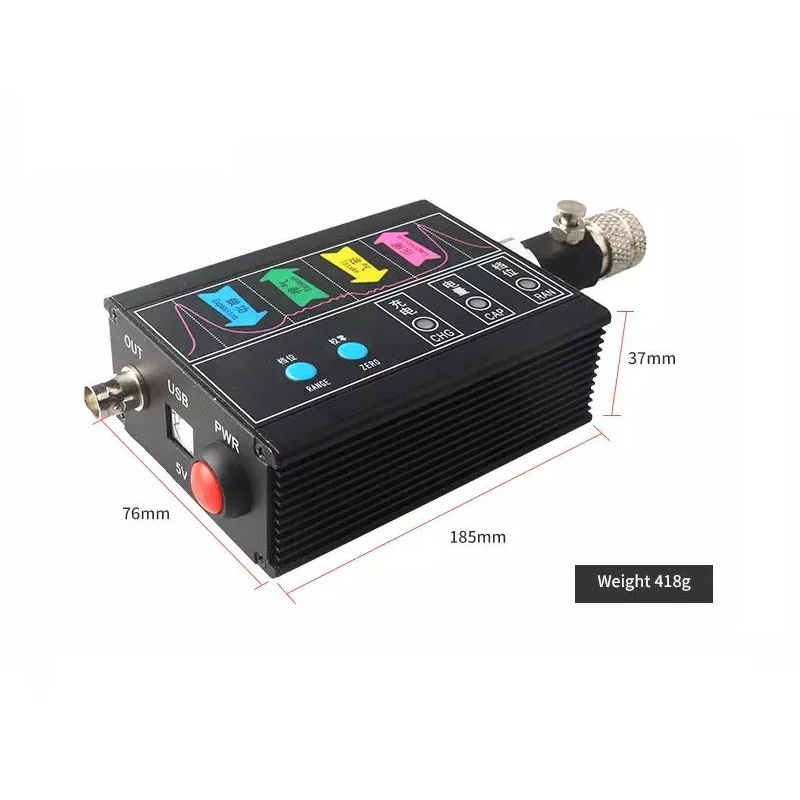

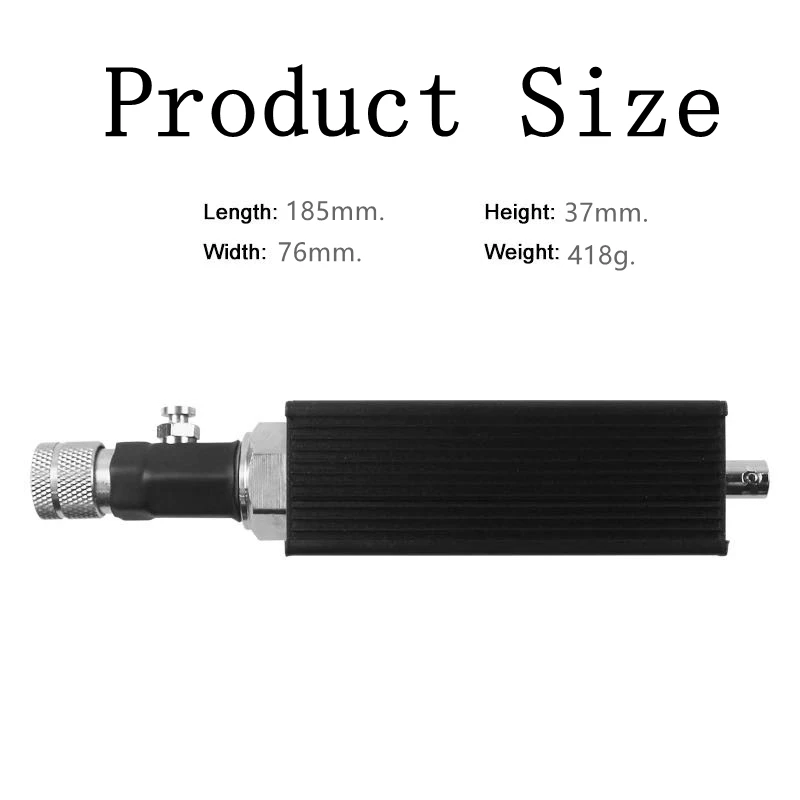

◆ Dimension:185mmx76mmx37mm.
◆ Weight:418g.
(Note: It is recommended to charge when the battery is low).

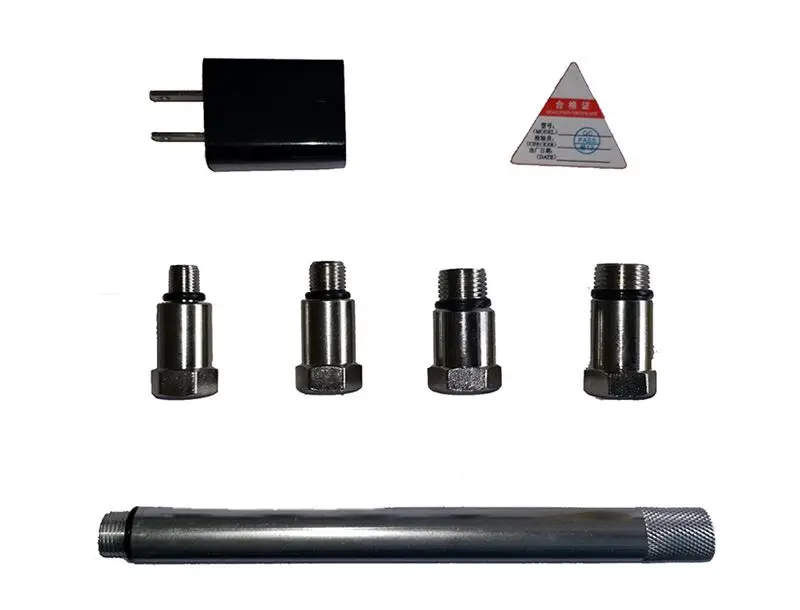

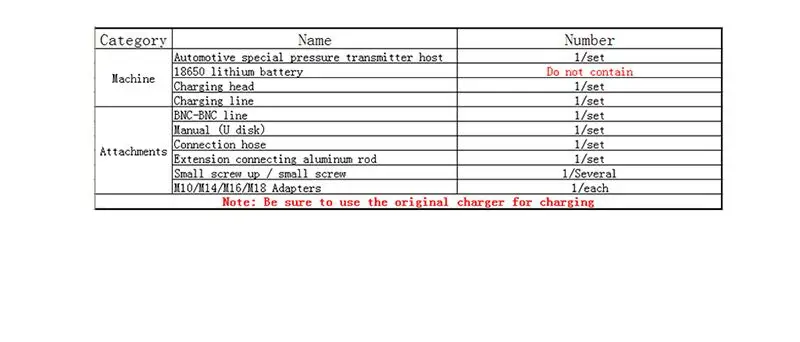

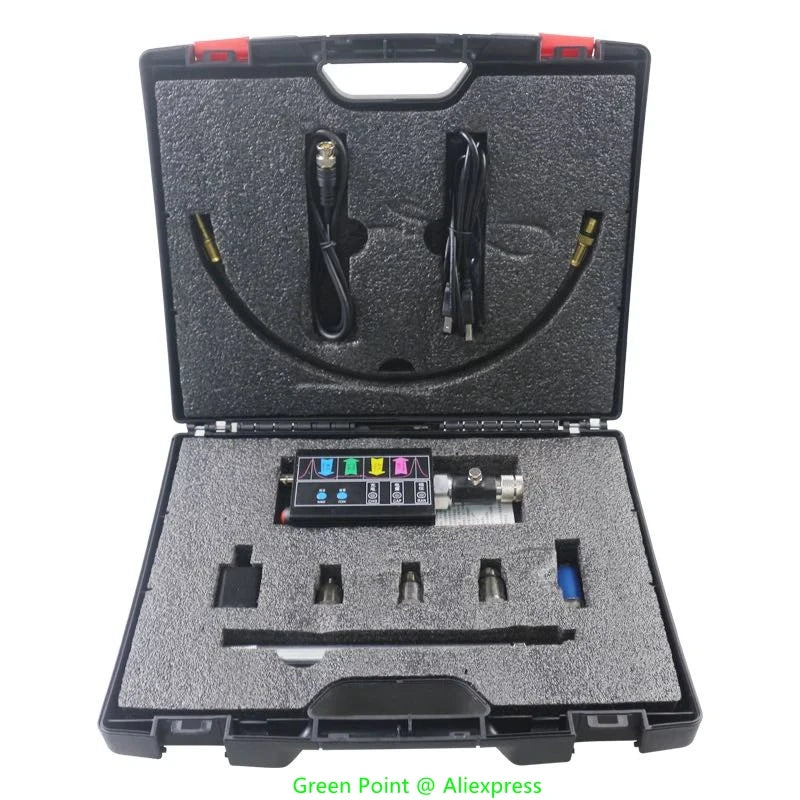

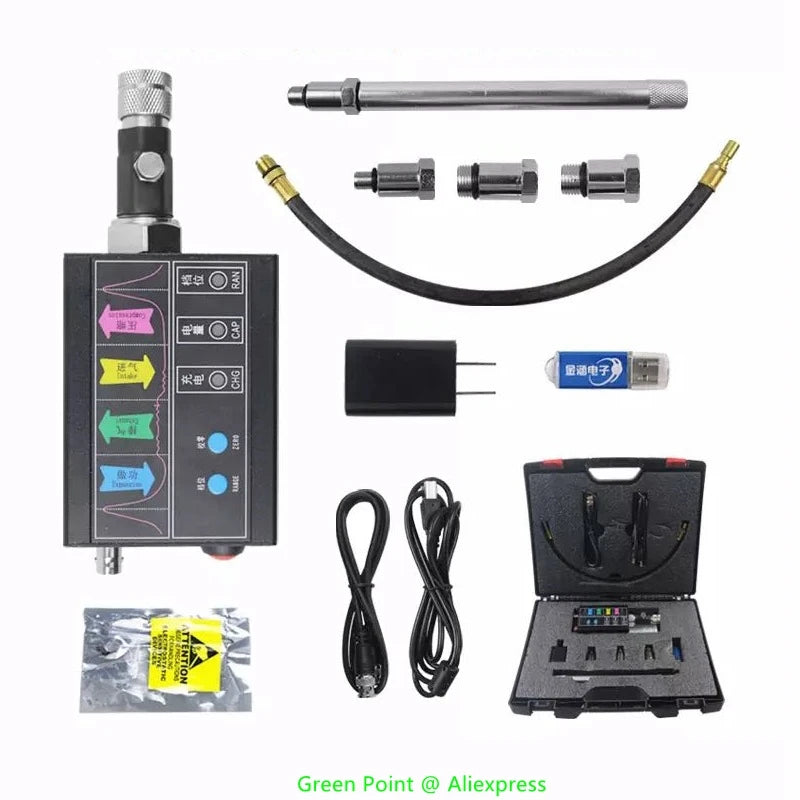

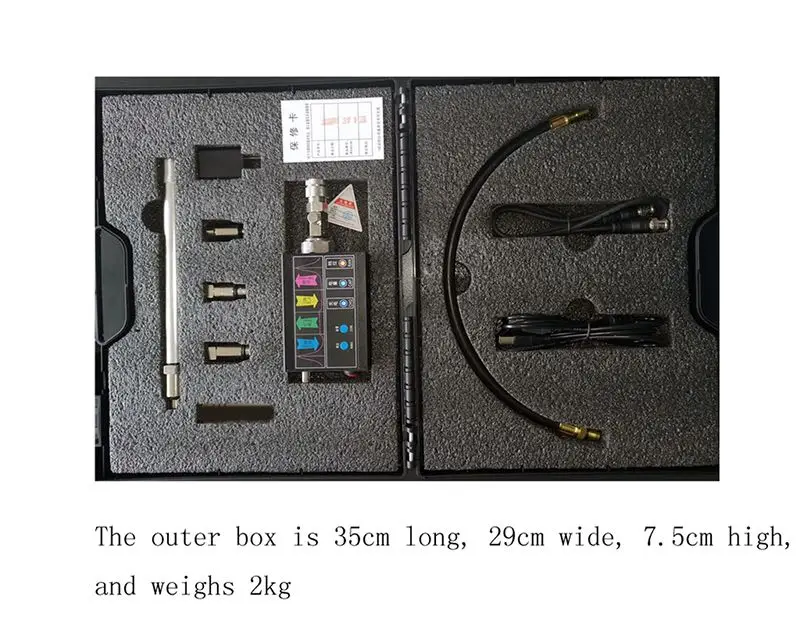

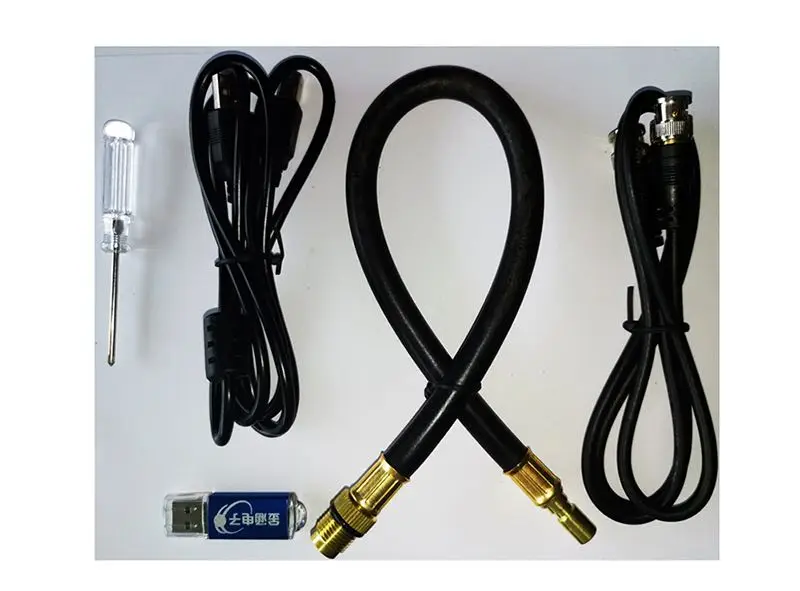

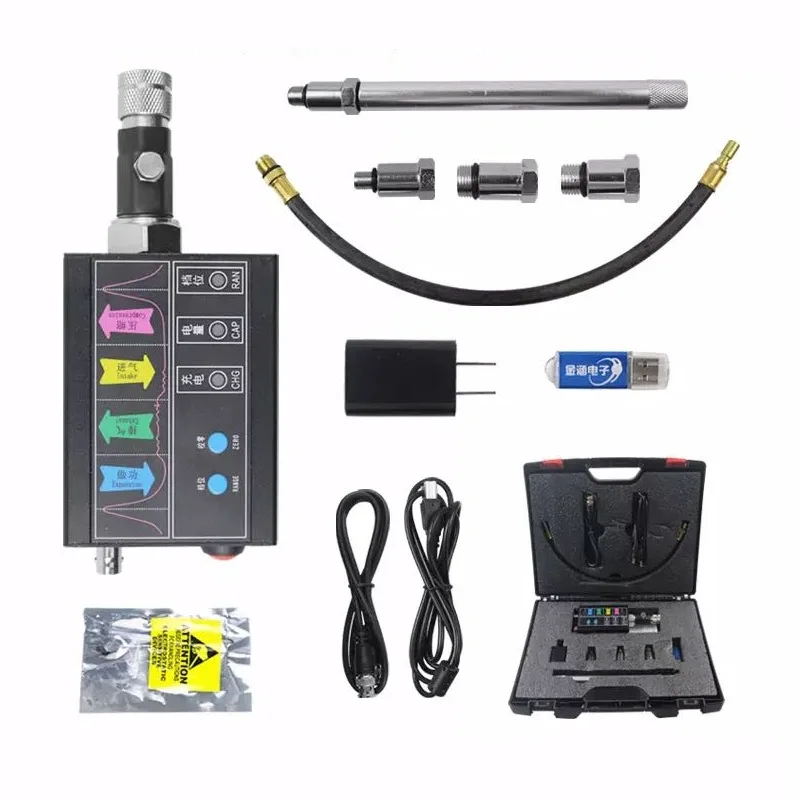

Packing List :
◆ 1 pc * JH APT-100 Host.
◆ 1 pc * Charging head.
◆ 1 pc * Charging line.
◆ 1 pc * BNC-BNC line .
◆ 1 pc * Connection hose.
◆ 1 pc * Extension connecting aluminum rod.
◆ 1 seversl * Small screw up/Small screw.
◆ 1 each * M10/M14/M16/M18 Adapters.
◆ 1 *Manual(U Disk).
(Note:Be sure to use the original charger for charging.)
Kindly Note :
As batteries are logistically restricted, we may need to remove them for some air shipments. Please note this before ordering or contact us in advance.
