PZ-ZU47DR-SOM FPGA Core Development Board Zynq UltraScale+ RFSoC XCzu47DR Software Defined Radio (SDR) Kit

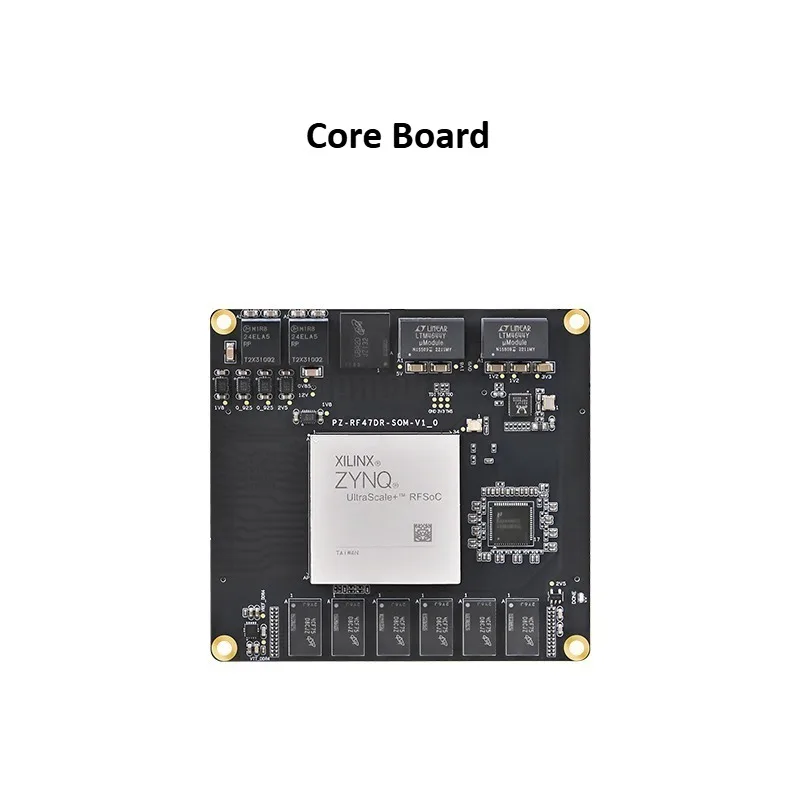

PZ-ZU47DR-SOM Core Board
$4,495.44
Skip to product information
ZJl Tech Limited Company is engaged in PCB (Printed Circuit Board) and PCB assembly manufacturing. We are committed to providing companies, both large and small, with high-quality printed circuit technology, premium products, and the best customer service—all to make the purchase of electronic products a hassle-free process for our customers.
As a professional PCB & PCBA manufacturer, we specialize in one-stop services, covering PCB manufacturing, component purchasing, PCB assembly, and complete product assembly. We have a comprehensive management system, advanced PCB production, manufacturing, and quality testing equipment, as well as strict maintenance and quality assurance systems. Our products are widely used in industries such as medical devices, solar energy, communications, industrial control, power electronics, security, and consumer
electronics.
PZ-ZU47DR-SOM FPGA Core Development Board Zynq UltraScale+ RFSoC XCzu47DR Software Defined Radio (SDR) Kit
$4,495.44
SPECIFICATIONS
Brand Name: Original
Core Processor: XCU47DR-2FFVE1156I
Description: PZ-ZU47DR-SOM Development Board
Embedded: Yes
Function: Development Board
Main Purpose: Development Board
Model Number: PZ-ZU47DR-SOM Development Board
Module/Board Type: Development Board
Mounting Type: PCB
Place of Origin: Guangdong, China
Type: Development Board
Recommend Products
PZ-ZU47DR-SOM Development Board Product Information
Parameter Item |
Detailed Description |
Model |
PZ-ZU47DR-SOM |
Main Controller |
XCU47DR-2FFVE1156I |
Core |
ARM: 4×Cortex-A53 1.333GHz; RPU: 2×Cortex-R5 533MHz |
Speed Grade |
Grade 2 |
Temperature Grade |
Industrial (-40℃~+85℃) |
Logic Cells |
930k |
Look-Up Tables (LUTs) |
425k |
DSP Slices |
4272 |
BLOCK RAM |
38Mb |
DDR4 |
PS side: 8GB 2400MHz×64bit / PL side: 4GB 2400MHz×32bit |
QSPI FLASH |
2 channels (QSPI+QSPI1) / 512Mb per chip, total 1Gb |
EMMC |
32GB, for storing startup files and user files |
Startup Mode |
JTAG/QSPI/SD/EMMC, selected by onboard DIP switches |
ADC Channels |
8 channels / Sampling rate 5Gsps |
DAC Channels |
8 channels / Sampling rate 9.85Gsps |
Gigabit Ethernet |
1 channel (PS side) |
PS-side GTR Interface |
4 pairs of TX/RX |
PL-side GTY Interface |
8 pairs of TX/RX |
Power Supply/Current |
8-12V/5A (Recommended voltage: 8V) |
Extended IO Quantity |
MIO: 38 (fixed 1.8V level); HD: 44 (1.8/2.5/3.3V adjustable, default 3.3V) |
Crystal Oscillator |
1 single-ended 33.3333MHz crystal for PS; 1 differential 200MHz crystal for PL; 1 dedicated clock chip for ADC/DAC/GT |
Size & Process |
90*85mm, Immersion Gold process, 0.635mm pitch 240P connector ×3; Maximum top height 5mm, PCB thickness 2mm, connector combined height 5mm |
