SPECIFICATIONS

Brand Name: Original

Core Processor: XC7Z020-2CLG400I

Description: PZ7020S-FL-KFB Development Board

Embedded: Yes

Function: Development Board

Main Purpose: Development Board

Model Number: PZ7020S-FL-KFB

Module/Board Type: Development Board

Mounting Type: PCB

Place of Origin: Guangdong, China

Type: Development Board

Recommend Products

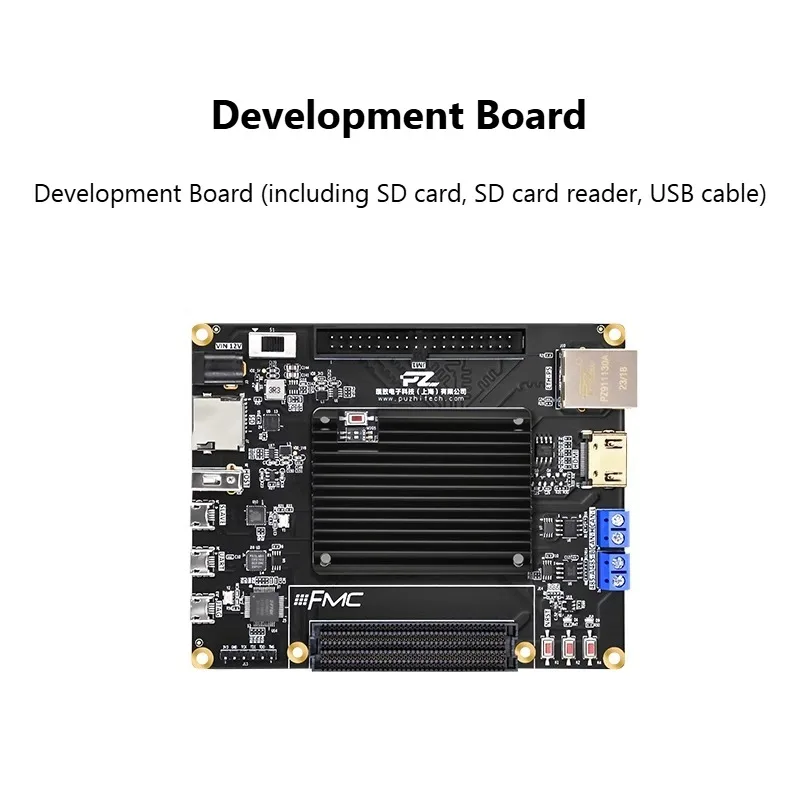

PZ7020S-FL-KFB Development Board Product Information

Category	Parameters
Development Board Model	PZ7020S-FL
Main Controller	XC7Z020-2CLG400I
Core	Dual-core ARM Cortex-A9, main frequency 766MHz
Speed Grade	Grade 2
Temperature Grade	Industrial (-40°C~+85°C)
Logic Cells	85K
Look-Up Tables (LUTs)	53200
Flip-Flops	106400
DSP Slices	220
BLOCK RAM	4.9Mb
DDR3/DDR3L	1GB
QSPI FLASH	256Mb
User LEDs	2 channels
PS-side MIO	30 PS ports (24 fixed at 1.8V, 6 fixed at 3.3V)
PL-side IO	116 single-ended (1.8/2.5/3.3V adjustable, default 3.3V)
Crystal Oscillator	1 single-ended 33.3333MHz crystal for PS; 1 single-ended 50MHz crystal for PL
Core Board Size	60*45mm
Integrated JTAG Downloader	1 channel
UART/RS485/CAN	1 channel/1 channel/1 channel
SD Card Interface	1 channel
USB2.0 Host/Slave	1 channel/1 channel
Gigabit Ethernet	1 channel on PS side
HDMI	1 HDMI output
LEDs & Buttons	4 LEDs, 4 buttons
FMC-LPC	72 single-ended / 36 differential pairs
Power Supply/Current	12V/1A
Development Board Size	120*95mm
Development Board Process	Black matte, immersion gold

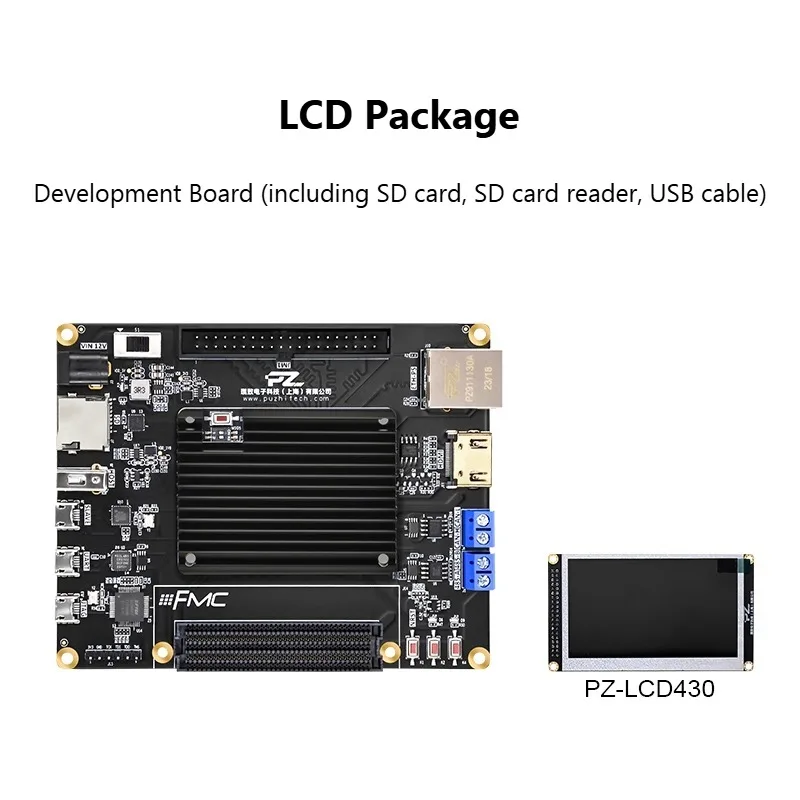

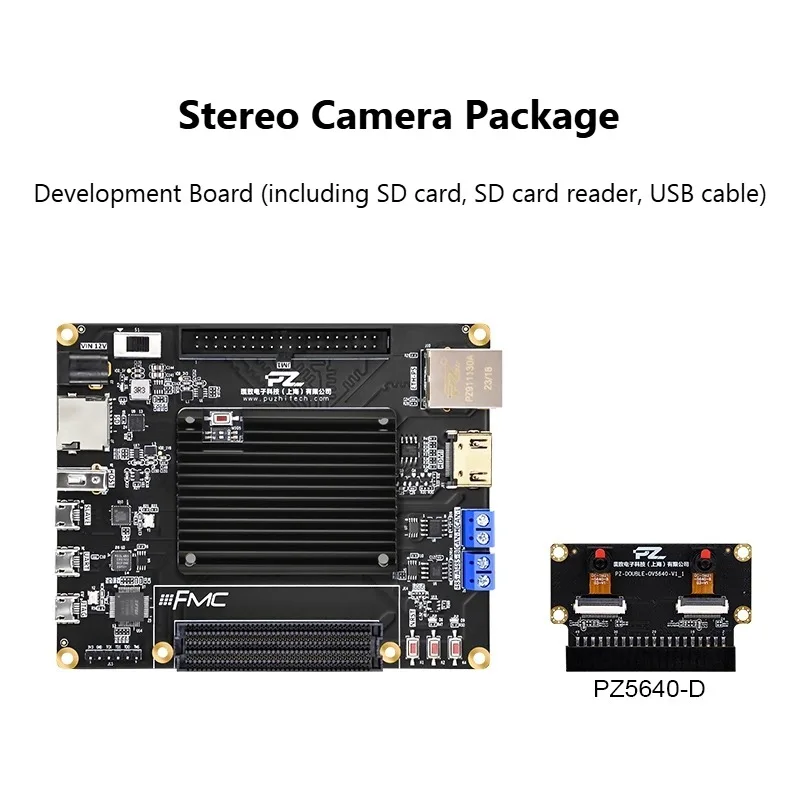

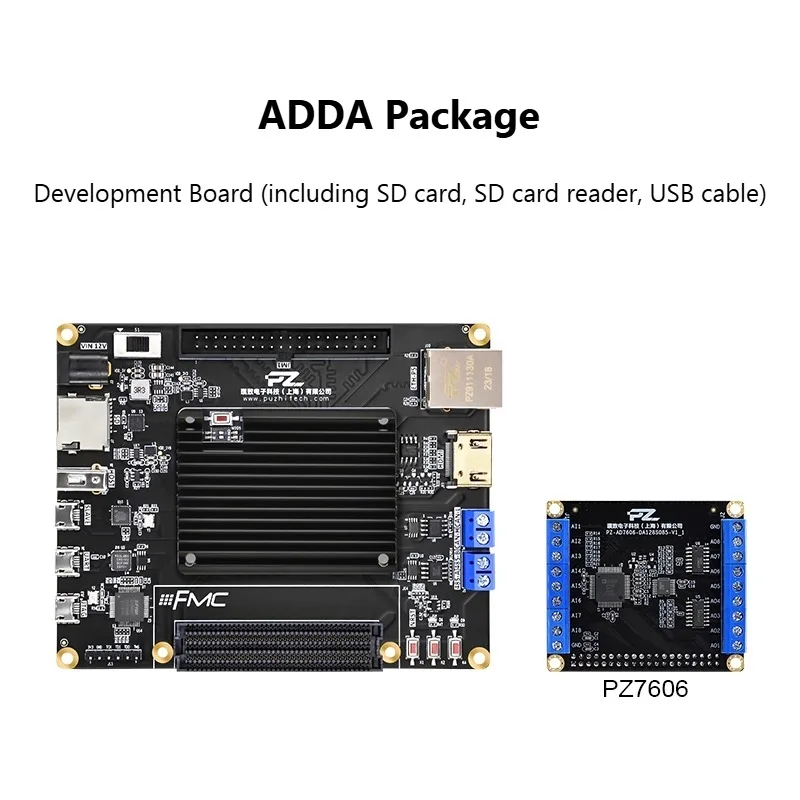

40P Expansion Port	32 single-ended / 16 differential pairs (PL side); 1 reserved 40P 2.54MM pitch expansion port, compatible with external modules such as AD/DA, stereo camera, 4.3-inch TFTLCD screen, etc.; expansion port includes 1×5V power supply, 1×3.3V power supply, 6×ground, 32×IO ports
