SPECIFICATIONS

Band Width: 150M/250MHz

Battery Included: No

Brand Name: UNI-T

Certification: CE

DIY Supplies: Electrical

Decoding And Triggering: UART, I2C, SPI, CAN, CAN-FD, LIN, Audio

Digital Channels: 4

Display Size: 7 Inches & Above

High-concerned chemical: None

IS Battery Demountable: No

Max Waveform Capture Rate: 1,000,000wfm/s

Model Number: MSO1000HD Series

Origin: Mainland China

Power Input Analysis: Power Quality, Harmonic Analysis, Inrush Current

Power Output Analysis: Ripple Analysis, Modulation Analysis, Power Efficiency, Transient response, ON/OFF time

Power Switching Analysis: Switching Loss, Safe Operating Area (SOA), Slew Rate, Steady-State On-Resistance

Record Length: 100Mpts

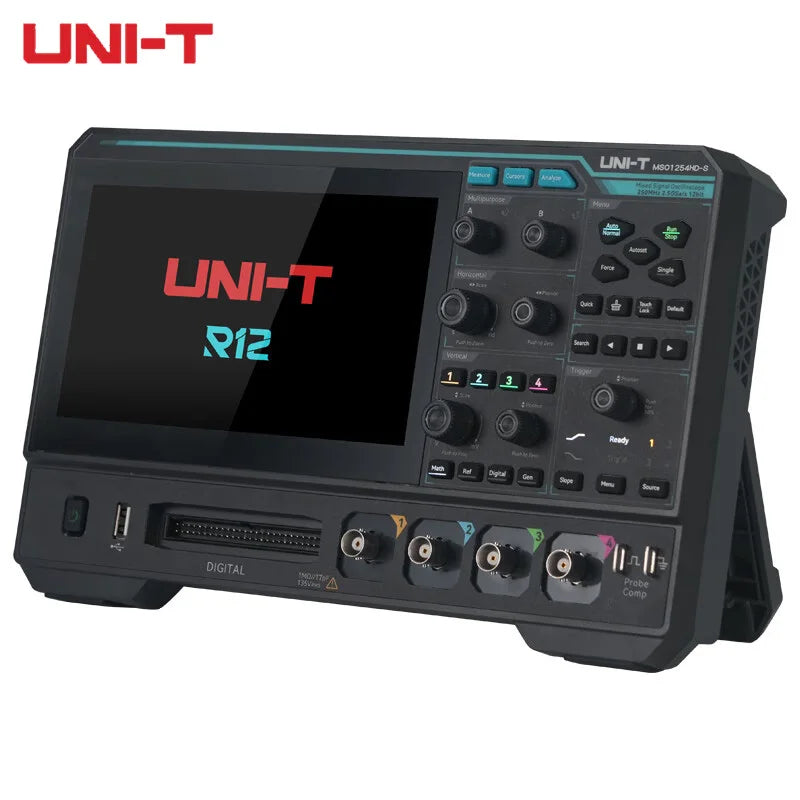

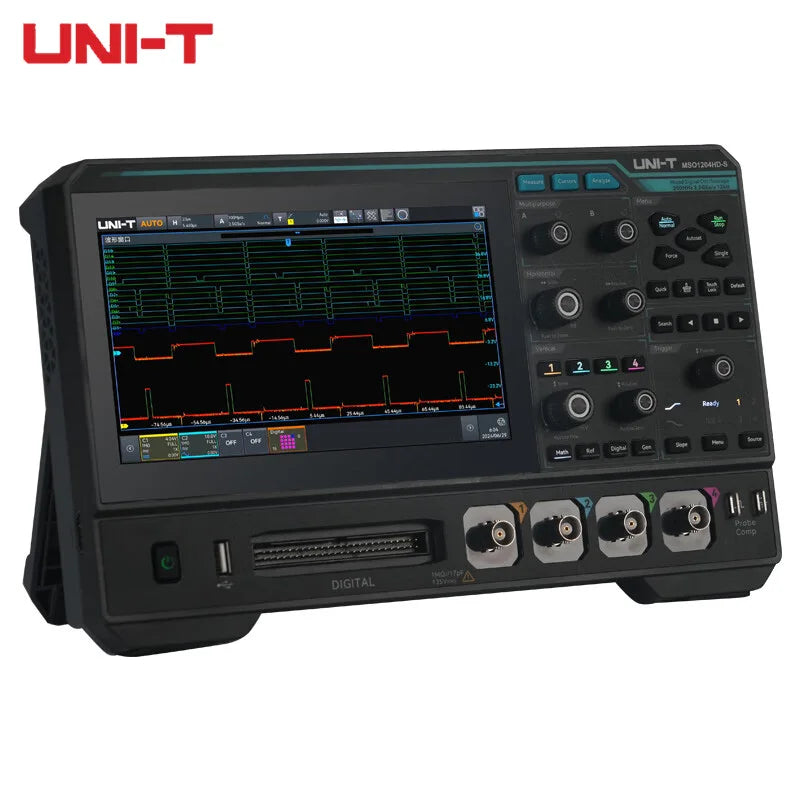

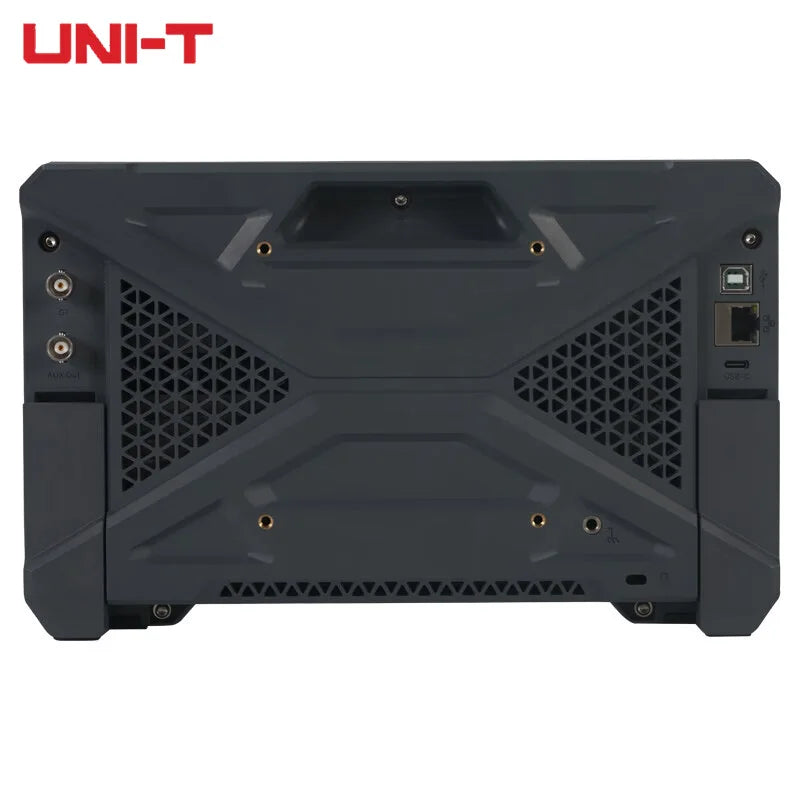

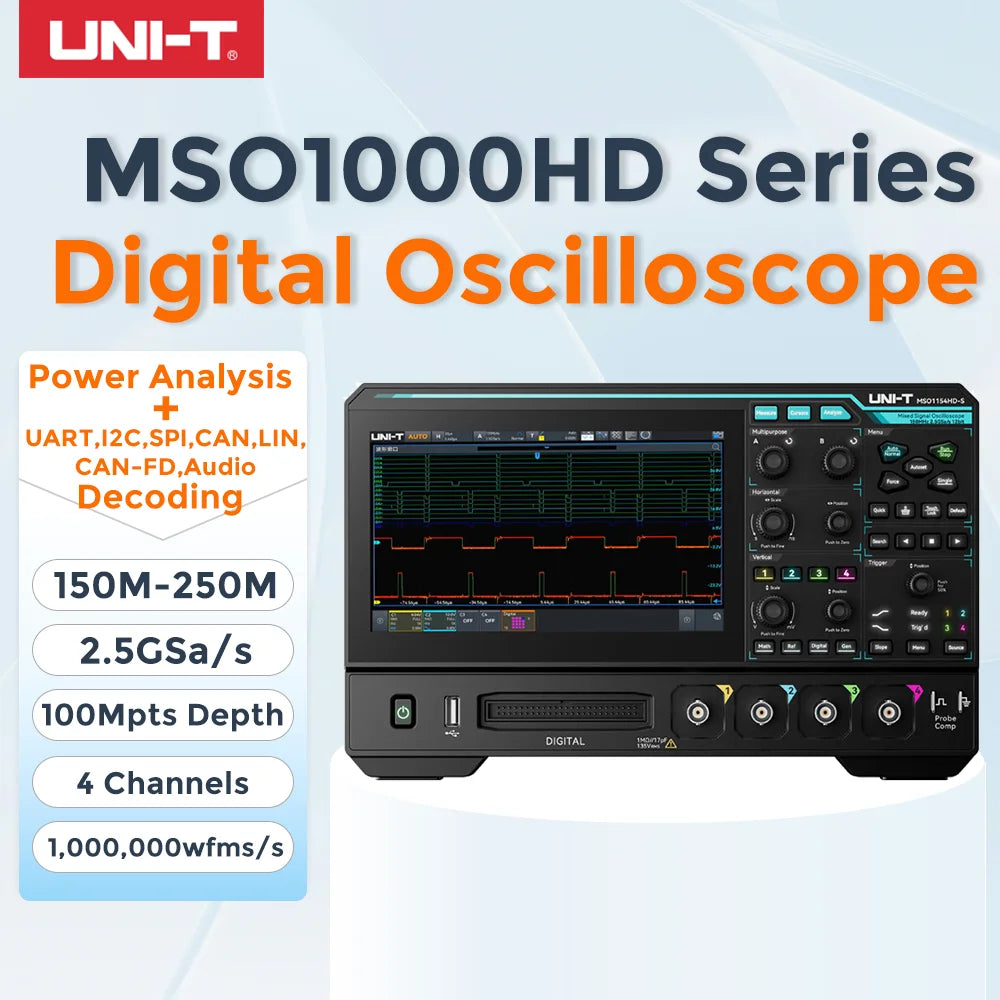

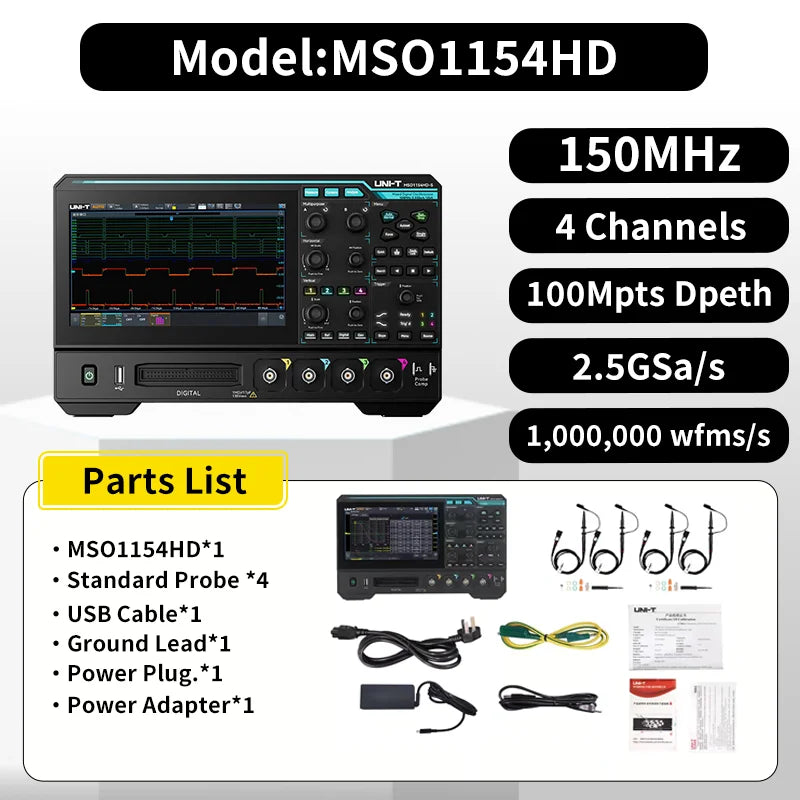

UNI-T MSO1000HD-S 12bit High-Res Oscilloscope | 150M/250MHz 4CH 2.5GSa/s | Bode plot Analyzer&CAN-FD, LIN, UART,I2C,SPI Decoding

MSO1000HD series high-resolution oscilloscope has the maximum bandwidth of 250 MHz, the maximum sample rate of
2.5 GSa/s, and is equipped with 4 analog channels and 16 digital channels, with the memory depth of up to 100 Mpts. MSO1000HD series adopts exclusive Ultra Phosphor 3.0 technology, achieving the waveform capture rate of up to 200,000
wfms/s, with 256 levels of gray temperature colors, and features an innovative digital trigger system with high trigger sensitivity and low jitter.

Product Features

 Real-time sampling rate of the analog channel is up to 2.5 GSa/s. The maximumsamplingrateof the digital channel is 1.25 GSa/s

 12-bit vertical resolution, with up to 4096 points, ensures that the waveformdetails areclearlyvisible.

 4 analog channels, 16 digital channels, and the storage depth of up to 100 Mpts

 The maximum waveform capture rate is up to 200,000 wfms/s (sequence mode: 1,000,000wfms/s)

 9 instrument functions: Digital oscilloscope, logic analyzer, function/arbitrary waveformgenerator, spectrum analyzer, digital voltmeter, frequency meter, protocol analyzer, bodeplotanalyzer, and power analyzer.

 Built-in 25 MHz equivalent performance single-channel function/arbitrary waveformgenerator, supporting load the oscilloscope’s on-screen data to Gen arbitrary waveformoutput inreal time, and offering compatibility with multiple built-in arbitrary waveforms.(Only for MSO1000HD-S Model)

 Bode plot loop test analysis function designed to analyze the system stability.(Only for MSO1000HD-S Model)

 Supports ERES (enhanced resolution) of up to 4-bit

 Protocol triggering and decoding function: RS232/UART, I2C, SPI, CAN, CAN-FD, LIN, Audio

 Multiple trigger types: Edge, pulse width, video, ramp, runt pulse, over-amplitude pulse, delay, timeout, duration, setup & hold, Nth edge and, code pattern

 Multiple peripheral interfaces: USB Host, USB Device, LAN, AUX Out (Trig Out, Pass/Fail, DVM), Gen Out, HDMI

 Supports SCPI (Standard Command for Programmable Instrument)

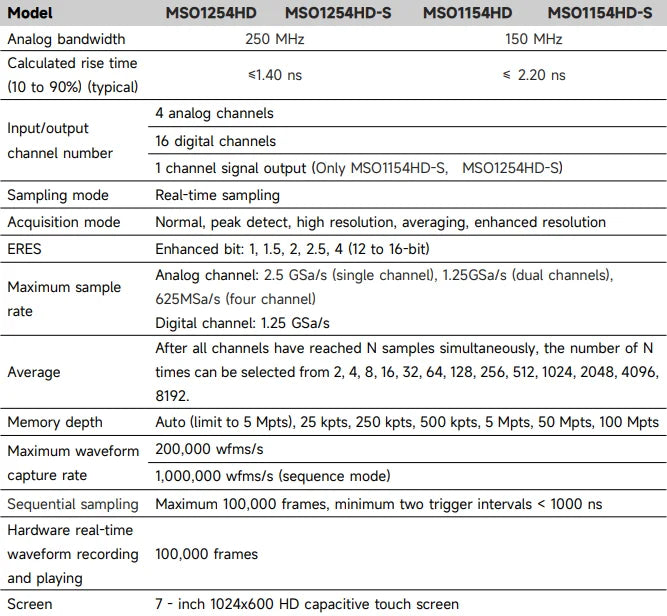

Product specification

Features

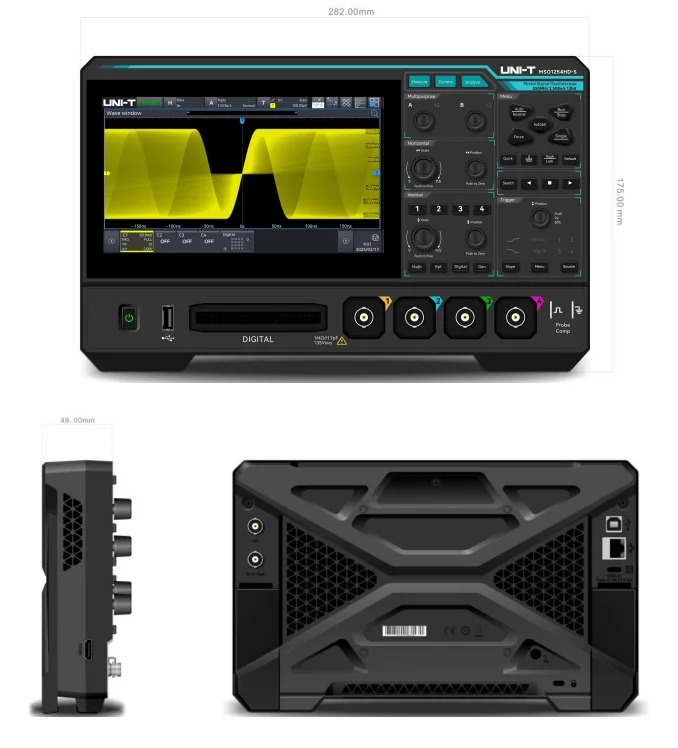

Brand New Appearance Design

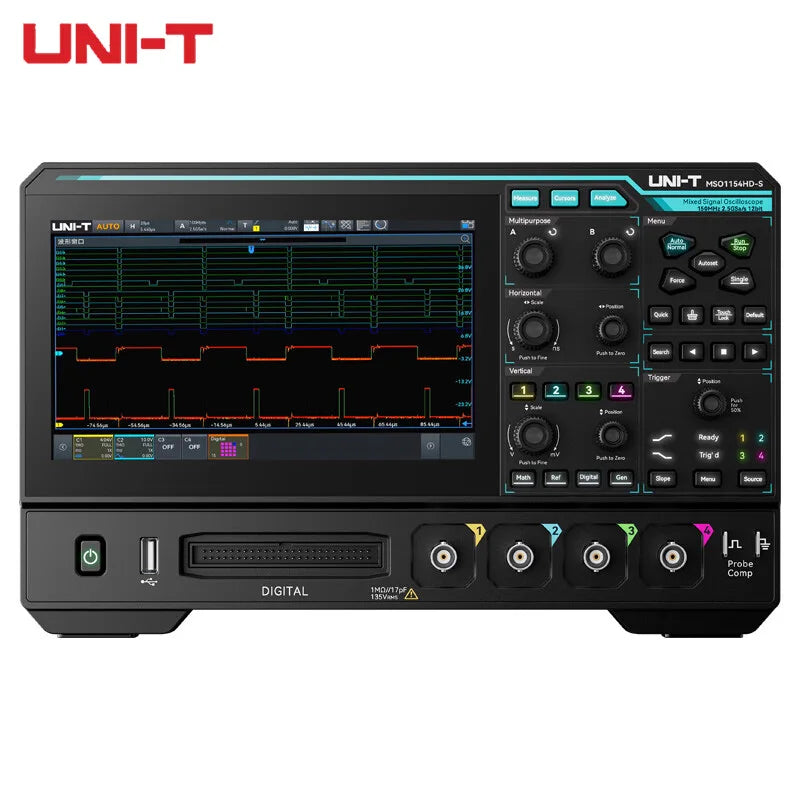

MSO1000HD series features an innovative appearance with a double-sided thinning design. Thedisplay is aligned horizontally with the panel to enhance touch operation and visibility range. Theblack frame margin, combined with the metal grey and black body, enhances the overall senseofthe instrument.

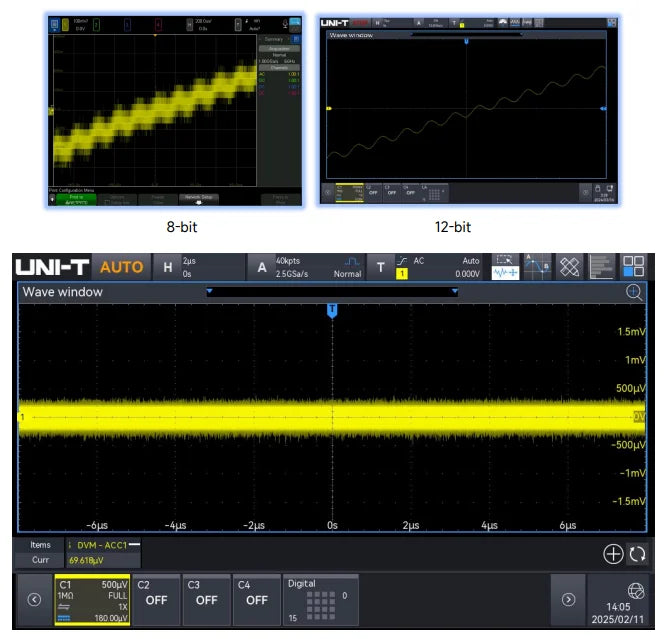

High-resolution

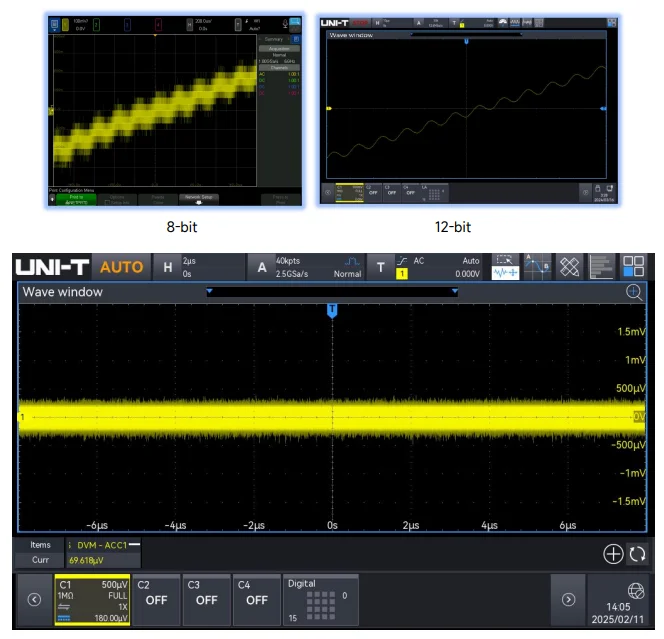

12-bit high-resolution ADC sampling has a quantization level of up to 4096, which is 16timesthatof a traditional 8-bit ADC, allowing for better restoration of waveform details.The excellent background noise, which is only 75 μVrms at the full bandwidth of 250MHz, allowsthe 12-bit ADC to perform optimally.

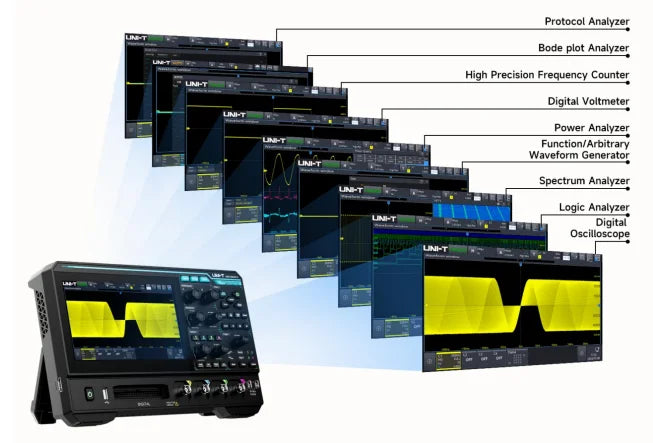

Cost-effective, Nine-in-one Integrated Oscilloscope

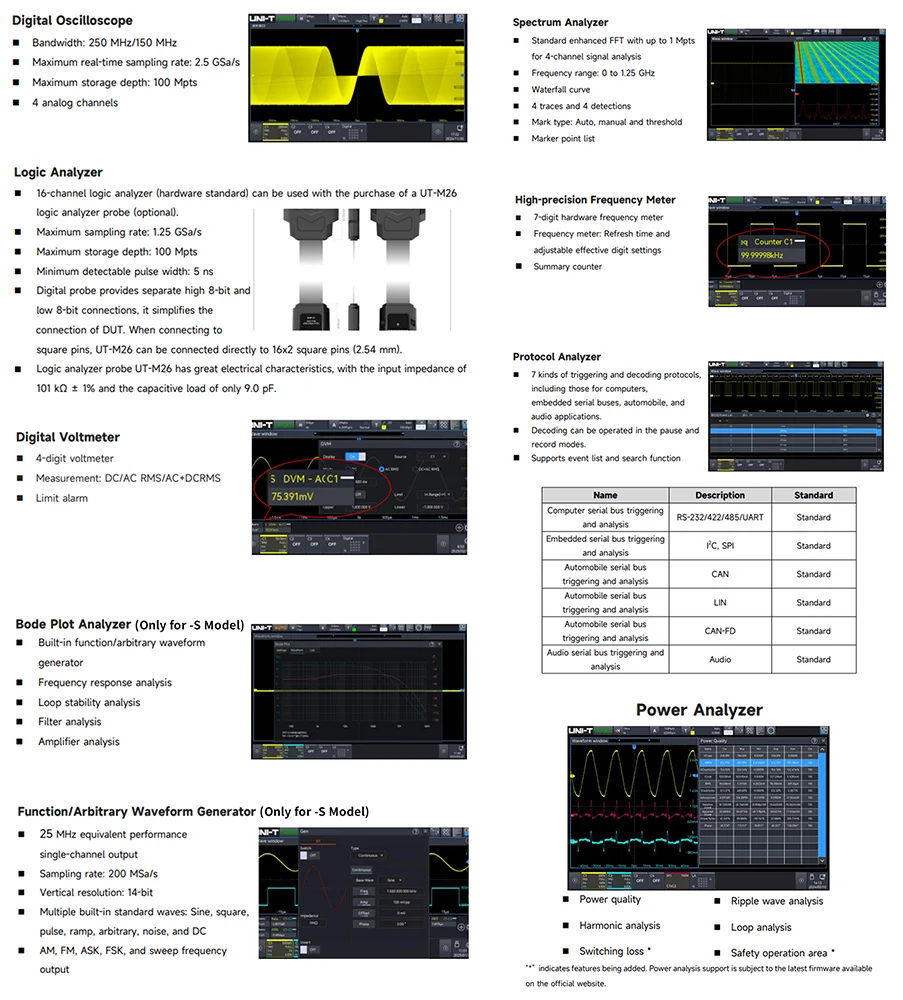

MSO1000HD series integrates nine instrument functions, including a digital oscilloscope, logicanalyzer, function/arbitrary waveform generator, spectrum analyzer, digital voltmeter, high-precision frequency meter, protocol analyzer, Bode plot analyzer, and power analyzer. Thisisa cost-effective oscilloscope for users.

NOTE for Power Analyzer:“*” indicates features being added. Power analysis support is subject to the latest firmwareavailableon the official website.

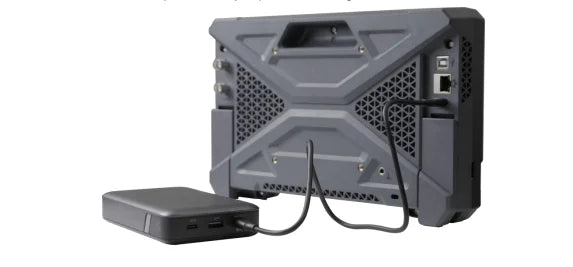

Type-C for Power Supply

MSO1000HD series adopts the latest Type-C power supply method. When no power sourceisavailable outdoors, it can be powered by a portable charger.

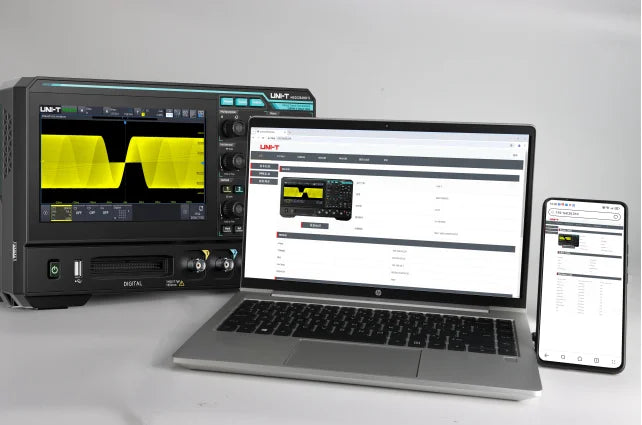

WebServer

SCPI for remote checking and control / Export waveform files / Browsing the user manual online / PC/Mobile phone access
