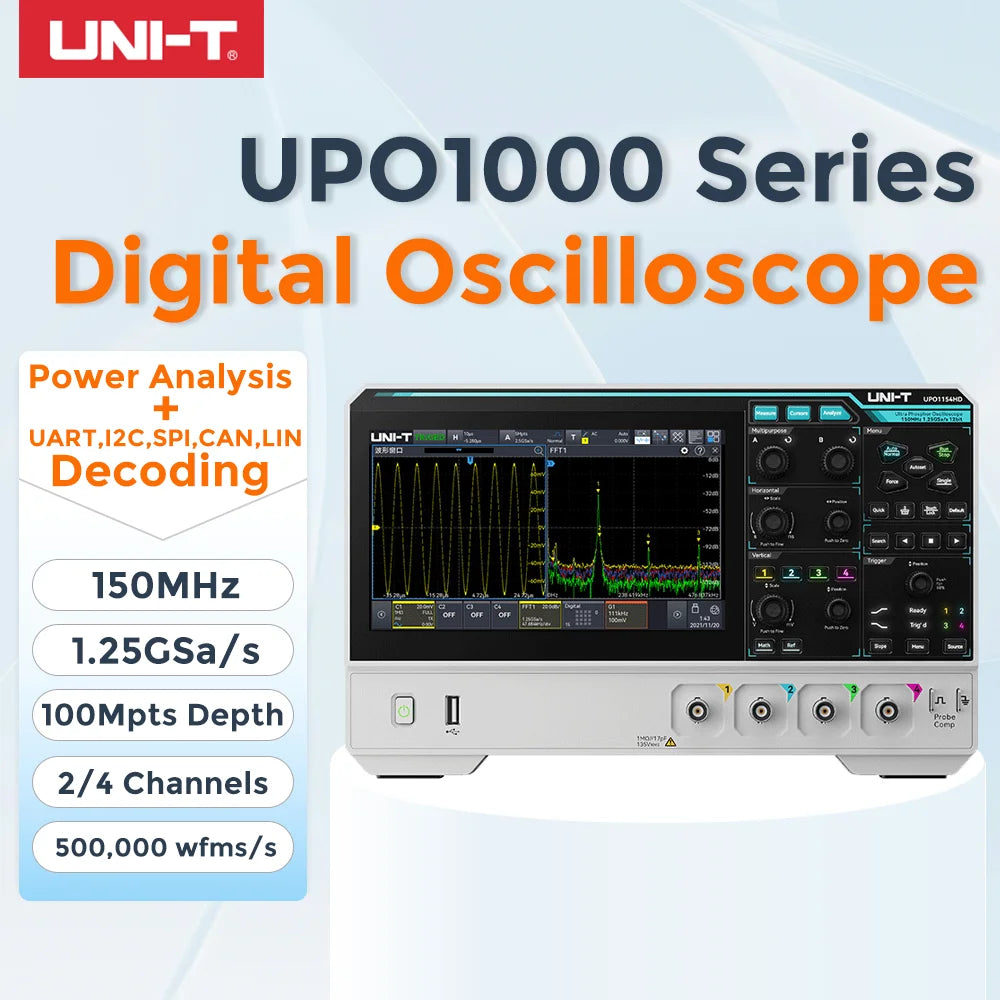

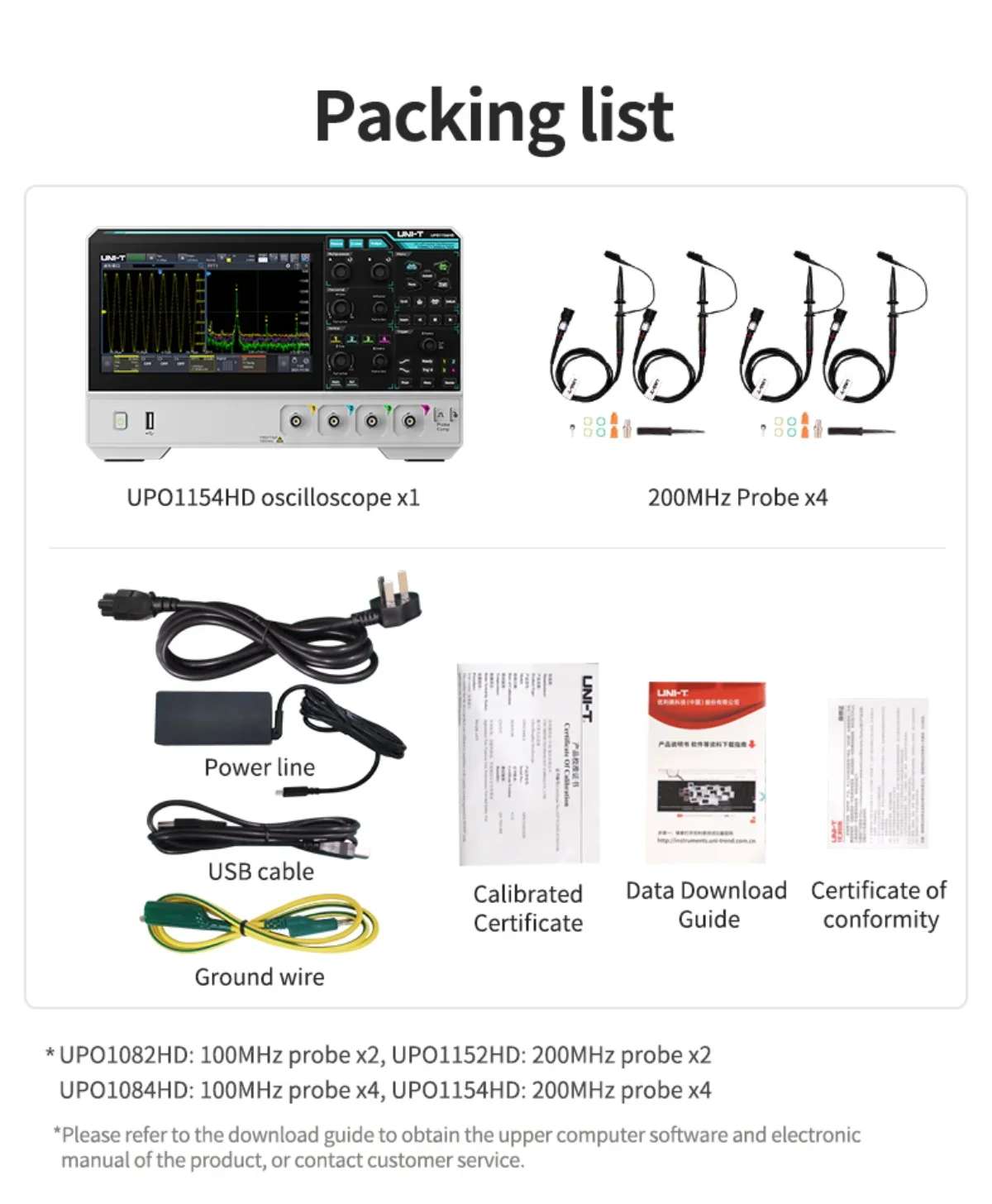

UNI-T UPO1000HD Series 12bit High-Res Oscilloscope | 150MHz 2/4CH with Power Analysis | UART/I2C/SPI/CAN/LIN Decoding
UPO1154HD / AU
$669.17
Skip to product information
UNI-T UPO1000HD Series 12bit High-Res Oscilloscope | 150MHz 2/4CH with Power Analysis | UART/I2C/SPI/CAN/LIN Decoding
$669.17
SPECIFICATIONS
Band Width: 150MHz
Battery Included: No
Brand Name: NONE
DIY Supplies: Electrical
Digital Channels: 2/4
Display Resolution: 12bit
Display Size: 7 Inches & Above
High-concerned chemical: None
Max Waveform Capture Rate: 500,000wfm/s
Model Number: UPO1152HD&UPO1154HD
Origin: Mainland China
Power Input Analysis: Power Quality, Harmonic Analysis, Inrush Current
Power Output Analysis: Ripple Analysis, Modulation Analysis, Power Efficiency, Transient response, ON/OFF time
Power Supply: USB Type-C
Power Switching Analysis: Switching Loss, Safe Operating Area (SOA), Slew Rate, Steady-State On-Resistance
Protocol decoding: UART,I2C,SPI,CAN,LIN
Real Time Sampling Rate: 1.25GSa/s
Record Length: 100Mpts
UNI-T UPO1000HD Series 12bit High-Res Oscilloscope | 150MHz 2/4CH with Power Analysis | UART/I2C/SPI/CAN/LIN Decoding

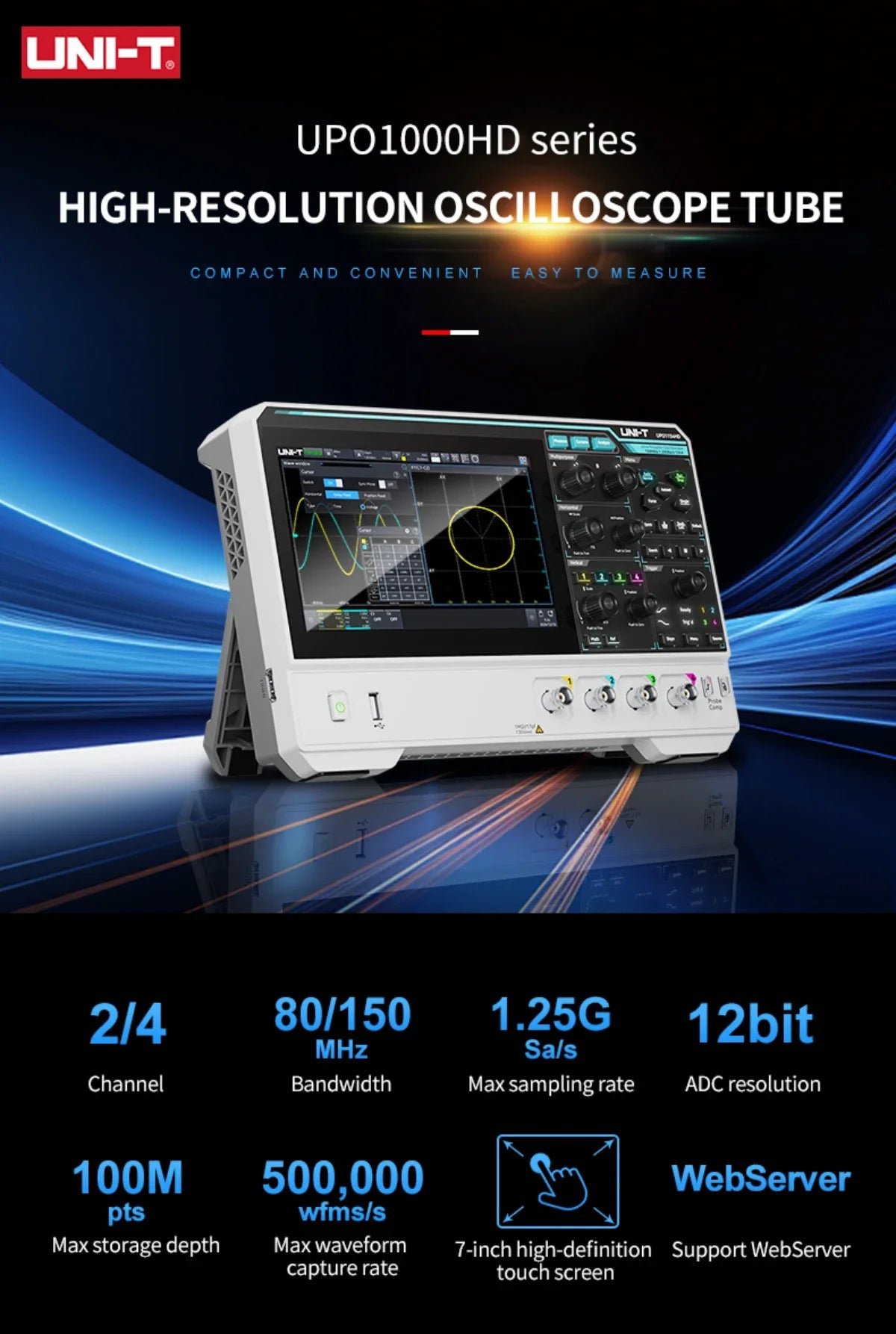

High-Resolution UPO1000HD series high-resolution oscilloscope has the maximum bandwidth of 150 MHz, the maximum sampling rate of 1.25 GSa/s, and is equipped with 4/2 analog channels , with the memory depth of up to 100 Mpts. High-Resolution UPO1000HD series adopts exclusive Ultra Phosphor 3.0 technology, achieving the waveform capture rate of
up to 100,000 wfms/s, with 256 levels of gray temperature colors, and features an innovative digital trigger system with high trigger sensitivity and low jitter.
Product Features

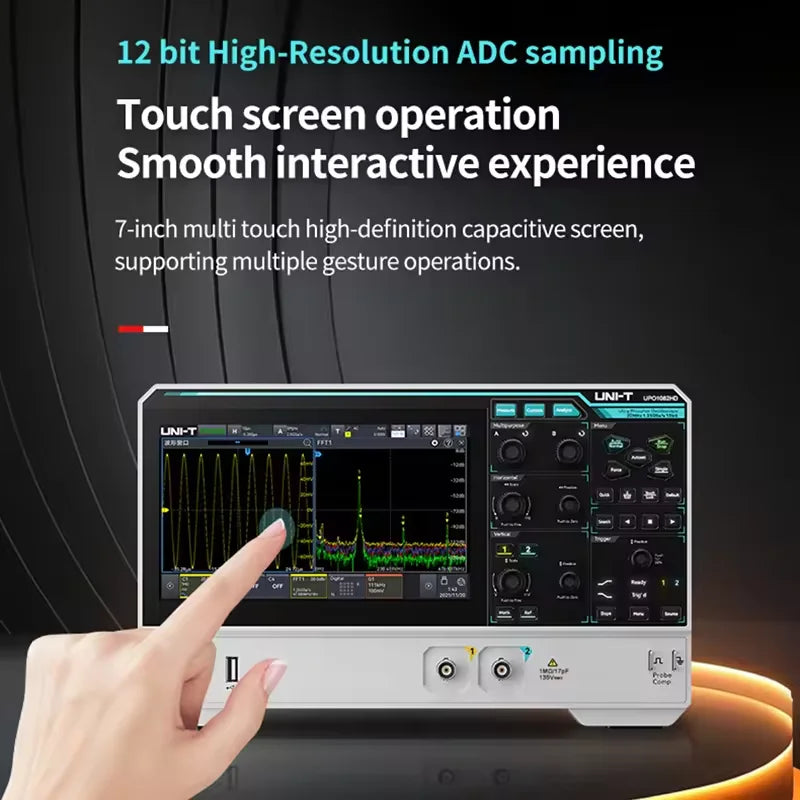

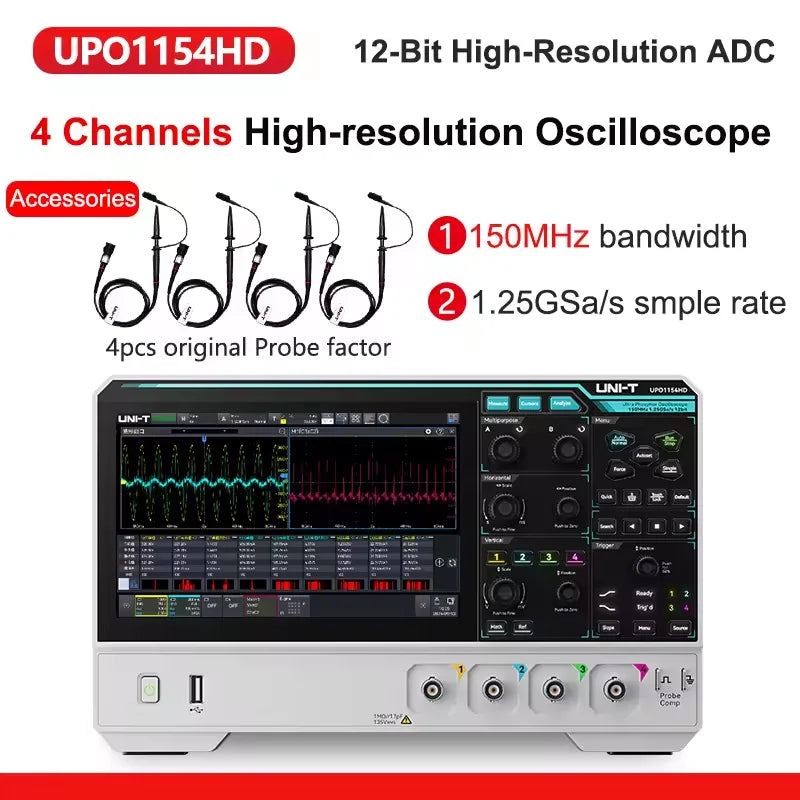

●12-Bit High-Resolution ADC
12-bit high-resolution ADC sampling has a quantization level of up to 4096, which is 16 times that of a traditional 8-bit ADC, allowing for better restoration of waveform details.

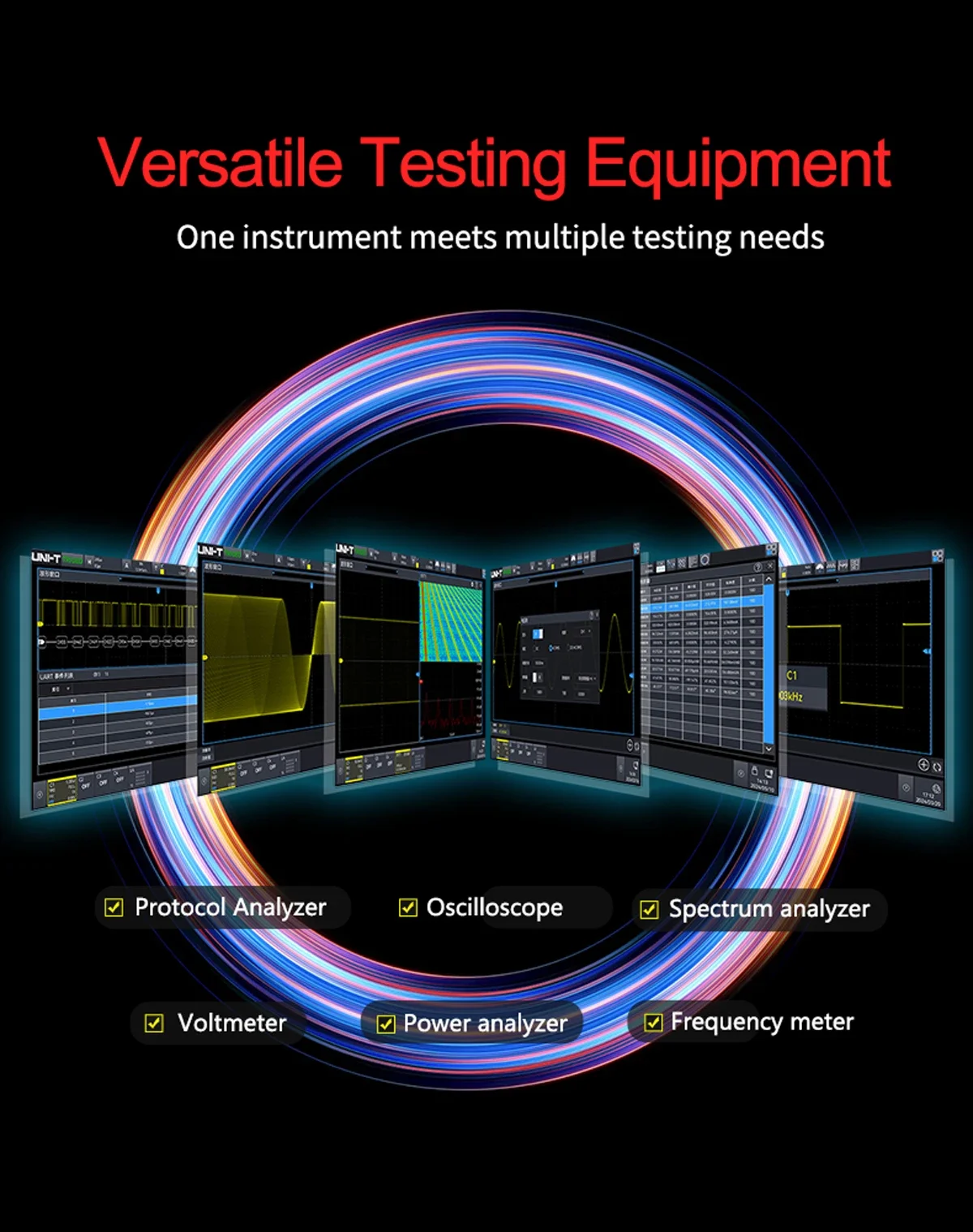

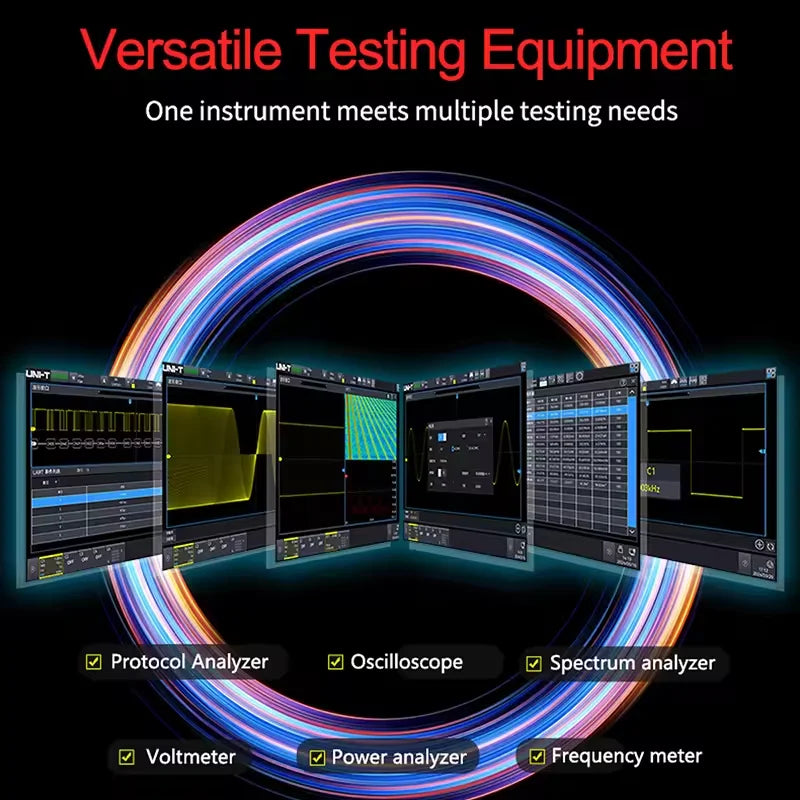

●Versatile Testing Equipment
-Oscilloscopes
-Spectrum Analyzer
-Protocol Analyzer
-Power Analyzer
-High Precision Frequency Counter
-Digital Voltmeter

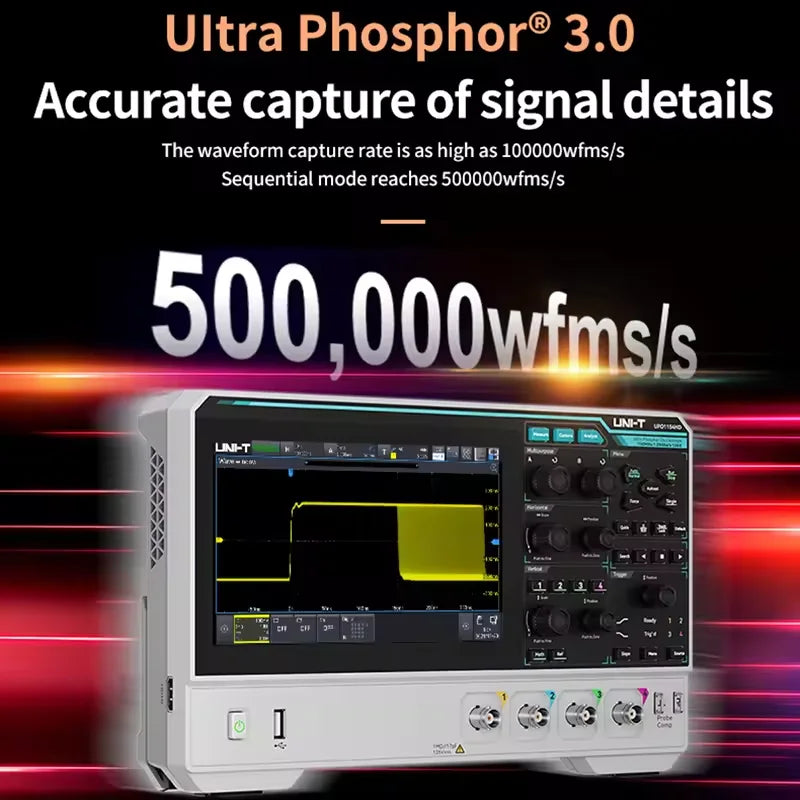

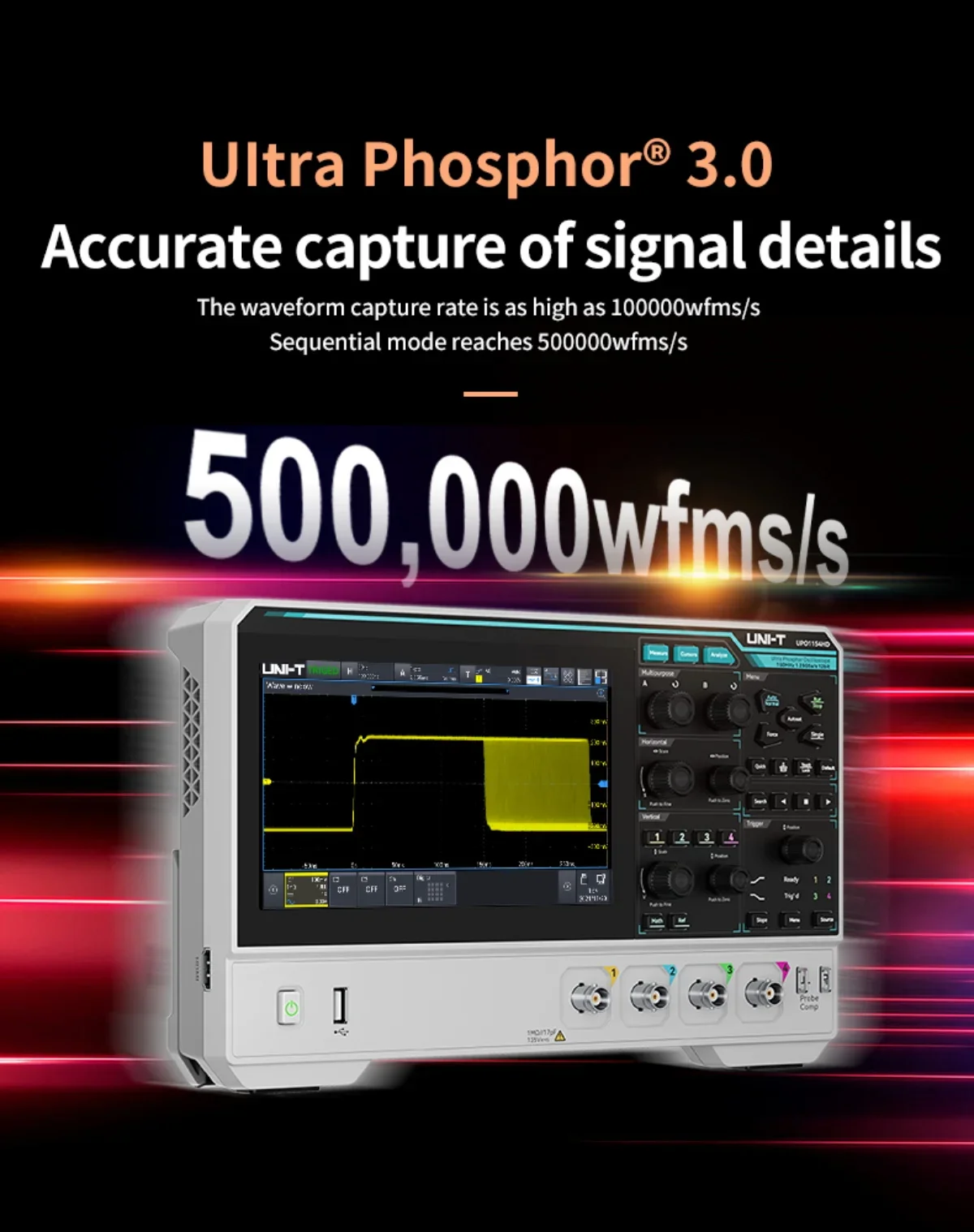

●Ultra Phosphor 3.0
Supports 8-channel parallel graph mapping, the processing rate is up to 20 Gbps, the waveform capture rate is up to 100,000 wfms/s, and up to 500,000 wfms/s in the sequence mode.

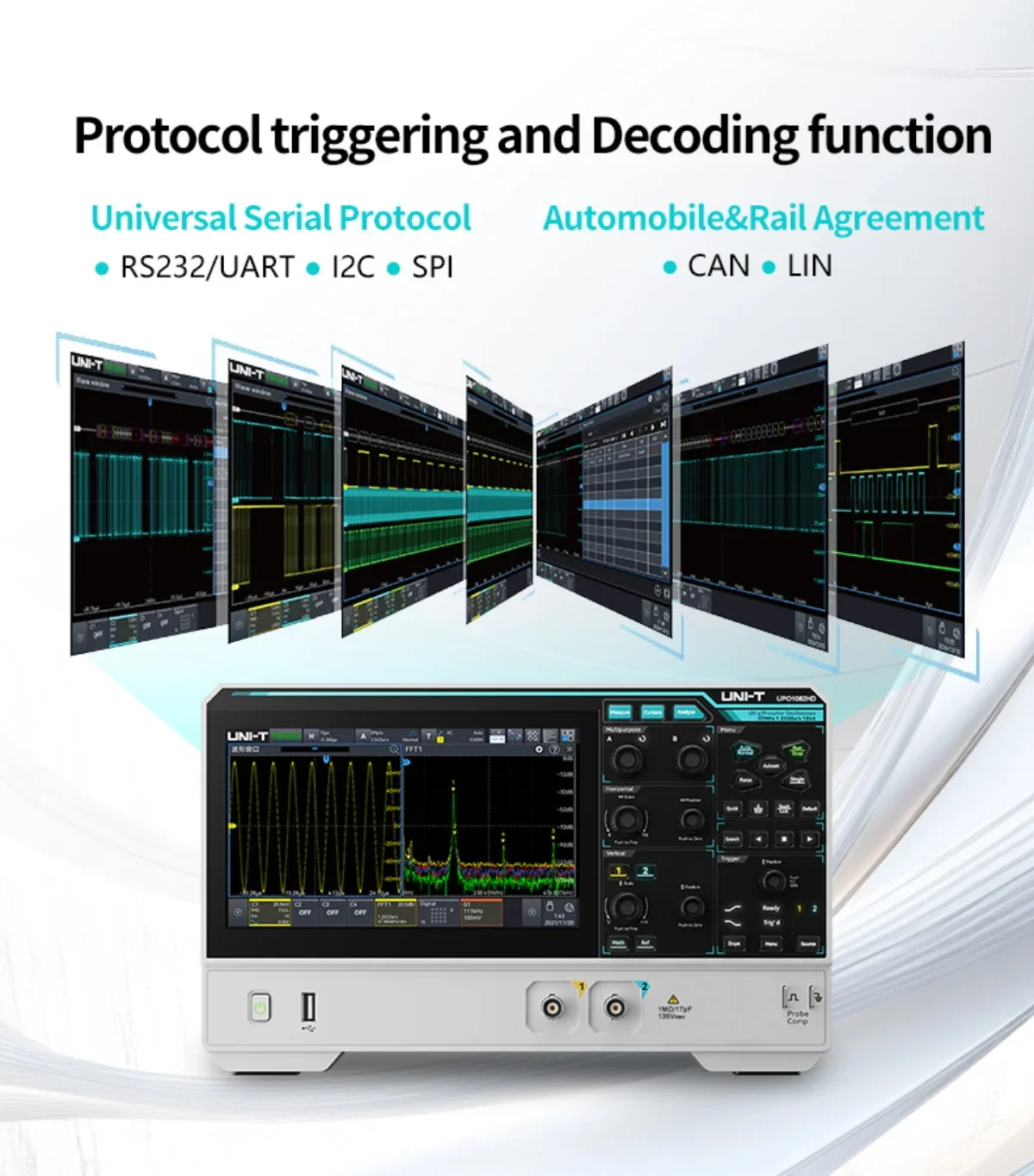

●Protocol decoding and triggering
Supports 5 types of mainstream protocols, including
-Embedded: UART, I2C, SPI
-Automobile: CAN, LIN
●56 Types: Measurement, Statistics, Trend Graphs
56 types of precise parameter automatic measurements covering multiple dimensions such as voltage, frequency, phase, and power. It also integrates advanced parameter statistics and trend graph visualization analysis functions, providing a comprehensive and multi-dimensional display of signal characteristic changes, achieving professional-level deep insights and efficient data interpretation.
●Spectrum Analyzer
-Standard enhanced FFT with up to 1 Mpts for 4-channel signal analysis
-Frequency range: 0 to 625 MHz
-Waterfall curve
-4 traces and 4 detections
-Mark type: Auto, manual, and threshold
-Marker point list
●Power Analysis
Input Analysis:Power Quality, Harmonic Analysis, Inrush Current
Switching Analysis:Switching Loss, Safe Operating Area (SOA), Slew Rate, Steady-State On-Resistance
Output Analysis:Ripple Analysis, Modulation Analysis, Power Efficiency, Transient response, ON/OFF time

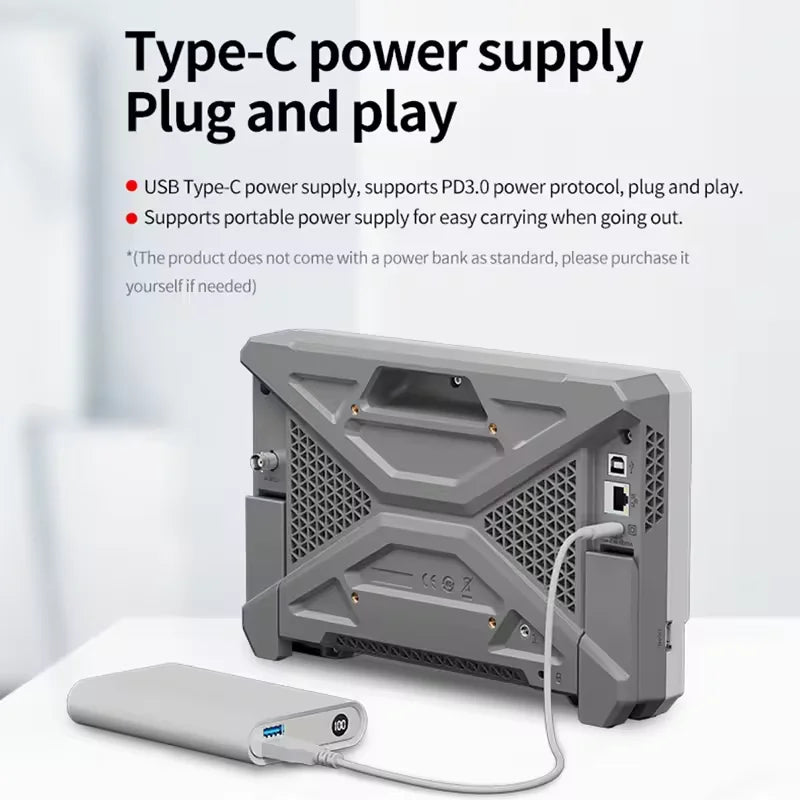

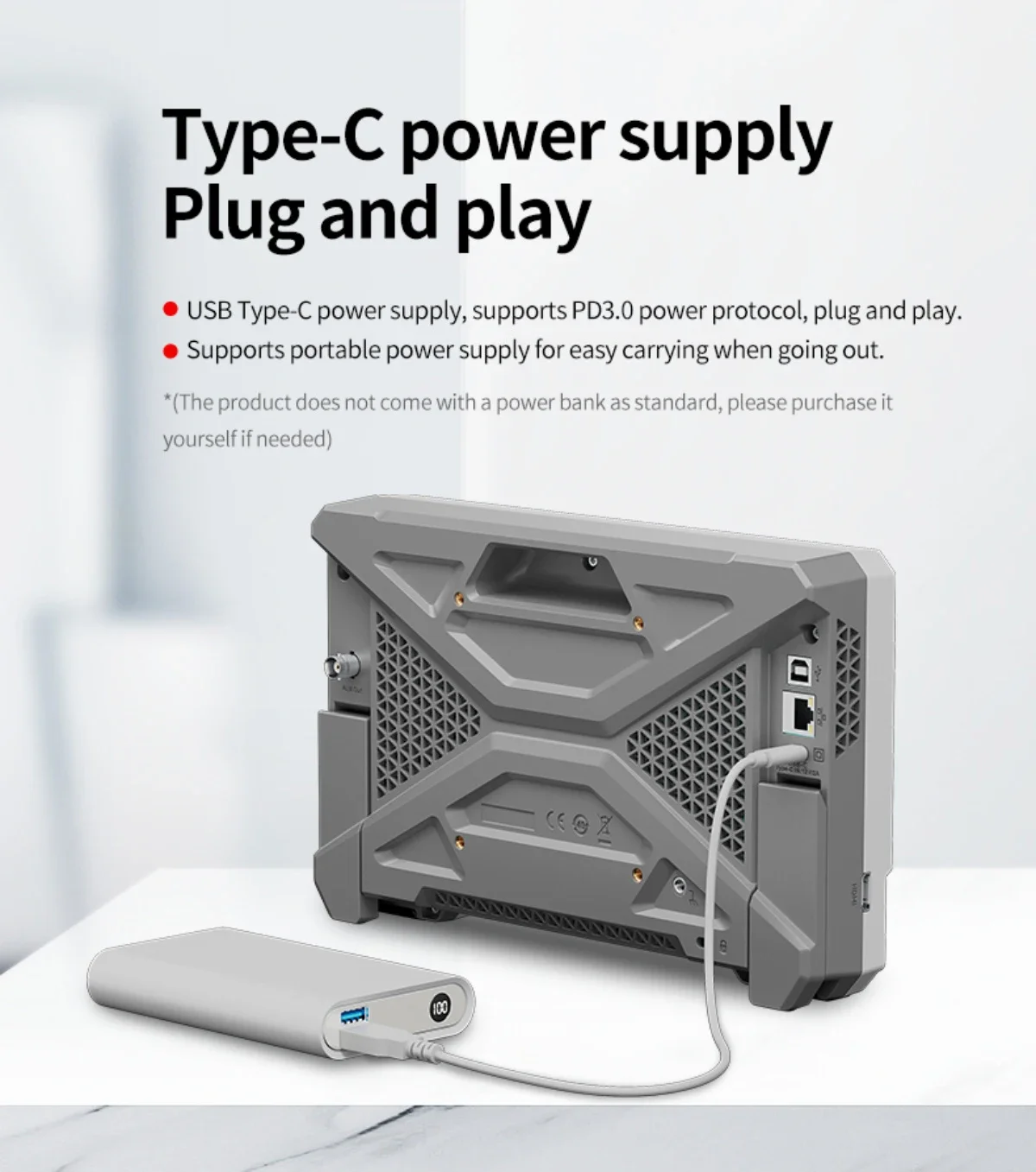

●Type-C for Power Supply
UPO1000HD series adopts the latest Type-C power supply method. When no power source is available outdoors, it can be powered by a portable charger

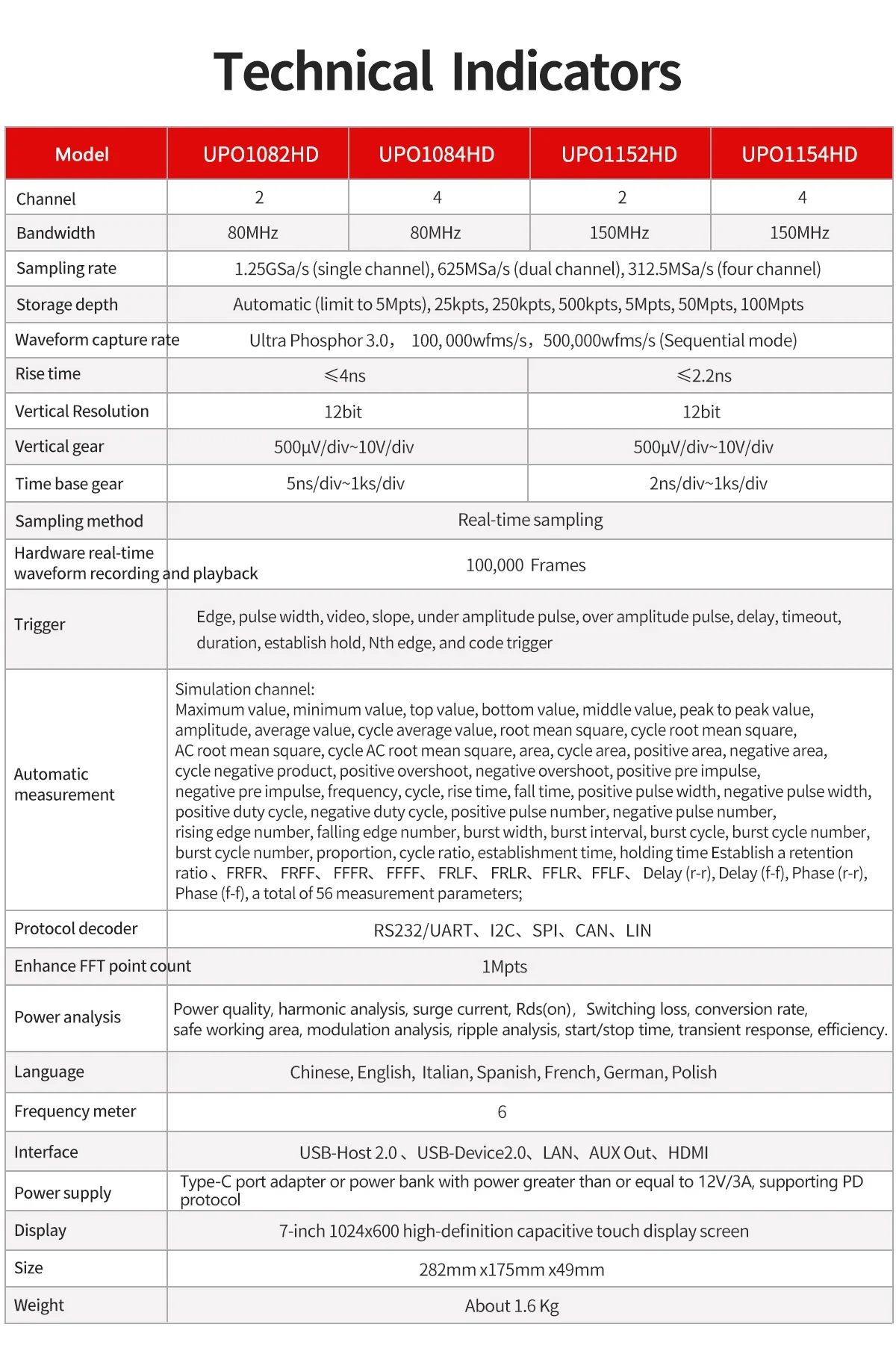

Product Specification
Model |
UPO1082HD |
UPO1084HD |
UPO1152HD |
UPO1154HD |
Channel |
2 |
4 |
2 |
4 |
Bandwidth |
80MHz |
80MHz |
150MHz |
150MHz |
Sampling rate |
1.25GSa/s (single channel),625MSa/s (dual channel),312.5MSa/s (four channel) |
|||
Storage depth |
Automatic (limit to 5Mpts),25kpts,250kpts,500kpts,5Mpts,50Mpts, 100Mpts |
|||
Waveform capture rate |
Ultra Phosphor 3.0，100,000wfms/s，500,000wfms/s (Sequential mode) |
|||
Rise time |
≤4ns |
≤2.2ns |
||
Vertical Resolution |
12bit |
|||
Vertical gear |
500μv/div~10V/div |
|||
Time base gear |
5ns/div~1ks/div |
2ns/div~1ks/div |
||
Sampling method |
Real-time sampling |
|||
Hardware real-time waveform recording and playback |
100,000 Frames |
|||
Trigger |
Edge,pulse width,video, slope, under amplitude pulse, over amplitude pulse,delay,timeout,duration, establish hold, Nth edge, and code trigger |
|||
Automatic measurement |
Simulationchannel: |
|||
Protocol decoder |
RS232/UART、I2C、SPI、CAN、LIN |
|||
Enhance FFT point count |
1Mpts |
|||
Power analysis |
Power quality, harmonic analysis, surge current, Rds(on), Switching loss,conversion rate,safe working area, modulation analysis, ripple analysis,start/stop time, transient response, efficiency. |
|||
Language |
Chinese, English, Italian,Spanish, French,German, Polish |
|||
Frequency meter |
6 |
|||

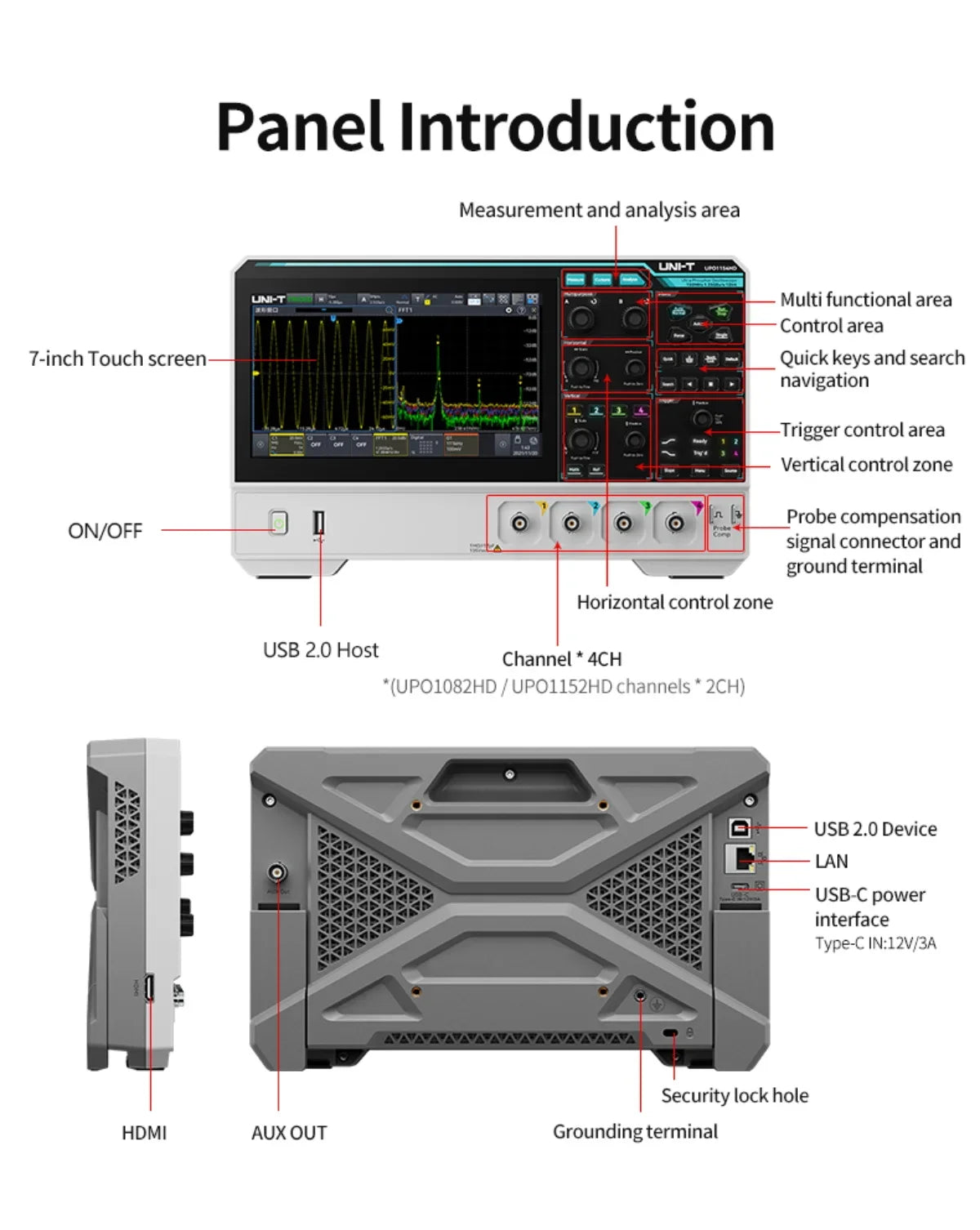

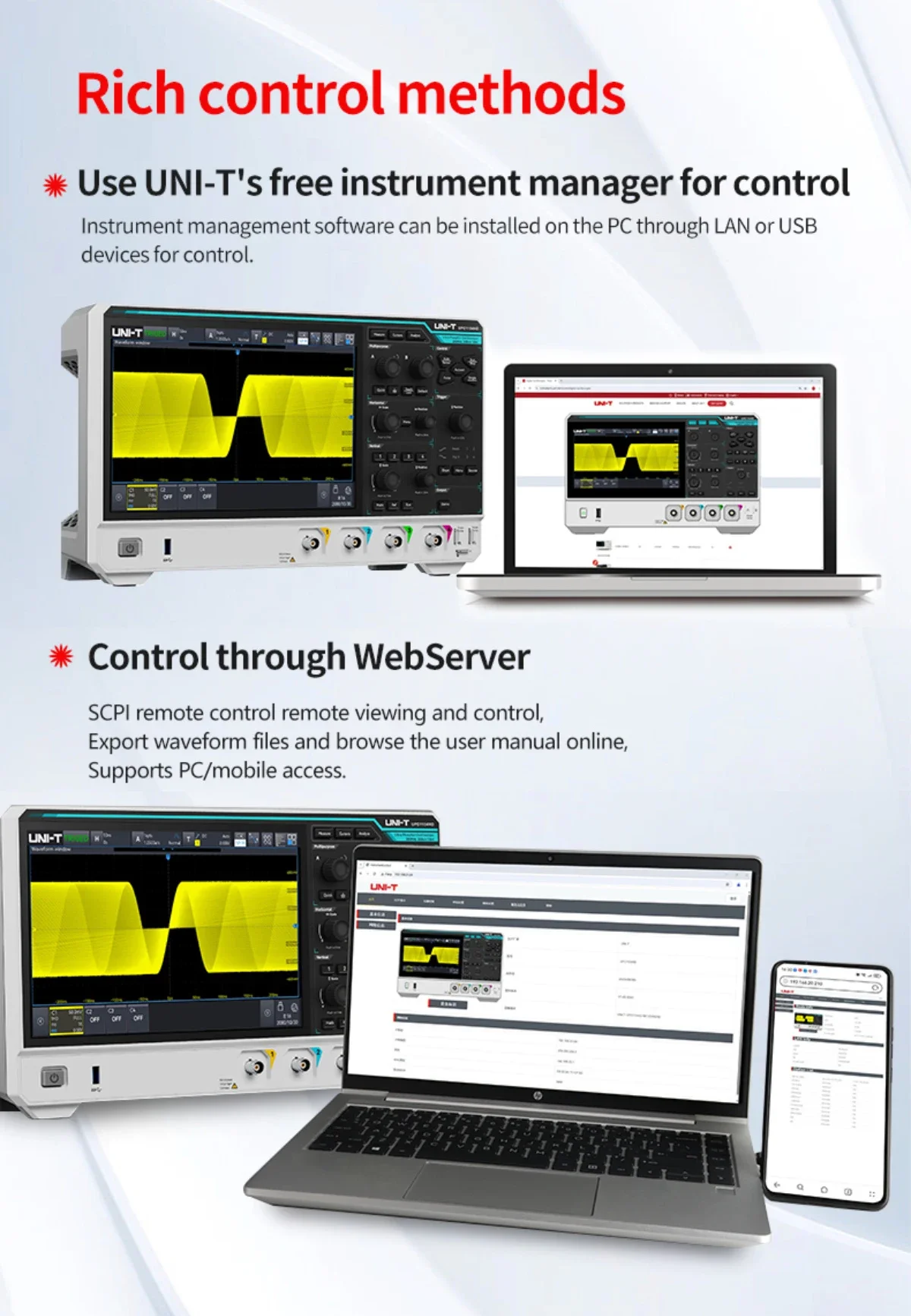

Interface |
USB-Host 2.0、USB-Device2.0、LAN、AUX Out、HDMI |
|||
Power supply |
Type-C port adapter or power bank with power greater than or equal to 12v/3A,supporting PD protocol |
|||
Display |

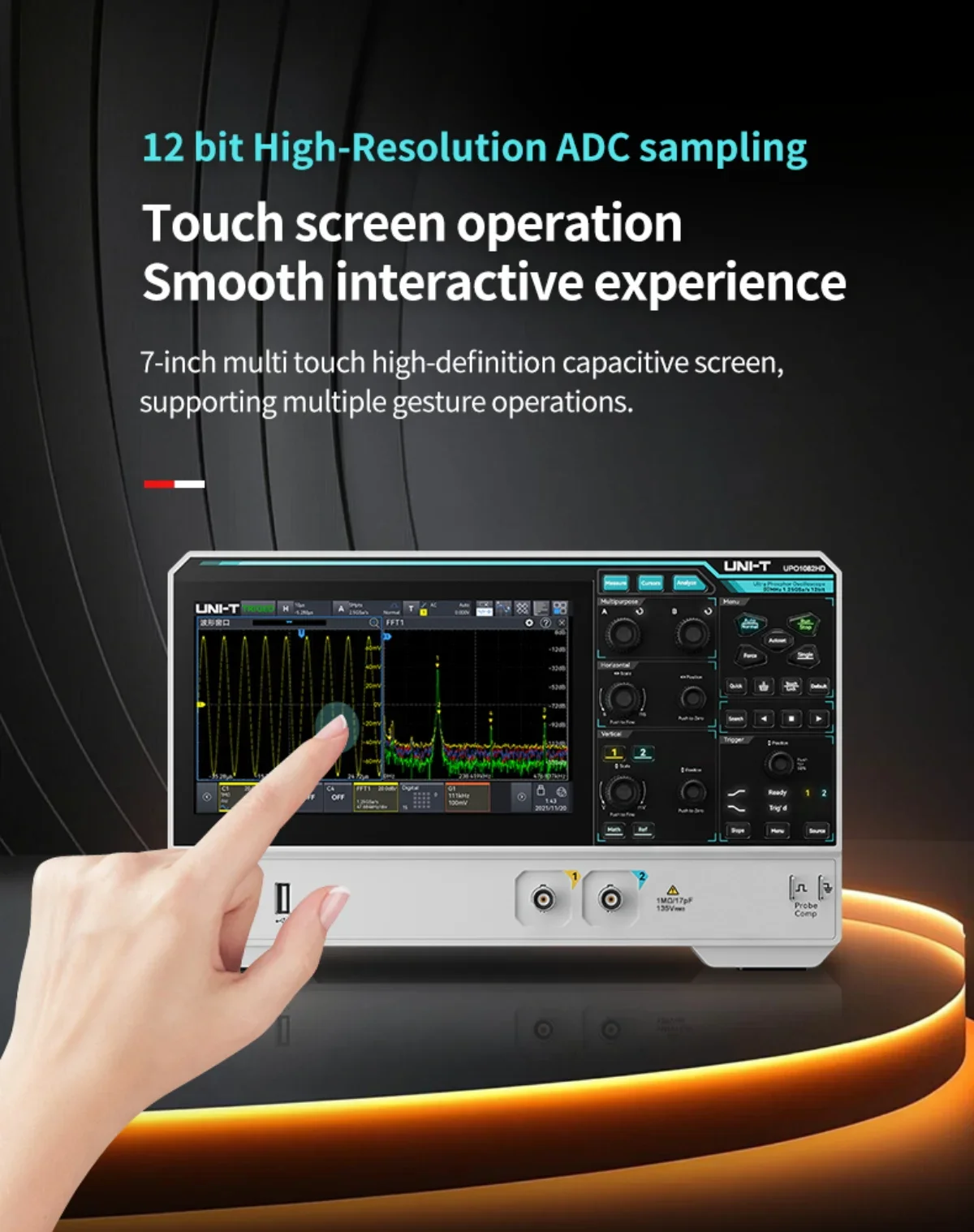

7-inch 1024x600 high-definition capacitive touch display screen |
|||

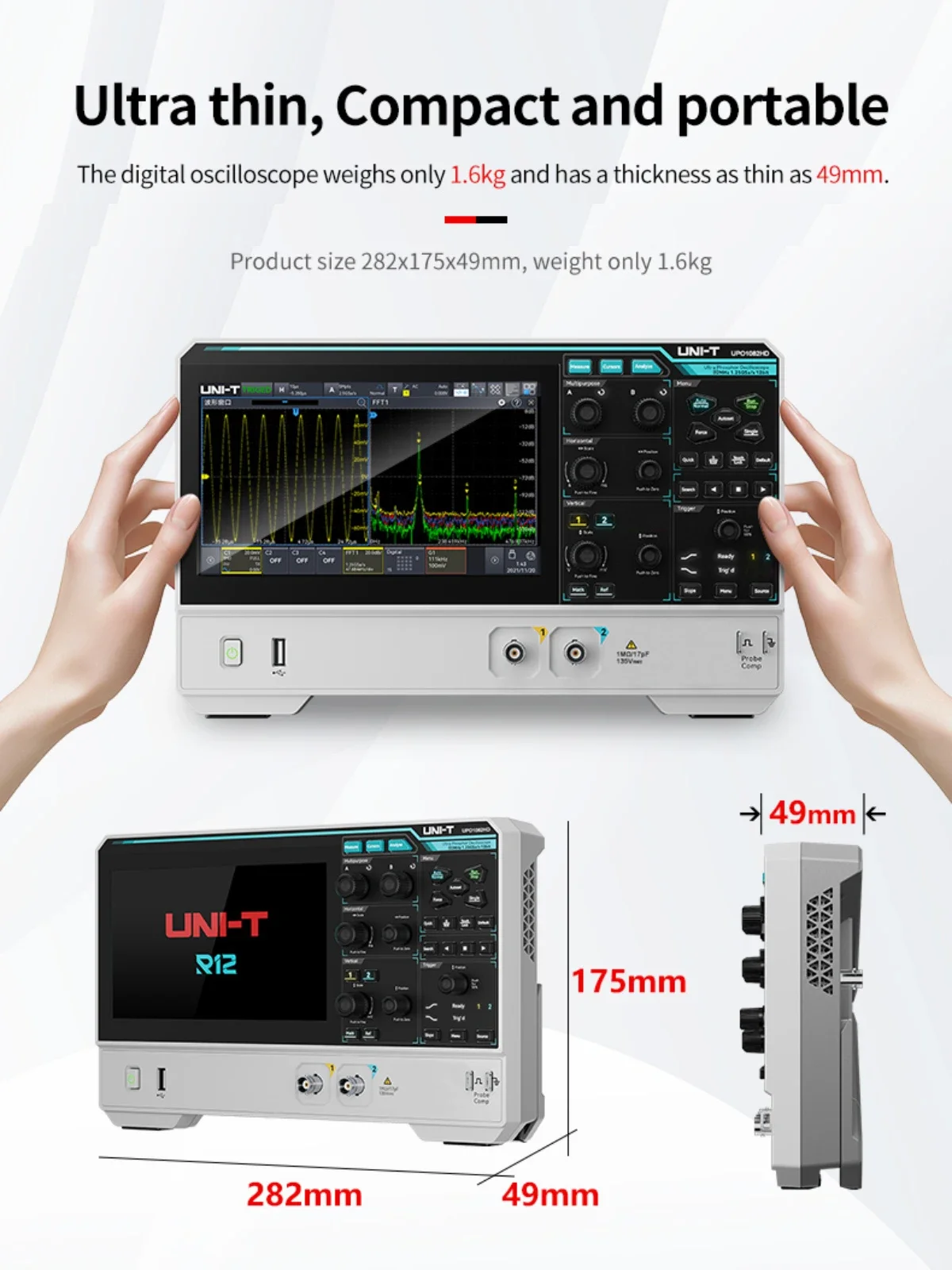

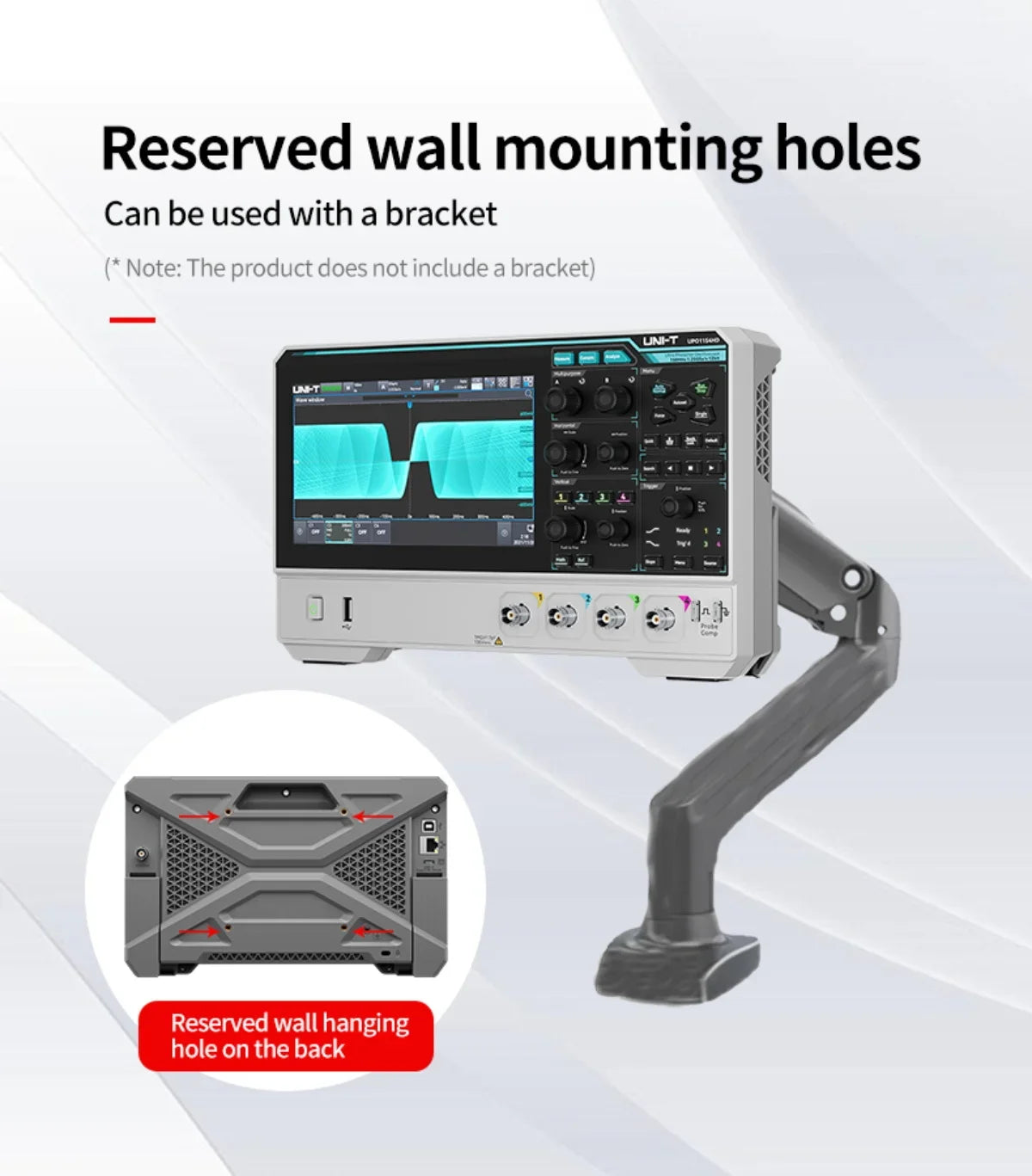

Size |
282mmx175mmx49mm |
|||
Weight |
About 1.6 Kg |
|||
